槐米制备槲皮素及其与粘杆菌素联用对沙门氏菌的作用

doi:10.13304/j.nykjdb.2024.0157

摘要/Abstract

摘要：

槲皮素是一种黄酮类化合物，具有多种生物活性，大多以糖苷类化合物形式存在植物中。槐米是一种理想的制备槲皮素的原料，具有种植面积广、价格低廉等优点。探讨了黑曲霉发酵槐米制备的槲皮素与粘杆菌素联合作用对沙门氏菌（Salmonella spp.）的抑制效果。通过黑曲霉与槐米的半固体发酵及超声提取方法，从发酵产物中提取槲皮素，采用HPLC和ESI-MS/NMR技术进行纯化和结构鉴定，并利用肉汤稀释法和棋盘格法评估了槲皮素与粘杆菌素对沙门氏菌的单独及联合抑制效果。结果表明，槲皮素含量在发酵96 h达到最高，为73.7 mg·g^-1。经提取、纯化和结构鉴定的槲皮素纯度≥98%。在抗菌活性评估中，粘杆菌素对鼠伤寒沙门氏菌（S. typhimurium）、鸡白痢沙门氏菌1789（S. pullorum 1789）和鸡白痢沙门氏菌520（S. pullorum 520）的最小抑菌质量浓度（minimal inhibitory concentration，MIC）分别为2、8和4 μg·mL^-1，而槲皮素对上述菌株的MIC均超过500 μg·mL^-1。制备的槲皮素与粘杆菌素联用时，对3株沙门氏菌均表现出联合抗菌效果，尤其对鸡白痢沙门氏菌1789和520，其分数抑制浓度指数（fractional inhibitory concentration index，FICI）值均低于0.5，并且粘杆菌素的MIC值在联用后均降为1 μg·mL^-1，表明槲皮素与粘杆菌素之间存在显著的协同抑制作用。研究结果证明了通过黑曲霉发酵槐米制备的槲皮素与粘杆菌素联合对沙门氏菌具有协同抑制作用，为开发新型抗菌组合策略提供了科学参考依据。

关键词: 槲皮素, 槐米, 黑曲霉, 粘杆菌素, 沙门氏菌, 协同抑制

Abstract:

Quercetin is a flavonoid compound with various biological activities， mostly existing in the form of glycosides in plants. Sophora japonica is an ideal raw material for preparing quercetin， with advantages such as wide planting area and low price.　This study investigated the synergistic antibacterial effects of quercetin against Salmonella spp. that combined with colistin. The quercetin was prepared from the Sophora japonica buds Aspergillus niger fermentation and isolated from the semi-solid fermentation products using ultrasonic extraction methods， purified and structurally identified using HPLC， ESI-MS and NMR methods. The antibacterial activities of quercetin and colistin， both individually and in combination， against Salmonella were evaluated using dilution and checkerboard methods. The results showed that the highest product of quercetin was 73.7 mg·g^-1after fermentation for 96 h and the purity reached to 98% after purification and identification. After evaluation of antibacterial activity， the minimum inhibitory concentrations （MICs） of colistin against S. typhimurium， S. pullorum 1789 and 520 were 2， 8， and 4 μg·mL^-1， respectively， while the MICs of quercetin against the mentioned strains were all above 500 μg·mL^-1. When quercetin was used together with colistin， the synergistic antibacterial effects were observed against above Salmonella strains， particularly against S. pullorum 1789 and 520， with fractional inhibitory concentration index （FICI） values below 0.5， and the MIC value of colistin were reduced to 1 μg·mL^-1. The study demonstrated the synergistic inhibitory effect of quercetin prepared from Sophora japonica through A. niger fermentation combined with colistin against Salmonella， providing a scientific basis for developing new antibacterial combination strategies.

Key words: quercetin, Sophora japonica, Aspergillus niger, Salmonella, colistin, synergistic inhibition

中图分类号:

S567

熊小艳, 田丹丹, 弓雨欣, 乔宇, 徐小轻, 何孟欣, 石波, 彭晴. 槐米制备槲皮素及其与粘杆菌素联用对沙门氏菌的作用[J]. 中国农业科技导报, 2025, 27(6): 136-147.

Xiaoyan XIONG, Dandan TIAN, Yuxin GONG, Yu QIAO, Xiaoqing XU, Mengxin HE, Bo SHI, Qing PENG. Preparation of Quercetin from Sophora japonica and Its Effect Together with Colistin on Salmonella spp.[J]. Journal of Agricultural Science and Technology, 2025, 27(6): 136-147.

图/表 9

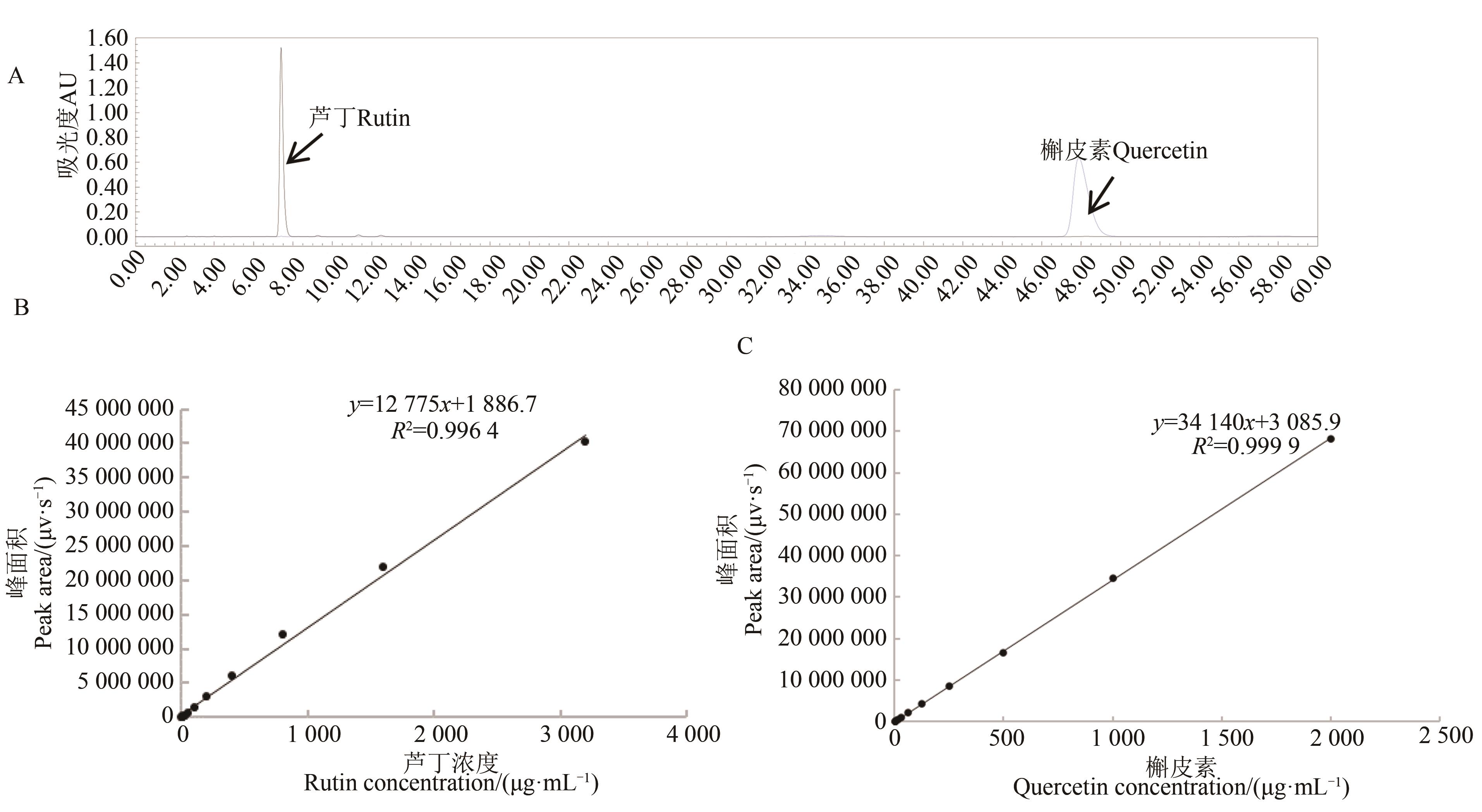

图1 芦丁和槲皮素标准品的定量分析A：芦丁和槲皮素混合标准品的HPLC谱图；B：芦丁的标准曲线；C：槲皮素的标准曲线

Fig. 1 Quantitative analysis of rutin and quercetin standardsA： HPLC chromatogram of the mixed standards of rutin and quercetin； B： Quantitative standard curve of rutin； C： Quantitative standard curve of quercetin

图2 槐米发酵过程中芦丁和槲皮素含量的变化趋势A：槐米在发酵过程中的HPLC谱图；B：槐米在发酵过程中芦丁与槲皮素含量的变化

Fig. 2 Trends of rutin and quercetin content during the fermentation of Sophora japonicaA： HPLC spectra of Sophora japonica during fermentation； B： Changes in rutin and quercetin content of Sophora japonica during fermentation

表1 发酵槐米提取物中槲皮素分离纯化结果

Table 1 Isolation and purification result of quercetin from fermented Sophora japonica extracts

纯化步骤

Purification step

槲皮素含量

Quercetin content/（mg·g^-1）

槲皮素回收率

Quercetin recovery/%

槲皮素纯度

Quercetin purity/%

发酵槐米

Fermented Sophora japonica

73.7±4.73

100.00±0.09

7.37±0.03

槲皮素粗提物（水洗、乙醇萃取）

Quercetin crude extracts （water washing， ethanol extraction）

321.5±5.88

79.83±0.014

32.15±0.67

色谱纯化

Chromatography purification

980.5±1.21

4.14±0.023

98.00±0.034

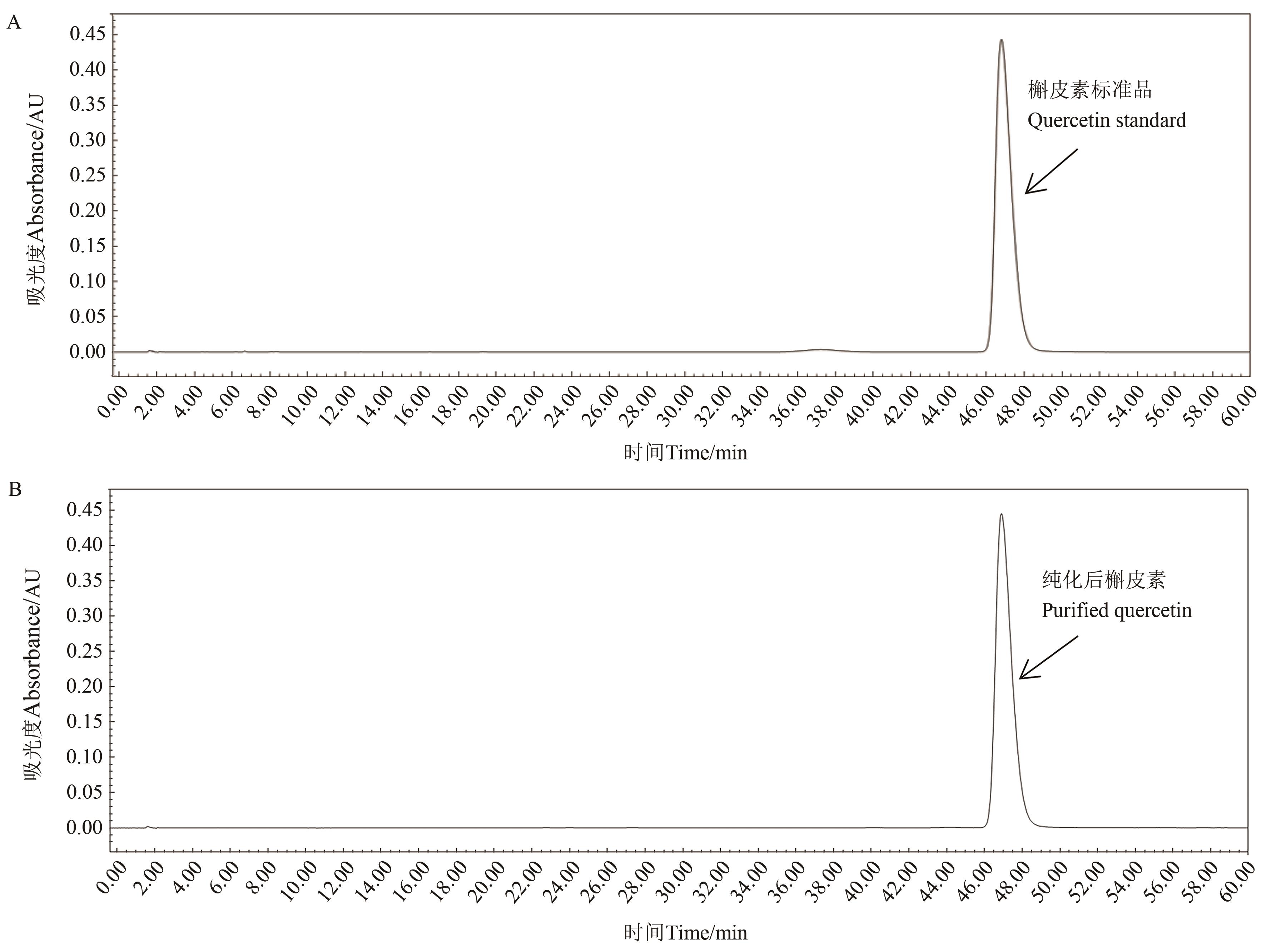

图3 分离纯化的槲皮素HPLC谱图A：槲皮素标准品；B：分离纯化后的槲皮素样品

Fig. 3 HPLC spectrum of isolated and purified quercetinA： Standard quercetin； B： Purified quercetin

图4 从槐米发酵产物中纯化的槲皮素ESI-MS质谱图

Fig. 4 ESI-MS mass spectra of quercetin purified from the fermentation product of Sophora japonica

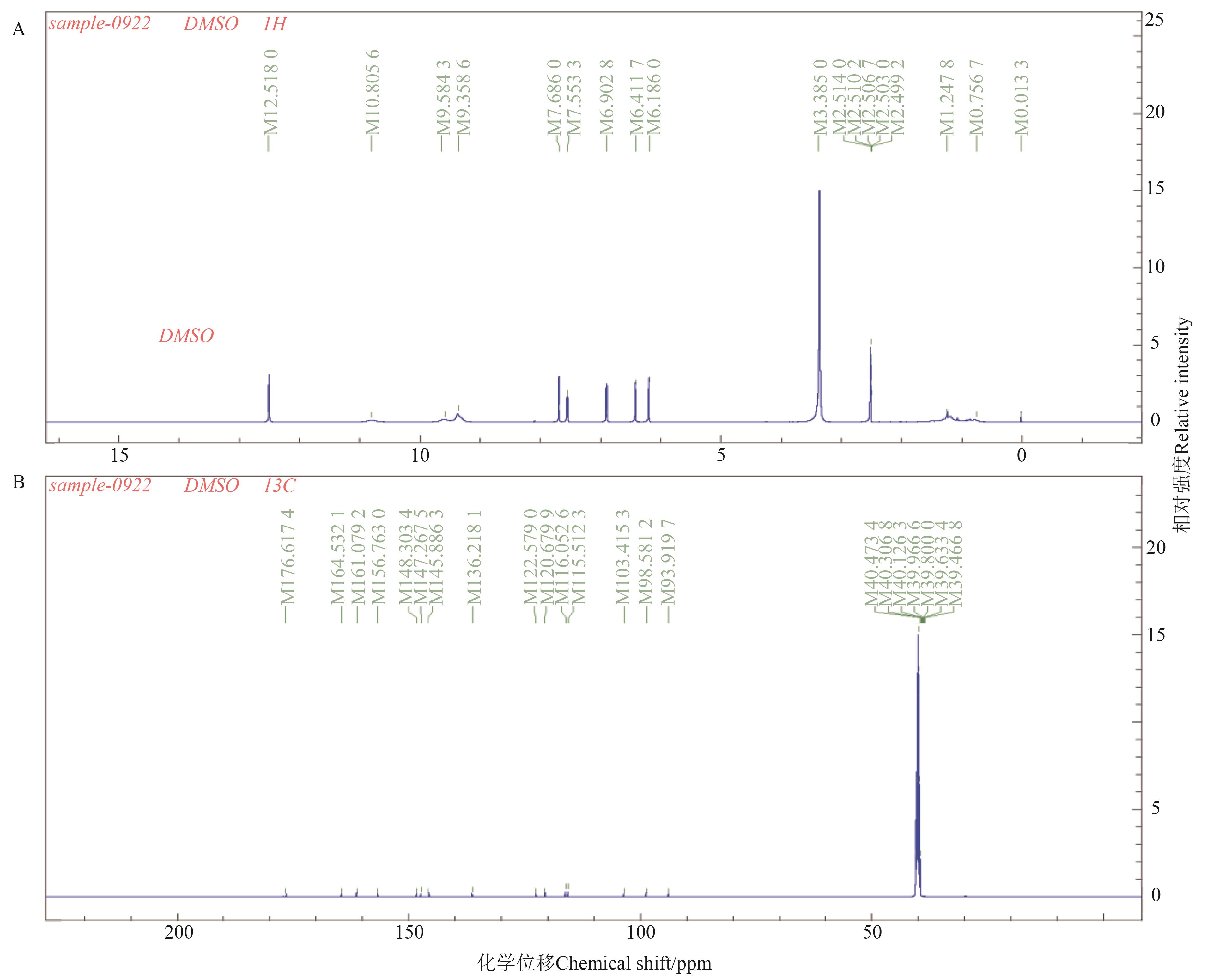

图5 分离纯化后槲皮素NMR谱图A：1H NMR；B：13C NMR

Fig. 5 NMR spectrum of quercetin after isolation and purification

表2 粘杆菌素和槲皮素单药使用时对沙门氏菌的MIC值

Table 2 MIC values of Colistin and Quercetin when used as single agents against Salmonella spp.

	最小抑菌浓度 Minimal inhibit concentration
菌株名称 Strain name	粘杆菌素 Colistin/（μg·mL^-1）	槲皮素 Quercetin/（μg·mL^-1）
鼠伤寒沙门氏菌 Salmonella typhimurium	2	>500
鸡白痢沙门氏菌1789 Salmonella pullorum 1789	8
鸡白痢沙门氏菌520 Salmonella pullorum 520	4

图6 槲皮素与粘杆菌素联合使用对3种沙门氏菌的抑制作用A：鼠伤寒沙门氏菌；B：鸡白痢沙门氏菌1789；C：鸡白痢沙门氏菌520

Fig. 6 Inhibition of quercetin combined with colistin on 3 strains of SalmonellaA：Salmonella typhimurium； B：Salmonella pullorum 1789；C：Salmonella pullorum 520

表3 槲皮素和粘杆菌素抑制沙门氏菌的MIC和FICI

Table 3 MIC and FICI of quercetin and colistin inhibiting Salmonella

菌株名称 Strain name	槲皮素 MIC Quercetin MIC/（μg·mL^-1）		粘杆菌素 MIC Colistin MIC/（μg·mL^-1）		FICI 值 FICI value	联用效果 Effect
菌株名称 Strain name	单用 Alone	联用 Combination	单用 Alone	联用 Combination	FICI 值 FICI value	联用效果 Effect
鼠伤寒沙门氏菌 Salmonella typhimurium	>500	250	2	1	1	相加 Additive
鸡白痢沙门氏菌1789 Salmonella pullorum 1789	>500	125	8	1	0.375	协同 Synergy
鸡白痢沙门氏菌520 Salmonella pullorum 520	>500	62.5	4	1	0.375	协同 Synergy

参考文献 38

1	WEI Z Z, FENG S X, FANG X Y, et al.. Characteristics and application analysis of traditional Chinese medicine containing sophora japonica [J/OL] IOP Conf. Ser.: Mater. Sci. Eng., 2018, 301: 012064 [2024-05-05]. .
2	谢凤凤, 朱华. 槲皮素衍生物的合成及生物活性研究进展[J]. 壮瑶药研究, 2023, 43(2): 55-61.
	XIE F F, ZHU H. Research progress in the synthesis and biological activity of quercetin derivatives [J]. Res. Zhuang and Yao Ethnic Med., 2023,43(2): 55-61.
3	MAKSIMENKO E V, LEKAR A V, BORISENKO S N, et al.. The development of a one-step method for production of the antioxidant quercetin from flower buds of the Sophora japonica (Sophora japonica L.) in a subcritical water medium [J]. Russ. J. Phys. Chem. B, 2018, 12(8): 1269-1275.
4	WANG R P, CHANG Y N, TAN Z J, et al.. A novel combined process for extracting, separating and recovering flavonoids from flos sophorae immaturus [J]. Sep. Purif. Technol., 2017, 172: 422-432.
5	ABDELHADY M I S, KAMAL A M, OTHMAN S M, et al.. Total polyphenolic content, antioxidant, cytotoxic, antidiabetic activities, and polyphenolic compounds of Sophora japonica grown in Egypt [J]. Med. Chem. Res., 2015, 24(2):482-495.
6	WANG J R,S ONG X H, LI L Y, et al.. Metabolomic analysis reveals dynamic changes in secondary metabolites of Sophora japonica L. during flower maturation [J/OL]. Front. Plant Sci., 2022, 13: 916410 [2024-07-15]. .
7	刘兴,岑忠丽,白安琴,等.云南昆明的槐米中芦丁的提取及纯化探究[J].山东化工,2021,50(16):44-45, 49.
	LIU X, CEN Z L, BAI A Q, et al..Extraction and purification of rutin from SopHora japonica [J]. Shandong Chem.Ind., 2021, 50(16): 44-45, 49.
8	高陪,苏建,沈竞,等.微生物发酵转化芦丁制备槲皮素的研究[J].四川大学学报(自然科学版),2010,47(6):1429-1433.
	GAO P, SU J, SHEN J, et al.. The preparation of quercetin through the transformation from rutin by the microbial fermentation [J]. J. Sichuan Univ. (Nat. Sci..), 2010, 47(6): 1429-1433.
9	WANG J, MENG W, WU F A, et al.. Directionally enzymatic hydrolysis of rutin for biosynthesis of quercetin [J]. J. Med. Plants Res., 2012,6(7):1130-1139.
10	王胜利,于虹,李超群,等.制备色谱法从槐米中同时精制芦丁和槲皮素[J].食品科技,2022,47(2):245-250.
	WANG S L, YU H, LI C Q, et al.. Preparation and purification of rutin and quercetin from Sophora japonica by semi-preparative HPLC [J]. Food Sci. Technol., 2022,47(2):245-250.
11	ŠIMČÍKOVÁ D, KOTIK M, WEIGNEROVÁ L, et al.. α-L-Rhamnosyl-β-D-glucosidase (Rutinosidase) from Aspergillus niger: Characterization and synthetic sotential of a novel diglycosidase [J]. Adv. Synth. Catal., 2015, 357(1): 107-117.
12	KAPEŠOVÁ J, PETRÁSKOVÁ L, MARKOŠOVÁ K, et al.. Bioproduction of quercetin and rutinose catalyzed by rutinosidase: novel concept of “solid state biocatalysis” [J/OL]. Int. J. Mol. Sci., 2019,20(5): E1112 [2023-12-11]..
13	王园园,余伯阳,李星,等.灰色链霉菌对芦丁的生物转化及产物的抗氧化活性[J].中国天然药物,2006,4(1):66-69.
	WANG Y Y, YU B Y, LI X, et al.. Biotransformation of rutin by Streptomyces griseus and antioxidation of metabolites [J]. Chin. J. Nat. Med., 2006,4(1):66-69.
14	LIN S, ZHU Q Q, WEN L R, et al.. Production of quercetin,kaempferol and their glycosidic derivatives from the aqueous-organic extracted residue of litchi pericarp with Aspergillus awamori [J]. Food Chem., 2014,145:220-227.
15	HUANG G T, LAI M W, XU C H, et al.. Novel catabolic pathway of quercetin-3-O-rutinose-7-O-α-L-rhamnoside by Lactobacillus plantarum GDMCC 1.140:the direct fission of C-ring [J/OL]. Front. Nutr., 2022,9: 849439 [2023-11-30]. .
16	ZHENG Y D, LUO Q L, ZHOU M L, et al.. Isolation and screening of strains producing high amounts of rutin degrading enzymes from Fagopyrum tataricum seeds [J]. J. Basic. Microbiol., 2013,53(2):181-187.
17	SCHUSTER E, DUNN-COLEMAN N, FRISVAD J, et al.. On the safety of Aspergillus niger-a review [J]. Appl. Microbiol. Biotechnol., 2002, 59(4): 426-435.
18	殷俊磊,李求春,耿士忠,等.鸡白痢沙门菌研究进展[J].中国兽医学报, 2016, 36(9): 1624-1629.
	YIN J L, LI Q C, GENG S Z, et al.. Advances in Salmonella pullorum [J], Chin. J. Veterinary Sci., 2016, 36(9): 1624-1629.
19	CAPUANO F, MANCUSI A, CAPPARELLI R, et al.. Characterization of drug resistance and virulotypes of Salmonella strains isolated from food and humans [J]. Foodborne Pathog Dis., 2013,10(11):963-968.
20	BISWAS S, BRUNEL J M, DUBUS J C, et al.. Colistin: an update on the antibiotic of the 21st century [J]. Exp. Rev. Anti. Infect. Ther., 2012,10(8):917-934.
21	刘志科,杨宁宁,徐锦凤,等.鸡白痢沙门氏菌病原的分离鉴定及耐药性分析[J].中国畜牧兽医,2017,44(9):2792-2800.
	LIU Z K, YANG N N, XU J F, et al.. Isolation, identification and analysis of drug resistance of Salmonella pullorum [J]. China Anim. Husb. Vet. Med., 2017,44(9): 2792-2800.
22	杨荣文,张健,雷晓光.通过天然产物解决抗生素耐药危机[J].中国科学:化学,2018,48(11):1332-1346.
	YANG R W, ZHANG J, LEI X G. Natural products resolve antibiotic resistance crisis [J]. Sci. Sin. (Chim.), 2018,48(11):1332-1346.
23	郭钦,张春艳,彭凯,等.植物源天然产物作为抗生素佐剂联合抑菌研究进展[J].食品科学,2020,41(23):255-265.
	GUO Q, ZHANG C Y, PENG K, et al.. Recent progress in plant-derived natural products as antibiotic adjuvants [J]. Food Sci., 2020, 41(23): 255-265.
24	TERRENI M, TACCANI M, PREGNOLATO M. New Antibiotics for multidrug-resistant bacterial strains: satest research developments and future perspectives [J/OL]. Mol, 2021, 26(9): 2671 [2023-11-20]. .
25	郭思周,魏雪萍.抗生素悖论及抗耐药细菌疫苗研究进展[J].生物化工,2023,9(4):197-199, 209.
	GUO S Z, WEI X P. Antibiotic paradox and research advances of vaccines against drug-resistant bacteria [J]. Biol. Chem. Eng., 2023,9(4):197-199, 209.
26	奉初.鸡养殖管理和防疫技术[J].今日畜牧兽医,2021,37(4):41.
27	LIN Y S, ZHANG Y, LIU S X, et al.. Quercetin rejuvenates sensitization of colistin-resistant Escherichia coli and Klebsiella pneumoniae clinical isolates to colistin [J]. Front. Chem, 2021,9: 795150 [2023-11-23]. .
28	ODABAŞ KÖSE E, KOYUNCU ÖZYURT Ö, BILMEN S, et al.. Quercetin: synergistic interaction with antibiotics against colistin-resistant Acinetobacter baumannii [J]. Antibiot. (Basel), 2023, 12(4): 739 [2024-3-4]. .
29	孙红.黑曲霉固态发酵槐米降尿酸产品的开发[D].天津:天津科技大学,2012.
	SUN H. Development of Flos Sophrea product fermented by Aspergillus niger for reducing uric acid [D]. TianJin: Tianjin University of Science and Technology, 2012.
30	徐萌萌,沈竞,徐春,等.槐米固态发酵提高槲皮素含量的研究[J].时珍国医国药,2008,19(3):704-706.
	XU M M, SHEN J, XU C, et al.. Study on increasing the content of quercetin in Flos sophorae immaturus by solid state fermentation [J]. Lishizhen Med. Mater. Med. Res., 2008, 19(3): 704-706.
31	EDREES N E, GALAL A A A, ABDEL MONAEM A R, et al.. Curcumin alleviates colistin-induced nephrotoxicity and neurotoxicity in rats via attenuation of oxidative stress, inflammation and apoptosis [J]. Chem. Biol. Interact., 2018, 294: 56-64.
32	SHEN Y B, ZHANG R, SCHWARZ S, et al.. Farm animals and aquaculture: significant reservoirs of mobile colistin resistance genes [J]. Environ. Microbial., 2020, 22(7): 2469-2484.
33	ANAND DAVID A V, ARULMOLI R, PARASURAMAN S. Overviews of biological importance of quercetin: a bioactive flavonoid [J]. Pharmacogn. Rev., 2016, 10(20): 84-89.
34	SIRIWONG S, THUMANU K, HENGPRATOM T, et al.. Synergy and mode of action of ceftazidime plus quercetin or luteolin on Streptococcus pyogenes [J/OL].Evid. Based Complement Altern. Med., 2015, 759459 [2024-7-15]. .
35	VIPIN C, SAPTAMI K, FIDA F, et al.. Potential synergistic activity of quercetin with antibiotics against multidrug-resistant clinical strains of Pseudomonas aeruginosa [J/OL].PLoS One, 2020, 15(11): e0241304 [2024-7-15]. .
36	POGUE J M, JONES R N, BRADLEY J S, et al.. Polymyxin susceptibility testing and interpretive breakpoints: recommendations from the United States committee on antimicrobial susceptibility testing (USCAST) [J]. Antimicrob Agents Chemother., 2020, 64(2): e01495-e01419.
37	LANGEVELD W T, VELDHUIZEN E J, BURT S A. Synergy between essential oil components and antibiotics: a review [J]. Crit rev microbiol, 2014, 40(1): 76-94.
38	FALAGAS M E, RAFAILIDIS P I, MATTHAIOU D K. Resistance to polymyxins: Mechanisms, frequency and treatment options [J]. Drug Resist. Updat., 2010,13(4-5): 132-138.
