遮阴处理对酿酒葡萄‘西拉’果实皱缩的影响

doi:10.13304/j.nykjdb.2020.0892

摘要/Abstract

摘要：

为探讨河西走廊酿酒葡萄转色期皱缩现象，以‘西拉’为试材，分析了遮阳网不同遮光率（40%、60%和80%）处理对转色期果实皱缩的抑制作用及其对果实着色和果实周际环境的影响。结果表明：遮阳网遮光降低了果实周际微环境的日最高温度和气温日较差，增加了相对湿度，太阳光辐射能变化趋于稳定；不同遮光处理后，果实单粒重、单穗重、果实纵横径显著提高，果实的皱缩现象明显改善，产量增加了1倍以上；遮阴处理果实的可溶性固形物、可滴定酸含量、总酚、单宁含量降低，遮光率40%和60%处理的果实品质指标降幅不大，各处理的可溶性糖含量无显著性差异；各处理的光泽明亮度（L^*）和色泽饱和度（C^*）显著低于对照，遮光率40%和60%处理的果实红色度（a^*）与对照无显著性差异，80%遮阴处理的a^*显著低于对照，各处理的果实蓝色度b^*和果实颜色指数（CIRG）均高于对照，CIRG均大于6，且果实均呈蓝黑色。综上，在‘西拉’果实转色期进行遮光率40%～60%遮阴处理，能有效改善果实的皱缩现象，研究结果对改善酿酒葡萄转色期皱缩现象及提高葡萄品质具有一定的指导意义。

关键词: 酿酒葡萄, 西拉, 遮光处理, 果实皱缩, 微环境

Abstract:

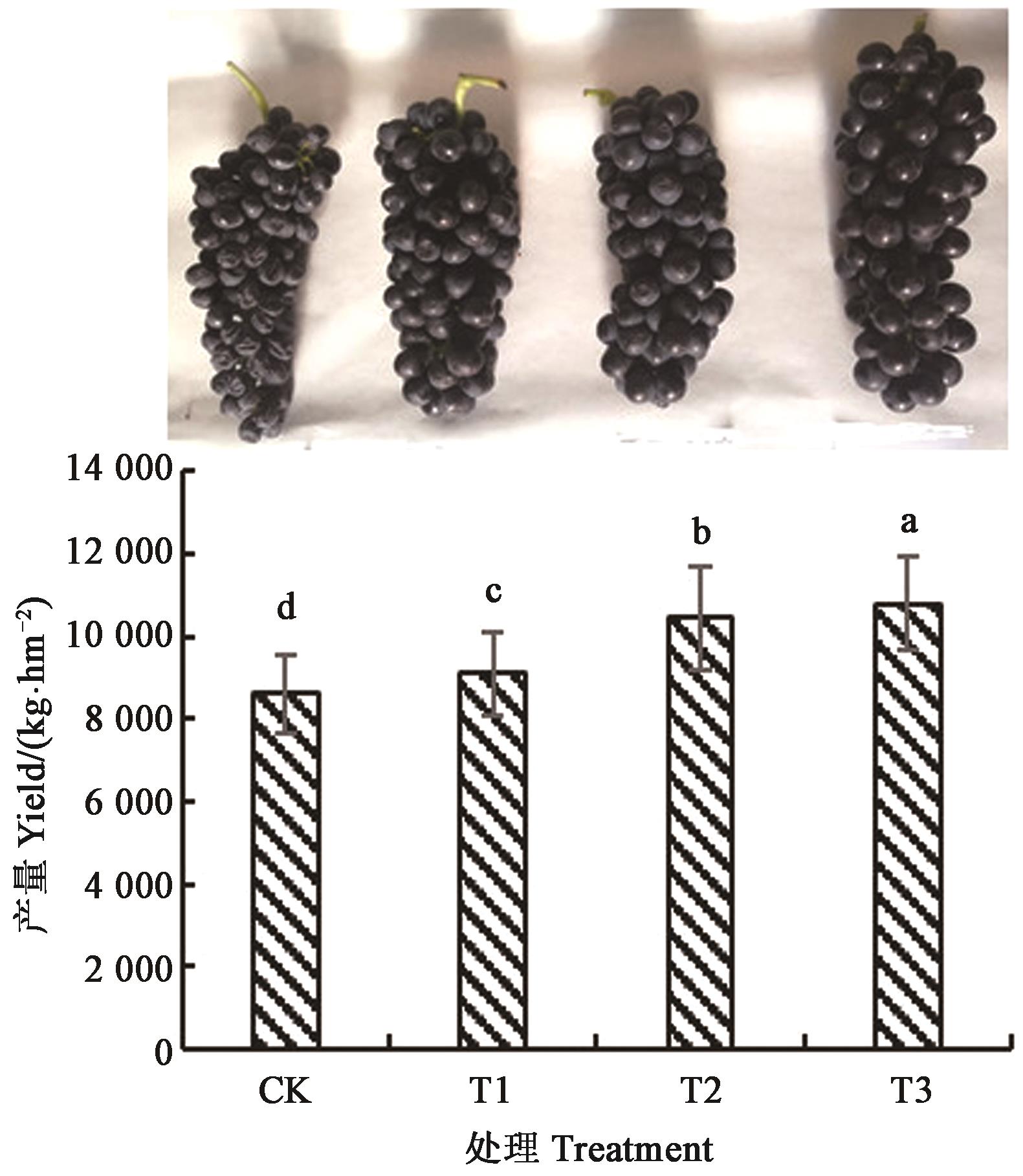

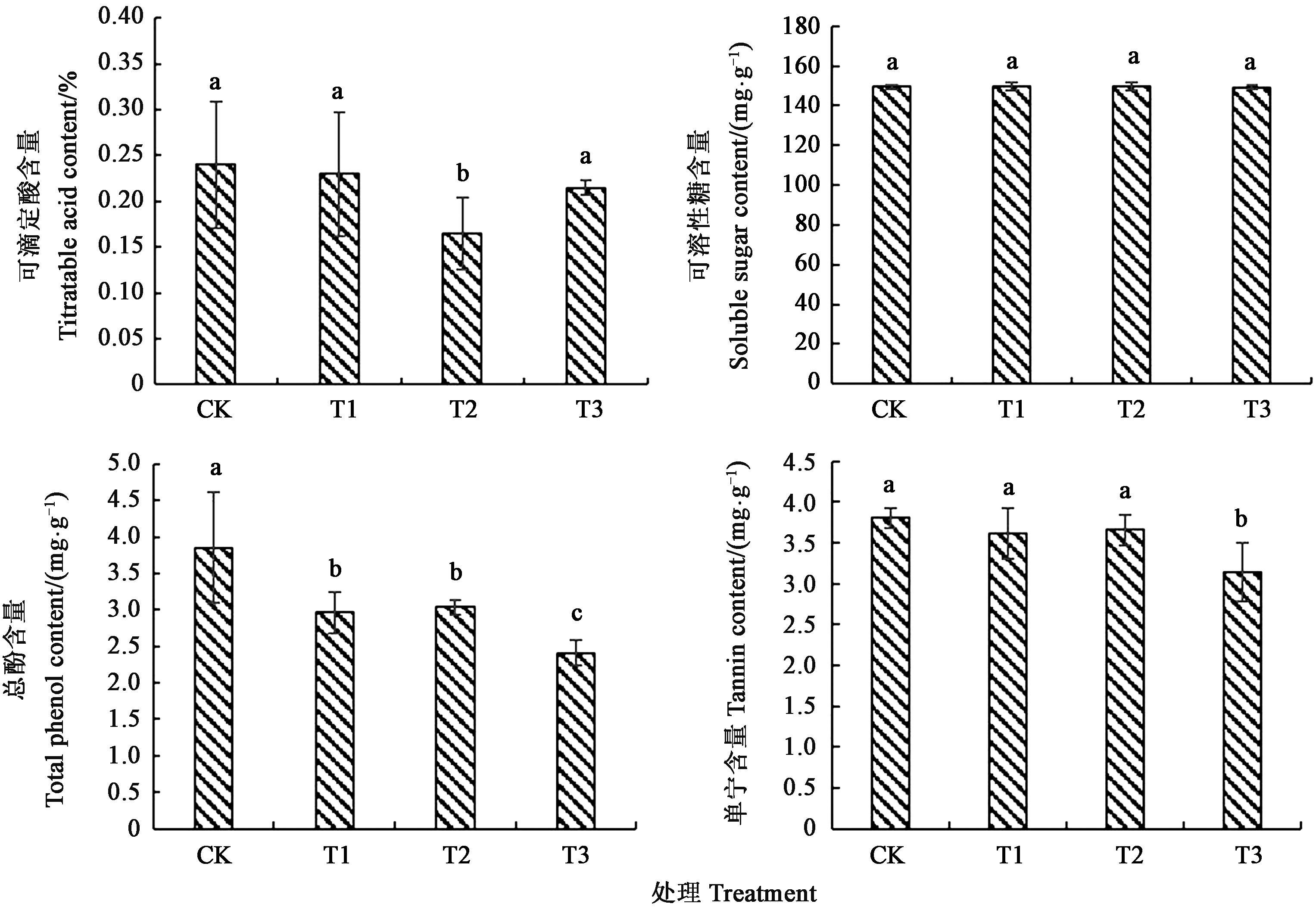

In order to explore the shrinkage phenomenon of wine grape at turning-color period in Hexi corridor， taking Vitisvinifera L. cv. Syrah as material， the effects of shading nets （different shading rates of 40%， 60% and 80%） on fruit shrinkage， fruit coloring and fruit surrounding environment during changed-color period were analyzed. The results showed that the shading net decreased the daily maximum temperature and the daily diurnal temperature of the microenvironment around the fruit， and increased the daily average humidity， and the solar radiation energy tended to be stable. After different shading treatments， the berry weight， cluster weight， longitudinal and horizontal diameter of fruit significantly increased， the fruit shrinkage significantly improved， and the yield increased more than one fold； the content of soluble solid， titratable acid， total phenol and tannin were decreased. The fruit quality index of 40% and 60% shading rate treatments did not evidently decrease， and the soluble sugar content between treatments had no significant difference. The L^* and C^* of each treatment were significantly lower than that of the control， and there was no significant difference in a^* between the 40% and 60% shading treatments， while a^* of 80% shading treatment was significantly lower than the control. The b^* and CIRG of each treatment were higher than those of the control， the CIRG were more than 6， and the fruit was blue black. To sum up， shading treatment with shading rate of 40%～60% could effectively improve the fruit shrinkage during the turning-color period of ‘Syrah’. Those results provided guiding significance for improving the shrinkage phenomenon and improving the quality of wine grape.

Key words: wine grape, Syrah, shading treatment, fruit shrinkage, microenvironment

中图分类号:

S663.1

朱燕芳, 白耀栋, 王元元, 李玉斌, 马麒龙, 郝燕, 赵明新. 遮阴处理对酿酒葡萄‘西拉’果实皱缩的影响[J]. 中国农业科技导报, 2022, 24(1): 54-62.

Yanfang ZHU, Yaodong BAI, Yuanyuan WANG, Yubin LI, Qilong MA, Yan HAO, Mingxin ZHAO. Effect of Shading on Fruit Shrinkage of Wine Grape ‘Syrah’[J]. Journal of Agricultural Science and Technology, 2022, 24(1): 54-62.

图/表 9

参考文献 25

1	赵鹏涛．西拉葡萄酒的香气活性物质以及影响瓶装葡萄酒香气因素的研究［D］．陕西杨凌：西北农林科技大学，2017.
	ZHAO P T. Characterization of Syrah wine aroma and study of the influence factors of bottle wine flavor ［D］. Shaanxi Yangling： Northwest A&F University， 2017.
2	VILLAMOR R R. The impact of wine components on the chemical and sensory properties of wines ［D］. Pullman： Washington State University， 2012.
3	ROGIERS S Y， GREER D H， HATFIELD J M， et al.. Solute transport into Shiraz berries during development and late-ripening shrinkage ［J］. Am. J. Enol. Vitic.， 2006， 57（1）：73-80.
4	CHOU H C， KATJA S， GUILLAUME A， et al.. Late season shiraz berry dehydration alters composition and sensory traits of wine ［J］. J. Agric. Food Chem.， 2018， 66（29）：7750-7757.
5	FANG Y L， MENG J F， ZHANG A， et al.. Influence of shriveling on berry composition and antioxidant activity of Cabernet Sauvignon grapes from Shanxi vineyards ［J］. J. Sci. Food Agric.， 2011， 91（4）：749-757.
6	李俊楠，宁鹏飞，任瑞华，等. 浆果皱缩对晋西南地区‘赤霞珠’葡萄及葡萄酒品质的影响［J］. 食品科学，2020，41（14）：239-246.
	LI J N， NING P F， REN R H， et al.. Influence of berry shriveling on grape and wine composition of ‘Cabernet Sauvignon’ in Southwest Shanxi province of China ［J］. Food Sci.， 2020， 41（14）：239-246.
7	KRASNOW M N， MATTHEWS M A， SMITH R J， et al.. Distinctive symptoms differentiate four common types of berry shrivel disorder in grape ［J］. California Agric.， 2010， 64（3）：155-159.
8	陈为凯. 一年两收栽培模式下葡萄果实靶向代谢组和转录组研究［D］. 北京：中国农业大学，2018.
	CHEN W K. Study of targeted metabolome and transcriptome in grape berries growth under fouble cropping viticulture system ［D］. Beijing： China Agricultural University， 2018.
9	南立军. 埋土防寒区单爬地龙架式酿酒葡萄生理代谢研究［D］. 陕西杨凌：西北农林科技大学，2013.
	NAN L J. Study on the physiological metabolisms of wine-grape of single crawled cordon training trellises growing in soil-bury over-wintering zone ［D］. Shaanxi Yangling： Northwest A&F University， 2013.
10	倪志婧，马文平，王薇，等. 遮光处理对酿酒葡萄果实品质的影响［J］. 合肥工业大学学报（自然科学版），2016，39（11）：1563-1566.
	NI Z Q， MA W P， WANG W， et al.. Effect of shading treatment on the quality of wine grapes ［J］. J. Hefei Univ. Technol. （Nat. Sci.）， 2016， 39（11）：1563-1566.
11	SEN F， OKSAR R E， KESGIN M. Effect of shading and covering on ‘sultana seedless’ grape quality and storability ［J］. J. Agric. Sci. Technol.， 2016， 18（1）：245-254.
12	SERAT B， KULKARNIS S. Effect of shade net on yield and quality of grapes cv. Thompson seedless ［J］. Int. J. Sci. Res.， 2015， 4（5）：1841-1844.
13	KRASNOW M， WEIS N， SMITH R J， et al.. Inception， progression， and compositional consequences of a berry shrivel disorder ［J］. Am. J. Enol. Vitic.， 2009， 60（1）：24-34.
14	李桂荣，朱自果，马俊伟，等. 低温胁迫对几种无核葡萄品种抗寒生理指标的影响［J］. 西北林学院学报，2015，30（5）：75-78，291.
	LI G R， ZHU Z G， MA J W， et al.. Effect of low temperature stress on physiological indices of seedless grape species ［J］. J. Northwest Forestry Univ.， 2015， 30（5）：75-78，291.
15	马宗桓. 滴灌条件下不同施氮时期对酿造葡萄碳氮代谢的影响［D］. 兰州：甘肃农业大学， 2016.
	MA Z H. Effect of different time of application nitrogen on carbon and nitrogen metabolism of wine grapes by drip irrigation ［D］. Lanzhou： Gansu Agricultural University， 2016.
16	FERNANDEZ-LOPEZ J A， ALMELA L， MUNOZ J A， et al.. Dependence between color and individual anthocyanin content in ripening grapes ［J］. Food Res. Int.， 1998， 31（9）：667-672.
17	邵建辉，马春花，祖艳群，等. 转色初期喷施BTH 对‘红地球’葡萄着色和果实品质的影响［J］.果树学报，2017，34（12）：1556-1565.
	SHAO J H，MA C H，ZU Y Q，LI Y， et al.. Effects of BTH application at veraison on berry coloration and quality of ‘Red Globe’berries ［J］. J. Fruit Sci.， 2017，34（12）：1556-1565.
18	李利，郝燕. 甘肃河西走廊葡萄酒产业发展的思考与建议［J］. 农业科技与信息，2019，（11）：57-61.
19	刘敏，成正龙，张晋升，等. 遮阳网对酿酒葡萄果实及葡萄酒品质的影响［J］. 西北植物学报，2017，37（9）：1764-1772.
	LIU M， CHENG Z L， ZHANG J S， et al.. Influence of shading net on qualities of Cabernet Sauvignon and Syrah berries and wines ［J］. Acta Bot. Boreal-Occident. Sin.， 2017， 37（9）：1764-1772.
20	SHAHAK Y， RATNER K， GILLER Y E， et al.. Improving solar energy utilization， production and fruit quality in orchards and vineyards by photoselective netting ［J］. Acta Hortic.， 2008，（772）：65-72.
21	SHAHAK Y. Colornets： crop protection and light-quality manipulation in one technology ［J］. Acta Hortic.， 2004，（659）：143-151.
22	PAGAY V， REYNOLDA A G， FISHER K H. The influence of bird netting on yield and fruit， juice and wine composition of Vitisvinifera L. ［J］. J. Int. Sci. Vigne Vin.， 2013， 47（1）：35-45.
23	TINYANE P P， SIVAKUMAR D， SOUNDY P. Influence of photoselective netting on fruit quality parameters and bioactive compounds in selected tomato cultivars ［J］. Sci. Hortic.， 2013， 161（4）：340-349.
24	BASILE B， GIACCONE M， CIRILLO C， et al.. Photo-selective hail nets affect fruit size and quality in hayward kiwifruit ［J］. Sci. Hortic.， 2012， 141（3）：91-97.
25	孟祥云，王枝翠，王雨歌，等. 地面遮阴对新疆‘红地球’葡萄果实着色的影响［J］. 果树学报，2014，31（1）：60-65.
	MENG X Y， WANG Z C， WANG Y G， et al.. Effects of terrestrial shading on the berry coloring of ‘Red Globe’ grape （Vitisvinifera L．） in Xinjiang ［J］. J. Fruit Sci.， 2014， 31（1）：60-65.

处理 Treatment	单粒重 Berry weight/g	单穗重 Cluster weight/g	可溶性固形物 Soluble solid/%	纵径 Longitudinal diameter/mm	横径 Horizontal diameter/mm	果形指数 Average fruit shape index
CK	1.34±0.08 c	149.83±15.56 d	26.67±0.25 a	1.31±0.02 b	1.21±0.05 b	1.08±0.44 b
T1	1.56±0.09 b	153.45±28.61 c	23.20±1.21 b	1.37±0.09 b	1.21±0.05 b	1.13±0.03 a
T2	1.73±0.06 a	159.72±26.23 b	22.06±0.47 b	1.51±0.02 a	1.29±0.02 b	1.17±0.02 a
T3	1.76±0.06 a	162.95±5.40 a	20.36±0.65 c	1.55±0.03 a	1.37±0.05 a	1.13±0.03 a

处理 Treatment	单粒重 Berry weight/g	单穗重 Cluster weight/g	可溶性固形物 Soluble solid/%	纵径 Longitudinal diameter/mm	横径 Horizontal diameter/mm	果形指数 Average fruit shape index
CK	1.34±0.08 c	149.83±15.56 d	26.67±0.25 a	1.31±0.02 b	1.21±0.05 b	1.08±0.44 b
T1	1.56±0.09 b	153.45±28.61 c	23.20±1.21 b	1.37±0.09 b	1.21±0.05 b	1.13±0.03 a
T2	1.73±0.06 a	159.72±26.23 b	22.06±0.47 b	1.51±0.02 a	1.29±0.02 b	1.17±0.02 a
T3	1.76±0.06 a	162.95±5.40 a	20.36±0.65 c	1.55±0.03 a	1.37±0.05 a	1.13±0.03 a

处理 Treatment	L^*	a^*	b^*	C^*	CIRG
CK	27.32±2.303 a	1.42±0.697 a	-2.16±0.472 b	2.96±0.596 a	6.02±0.565 c
T1	26.86±1.825 b	1.33±0.654 a	-1.18±0.991 a	2.04±0.581 b	6.28±0.426 b
T2	26.02±2.180 b	1.05±0.239 a	-1.63±0.471 a	2.13±0.163 b	6.49±0.692 a
T3	26.82±1.394 b	0.97±0.233 b	-1.67±0.888 a	2.01±0.839 b	6.30±0.296 b

处理 Treatment	L^*	a^*	b^*	C^*	CIRG
CK	27.32±2.303 a	1.42±0.697 a	-2.16±0.472 b	2.96±0.596 a	6.02±0.565 c
T1	26.86±1.825 b	1.33±0.654 a	-1.18±0.991 a	2.04±0.581 b	6.28±0.426 b
T2	26.02±2.180 b	1.05±0.239 a	-1.63±0.471 a	2.13±0.163 b	6.49±0.692 a
T3	26.82±1.394 b	0.97±0.233 b	-1.67±0.888 a	2.01±0.839 b	6.30±0.296 b

项目 Item	单粒重 Berry weight	单穗重 Berry weight	可溶性固形物 Soluble solid content	纵径 Longitudinal diameter	横径 Horizontal diameter	果形指数 Average fruit shape index	可滴定酸 Titratable acid	可溶性糖 Soluble sugar	总酚 Total phenol	单宁 Tannin	产量 Yield
处理Treatment	0.984^*	0.969^*	-0.998^**	0.954^*	0.866	0.755	-0.572	-0.077	-0.957^*	-0.829	0.946^*
单粒重Berry weight		0.962^*	-0.976^*	0.962^*	0.826	0.852	-0.707	0.031	-0.899	-0.720	0.956^*
单穗重Berry weight			-0.950^*	0.996^**	0.947	0.704	-0.630	-0.238	-0.875	-0.816	0.994^**
可溶性固形物 Soluble solid content				-0.931	-0.840	-0.747	0.535	0.048	0.973^*	0.835	-0.921
纵径 Longitudinal diameter					0.935	0.737	-0.692	-0.209	-0.837	-0.764	1.000^**
横径 Horizontal diameter						0.449	-0.444	-0.536	-0.786	-0.876	0.938
果形指数 Average fruit shape index							-0.890	0.498	-0.617	-0.260	0.730
可滴定酸 Titratable acid								-0.322	0.331	0.066	-0.697
可溶性糖 Soluble sugar									0.084	0.514	-0.222
总酚Total phenol										0.894	-0.824
单宁Tannin											-0.757
