石峡口水库人工林土壤体积分形维数及其与入渗的关系

doi:10.13304/j.nykjdb.2021.0842

摘要/Abstract

摘要：

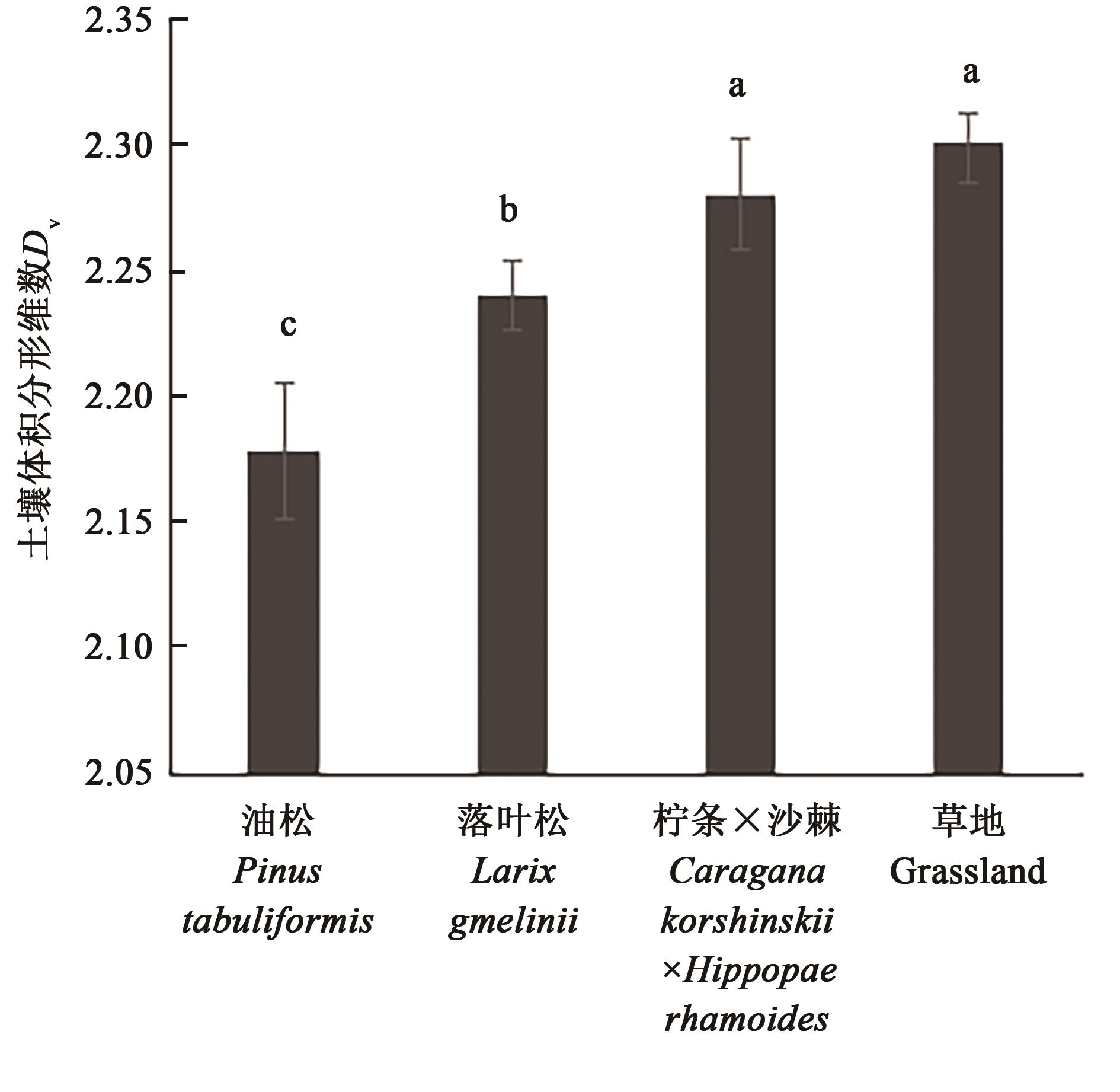

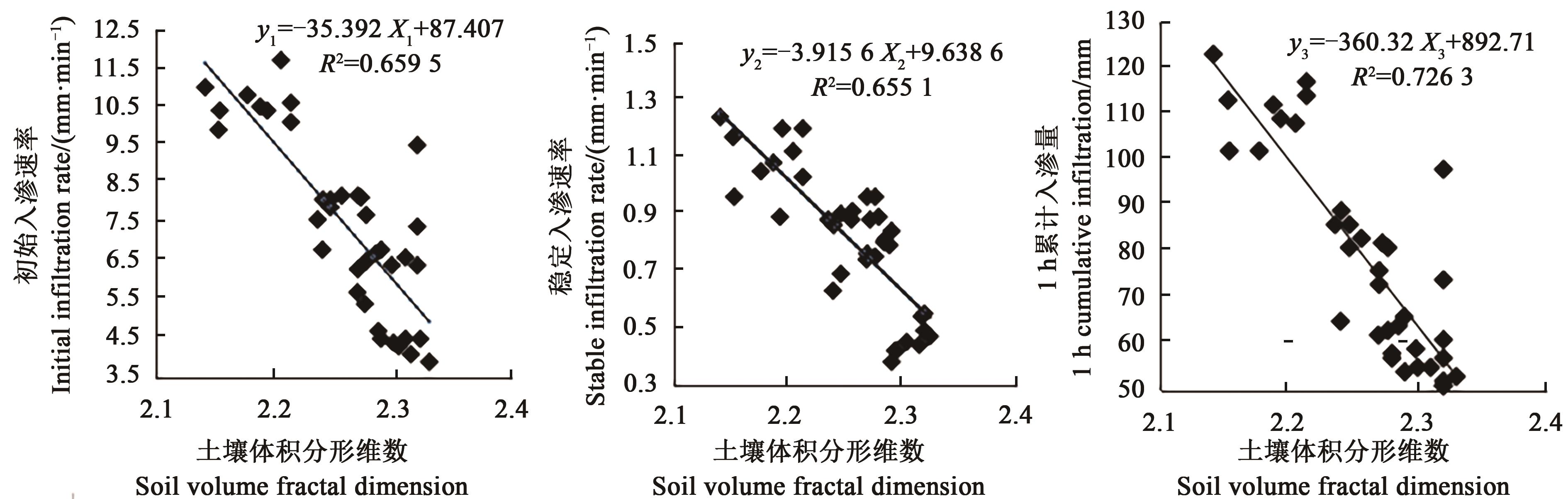

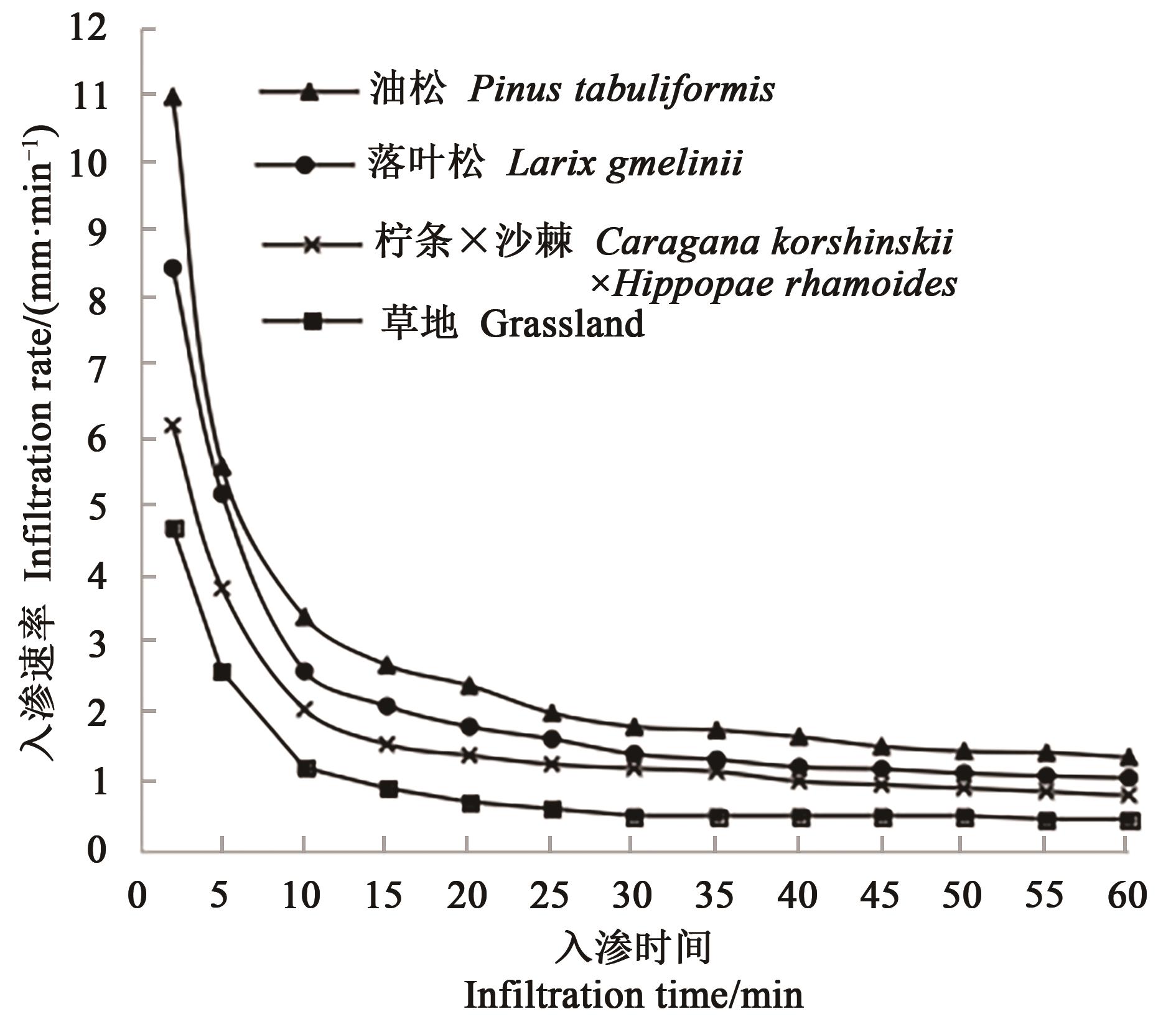

为研究内蒙古清水河县石峡口水库3种典型人工林表层土壤体积分形维数及其与入渗特征的关系，以研究区油松、落叶松、柠条×沙棘混交林土壤为研究对象，草地土壤为对照，采用环刀进行多点取样并测定土壤理化性质及土壤体积分形维数，单环土柱法观测土壤水分入渗，并将土壤体积分形维数与入渗特征进行线性回归分析。结果表明，研究区不同人工林具有显著改善土壤养分、保留土壤细颗粒、降低土壤体积分形维数、提高水分入渗能力的作用，其中土壤体积分形维数表现为草地（2.30）和柠条×沙棘混交林（2.28）>落叶松（2.24）>油松（2.18）；初渗速率、稳渗速率、1 h累计入渗量均表现为油松（11.0 mm·min^-1，1.2 mm·min^-1，116 mm）>落叶松（8.5 mm·min^-1，0.9 mm·min^-1，80 mm）>柠条×沙棘混交林（6.2 mm·min^-1，0.8 mm·min^-1，62 mm）>草地（4.7 mm·min^-1，0.45 mm·min^-1，51 mm）。植被通过自身特征减弱地表径流和风蚀等自然侵蚀来保护土壤细颗粒，提高孔隙结构和质地均匀程度，进而改善入渗能力。在该研究区，土壤体积分形维数可以表征土壤入渗能力，油松林对于石峡口水库的水源涵养能力强。

关键词: 石峡口水库, 人工林, 土壤体积分形维数, 入渗率

Abstract:

To study the soil volume fractal dimension of 3 types at Shixiakou reservoir， Qingshuihe county， Inner Mongolia， the soils of Pinus tabuliformis， Larix gmelinii and Caragana korshinskii ×Hippophae rhamnoides were as materials， and the grassland was as control. The ring knife was used for multi-point sampling， and the soil physical and chemical properties and soil volume fractal dimension were measured. The single ring soil column method was used to observe the soil water infiltration， and the linear regression analysis was carried out between the soil volume fractal dimension and the infiltration characteristics. The results showed that different plantations in the study area could significantly improve soil nutrients， retain soil fine particles， reduce soil volume fractal dimension and improve water infiltration capacity. The soil volume fractal dimension showed grassland （2.30）， Caragana korshinskii × Hippophae rhamnoides （2.28） > Larix gmelinii （2.24）> Pinus tabulaeformis （2.18）. The initial infiltration rate， steady infiltration rate and 1 h cumulative infiltration were as follows： Pinus tabulaeformis （11.0 mm·min^-1， 1.2 mm·min^-1，116 mm） > Larix gmelinii （8.5 mm·min^-1， 0.9 mm·min^-1， 80 mm） > Caragana korshinskii × Hippophae rhamnoides mixed forest （6.2 mm·min^-1， 0.8 mm·min^-1， 62 mm） > grassland （4.7 mm·min^-1， 0.45 mm·min^-1， 51 mm）. Vegetation retained protect soil fine particles by weakening natural erosion such as surface runoff and wind erosion， so as to improve the uniformity of pore structure and texture， and then improve the infiltration capacity. In the study area， soil fractal dimension could characterize soil infiltration capacity， and Pinus tabulaeformis forest had strong water conservation capacity at Shixiakou reservoir.

Key words: Shixiakou reservoir, plantation, soil volume fractal dimension, infiltration rate

中图分类号:

S714.7

江磊, 秦富仓, 李龙, 王露, 赵金洋. 石峡口水库人工林土壤体积分形维数及其与入渗的关系[J]. 中国农业科技导报, 2023, 25(6): 225-233.

Lei JIANG, Fucang QIN, Long LI, Lu WANG, Jinyang ZHAO. Fractal Dimension of Soil Volume of Plantation at Shixiakou Reservoir and Its Relationship with Infiltration[J]. Journal of Agricultural Science and Technology, 2023, 25(6): 225-233.

图/表 9

参考文献 21

1	BRID N R H, BARTOLI F, DEXTER A R. Water retention models for fractal soil structures [J]. Eur. J. Soil Sci., 1996, 47(1):1-6.
2	TYLER S W, WHEATCRAFT S W. Fractal scaling of soil particle size distributions: analysis and limitations [J]. Soil Sci. Soc. Am. J., 1992, 56(2):362-369.
3	杨培岭,罗远培,石元春.用粒径的重量分布表征的土壤分形特征[J].科学通报,1993,38(20):1896-1899.
4	王国梁,周生路,赵其国.土壤颗粒的体积分形维数及其在土地利用中的应用[J].土壤学报,2005,42(4):545-550.
	WANG G L, ZHOU S L, ZHAO Q G, et al.. Volume fractal dimension of soil particles and its applications to land use [J]. Acta Pedol. Sin., 2005, 42(4): 545-550.
5	肖东东,史正涛,刘新有,等.西双版纳橡胶林土壤颗粒体积分形维数特征[J].热带作物学报,2017,38(5):817-823.
	XIAO D D, SHI Z T, LIU X Y, et al.. Fractal dimension of soil particle volume in rubber forest of Xishuangbanna [J]. Chin. J. Trop. Crops, 2017, 38(5):817-823.
6	茹豪,张建军,李玉婷,等.黄土高原土壤粒径分形特征及其对土壤侵蚀的影响 [J].农业机械学报,2015,46(4):176-182.
	RU H, ZHANG J J, Ll Y T, et al.. Fractal features of soil distributions and its effect on soil erosion of loess plateau [J]. Trans. Chin. Soc. Agric. Mach., 2015, 46(4):176-182.
7	徐永福,董平.非饱和土的水分特征曲线的分形模型[J].岩土力学,2002,23(4):399-405.
	XU Y F, DONG P. Fractal models for the soil-water characteristics of unsaturated soils [J]. Rock Soil Mech., 2002, 23(4):399-405.
8	战海霞,张光灿,刘霞,等.沂蒙山林区不同植物群落的土壤颗粒分形与水分入渗特征[J].中国水土保持科学,2009,7(1):49-56.
	ZHAN H X, ZHANG G C, LIU X, et al.. Fractal features of soil particle size distribution and infiltration characteristics under different vegetation communities in the forestland of Yimeng mountains area [J]. Soil Water Conserv. China, 2009, 7(1):49-56.
9	BROOKS K N, FFOLLIOTT P F, GRERSEN H M, et al.. Hydrology and the Management of Watersheds [M]. Ames: Lowa Sate University Press, 1997:69-78.
10	魏瑶瑶,王俊,张永旺,等.黄土高原不同植被类型土壤入渗特征研究[J].延安大学学报(自然科学版),2021,40(2):16-20.
	WEI Y Y, WANG J, ZHANG Y W, et al.. Study on soil infiltration characteristics of different vegetation types on loess plateau [J]. J. Yanan. Univ. (Nat. Sci.), 2021, 40(2):16-20.
11	高广磊,丁国栋,赵媛媛,等.四种粒径分级制度对土壤体积分形维数测定的影响[J].应用基础与工程科学学报,2014,22(6):1060-1068.
	GAO G L, DING G D, ZHAO Y Y, et al.. Effects of soil particle size classification system on calculating volume-based fractal dimension [J]. J. Basic. Sci. Eng., 2014, 22(6):1060-1068.
12	林狄显.闽南山地3种典型植被类型土壤分形与养分特征[J].水土保持通报,2017,37(3):48-52.
	LIN D X. Characteristics of soil fractal and nutrient under three typical vegetation types in mountainous region of southern Fujian province [J]. Bull. Soil Water Conserv., 2017, 37(3):48-52.
13	姚丽,王仰仁,战国隆,等.基于室内实验的土壤入渗深度动态模拟研究[J].天津农学院学报,2019,26(4):83-88.
	YAO L, WANG Y R, ZHAN G L, et al.. Dynamic simulation of soil infiltration depth in farmland based on laboratory experiments [J]. J. Tianjin Agric. Univ., 2019, 26(4):83-88.
14	芳菲,秦富仓,李龙,等.阴山北麓不同林分类型土壤持水性能研究[J].中国农业科技导报,2020,22(2):140-148
	FANG F, QIN F C, LI L, et al.. Study on soil water storage performance of different forest types at the north piedmont of Yinshan mountains [J]. J. Agric. Sci. Technol., 2020, 22(2):140-148.
15	全国土壤普查办公室.中国土壤 [M].北京:中国农业出版社,1998:1-1253.
16	葛楠楠,石芸,杨宪龙,等.黄土高原不同土壤质地农田土壤碳、氮、磷及团聚体分布特征[J].应用生态学报,2017,28(5):1626-1632.
	GE N N, SHI Y, YANG X L, et al.. Distribution of soil organic carbon, total nitrogen, total phosphorus and water stable aggregates of cropland with different soil textures on the Loess plateau, Northwest China [J]. Chin. J. Appl. Ecol., 2017, 28(5):1626-1632.
17	姜坤,秦海龙,卢瑛,等.广东省不同母质发育土壤颗粒分布的分形维数特征[J].水土保持学报,2016,30(6):319-324.
	JIANG K, QIN H L, LU Y, et al.. Fractal dimension of particle-size distribution for soils derived from different parent materials in Guangdong province [J]. J. Soil Water Conserv., 2016, 30(6):319-324.
18	党亚爱,李世清,王国栋,等.黄土高原典型土壤剖面土壤颗粒组成分形特征[J].农业工程学报,2009,25(9):74-78.
	DANG Y A, LI S Q, WANG G D, et al.. Fractal characteristics of soil particle composition for typical types of soil profile on Loess plateau [J]. Trans. Chin. Soc. Agric. Eng., 2009, 25(9):74-78.
19	赵明月,赵文武,刘源鑫.不同尺度下土壤粒径分布特征及其影响因子——以黄土丘陵沟壑区为例[J].生态学报,2015,35(14):4625-4632.
	ZHAO M Y, ZHAO W W, LIU Y X. Comparative analysis of soil particle size distribution and its influence factors in different scales:a case study in the Loess hilly-gully area [J]. Acta Ecol. Sin., 2015, 35(14):4625-4632.
20	曾宪勤,刘和平,路炳军,等.北京山区土壤粒径分布分形维数特征[J].山地学报,2008,26(1):65-70.
	ZENG X Q, LIU H P, LU B J, et al.. Fractal dimension of soil particle-size distribution characteristic in the Beijing mountains [J]. J. Mount. Sci., 2008, 26(1):65-70.
21	徐萍,刘霞,张光灿,等.鲁中山区小流域不同土地利用类型的土壤分形及水分入渗特征[J].中国水土保持科学,2013,11(5):89-95.
	XU P, LIU X, ZHANG G C, et al.. Fractal features and infiltration characteristics of soil of different land uses in a small watershed of rocky mountainous area in the middle of Shandong province [J]. Sci. Soil Water Conserv., 2013, 11(5):89-95.

人工林类型 Plantation type	林龄 Age/a	郁闭度 Canopy density	平均树高 Average height/m	平均胸径 Average diameter at breast height/cm	密度/ （棵·hm^-2） Density/（tree·hm^-2）	海拔 Altitude/m	枯落物平均厚度Average thickness of dead litter/cm
油松 Pinus tabuliformis	14	0.75	5.2	14	900	1 465.6	1.5
落叶松 Larix gmelinii	13	0.72	6.1	15	800	1 472.2	1.2
柠条 Caragana korshinskii	13	0.78	2.0		950	1 448.4	0.5
沙棘 Hippophae rhamnoides	13	0.78	2.0		950	1 448.4	0.5
草地 Grassland						1 455.5

人工林类型 Plantation type	林龄 Age/a	郁闭度 Canopy density	平均树高 Average height/m	平均胸径 Average diameter at breast height/cm	密度/ （棵·hm^-2） Density/（tree·hm^-2）	海拔 Altitude/m	枯落物平均厚度Average thickness of dead litter/cm
油松 Pinus tabuliformis	14	0.75	5.2	14	900	1 465.6	1.5
落叶松 Larix gmelinii	13	0.72	6.1	15	800	1 472.2	1.2
柠条 Caragana korshinskii	13	0.78	2.0		950	1 448.4	0.5
沙棘 Hippophae rhamnoides	13	0.78	2.0		950	1 448.4	0.5
草地 Grassland						1 455.5

人工林类型 Plantation type	土壤容重 Soil bulk density/ （g·cm^-3）	土壤孔隙度 Soil porosity/%	自然含水率 Moisture content/%	有效氮 Available nitrogen/（mg·kg^-1）	速效磷 Available phosphorus/（mg·kg^-1）	速效钾 Available potassium/（mg·kg^-1）	有机质 Organic matter/（g·kg^-1）
油松 Pinus tabuliformis	1.28±0.02 c	47.14±2.23 a	5.90±0.30 a	60±28 b	4.25±0.20 a	97±9 a	6.60±1.23 b
落叶松 Larix gmelinii	1.27±0.02 c	45.12±2.08 a	5.10±0.40 a	389±18 a	3.01±0.18 b	114±12 a	14.51±2.58 a
柠条×沙棘Caragana korshinskii ×Hippophae rhamnoides	1.35±0.01 b	42.33±2.11 ab	5.60±0.50 a	367±31 a	1.62±0.14 c	108±11 a	7.36±1.89 b
草地 Grassland	1.40±0.02 a	37.04±1.77 c	4.40±0.20 b	48±15 b	1.36±0.21 c	71±13 b	3.10±1.12 c

人工林类型 Plantation type	土壤容重 Soil bulk density/ （g·cm^-3）	土壤孔隙度 Soil porosity/%	自然含水率 Moisture content/%	有效氮 Available nitrogen/（mg·kg^-1）	速效磷 Available phosphorus/（mg·kg^-1）	速效钾 Available potassium/（mg·kg^-1）	有机质 Organic matter/（g·kg^-1）
油松 Pinus tabuliformis	1.28±0.02 c	47.14±2.23 a	5.90±0.30 a	60±28 b	4.25±0.20 a	97±9 a	6.60±1.23 b
落叶松 Larix gmelinii	1.27±0.02 c	45.12±2.08 a	5.10±0.40 a	389±18 a	3.01±0.18 b	114±12 a	14.51±2.58 a
柠条×沙棘Caragana korshinskii ×Hippophae rhamnoides	1.35±0.01 b	42.33±2.11 ab	5.60±0.50 a	367±31 a	1.62±0.14 c	108±11 a	7.36±1.89 b
草地 Grassland	1.40±0.02 a	37.04±1.77 c	4.40±0.20 b	48±15 b	1.36±0.21 c	71±13 b	3.10±1.12 c

粒径分布 PSD	土壤体积分形维数 D_v	土壤理化性质 Soil properties	土壤体积分形维数 D_v
细黏粒Fine clay	0.271	土壤容重Soil bulk density	0.875^**
粗黏粒Coarse clay	0.156	土壤孔隙度Soil porosity	-0.543^*
细粉粒Fine powder	0.935^**	自然含水率Moisture content	0.127
中粉粒Medium powder	0.673^**	有机质Organic matter	0.056
粗粉粒Coarse powder	-0.352^*	有效氮Available nitrogen	0.456^*
细砂粒Fine sand	-0.771^**	速效磷Available phosphorus	-0.763^**
粗砂粒Coarse sand	0.466^*	速效钾Available potassium	0.050
石砾Gravel	0.058
