连续光照条件下LED红蓝光供光模式对紫叶生菜生长和品质的影响

doi:10.13304/j.nykjdb.2021.0927

摘要/Abstract

摘要：

为了探究连续光照（continuous light，CL）条件下发光二极管（light emitting diode，LED）红蓝光供光模式对紫叶生菜生长、产量和品质的影响，在环境可控的人工光植物工厂内，设置6组不同LED处理，分别为常规光照-光子通量密度（spectral photon flux density，SPD）恒定（RB，16 h/8 h）、CL和SPD恒定（RB’，24 h/0 h）；CL和SPD发生规律性变化（S1和S2：交错光照处理，24 h周期内分别以蓝光、红蓝光、红光的顺序交替照射1次和2次；A1和A2：交替光照处理，24 h周期内蓝光和红光分别交替照射1次和2次），其中5个CL处理之间红蓝光量子数相同，光谱光强均为200 μmol·m^-2·s^-1。对不同处理模式下紫叶生菜的生长、产量和品质进行测定。结果表明，CL显著增加了生菜地上部产量，其中红蓝光交替处理下生菜地上部生物量最高，红蓝光交替和交错照射均显著增加了过氧化氢、超氧阴离子和丙二醛含量，但是并未造成严重的光氧化胁迫，且提高了抗氧化酶活性，增加了花青素和总酚含量，但同时也增加了叶片中硝酸盐的含量。综上所述，连续光照条件下红蓝光交替照射处理效果最优。

关键词: 植物工厂, 连续光照, 紫叶生菜, 抗氧化系统

Abstract:

In order to explore the effects of red and blue light supply mode of light emitting diode （LED） under continuous light （CL） on the growth， yield and quality of purple leaf lettuce， six treatments were set in the artificial light plant factory. Two conventional illumination treatments with constant spectral photon flux density （SPD） were set， one group maintained the photoperiod （RB， 16 h/8 h） and the other group began to receive CL （RB’， 24 h/0 h）. In addition， four CL treatments with regular changes of SPD， in which two staggered light treatments were alternately illuminated once and twice with blue light， red-blue light （4R： 1B） and red light in the order of 24-hour light period （S1 and S2）； blue light and red light were alternately irradiated once and twice， respectively （A1 and A2）. The CL treatments had same quantum numbers of red and blue light with the spectral light intensity 200 μmol·m^-2·s^-1. The growth， yield and quality of lettuce under different treatments were determined. The results showed that continuous light significantly increased the yield of lettuce， and the treatments of alternating red and blue light had the most obvious effect on the shoot biomass of lettuce. The alternating and temporally overlapped light treatments significantly increased the contents of hydrogen peroxide， superoxide anion and malondialdehyde， but did not cause serious photo oxidative stress， and increased the activities of antioxidant enzymes and the contents of anthocyanin and total phenols， however， the nitrate content in lettuce leaves was also increased by dynamic light. In conclusion， the effect of the treatment alternately irradiated twice with red and blue light was the best.

Key words: plant factory with artificial light, continuous light, purple leaf lettuce, antioxidant system

中图分类号:

S636.2

邵明杰, 陈艳琦, 刘文科. 连续光照条件下LED红蓝光供光模式对紫叶生菜生长和品质的影响[J]. 中国农业科技导报, 2023, 25(4): 77-85.

Mingjie SHAO, Yanqi CHEN, Wenke LIU. Effects of Red-blue LED Bight Supply Modes on Growth and Quality of Purple Leaf Lettuce Under Continuous Light[J]. Journal of Agricultural Science and Technology, 2023, 25(4): 77-85.

图/表 9

表1 光照处理

Table 1 Experimental design of light

处理Treatment	处理时间 Treat time
处理Treatment	1.5	2.4	3.0	4.8	6.0	11.0	12.0	13.5	14.4	18	22	24
RB	暗期 Dark （6 h）					红蓝比4∶1 Red and blue ratio 4∶1 （16 h）						暗期 Dark （2 h）
RB’	红蓝比4∶1 Red and blue ratio 4∶1 （24 h）
S1	蓝光 Blue （3 h）			红蓝比4∶1 Red and blue ratio 4∶1 （9 h）				红光 Red （12 h）
S2	蓝光 Blue （1.5 h）	红蓝比4∶1 Red and blue ratio 4∶1 （4.5 h）				红光 Red （6 h）	蓝光 Blue （1.5 h）		红蓝比4∶1 Red and blue ratio 4∶1 （4.5 h）		红光 Red （6 h）
A1	蓝光 Blue （4.8 h）				红光 Red （19.2 h）
A2	蓝光 Blue （2.4 h）		红光 Blue （9.6 h）				蓝光 Blue （2.4 h）			红光 Red （9.6 h）

表2 不同处理模式下生菜的生长

Table 2 Growth of lettuce under different treatments

处理 Treatment	地上部鲜重 SFW/g	地上部干重 SDW/g	地下部鲜重 RFW/g	地下部干重 RDW/g	叶面积 LA /cm²	比叶重 SLW/（g·dm^-2）	地上部含水量 SWC/%
RB	25.77±2.65 b	2.33±0.24 c	4.76±0.79 b	0.36±0.05 c	720.71±83.26 b	3.58±0.07 b	90.95±0.27 a
RB’	31.16±1.62 ab	2.89±0.10 b	6.84±0.61 a	0.44±0.04 bc	758.11±29.00 b	4.11±0.18 a	90.72±0.29 a
S1	35.45±4.64 a	3.13±0.29 b	7.14±1.19 a	0.50±0.06 ab	956.25±116.83 a	3.70±0.06 b	91.11±0.52 a
S2	31.70±4.08 ab	3.00±0.25 b	6.25±1.15 ab	0.47±0.06 abc	836.50±144.87 ab	3.82±0.23 b	90.47±0.76 ab
A1	34.43±3.45 a	3.82±0.31 a	7.06±0.87 a	0.54±0.06 ab	971.37±88.88 a	3.54±0.15 b	88.87±0.38 c
A2	37.38±3.66 a	3.85±0.37 a	6.83±1.33 a	0.57±0.10 a	1 002.04±91.49 a	3.73±0.11 b	89.69±0.41 b

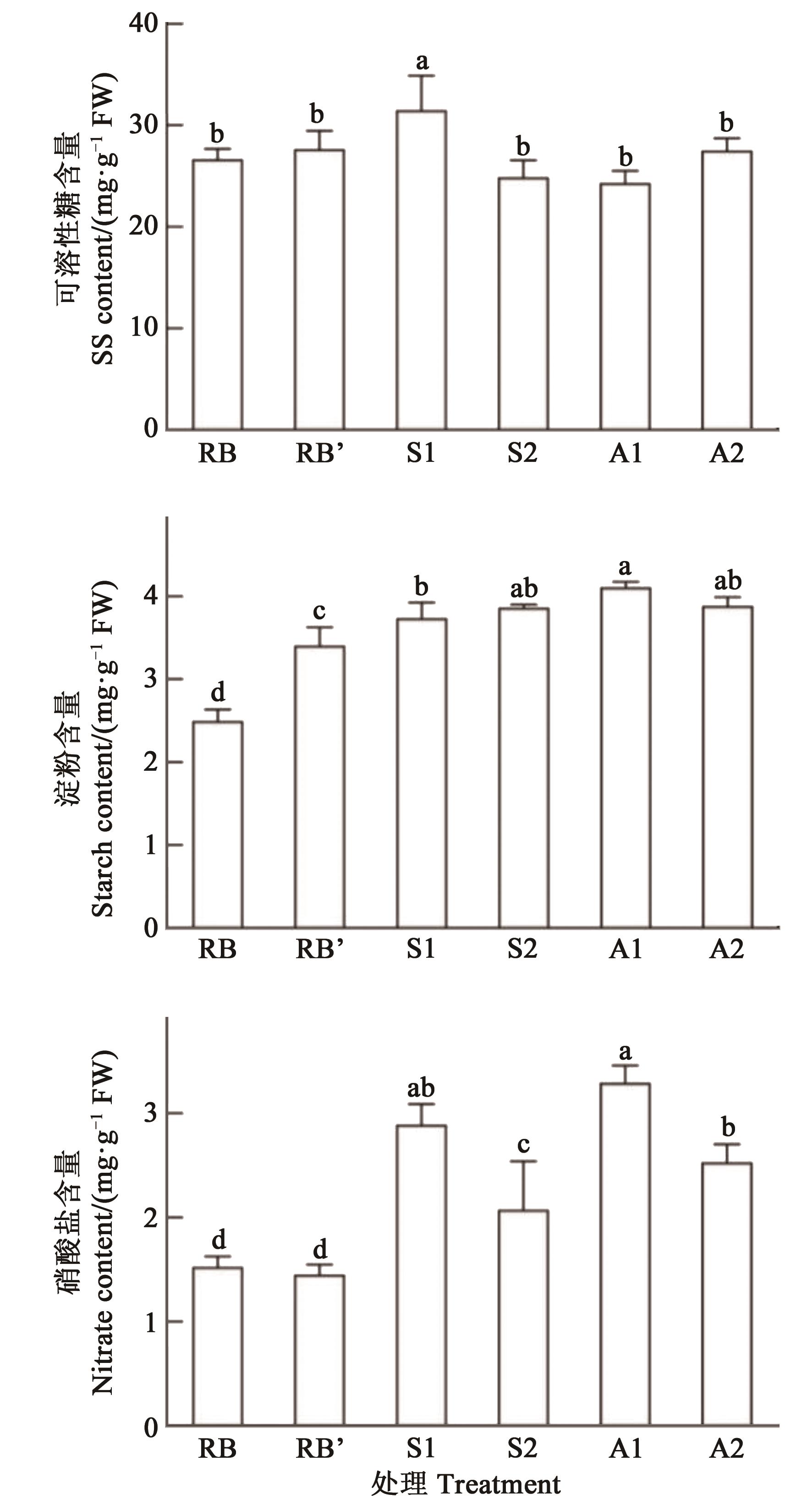

图1 不同处理模式下生菜的可溶性糖、淀粉和硝酸盐含量注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 1 SS， starch， and nitrate contents of lettuce under different treatmentsNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

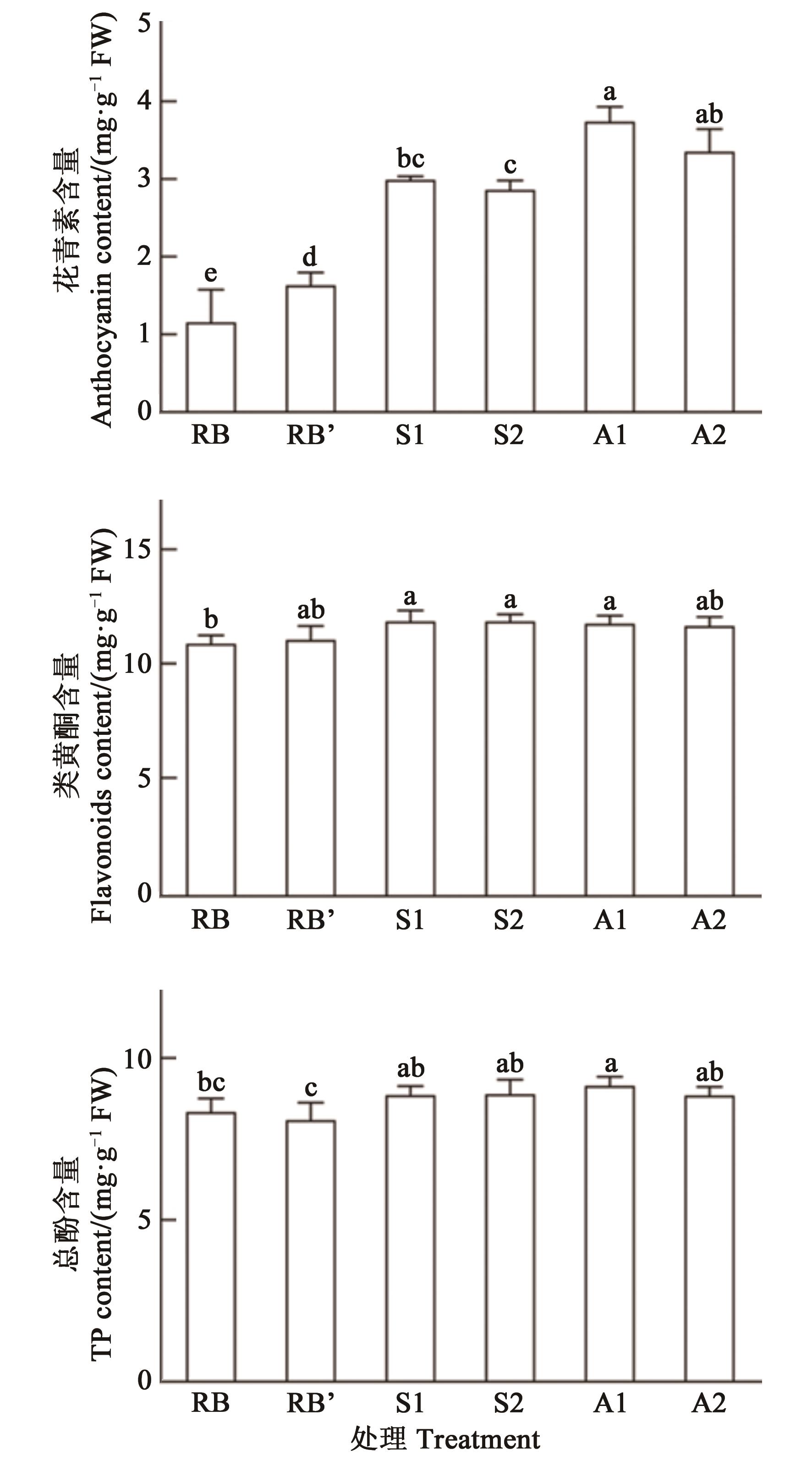

图2 不同处理模式下生菜的花青素、类黄酮和总酚含量注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 2 Anthocyanin， flavonoids， and TP contents of lettuce under different treatmentsNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

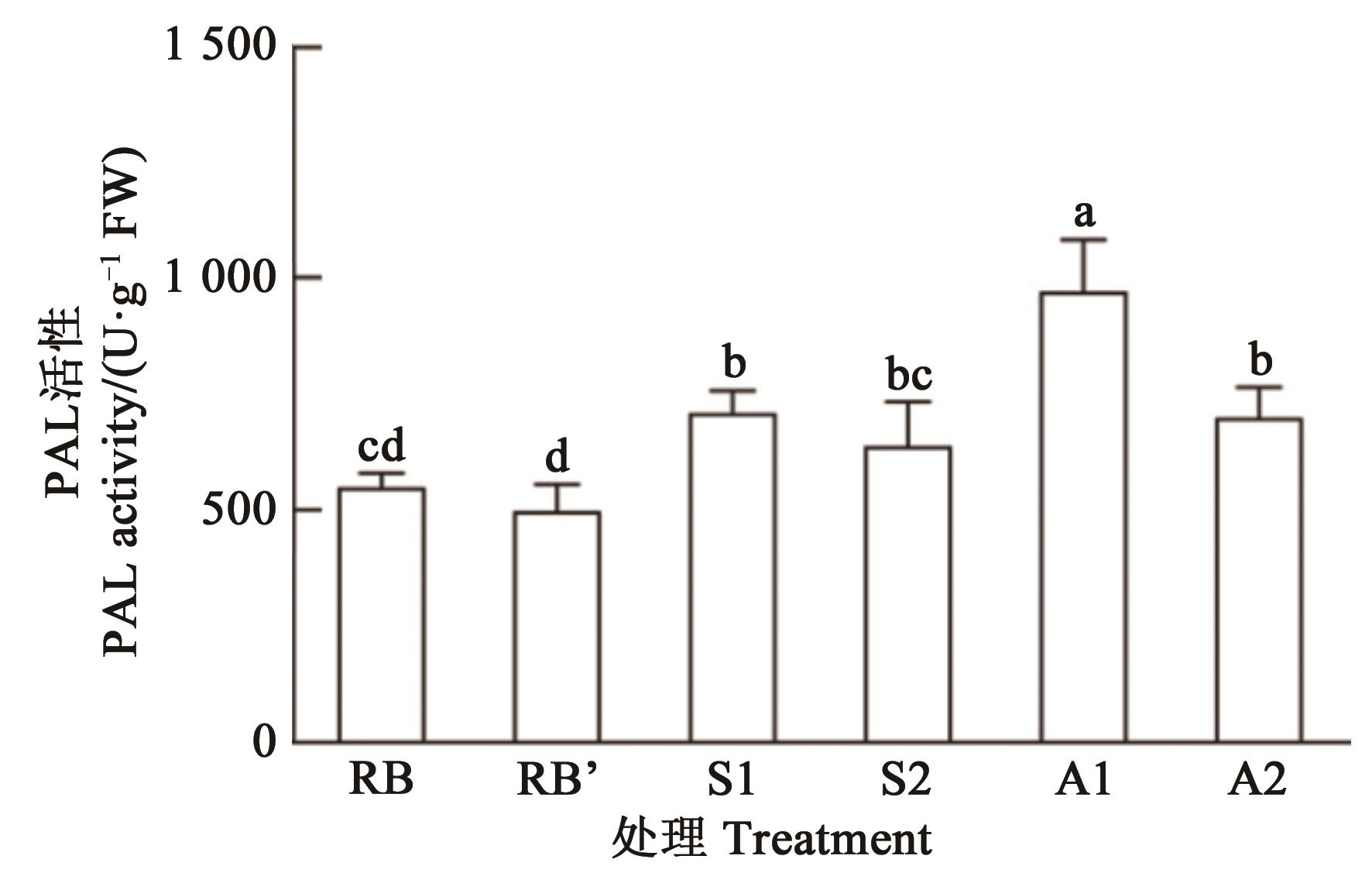

图3 不同处理模式下生菜的PAL活性注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 3 PAL activity of lettuce under different treatmentsNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

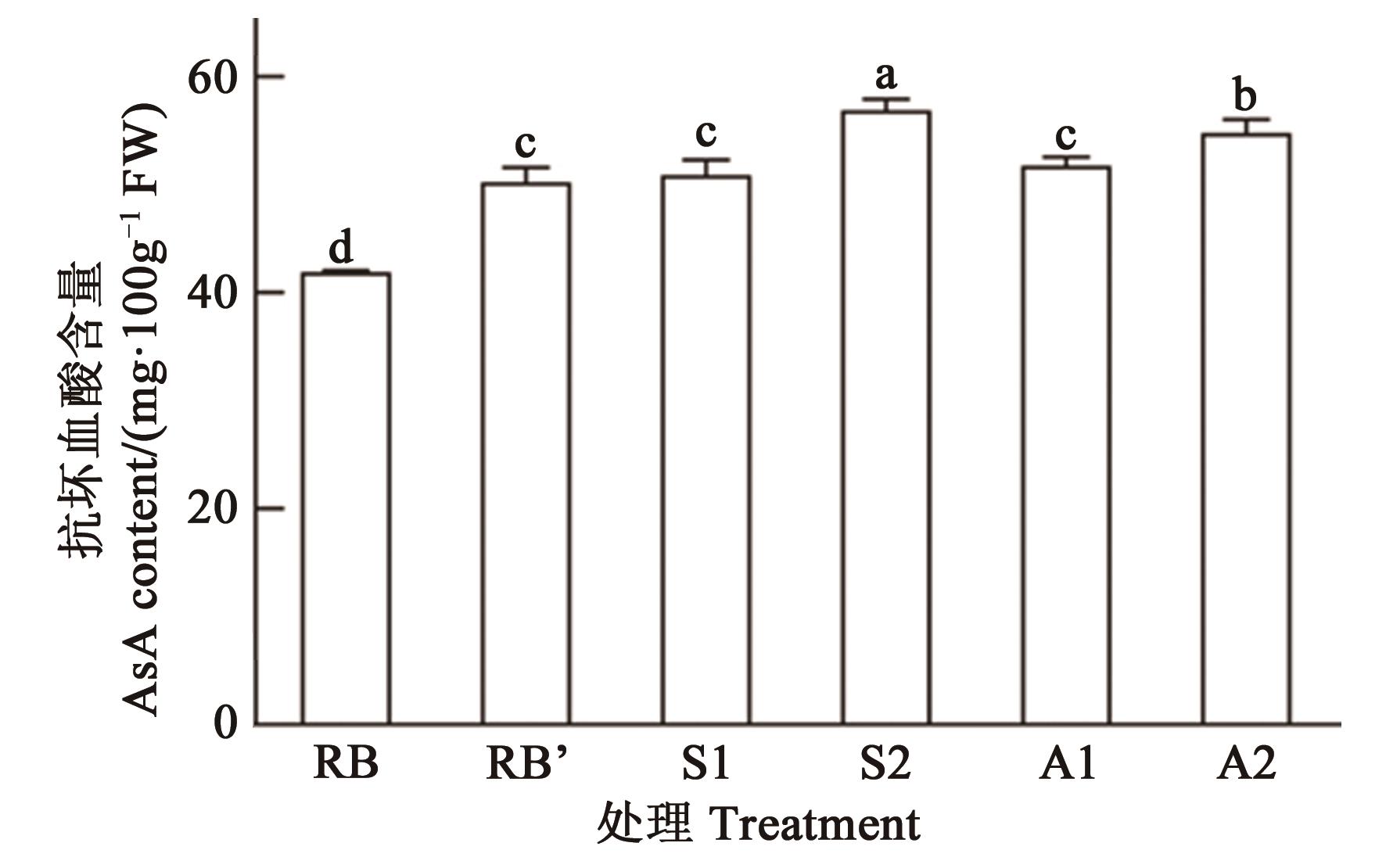

图4 不同处理模式下生菜的AsA含量注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 4 AsA content of lettuce under different treatmentsNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

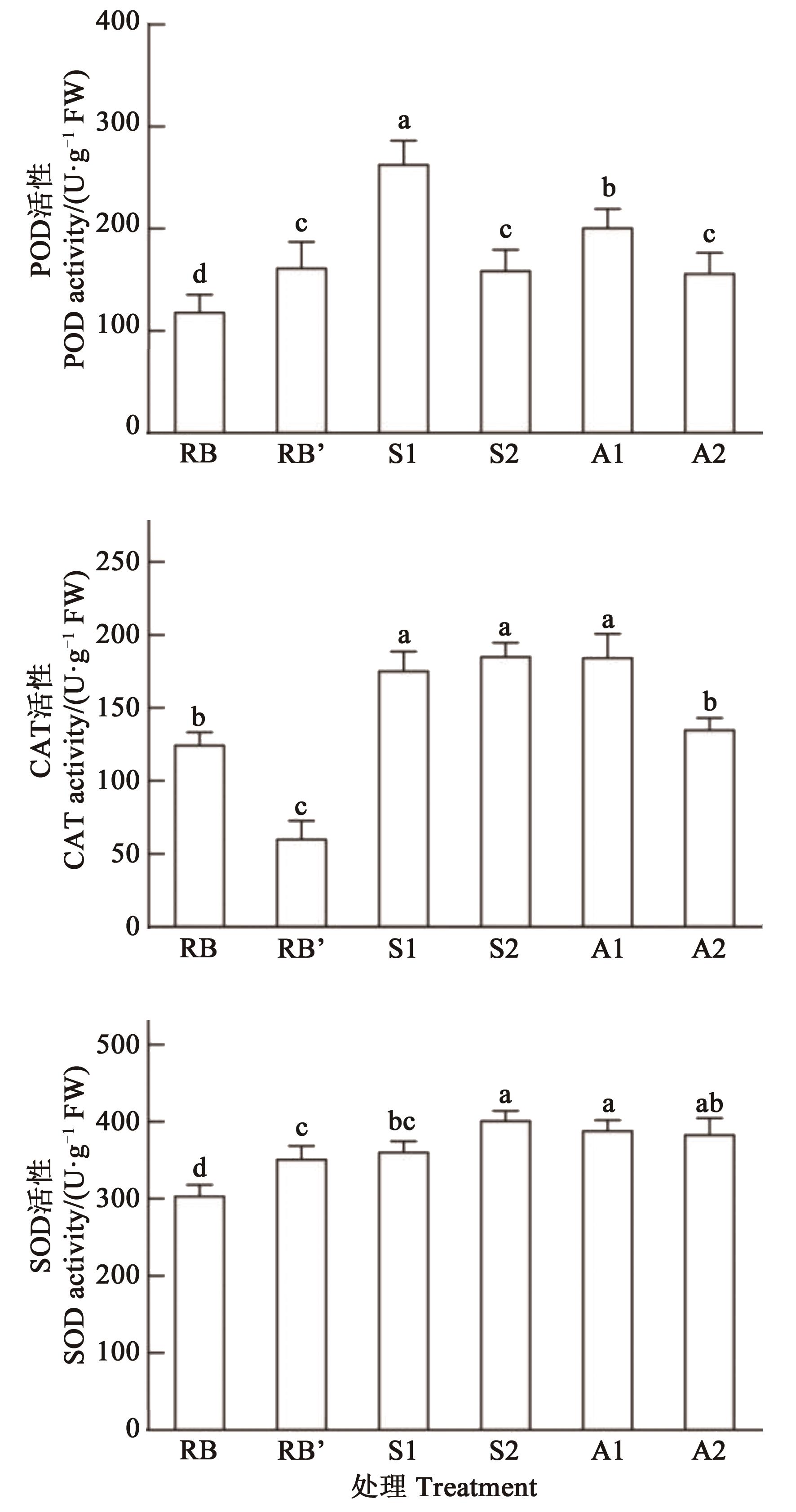

图5 不同处理模式下生菜的抗氧化酶活性注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 5 Antioxidant enzymes activities of lettuce under different treatmentsNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

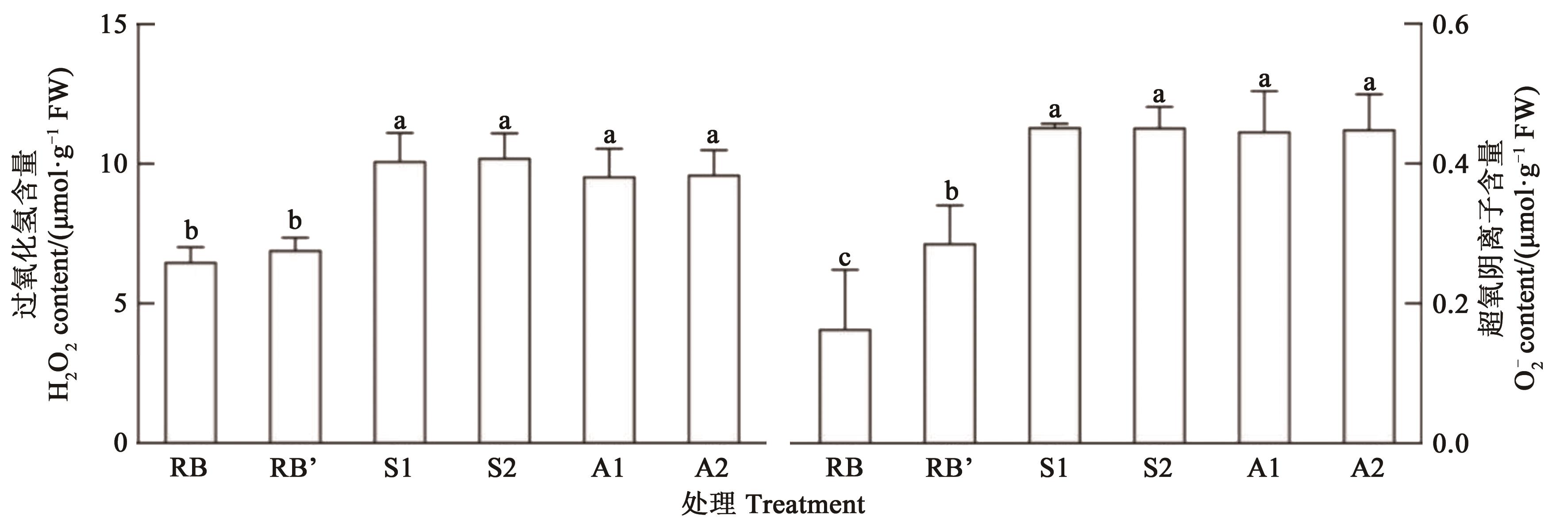

图6 不同处理模式下生菜的H2O2和O2-含量注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 6 H2O2 and O2- contents of lettuce under differen treatmentstNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

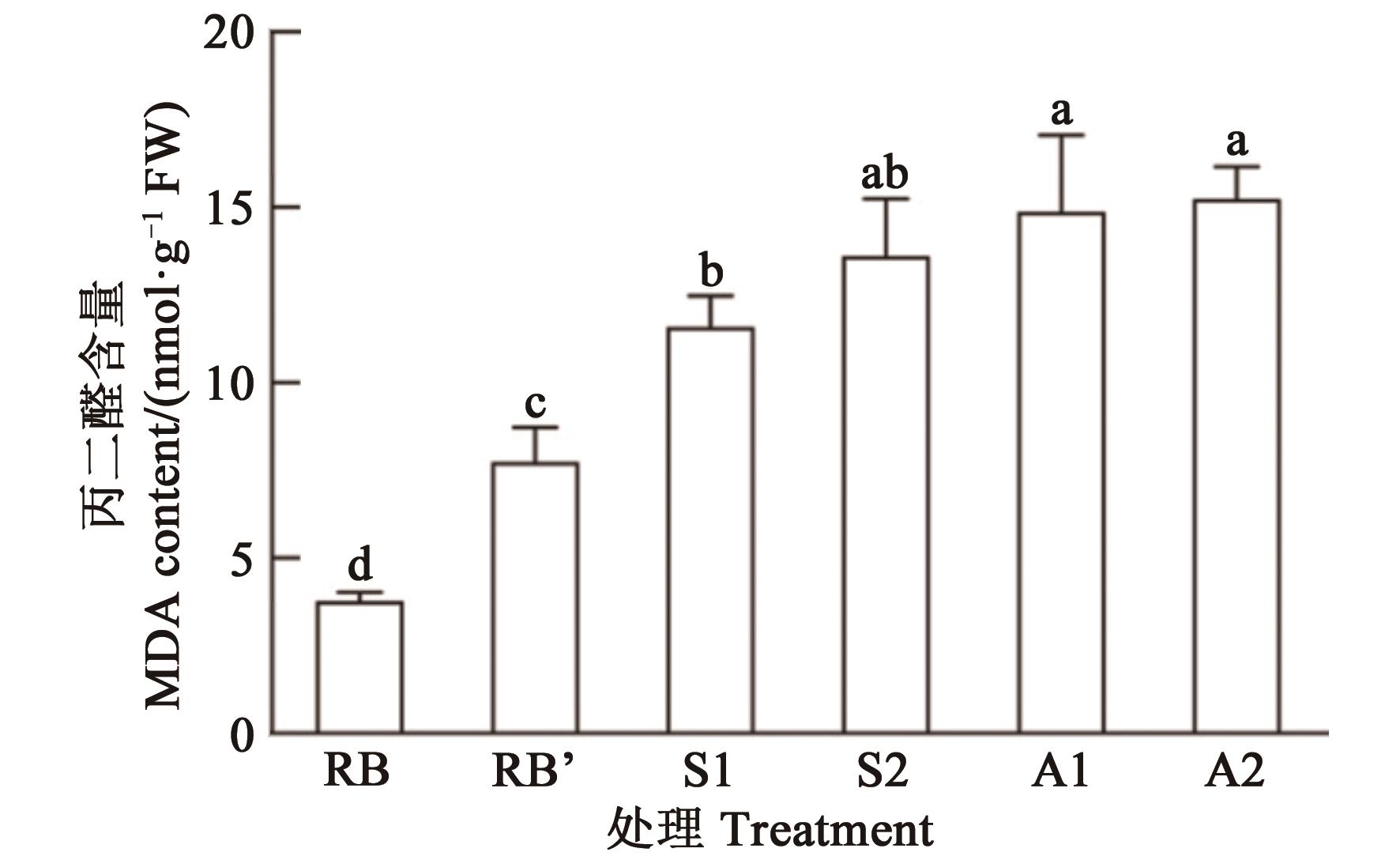

图7 不同处理模式下生菜的MDA含量注：不同小写字母表示不同处理间在P<0.05水平差异显著。

Fig. 7 MDA content of lettuce under different treatmentsNote：Different lowercase letters indicate significant differences between different treatments at P<0.05 level.

参考文献 35

1	KOZAI T. Resource use efficiency of closed plant production system with artificial light: concept, estimation and application to plant factory [J]. Proc. Jpn. Acad., 2013, 89(10):447-461.
2	HU M C, CHEN Y H, HUANG L C. A sustainable vegetable supply chain using plant factories in Taiwanese markets: a Nash-Cournot model [J]. Int. J. Proud. Econ., 2014, 152:49-56.
3	VELEZ-RAMIREZ A I, IEPEREN W V, VREUGDENHIL D, et al.. Plants under continuous light [J]. Trends Plant Sci., 2011, 16(6):310-318.
4	ZHA L Y, ZHANG Y B, LIU W K. Dynamic responses of ascorbate pool and metabolism in lettuce to long-term continuous light provided by red and blue LEDs [J]. Environ. Exp. Bot., 2019, 163:15-23.
5	MATSUDA R, OZAWA N, FUJIWARA K. Leaf photosynthesis, plant growth, and carbohydrate accumulation of tomato under different photoperiods and diurnal temperature differences [J]. Sci. Hortic., 2014, 170:150-158.
6	HAQUE M S, DE S A, SOARES C, et al.. Temperature variation under continuous light restores tomato leaf photosynthesis and maintains the diurnal pattern in stomatal conductance [J/OL]. Front. Plant Sci., 2017, 8:1602 [2021-10-05]. .
7	TKALEC M, DOBOŠ M, BABIĆ M, et al.. The acclimation of carnivorous round-leaved sundew (Drosera rotundifolia L.) to solar radiation [J/OL]. Acta Physiol. Plantarum., 2015, 37(4):78 [2021-10-05]. .
8	HANYU H, SHOJI K. Acceleration of growth in spinach by short-term exposure to red and blue light at the beginning and at the end of the daily dark period [J]. Acta Hortic., 2002(580):145-150.
9	JISHI T, KIMURA K, MATSUDA R, et al.. Effects of temporally shifted irradiation of blue and red LED light on cos lettuce growth and morphology [J]. Sci. Hortic., 2016, 198:227-232.
10	LANOUE J, ZHENG J, LITTLE C, et al.. Alternating red and blue light-emitting diodes allows for injury-free tomato production with continuous lighting [J/OL]. Front. Plant Sci., 2019, 10:1114 [2021-10-05]. .
11	CHEN X L, YANG Q C, SONG W P, et al.. Growth and nutritional properties of lettuce affected by different alternating intervals of red and blue LED irradiation [J]. Sci. Hortic., 2017, 223:44-52.
12	KUNO Y, SHIMIZU H, NAKASHIMA H, et al.. Effects of irradiation patterns and light quality of red and blue light-emitting diodes on growth of leaf lettuce (Lactuca sativa L.“Greenwave”) [J]. Environ. Control Biol., 2017, 55(3):129-135.
13	OHTAKE N, ISHIKURA M, SUZUKI H, et al.. Continuous irradiation with alternating red and blue light enhances plant growth while keeping nutritional quality in lettuce [J]. Hortic. Sci., 2018, 53(12):1804-1809.
14	DUBOIS M, GILLES K A, HAMILTON J K, et al.. Colorimetric method for determination of sugars and related substances [J]. Anal. Chem., 1956, 28(3):350-356.
15	曹健康,姜微波,赵玉梅.果蔬采后生理生化实验指导[M].北京:中国轻工业出版社,2007:1-176.
16	CATALDO D A, MAROON M, SCHRADER L E, et al.. Rapid colorimetric determination of nitrate in plant-tissue by nitration of salicylic-acid [J]. Commun. Soil Sci. Plant Anal., 1975, 6(1):71-80.
17	WROLSTAD R E, ACREE T E, DECKER E A, et al.. Characterization and measurement of anthocyanins by UV-visible spectroscopy [J/OL]. John Wiley Sons,Inc., 2001, F1.2.1-F1.2.13 [2021-10-05]. .
18	KHANAM U, OBA S, YANASE E, et al.. Phenolic acids, flavonoids and total antioxidant capacity of selected leafy vegetables [J]. J. Funct. Food, 2012, 4(4):979-987.
19	SPÍNOLA V, MENDES B, CAMARA S, et al.. An improved and fast UHPLC-PDA methodology for determination of L-ascorbic and dehydroascorbic acids in fruits and vegetables. evaluation of degradation rate during storage [J]. Anal. Biol. Chem., 2012, 403(4):1049-1058.
20	KOUKOL J, CONN E E. The metabolism of aromatic compounds in higher plants. IV. purification and properties of the phenylalanine deaminase of Hordeum vulgare [J]. J. Biol. Chem., 1961, 236(10):2692-2698.
21	HODGES D M, DELONG J M, PRANGE F. Improving the thiobarbituric acid-reactive-substances assay for estimating lipid peroxidation in plant tissues containing anthocyanin and other interfering compounds [J]. Planta, 1999, 207(4):604-611.
22	CRAKER L E, SEIBERT M. Light energy requirements for controlled environment growth of lettuce and radish [J]. Trans. ASAE, 1982, 25(1):214-216.
23	KITAYA Y G, NIU T, KOZAI M. Photosynthetic photon flux, photoperiod, and CO₂ concentration affect growth and morphology of lettuce plug transplants [J]. Hortic. Sci., 1998, 33:988-991.
24	ZHA L Y, LIU W K. Effects of light quality, light intensity, and photoperiod on growth and yield of cherry radish grown under red plus blue LEDs [J]. Hortic. Environ. Biotechnol., 2018, 59(4):511-518.
25	JIAO J, TSUJITA M J, GRODZINSKI B. Influence of radiation and CO₂ enrichment on whole plant net CO₂ exchange in roses [J]. Can. J. Plant Sci., 1991, 71(1):245-252.
26	ARVE L E, TERFA M T, GISLERØD H R, et al.. High relative air humidity and continuous light reduce stomata functionality by affecting the ABA regulation in rose leaves [J]. Plant Cell Environ., 2013, 36(2):382-392.
27	SCHROEDER J I, ALLEN G J, HUGOUVIEUX V, et al.. Guard cell signal transduction [J]. Annu. Rev. Plant Physiol. Plant Mol. Biol., 2001, 52(4):627-635.
28	SHIMAZAKI K I, DOI M, ASSMANN S M, et al.. Light regulation of stomatal movement [J]. Annu. Rev. Plant Biol., 2007, 58(1):219-247.
29	HUNER N, ÖQUIST G, SARHAN F. Energy balance and acclimation to light and cold [J]. Trend Plant Sci., 1998, 3(6):224-230.
30	LILLO C. Light regulation of nitrate reductase in green leaves of higher plants [J]. Physiol. Plant, 1994, 90(3):616-620.
31	MCCALL D, WILLUMSEN J. Effects of nitrogen availability and supplementary light on the nitrate content of soil-grown lettuce [J]. J. Hortic. Sci. Biotechnol., 1999, 74(4):458-463.
32	ZHOU W, LIU W, YANG Q. Reducing nitrate content in lettuce by pre-harvest continuous light delivered by red and blue light-emitting diodes [J]. J. Plant Nutr., 2013, 36(3):481-490.
33	LIN K H, HUANG M Y, HUANG W D, et al.. The effects of red, blue, and white light-emitting diodes on the growth, development, and edible quality of hydroponically grown lettuce (Lactuca sativa L. var. capitata) [J]. Sci. Hortic., 2013, 150:86-91.
34	DENG J M, BIN J H, PAN R C. Effects of light quality on the primary nitrogen assimination of rice (Oryza sativa L.) seedlings [J]. Acta Bot. Sin., 2000, 42(3):234-238.
35	CAKMAK I, KIRKBY E A. Role of magnesium in carbon partitioning and alleviating photooxidative damage [J]. Physiol. Plant, 2008, 133(4):692-704.
