无损方法实现重庆地区马尾松材积模型研建

doi:10.13304/j.nykjdb.2022.0102

摘要/Abstract

摘要：

重庆地区立木材积表一直沿用的是四川马尾松材积模型，并不完全适用于实际情况，因此需要建立新的材积模型。因伐木进行数据采集较为困难，所以使用无损方法采集数据。通过摄影测量的方式测量林木材积，将样本分为80%的建模样本和20%的验证样本，使用建模样本建立多种一元、二元材积模型，使用验证样本应用《二元立木材积表编制技术规程》中相关指标对多种模型进行对比分析。结果表明，采用摄影测量方法获取数据，单木胸径及单木树高的偏差、均方根误差、相对偏差和相对均方根误差的值均偏低，结果完全满足调查需要，表明可以通过摄影测量的方式获取数据来进行材积模型的研建；通过多种指标相结合确定多种材积模型中效果最好的模型，R²达到了0.966，预估精度97.69%；新研建的二元材积模型相较于传统的四川马尾松材积模型在总相对误差、相对误差平均值、预估精度的评价指标效果更好，可以作为重庆地区马尾松立木材积表建立依据。

关键词: 摄影测量, 材积模型, 立木材积表

Abstract:

The volume model of Sichuan masson pine has been used in Chongqing， so it is not completely applicable to the actual situation. It is necessary to establish a new volume model. It is difficult to collect data by logging， so lossless method is used to collect data. The volume of trees was measured by photogrammetry，the samples were divided into modeling and validation samples， with 80% for modeling and 20% for validation. Various one-dimensional and two-dimensional timber volume models were established using the modeling samples， while the validation samples were used to compare and analyze the models using relevant indexes from the Technical Regulations for the Preparation of Binary Standing Timber Volume Tables. The results showed that when data was obtained by photogrammetry， the values of deviation， root mean square error， relative deviation， and relative root mean square error of single wood diameter at breast height and single wood height were low，which indicated that the research and development of timber volume models could be carried out by photogrammetry， and the results fully satisfied the investigation needs. Among the multiple timber volume models determined by the combination of multiple indicators， the model with the best results had an R² of 0.966 and a prediction accuracy of 97.69%. Therefore， the newly developed binary wood volume model in this study was more effective than the traditional Sichuan masson pine wood volume model in terms of total relative error， relative error average， and prediction accuracy. As a result， it could be used as the basis for establishing the wood volume table of Mawei pine stumpage in Chongqing.

Key words: photogrammetry, volume model, tree volume table

中图分类号:

S791.248

郁壮, 冯仲科, 张标, 马天天. 无损方法实现重庆地区马尾松材积模型研建[J]. 中国农业科技导报, 2023, 25(7): 97-104.

Zhuang YU, Zhongke FENG, Biao ZHANG, Tiantian MA. Research and Construction of Pinus massoniana Lamb. Volume Model in Chongqing Area by Non-destructive Method[J]. Journal of Agricultural Science and Technology, 2023, 25(7): 97-104.

图/表 7

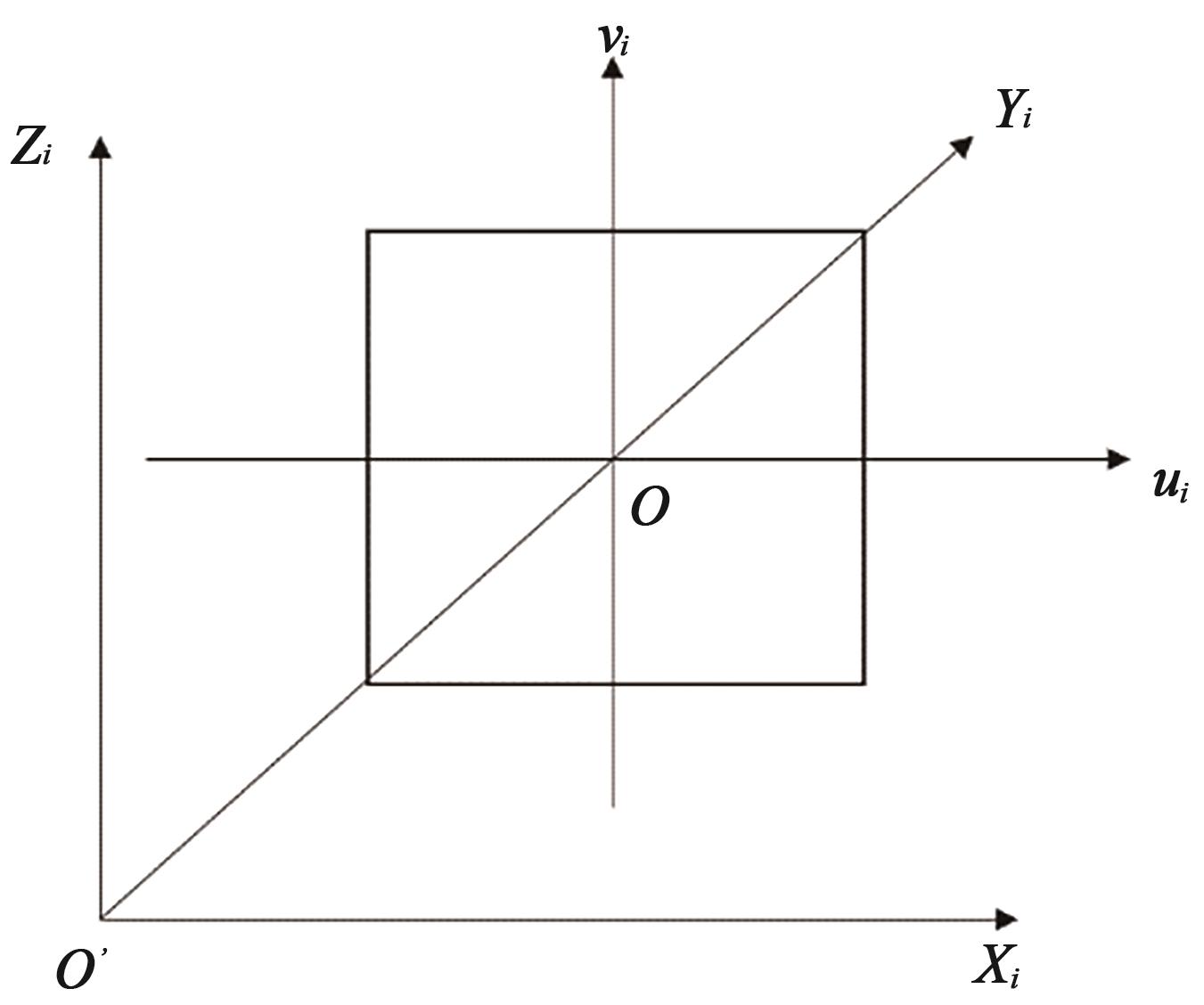

图1 坐标系

Fig. 1 Coordinate system

表1 摄影测量精度分析

Table 1 Analysis of photogrammetry accuracy

单木因子

Individual tree factor

偏差

Bias

相对偏差

Relative bias/%

均方根误差

RMSE

相对均方根误差

Relative RMSE/%

表2 模型拟合结果

Table 2 Model fitting results

模型编号 Model number	材积模型 Volume model	参数a Parameter a	参数b Parameter b	参数c Parameter c
1	$V = a D b$	0.000 292 3	2.255 753 4	—
2	$V = a + b D c$	-0.014 308 5	0.000 371 2	2.194 731 6
3	$V = a + b D + c D 2$	0.031 762 8	-0.007 816 5	0.000 930 7
4	$V = a D b H c$	0.000 092 1	1.931 195 6	0.782 622 1
5	$V = a + b D 2 H$	0.024 016 8	0.000 035 9	—
6	$V = a D 2 + b D 2 H$	0.000 172 2	0.000 028 6	—

表2 模型拟合结果

Table 2 Model fitting results

模型编号 Model number	材积模型 Volume model	参数a Parameter a	参数b Parameter b	参数c Parameter c
1	$V = a D b$	0.000 292 3	2.255 753 4	—
2	$V = a + b D c$	-0.014 308 5	0.000 371 2	2.194 731 6
3	$V = a + b D + c D 2$	0.031 762 8	-0.007 816 5	0.000 930 7
4	$V = a D b H c$	0.000 092 1	1.931 195 6	0.782 622 1
5	$V = a + b D 2 H$	0.024 016 8	0.000 035 9	—
6	$V = a D 2 + b D 2 H$	0.000 172 2	0.000 028 6	—

表3 模型评价指标结果

Table 3 The model evaluates the index results

模型类型 Model type	材积模型 Volume model	相关指数 R²	总相对误差 RS/%	相对误差平均值 REA/%	预估精度 P/%
一元材积模型 One-variable volume model	$V = a D b$	0.925	-1.73	-3.44	95.05
	$V = a + b D c$	0.925	-0.54	11.29	95.10
	$V = a + b D + c D 2$	0.926	-0.63	1.38	95.14
二元材积模型 Two-variable volume model	$V = a D b H c$	0.966	0.39	1.86	97.69
	$V = a + b D 2 H$	0.963	0.05	-7.29	97.22
	$V = a D 2 + b D 2 H$	0.965	1.12	3.99	97.48

表3 模型评价指标结果

Table 3 The model evaluates the index results

模型类型 Model type	材积模型 Volume model	相关指数 R²	总相对误差 RS/%	相对误差平均值 REA/%	预估精度 P/%
一元材积模型 One-variable volume model	$V = a D b$	0.925	-1.73	-3.44	95.05
	$V = a + b D c$	0.925	-0.54	11.29	95.10
	$V = a + b D + c D 2$	0.926	-0.63	1.38	95.14
二元材积模型 Two-variable volume model	$V = a D b H c$	0.966	0.39	1.86	97.69
	$V = a + b D 2 H$	0.963	0.05	-7.29	97.22
	$V = a D 2 + b D 2 H$	0.965	1.12	3.99	97.48

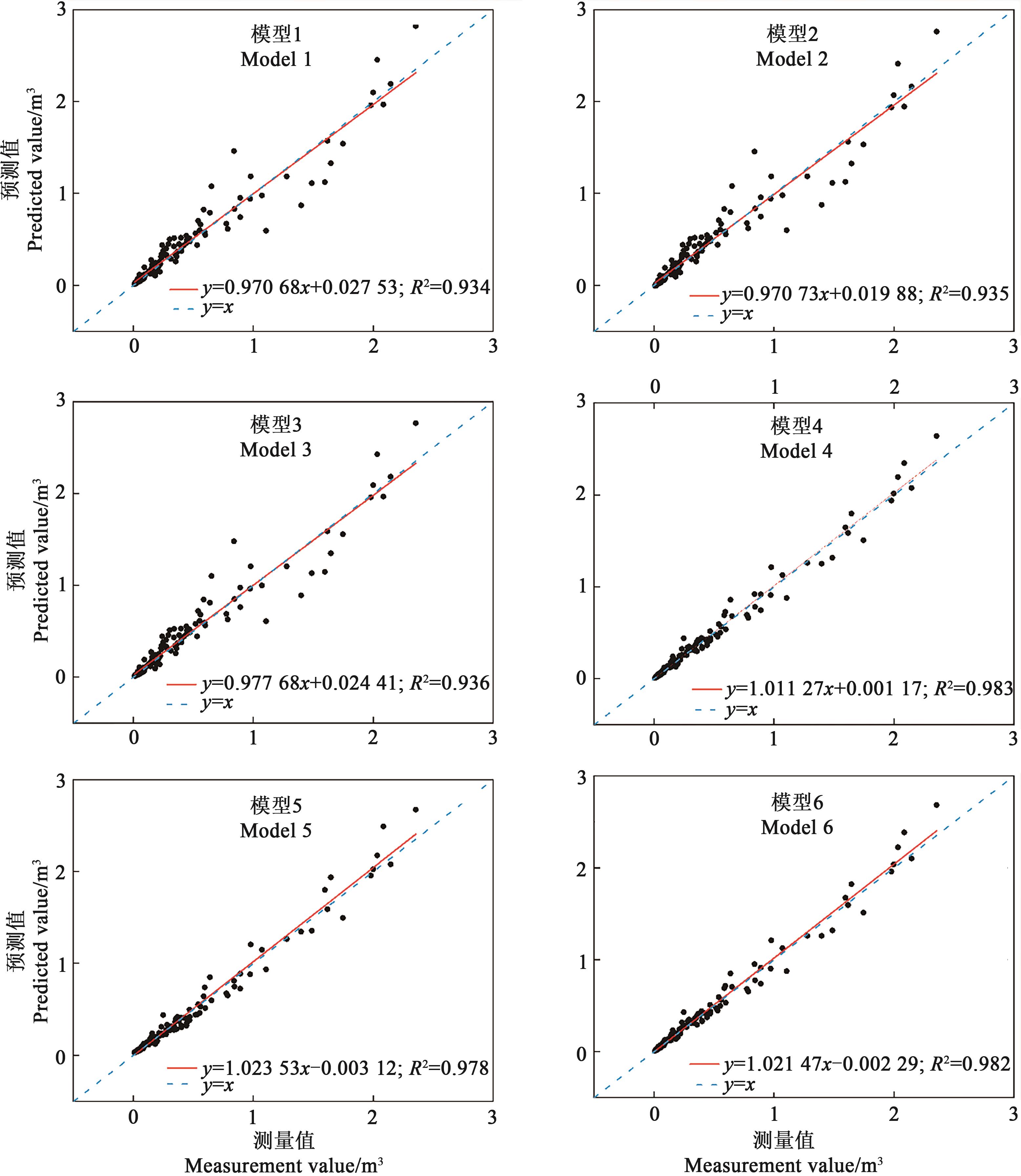

图2 预测材积与摄影测量材积对比

Fig. 2 Comparison of predicted volume and photogrammetric volume

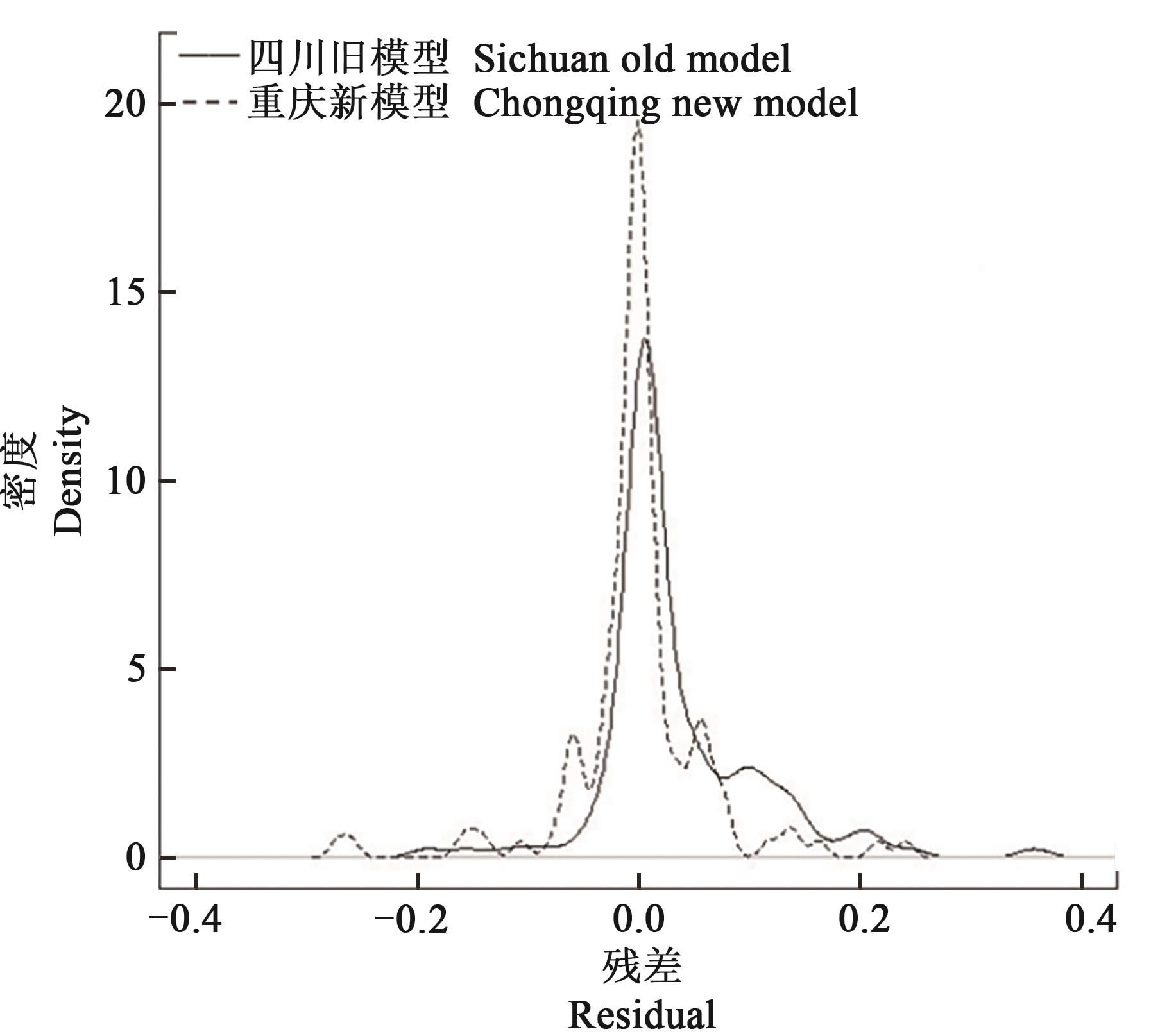

表4 模型评价指标结果

Table 4 Model evaluates the index results

模型类型

Model type

材积模型

Volume model
