基于HJ-1星和GF-1号影像融合特征提取冬小麦种植面积

doi:10.13304/j.nykjdb.2022.0703

中国农业科技导报 ›› 2024, Vol. 26 ›› Issue (2): 109-119.DOI: 10.13304/j.nykjdb.2022.0703

• 智慧农业农机装备 • 上一篇

基于HJ-1星和GF-1号影像融合特征提取冬小麦种植面积

张宏¹^,²(), 李卫国¹^,²(), 张晓东², 卢必慧¹, 张琤琤¹, 李伟³, 马廷淮⁴

^1.江苏省农业科学院农业信息研究所，南京 210014
^2.江苏大学农业工程学院，江苏镇江 212013
^3.江苏大学流体机械工程技术研究中心，江苏镇江 212013
^4.南京信息工程大学国际教育学院，南京 210044

收稿日期:2022-08-23 接受日期:2022-10-24 出版日期:2024-02-15 发布日期:2024-02-04
通讯作者: 李卫国
作者简介:张宏 E-mail：823631981@qq.com；
基金资助:
国家重点研发计划项目(2021YFE0104400);江苏省农业科技自主创新资金项目（CX〔20〕2037）

Extraction of Winter Wheat Planting Area Based on Fusion Features of HJ-1 and GF-1 Image

Hong ZHANG¹^,²(), Weiguo LI¹^,²(), Xiaodong ZHANG², Bihui LU¹, Chengcheng ZHANG¹, Wei LI³, Tinghuai MA⁴

^1.Institute of Agricultural Information，Jiangsu Academy of Agricultural Sciences，Jiangsu Nanjing 210014，China
^2.College of Agricultural Engineering，Jiangsu University，Jiangsu Zhenjiang 212013，China
^3.Fluid Machinery Engineering Technology Research Center，Jiangsu University，Jiangsu Zhenjiang 212013，China
^4.Institute of International Education，Nanjing University of Information of Science and Technology，Jiangsu Nanjing 210044，China

Received:2022-08-23 Accepted:2022-10-24 Online:2024-02-15 Published:2024-02-04
Contact: Weiguo LI

摘要/Abstract

摘要：

为提高基于国产环境与灾害监测预报卫星（HJ-1/CCD）影像大范围提取冬小麦种植面积的精度，以江苏省宿迁市沭阳县为研究区域，对冬小麦拔节期30 m×30 m的HJ-1/CCD多光谱影像和2 m×2 m的高分1号卫星全色影像（GF-1/PMS）进行融合与面向对象分类研究。将GF-1/PMS全色影像进行8、16和24 m重采样，得到4种空间分辨率（含2 m）的全色影像，分别与HJ-1/CCD多光谱影像利用光谱锐化法（Gram-Schmidt，GS）进行融合。通过对融合影像进行质量评价，选择适合研究区冬小麦种植田块格局的适宜尺度影像。将HJ-1/CCD多光谱影像重采样，得到与适宜尺度融合影像相同尺度的影像，在两景影像中分别选取包含光谱、纹理信息的训练融合影像样本（samples of fused image，SFI）和重采样影像样本（samples of resampling image，SRI），采用面向对象分类方法对适宜尺度融合影像（fused image，FI）和重采样影像（resampling image，RI）进行冬小麦种植面积提取。结果表明，16 m×16 m融合影像的效果优于2 m×2 m、8 m×8 m和24 m×24 m 融合影像，其均值、标准差、平均梯度和相关系数分别为161.15、83.01、4.55和0.97。面向对象分类后，SFI对重采样影像RI_16m分类的总体精度为92.22%，Kappa系数为0.90。SFI对融合影像FI_16m分类的总体精度为94.44%，Kappa系数为0.93。SRI对重采样影像RI_16m分类的总体精度为84.44%，Kappa系数为0.80。SFI对融合影像FI_16m分类效果最好，说明基于融合影像和融合影像提取样本（SFI）结合的面向对象分类方法能准确提取冬小麦种植面积。另外，重采样影像和融合影像提取样本（SFI）相结合的面向对象分类方法也可较好提取冬小麦种植面积。为利用国产中空间分辨率HJ-1/CCD卫星和高分1号卫星融合影像有效提取大区域冬小麦种植面积信息提供了参考。

关键词: HJ-1/CCD卫星影像, GF-1/PMS卫星影像, 冬小麦种植面积, 特征提取, 影像融合, 面向对象分类

Abstract:

In order to improve the accuracy of extracting large-scale winter wheat planting area from the data of domestic environment and disaster monitoring and forecasting satellite （HJ-1/CCD）. This study took Shuyang County， Suqian City， Jiangsu Province as the research area. The fusion and object-oriented classification of the 30 m×30 m HJ-1/CCD multispectral image and the 2 m×2 m GF-1 panchromatic image （GF-1/PMS） at the jointing stage of winter wheat were carried out. The GF-1/PMS panchromatic images were resampled at 8， 16 and 24 m， and panchromatic images with four spatial resolutions （including 2 m） were obtained， which were fused with HJ-1/CCD multispectral images by Gram-Schmidt （GS）， respectively. Through the quality evaluation of the fused image， the appropriate scale image suitable for the pattern of winter wheat planting fields in the study area was selected. The HJ-1/CCD multispectral image was resampled to obtain an image with the same scale as the appropriate scale fused image. In the 2 scene images， the training samples SFI （samples of fused image） and SRI （samples of resampling image） containing spectral and texture information were selected respectively， the object-oriented classification method was used to extract the planting area of winter wheat from fused image （FI） and resampling image （RI）. The results showed that the fusion effect of 16 m×16 m fused images was better than 2 m×2 m， 8 m×8 m and 24 m×24 m fused images， and the mean， standard deviation， average gradient and correlation coefficient were 161.15， 83.01， 4.55 and 0.97. After object-oriented classification， the overall accuracy of SFI for the classification of resampled image RI_16m was 92.22%， and the Kappa coefficient was 0.90. The overall accuracy of SFI for the classification of fused image FI_16m was 94.44%， and the Kappa coefficient was 0.93. The overall accuracy of SRI for the classification of resampled image RI_16m was 84.44%， and the Kappa coefficient was 0.80. The classification effect of SFI for the fused image FI_16m was the best， indicating that the object-oriented classification method combined with the fused image and the extraction samples of fused image （SFI） could accurately extract the winter wheat planting area. In addition， the object-oriented classification method combining resampling image and the extraction samples of fused image （SFI） could also better extract the winter wheat planting area. This method provided a reference for the effective extraction of large-scale winter wheat planting area information combined with domestic medium-spatial resolution HJ-1/CCD images and GF-1 satellite images.

Key words: HJ-1/CCD satellite image, GF-1/PMS satellite image, winter wheat planting area, features extraction, image fusion, object-oriented classification

中图分类号:

S127

张宏, 李卫国, 张晓东, 卢必慧, 张琤琤, 李伟, 马廷淮. 基于HJ-1星和GF-1号影像融合特征提取冬小麦种植面积[J]. 中国农业科技导报, 2024, 26(2): 109-119.

Hong ZHANG, Weiguo LI, Xiaodong ZHANG, Bihui LU, Chengcheng ZHANG, Wei LI, Tinghuai MA. Extraction of Winter Wheat Planting Area Based on Fusion Features of HJ-1 and GF-1 Image[J]. Journal of Agricultural Science and Technology, 2024, 26(2): 109-119.

图/表 8

参考文献 40

1	李卫国,王纪华,赵春江,等.基于遥感信息和产量形成过程的小麦估产模型[J].麦类作物学报, 2007(5): 904-907.
	LI W G, WANG J H, ZHAO C J, et al.. A model of estimating winter wheat yield based on tm image and yield formation [J]. J. Triticeae Crops, 2007(5):904-907.
2	LI W, LIU Y, CHEN H, et al.. Estimation model of winter wheat disease based on meteorological factors and spectral information [J/OL]. Food Prod. Process. Nutr., 2020, 2:5 [2022-09-01]. .
3	LI X, MENG Q, GU X, et al.. A hybrid method combining pixel-based and object-oriented methods and its application in Hungary using Chinese HJ-1 satellite images [J]. Int. J. Remote Sens., 2013, 34(13-14): 4655-4668.
4	李卫国,顾晓鹤,葛广秀,等.县域冬小麦病害遥感监测信息系统研制[J].江苏农业学报,2019, 35(2): 302-306.
	LI W G, GU X H, GE G X, et al.. Development of remote sensing monitoring information system for county scale winter wheat diseases [J]. Jiangsu J. Agric. Sci., 2019, 35(2): 302-306.
5	ZHOU Q, YU Q, LIU J, et al.. Perspective of Chinese GF-1 high-resolution satellite data in agricultural remote sensing monitoring [J]. J. Integr. Agric., 2017, 16(2): 242-251.
6	林子晶,李卫国,申双和,等.HJ星和GF1号数据在水稻种植面积提取中的应用[J].江苏农业学报, 2016, 32(1): 111-117.
	LI Z J, LI W G, SHEN S H, et al.. Application of HJ and GF1 image data to extract rice planting area [J]. Jiangsu J. Agric. Sci., 2016, 32(1): 111-117.
7	金正婷,李卫国,景元书.基于影像融合的冬小麦种植面积提取适宜尺度研究[J].江苏农业学报, 2015, 31(6): 1312-1317.
	JIN Z T, LI W G, JING Y S. Appropriate extraction scale of winter wheat planting area based on image fusion [J]. Jiangsu J. Agric. Sci., 2015, 31(6): 1312-1317.
8	李卫国,陈华,金正婷,等.基于适宜尺度选择的冬小麦赤霉病遥感监测[J].麦类作物学报, 2018, 38(11): 1374-1380.
	LI W G, CHEN H, JIN Z T, et al.. Remote sensing monitoring of winter wheat scab based on suitable scale selection [J]. J. Triticeae Crops, 2018, 38(11): 1374-1380.
9	李雪欣,马保东,张嵩,等.融合多光谱与SAR影像的地物分类研究[J].测绘与空间地理信息, 2019, 42(12): 55-58.
	LI X X, MA B D, ZHANG S, et al.. Study on classification of ground objects with multispectral and SAR images [J]. Map. Spa. Geogr. Inform., 2019, 42(12): 55-58.
10	SEO D K, KIM Y H, EO Y D, et al.. Fusion of SAR and multispectral images using random forest regression for change detection [J]. ISPRS Int. J. Geo-Inf., 2018, 7(10): 401.
11	李双成,郑度.人工神经网络模型在地学研究中的应用进展[J].地球科学进展, 2003(1): 68-76.
	LI S C, ZHENG D. Applications of artificial neural networks to geosciences: review and prospect [J]. Adv. Earth Sci., 2003(1): 68-76.
12	李卫国,李正金,王纪华,等.基于ISODATA的冬小麦籽粒蛋白质含量遥感分级监测[J].江苏农业学报,2009, 25(6): 1247-1251.
	LI W G, LI Z J, WANG J H, et al.. Classification monitoring of grain protein contents of winter wheat by TM image based on ISODATA [J]. Jiangsu J. Agric. Sci., 2009, 25(6): 1247-1251.
13	李楠,朱秀芳,潘耀忠,等.人工蜂群算法优化的SVM遥感影像分类[J].遥感学报,2018, 22(4): 559-569.
	LI N, ZHU X F, PAN Y Z, et al.. Optimized SVM based on artificial bee colony algorithm for remote sensing image classification [J]. J. Remote Sens., 2018, 22(4): 559-569
14	IZQUIERDO-VERDIGUIER E, LAPARRA V, GOMEZ-CHOVA L, et al.. Encoding invariances in remote sensing image classification with SVM [J]. IEEE Geosic. Remote Sens., 2013, 10(5): 981-985.
15	周春艳,王萍,张振勇,等.基于面向对象信息提取技术的城市用地分类[J].遥感技术与应用, 2008(1): 31-35, 123.
	ZHOU C Y, WANG P, ZHANG Z Y, et al.. Classification of urban land based on object-oriented information extraction technology [J]. Remote Sens. Technol. Appl., 2008(1): 31-35, 123.
16	莫利江,曹宇,胡远满,等.面向对象的湿地景观遥感分类—以杭州湾南岸地区为例[J].湿地科学,2012,10(2):206-213.
	MO L J, CAO Y, HU Y M, et al.. Object-oriented classification for satellite remote sensing of wetlands: a case study in southern Hangzhou bay area [J]. Wetland Sci.,2012,10(2):206-213.
17	李正金,李卫国,申双和.基于优化ISODATA法的冬小麦长势分级监测[J].江苏农业科学, 2009(2): 301-302.
	LI Z J, LI W G, SHEN S H. A classification of wheat yield by remote-monitoring based on optimization ISODATA [J]. Jiangsu J. Agric. Sci., 2009(2):301-302.
18	SHACKELFORD A K, DAVIS C H. A combined fuzzy pixel-based and object-based approach for classification of high-resolution multispectral data over urban areas [J]. IEEE Trans. Geosci. Remote, 2003, 41(10): 2354-2363.
19	宋明辉.基于高分二号数据的面向对象城市土地利用分类研究[J].遥感技术与应用, 2019, 34(3): 547-552, 629.
	SONG M H. Object-oriented urban land classification with GF-2 remote sensing image [J]. Remote Sens. Technol. Appl., 2019, 34(3) : 547-553, 629.
20	LIU Y, LI M, MAO L, et al.. Review of remotely sensed imagery classification patterns based on object-oriented image analysis [J]. Chin. Geogr. Sci., 2006(3): 282-288.
21	CUI W, ZHENG Z, ZHOU Q, et al.. Application of a parallel spectral-spatial convolution neural network in object-oriented remote sensing land use classification [J]. Remote Sens. Lett., 2018, 9(4-6): 334-342.
22	张颖,何贞铭,吴贞江.基于多源遥感影像的农作物分类提取[J].山东农业大学学报(自然科学版), 2021, 52(4): 615-618.
	ZHANG Y, HE Z M, WU Z J. Crop classification and extraction based on multi-source remote sensing image [J]. J. Shandong Agric. Univ. (Nat. Sci.), 2021, 52(4): 615-618.
23	ZHOU Z, HUANG J, WANG J, et al.. Object-oriented classification of sugarcane using time-series middle-resolution remote sensing data based on AdaBoost [J]. PLoS One, 2015, 10: e0142069 [2022-09-01]. .
24	高雨,胡召玲,樊茹.高分辨率影像融合算法对滨海湿地土地利用分类精度的影响[J].测绘通报, 2022(1): 116-120.
	GAO Y, HU Z L, FAN R. Effect of high-resolution image fusion algorithm on the classification precision of land utilization in coastal wetland [J]. Bull. Surv. Map., 2022(1):116-120.
25	王芳,杨武年,王建,等.国产高分卫星像素级影像融合及其质量评价[J].测绘科学, 2021, 46(8): 73-80.
	WANG F, YANG W N, WANG J, et al.. Chinese high-resolution satellite pixel level image fusion and its quality evaluation [J].Sci. Surv. Map., 2021, 46(8):73-80.
26	WANG Z, NIE C, WANG H, et al.. Detection and analysis of degree of maize lodging using UAV-RGB image multi-feature factors and various classification methods [J]. ISPRS Int. J. Geo-Inf., 2021, 10(5):309.
27	JIN B, YE P, ZHANG X, et al.. Object-Oriented method combined with deep convolutional neural networks for land-use-type classification of remote sensing images [J]. J. Ind. Soc. Remote, 2019, 47(6): 951-965.
28	李卫国,蒋楠.基于面向对象分类的冬小麦种植面积提取[J].麦类作物学报,2012,32(4):701-705.
	LI W G, JIANG N. Extraction of winter wheat planting area by object-oriented classification method [J]. J. Triticeae Crops, 2012,32(4):701-705.
29	赵搏华,王秀茹,阎世煜,等.面向对象分类方法在水土保持措施提取中的应用[J].中国水土保持科学, 2022, 20(1):122-127.
	ZHAO B H, WANG X R, YAN S Y, et al.. Application of object-oriented classification method in the extraction of soil and water conservation measures [J]. Sci. Soil Water Conserv., 2022, 20(1):122-127.
30	李前景,刘珺,米晓飞,等.面向对象与卷积神经网络模型的GF-6 WFV影像作物分类[J].遥感学报,2021, 25(2): 549-558.
	LI Q J, LIU J, MI X F, et al.. Object-oriented crop classification for GF-6 WFV remote sensing images based on convolutional neural network [J]. J. Remote Sens., 2021, 25(2): 549-558.
31	李卫国,黄文江,董莹莹,等.基于温湿度与遥感植被指数的冬小麦赤霉病估测[J].农业工程学报, 2017, 33(23): 203-210.
	LI W G, HUANG W J, DONG Y Y, et al.. Estimation on winter wheat scab based on combination of temperature, humidity and remote sensing vegetation index [J]. Trans. Chin. Soc. Agric. Eng., 2017, 33(23):203-210.
32	GU X H, LI W G, WANG L. Understanding vegetation changes in northern China and Mongolia with change vector analysis [J]. Springer Plus, 2016, 5:1780-1793.
33	裴欢,孙天娇,王晓妍.基于Landsat 8 OLI影像纹理特征的面向对象土地利用/覆盖分类[J].农业工程学报, 2018, 34(2): 248-255.
	PEI H, SUN T J, WANG X Y. Object-oriented land use/cover classification based on texture features of Landsat 8 OLI image [J]. Trans. Chin. Soc. Agric. Eng., 2018, 34(2): 248-255.
34	REGNIERS O, BOMBRUN L, LAFON V, et al.. Supervised classification of very high resolution optical images using wavelet-based textural features [J]. IEEE Trans. Geosci. Remote, 2016, 54(6): 3722-3735.
35	闻馨,贾明明,李晓燕,等.基于无人机可见光影像的红树林冠层群落识别[J].森林与环境学报, 2020, 40(5): 486-496.
	WEN X, JIA M M, LI X Y, et al.. Identification of mangrove canopy species based on visible unmanned aerial vehicle images [J]. J. Fore Environ., 2020, 40(5):486-496.
36	王宇航,范文义,刘超逸.基于面向对象的QUICKBIRD数据和SAR数据融合的地物分类[J].东北林业大学学报,2016, 44(9): 44-49.
	WANG Y H, FAN W Y, LIU C Y. An object-based fusion of QUICKBIRD data and RADARSAT SAR data for classification analysis [J]. J. Northeast Fore. Univ., 2016, 44(9): 44-49.
37	吴忠强,毛志华,王正,等.基于多源影像融合去云的水深遥感反演研究—以哨兵-2A和资源三号为例[J].测绘与空间地理信息, 2019, 42(11): 12-16.
	WU Z Q, MAO Z H, WANG Z, et al.. Shallow water depth retrieval from multi-scale multi-spectral satellite data: take Sentinel-2A and Resource 3 as an example [J]. Map. Spa. Geogr. Inform., 2019, 42(11): 12-16.
38	ZHAO F C, WU X M, WANG S. Object-oriented vegetation classification method based on UAV and satellite image fusion [J]. Procedia Comput. Sci., 2020, 174:609-615.
39	聂倩,七珂珂,赵艳福.融入超像素分割的高分辨率影像面向对象分类[J].测绘通报, 2021(6): 44-49.
	NIE Q, QI K K, ZHAO Y F. Object-oriented classification of high resolution image combining super-pixel segmentation [J]. Bull. Surv. Map., 2021(6):44-49.
40	万剑华,臧金霞,刘善伟.顾及极化特征的SAR与光学影像融合与分类[J].光学学报, 2017, 37(6): 292-301.
	WAN J H, ZANG J X, LIU S W. Fusion and classification of SAR and optical image with consideration of polarization characteristics [J]. Acta Optica Sin., 2017, 37(6): 292-301.

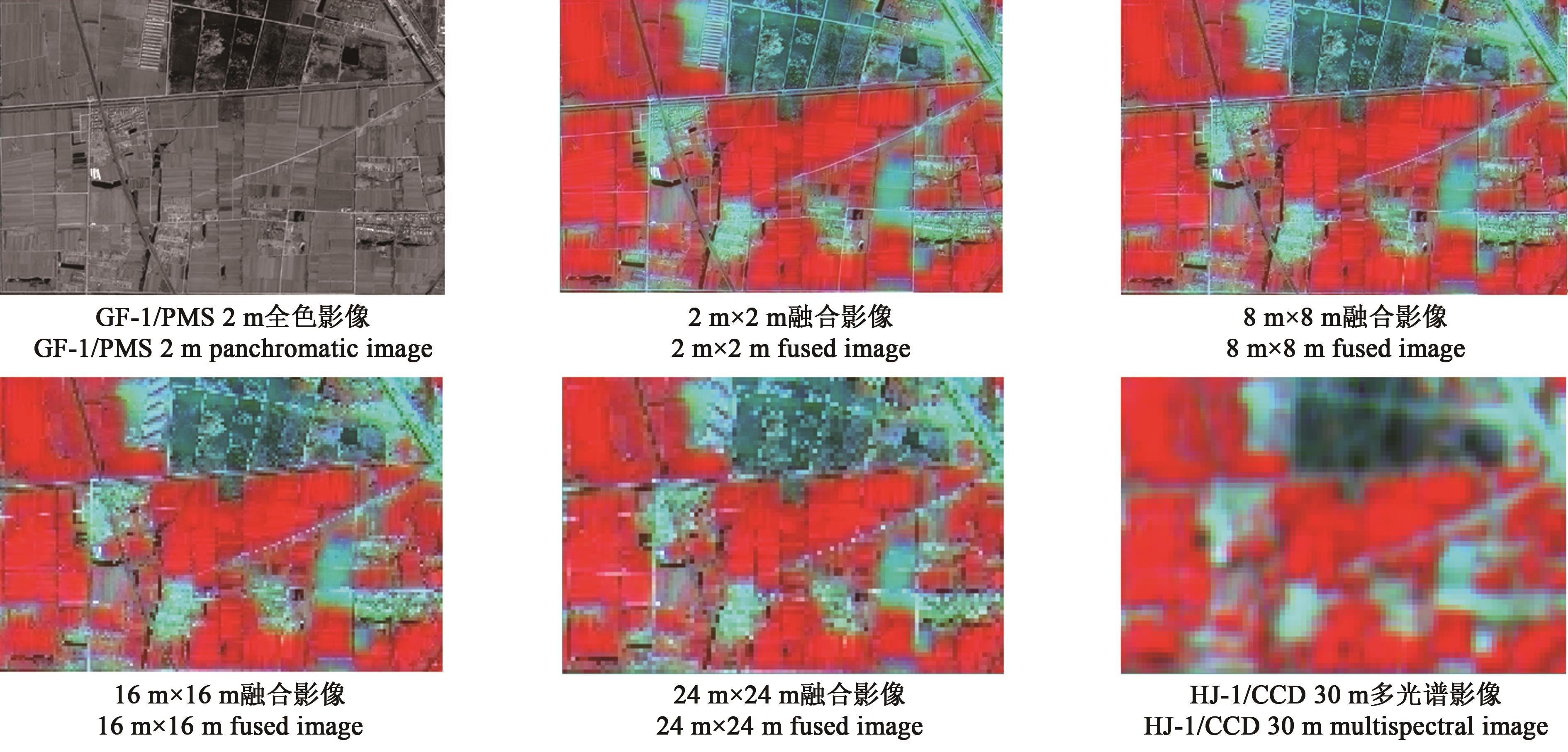

融合尺度 Scale of fusion	均值 Mean value	标准差 Standard deviation	平均梯度 Average gradient	相关系数 Correlation coefficient
2 m×2 m	160.98±8.21 a	78.60±4.09 a	1.81±0.06 c	0.95±0.06 a
8 m×8 m	161.01±5.31 a	82.93±3.73 a	2.97±0.12 c	0.96±0.05 a
16 m×16 m	161.15±6.45 a	83.01±4.48 a	4.55±0.23 c	0.97±0.06 a
24 m×24 m	165.03±9.08 a	83.59±5.02 a	6.13±0.36 c	0.85±0.03 b

融合尺度 Scale of fusion	均值 Mean value	标准差 Standard deviation	平均梯度 Average gradient	相关系数 Correlation coefficient
2 m×2 m	160.98±8.21 a	78.60±4.09 a	1.81±0.06 c	0.95±0.06 a
8 m×8 m	161.01±5.31 a	82.93±3.73 a	2.97±0.12 c	0.96±0.05 a
16 m×16 m	161.15±6.45 a	83.01±4.48 a	4.55±0.23 c	0.97±0.06 a
24 m×24 m	165.03±9.08 a	83.59±5.02 a	6.13±0.36 c	0.85±0.03 b

植被类型 Vegetation type	同质性 Homogeneity	熵 Entropy	角二阶距 Angular second moment	对比度 Contrast
冬小麦 Winter wheat	0.80	1.39	0.31	0.66
油菜 Rape	0.72	1.12	0.32	0.70
其他植被 Other vegetation	0.60	1.27	0.21	1.33

植被类型 Vegetation type	同质性 Homogeneity	熵 Entropy	角二阶距 Angular second moment	对比度 Contrast
冬小麦 Winter wheat	0.80	1.39	0.31	0.66
油菜 Rape	0.72	1.12	0.32	0.70
其他植被 Other vegetation	0.60	1.27	0.21	1.33

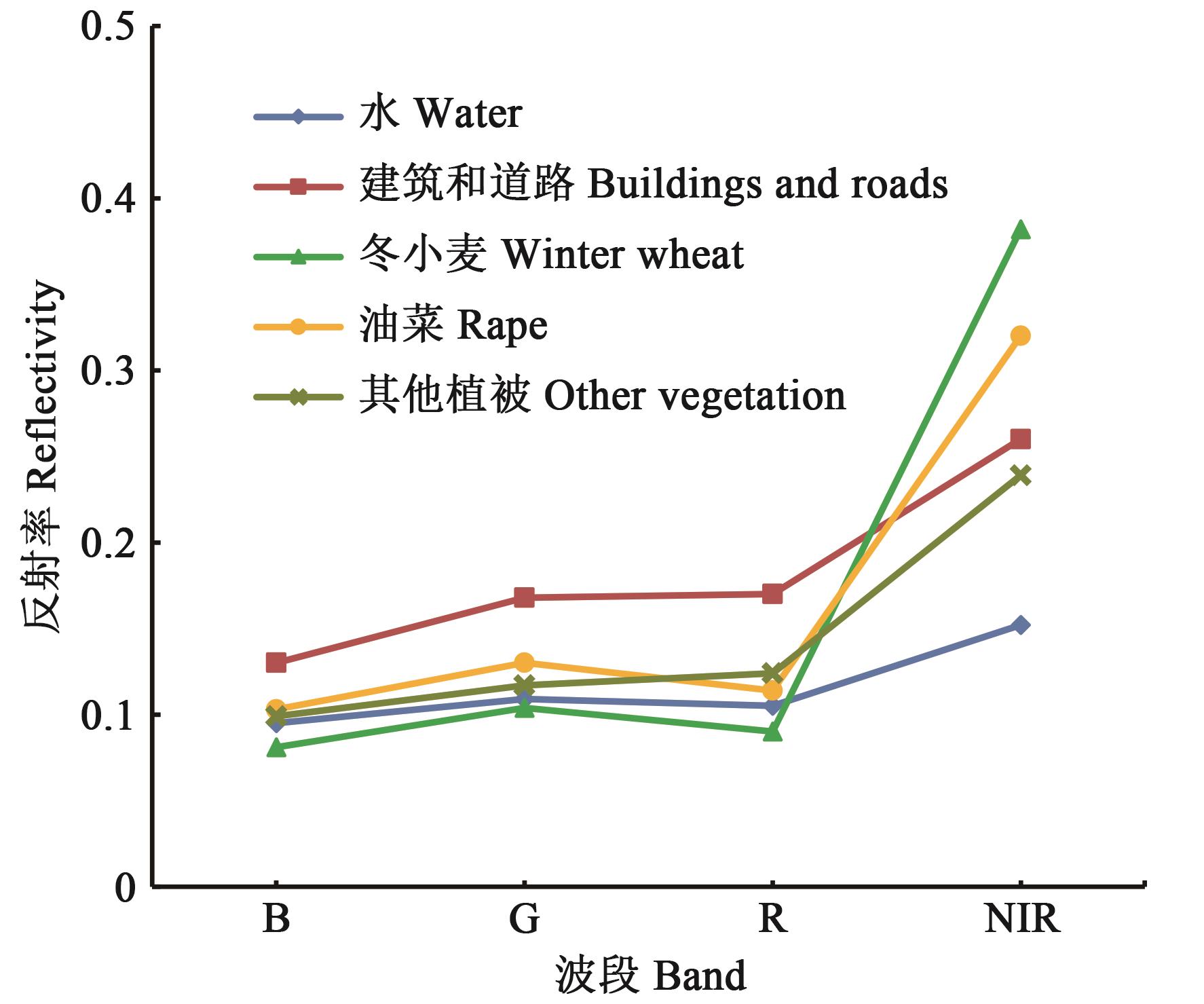

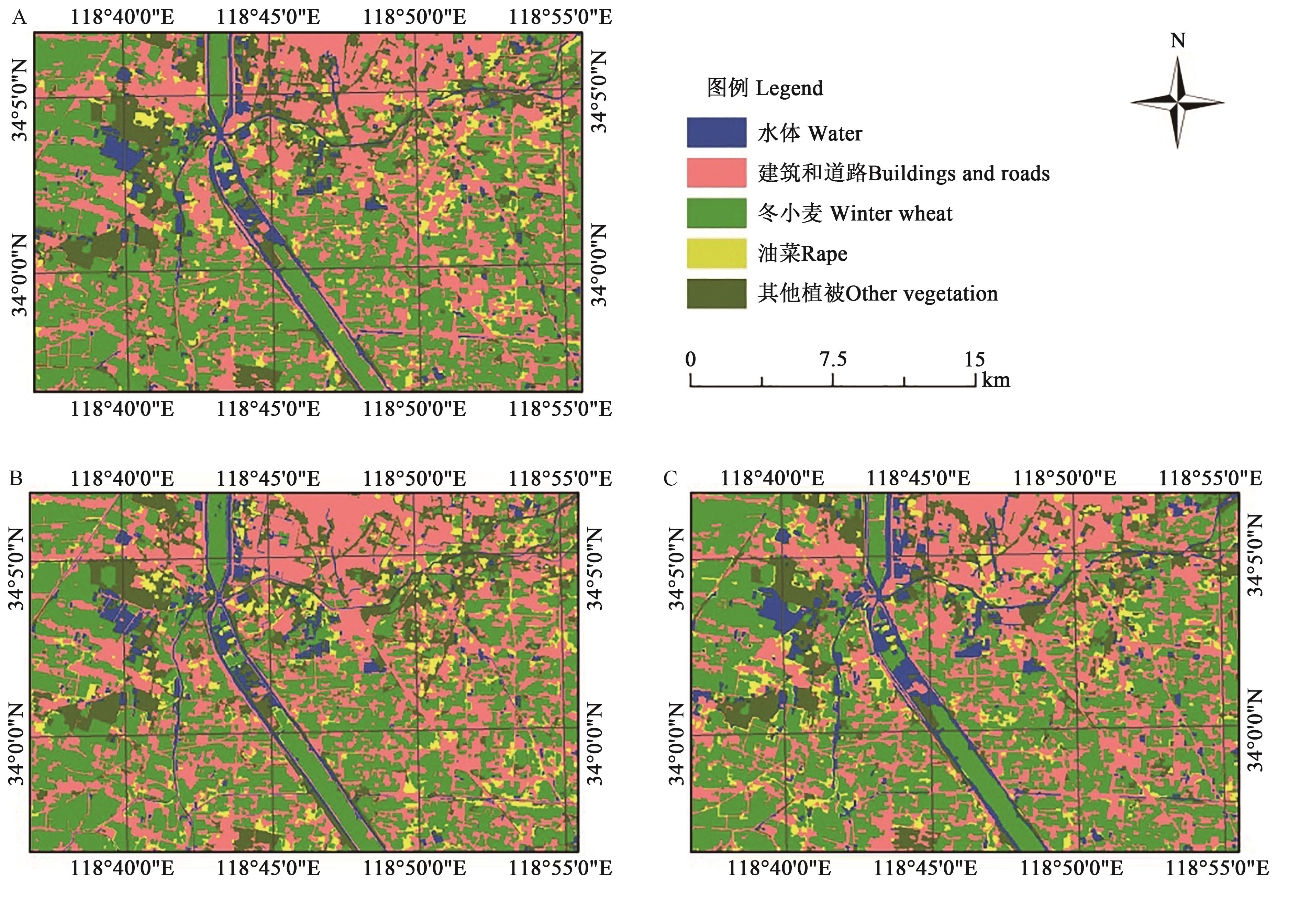

分类组合 Classification combinations	训练样本 Training sample	影像 Image	精度 Accuracy	水体 Water/%	建筑和道路 Buildings and roads/%	冬小麦 Winter wheat/ %	油菜 Rape/ %	其他植被 Other vegetation/ %	总体精度 Overall Accuracy/ %	Kappa系数 Kappa Coefficient
组合一 Combination 1	SFI	RI_16m	生产者精度 Producer accuracy	90.00	92.00	97.78	85.00	91.43	92.22	0.90
组合一 Combination 1	SFI	RI_16m	用户精度 User accuracy	96.43	93.88	91.67	89.47	88.89	92.22	0.90
组合二 Combination 2	SFI	FI_16m	生产者精度 Producer accuracy	93.33	96.00	97.78	90.00	91.43	94.44	0.93
组合二 Combination 2	SFI	FI_16m	用户精度 User accuracy	100	90.57	100	85.71	94.12	94.44	0.93
组合三 Combination 3	SRI	RI_16m	生产者精度 Producer accuracy	83.33	86.00	93.33	70.00	80.00	84.44	0.80
组合三 Combination 3	SRI	RI_16m	用户精度 User accuracy	83.33	82.70	91.30	73.68	84.85	84.44	0.80
