Journal of Agricultural Science and Technology ›› 2023, Vol. 25 ›› Issue (1): 119-127.DOI: 10.13304/j.nykjdb.2021.0888
• ANIMAL AND PLANT HEALTH • Previous Articles
Yudan ZHANG1(), Weimin WANG2, Bo NI3, Xiaohan MA1, Junling LI1, Zicheng XU1, Wei JIA1(
), Jiuchang SHI2(
)
Received:
2021-10-18
Accepted:
2022-04-12
Online:
2023-01-15
Published:
2023-04-17
Contact:
Wei JIA,Jiuchang SHI
张豫丹1(), 王卫民2, 倪博3, 马晓寒1, 李俊领1, 许自成1, 贾玮1(
), 史久长2(
)
通讯作者:
贾玮,史久长
作者简介:
张豫丹E-mail:519086134@qq.com
基金资助:
CLC Number:
Yudan ZHANG, Weimin WANG, Bo NI, Xiaohan MA, Junling LI, Zicheng XU, Wei JIA, Jiuchang SHI. Extraction Optimization of Chlorogenic Acid from Tobacco Stalk and Its Antifungal Effect[J]. Journal of Agricultural Science and Technology, 2023, 25(1): 119-127.
张豫丹, 王卫民, 倪博, 马晓寒, 李俊领, 许自成, 贾玮, 史久长. 烟草秸秆绿原酸提取工艺优化及其抑菌效果研究[J]. 中国农业科技导报, 2023, 25(1): 119-127.
水平 Level | 因素 Factor | ||
---|---|---|---|
A:料液比 Solid-liquid ratio/(g·mL-1) | B:乙醇体积分数 Ethanol volume fraction/% | C:提取温度 Extraction teperature/℃ | |
-1 | 1∶15 | 50 | 30 |
0 | 1∶20 | 60 | 40 |
1 | 1∶25 | 70 | 50 |
Table 1 Factors and levels of response surface design
水平 Level | 因素 Factor | ||
---|---|---|---|
A:料液比 Solid-liquid ratio/(g·mL-1) | B:乙醇体积分数 Ethanol volume fraction/% | C:提取温度 Extraction teperature/℃ | |
-1 | 1∶15 | 50 | 30 |
0 | 1∶20 | 60 | 40 |
1 | 1∶25 | 70 | 50 |
编号 No. | 因素 Factor | 绿原酸含量 CGA content/(mg·g-1) | ||
---|---|---|---|---|
A | B | C | ||
1 | -1 | -1 | 0 | 1.51 |
2 | 1 | -1 | 0 | 2.54 |
3 | -1 | 1 | 0 | 1.46 |
4 | 1 | 1 | 0 | 2.49 |
5 | -1 | 0 | -1 | 1.45 |
6 | 1 | 0 | -1 | 2.58 |
7 | -1 | 0 | 1 | 1.58 |
8 | 1 | 0 | 1 | 2.65 |
9 | 0 | -1 | -1 | 2.21 |
10 | 0 | 1 | -1 | 2.18 |
11 | 0 | -1 | 1 | 2.33 |
12 | 0 | 1 | 1 | 2.27 |
13 | 0 | 0 | 0 | 2.08 |
14 | 0 | 0 | 0 | 2.11 |
15 | 0 | 0 | 0 | 2.14 |
16 | 0 | 0 | 0 | 2.06 |
17 | 0 | 0 | 0 | 2.16 |
Table 2 Experimental results of response surface design
编号 No. | 因素 Factor | 绿原酸含量 CGA content/(mg·g-1) | ||
---|---|---|---|---|
A | B | C | ||
1 | -1 | -1 | 0 | 1.51 |
2 | 1 | -1 | 0 | 2.54 |
3 | -1 | 1 | 0 | 1.46 |
4 | 1 | 1 | 0 | 2.49 |
5 | -1 | 0 | -1 | 1.45 |
6 | 1 | 0 | -1 | 2.58 |
7 | -1 | 0 | 1 | 1.58 |
8 | 1 | 0 | 1 | 2.65 |
9 | 0 | -1 | -1 | 2.21 |
10 | 0 | 1 | -1 | 2.18 |
11 | 0 | -1 | 1 | 2.33 |
12 | 0 | 1 | 1 | 2.27 |
13 | 0 | 0 | 0 | 2.08 |
14 | 0 | 0 | 0 | 2.11 |
15 | 0 | 0 | 0 | 2.14 |
16 | 0 | 0 | 0 | 2.06 |
17 | 0 | 0 | 0 | 2.16 |
来源 Source | 平方和 Sun of squares | 自由度 DF | 均方 Mean freedom | F值 F value | P值 P value | 显著性 Statistical significance |
---|---|---|---|---|---|---|
模型 Model | 2.42 | 9 | 0.27 | 215.52 | <0.000 1 | *** |
A | 2.26 | 1 | 2.26 | 1812.80 | <0.000 1 | *** |
B | 0.004 5 | 1 | 0.004 5 | 3.58 | 0.100 3 | |
C | 0.02 | 1 | 0.02 | 16.36 | 0.004 9 | ** |
AB | 0.004 6 | 1 | 0.004 6 | 0.037 | 0.853 8 | |
AC | 0.001 2 | 1 | 0.001 2 | 0.94 | 0.364 1 | |
BC | 0.001 7 | 1 | 0.001 6 | 0.14 | 0.724 0 | |
A2 | 0.092 | 1 | 0.092 | 73.53 | <0.000 1 | *** |
B2 | 0.005 | 1 | 0.005 | 4.00 | 0.085 6 | |
C2 | 0.042 | 1 | 0.042 | 33.84 | 0.000 7 | ** |
残差 Residuel | 0.008 8 | 7 | 0.001 2 | — | — | |
失拟项 Lack of fit | 0.002 2 | 3 | 0.007 2 | 0.44 | 0.736 2 | |
纯误差 Pure error | 0.006 6 | 4 | 0.001 6 | — | — | |
总差 Cor total | 2.43 | 16 | — | — | — |
Table 3 Variance analysis results of regression model
来源 Source | 平方和 Sun of squares | 自由度 DF | 均方 Mean freedom | F值 F value | P值 P value | 显著性 Statistical significance |
---|---|---|---|---|---|---|
模型 Model | 2.42 | 9 | 0.27 | 215.52 | <0.000 1 | *** |
A | 2.26 | 1 | 2.26 | 1812.80 | <0.000 1 | *** |
B | 0.004 5 | 1 | 0.004 5 | 3.58 | 0.100 3 | |
C | 0.02 | 1 | 0.02 | 16.36 | 0.004 9 | ** |
AB | 0.004 6 | 1 | 0.004 6 | 0.037 | 0.853 8 | |
AC | 0.001 2 | 1 | 0.001 2 | 0.94 | 0.364 1 | |
BC | 0.001 7 | 1 | 0.001 6 | 0.14 | 0.724 0 | |
A2 | 0.092 | 1 | 0.092 | 73.53 | <0.000 1 | *** |
B2 | 0.005 | 1 | 0.005 | 4.00 | 0.085 6 | |
C2 | 0.042 | 1 | 0.042 | 33.84 | 0.000 7 | ** |
残差 Residuel | 0.008 8 | 7 | 0.001 2 | — | — | |
失拟项 Lack of fit | 0.002 2 | 3 | 0.007 2 | 0.44 | 0.736 2 | |
纯误差 Pure error | 0.006 6 | 4 | 0.001 6 | — | — | |
总差 Cor total | 2.43 | 16 | — | — | — |
编号 No. | 料液比 Material ratio/(g·mL-1) | 提取温度 Extraction temperature/℃ | 乙醇体积分数 Ethanol volume fraction/% | 绿原酸含量 Chlorogenic acid content/(mg·g-1) |
---|---|---|---|---|
1 | 1∶15 | 50 | 50 | 3.51 |
2 | 1∶15 | 50 | 50 | 3.47 |
3 | 1∶15 | 50 | 50 | 3.50 |
Table 4 Extraction yield of chlorogenic acid in validation experiments
编号 No. | 料液比 Material ratio/(g·mL-1) | 提取温度 Extraction temperature/℃ | 乙醇体积分数 Ethanol volume fraction/% | 绿原酸含量 Chlorogenic acid content/(mg·g-1) |
---|---|---|---|---|
1 | 1∶15 | 50 | 50 | 3.51 |
2 | 1∶15 | 50 | 50 | 3.47 |
3 | 1∶15 | 50 | 50 | 3.50 |

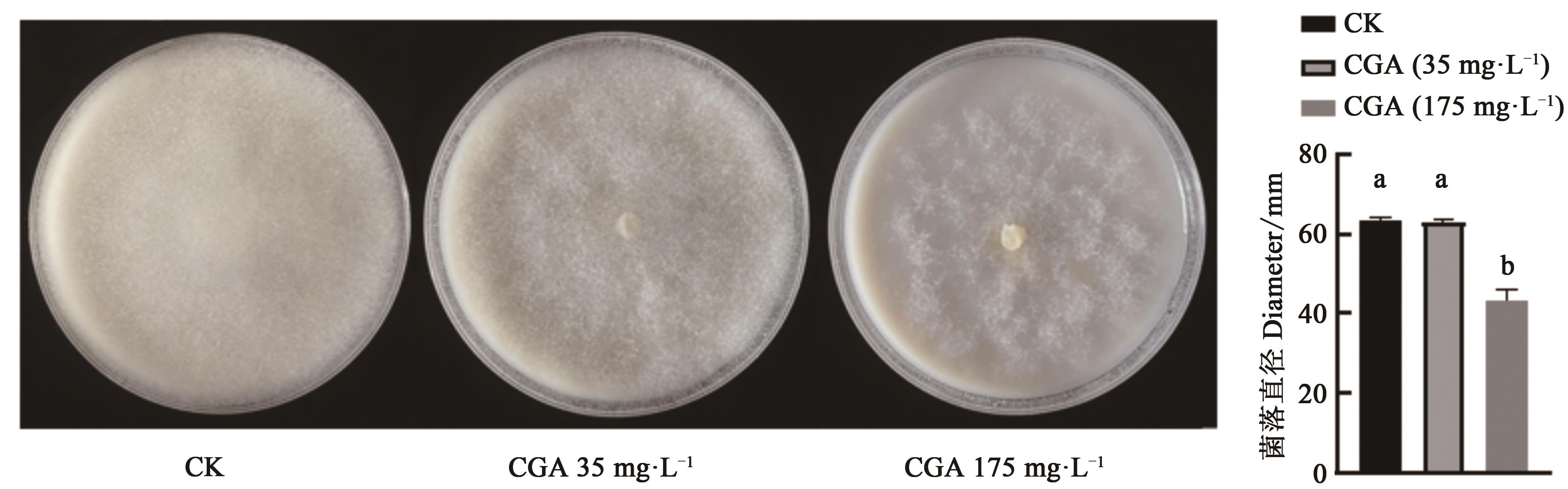

Fig. 7 Effect of chlorogenic acid on the diameter of P. nicotianaeNote:Different small letters in the figure indicate significant difference at P<0.05 level.
1 | 陈栋贤,龚加,杨宇玲,等.烟碱提取及其应用研究进展[J].广州化工, 2021, 49(13): 1-4. |
CHEN D X, GONG J, YANG Y L, et al.. Research progress of nicotine extraction and its application [J]. Guangzhou Chem. Ind., 2021, 49 (13): 1-4. | |
2 | 梁永进,尚海丽,盘文政,等.微生物菌肥对‘K326’烤烟生长发育及产质量的影响[J].中国农学通报,2021, 37(23): 45-51. |
LIANG Y J, SHANG H L, PAN W Z, et al.. Effects of microbial fertilizer on growth, yield and quality of ‘K326’ flue-cured tobacco [J]. Chin. Agron. Bull., 2021, 37 (23): 45-51. | |
3 | 李少明,汤利,范茂攀,等.不同微生物腐熟剂对烟末高温堆肥腐熟进程的影响[J].农业环境科学学报, 2008,27(2): 783-786. |
LI S M, TANG L, FAN M P, et al.. Effects of different microbial decomposing agents on the decomposition process of tobacco waste high temperature compost [J]. J. Agric. Environ. Sci., 2008,27(2): 783-786. | |
4 | LIU Y, DONG J, LIU G, et al.. Co-digestion of tobacco waste with different agricultural biomass feedstocks and the inhibition of tobacco viruses by anaerobic digestion [J]. Bioresour. Technol., 2015, 189: 210-216. |
5 | 郑坚强,刘彬,王小飞,等.烟草秸秆纳米纤维素的制备及表征分析[J].河南农业科学, 2021, 50(3): 165-173. |
ZHENG J Q, LIU B, WANG X F, et al.. Preparation and characterization of tobacco straw nano cellulose [J]. Henan Agric. Sci., 2021, 50 (3): 165-173. | |
6 | 赵德清,戴亚,冯广林,等.烟秆的化学成分、纤维形态与生物结构[J].烟草科技, 2016, 49(4): 80-86. |
ZHAO D Q, DAI Y, FENG G L, et al.. Chemical composition, fiber morphology and biological structure of tobacco stalk [J]. Tob. Sci. Technol., 2016, 49 (4): 80-86. | |
7 | 薄国栋,申国明,陈旭,等.秸秆还田对植烟土壤酶活性及细菌群落多样性的影响[J].中国烟草科学, 2017, 38(1): 53-58. |
BO G D, SHEN G M, CHEN X, et al.. Effects of straw returning on enzyme activity and bacterial community diversity in tobacco planting soil [J]. China Tob. Sci., 2017, 38 (1): 53-58. | |
8 | 陈娅,王安琪,刘聪,等.灰毡毛忍冬LmC3H1基因的克隆及表达模式与绿原酸含量相关性分析[J]. 中国实验方剂学杂志, 2020, 26(9): 167-175. |
CHEN Y, WANG A Q, LIU C, et al.. Cloning and expression pattern of lmc3h1 gene of Lonicera macranthoides and its correlation with chlorogenic acid content [J]. Chin. J. Exp. Prescriptions, 2020, 26 (9): 167-175. | |
9 | 马红梅,朱芸菲,魏军,等.藏蒲公英多糖纳米乳对小鼠免疫机能的影响[J].江苏农业科学, 2013, 41(1): 214-216. |
MA H M, ZHU Y F, WEI J, et al.. Effect of Tibetan dandelion polysaccharide nano emulsion on immune function of mice [J]. Jiangsu Agric. Sci., 2013, 41 (1): 214-216. | |
10 | 隋洪玉,李秀霞,赵永勋,等.蒲公英总黄酮提取液对D-gal衰老模型小鼠脑组织的抗氧化作用[J].黑龙江医药科学, 2004(6): 3-4. |
SUI H Y, LI X X, ZHAO Y X, et al.. Antioxidant effect of total flavonoids extract of dandelion on brain tissue of D-gal aging model mice [J]. Heilongjiang Med. Sci., 2004 (6): 3-4. | |
11 | 李月影,王月囡,成娜娜,等.蒲公英燕麦牛奶复合保健饮料制作工艺的研究[J].农产品加工, 2018, 45(4): 38-41. |
LI Y Y, WANG Y N, CHENG N N, et al.. Study on the preparation technology of dandelion oat milk compound health beverage [J]. Agric. Products Process., 2018, 45 (4): 38-41. | |
12 | KAI K, WANG R, BI W, et al.. Chlorogenic acid induces ROS-dependent apoptosis in Fusarium fujikuroi and decreases the postharvest rot of cherry tomato [J]. World J. Microbiol. Biotechnol., 2021, 37(6): 1-9. |
13 | MARTINEZ G, REGENTE M, JACOBI S, et al.. Chlorogenic acid is a fungicide active against Phytopathogenic fungi [J]. Pesticide Biochem. Physiol., 2017, 140: 30-35. |
14 | 张花,顾丽莉,黄智华,等.烟草多酚的提取分离及分析研究进展[J].化学通报, 2021, 84(9): 900-905. |
ZHANG H, GU L L, HUANG Z H, et al.. Research progress on extraction, separation and analysis of tobacco polyphenols [J]. Chem. Bull., 2021, 84 (9): 900-905. | |
15 | 倪美仙.粮食真菌检验及无菌操作控制方法的探讨[J].粮食与饲料工业, 2014(4): 65-67. |
NI M X. Discussion on inspection and aseptic operation control methods of grain fungi [J]. Grain Feed Ind., 2014 (4): 65-67. | |
16 | 赵御锜,于方园.金银花中绿原酸提取的研究前景和应用概述[J].食品安全导刊, 2019(6): 162. |
17 | TROGU L C, MACRAE R. A study of the effect of roasting on the chlorogenic acid composition of coffee using HPLC [J]. Food Chem., 1984, 15(3): 219-227. |
18 | 郭华,刁全平,张博,等.杨树口蘑多糖的超声波辅助提取工艺及其抗氧化活性[J].食品工业科技, 2018, 39(5): 180-184. |
GUO H, DIAO Q P, ZHANG B, et al.. Optimization of ultrasonic-assisted extraction technology and antioxidant activity of Polysaccharide from Tricholoma populinum [J]. Food Ind. Sci. Technol., 2018, 39 (5): 180-184. | |
19 | 李爱民,姚元枝,郭瑛,等.超声波提取接骨草叶中绿原酸的工艺优化[J].食品工业科技,2013, 34(17): 232-235, 240. |
LI A M, YAO Y Z, GUO Y, et al.. Optimization of ultrasonic-assisted extraction process of chlorogenic acid from Sambucus chinensis Lindl.leaves [J]. Food Ind. Sci. Technol., 2013, 34 (17): 232-235, 240. | |
20 | TIAN J, BAN X, ZENG H, et al.. The mechanism of antifungal action of essential oil from dill (Anethum graveolens L.) on Aspergillus flavus [J/OL]. PLoS One, 2012, 7(1): e30147 [2022-09-02]. . |
21 | 沈奇,金春雁,张卫明,等.蒲公英绿原酸及其包合物对葡萄保鲜作用的研究[J].食品科学, 2007, 28(6): 332-335. |
SHEN Q, JIN C Y, ZHANG W M, et al.. Effects of dandelion chlorogenic acid and its inclusion compounds on grape preservation [J]. Food Sci., 2007, 28(6): 332-335. | |
22 | 何念武,杨超.杜仲叶绿原酸对果蔬保鲜作用的试验研究[J].江西农业学报, 2018, 30(11): 71-75. |
HE N W, YANG C. Experimental study on preservation of fruits and vegetables by chlorogenic acid from Eucommia ulmoides leaves [J]. Jiangxi Agric. J., 2018, 30 (11): 71-75. | |
23 | JIAO W, LI X, WANG X, et al.. Chlorogenic acid induces resistance against Penicillium expansum in peach fruit by activating the salicylic acid signaling pathway [J]. Food Chem., 2018, 260(15): 274-282. |
24 | XUE L J, GUO W, YUAN Y, et al.. Constitutively elevated salicylic acid levels alter photosynthesis and oxidative state but not growth in transgenic Populus [J]. Plant Cell, 2013, 25(7): 2714-2730. |
25 | 凌天孝,陈健,薛延丰,等.肉桂醛对烟草疫霉菌的体外抑制作用[J].中国烟草学报, 2017, 23(4): 70-76. |
LING T X, CHEN J, XUE Y F, et al.. Inhibitory effect of cinnamaldehyde against Phytophthora nicotiance in vitro [J]. Acta Tabacaria Sin., 2017, 23 (4): 70-76. |
