大气压冷等离子体持续和间隔处理对燕麦种子萌发的影响

doi:10.13304/j.nykjdb.2022.0126

摘要/Abstract

摘要：

为了探究冷等离子体处理对燕麦种子萌发及幼苗生长的影响，用空气环境中大气压氩气交流放电冷等离子体射流对燕麦种子进行处理，对比分析了电压为4 kV、总处理时间分别为40和60 s时，持续处理和间隔处理对燕麦种子萌发及幼苗生长的影响。结果表明，与持续处理相比，间隔处理能够显著（P<0.05）提高种子的发芽势，其中10 s处理4次效果最佳，发芽势提高了约27.16%；间隔处理能够提高种子发芽率和幼苗的根长、芽长以及干物质积累，但是变化不显著。此外，间隔处理时燕麦种子的亲水性显著提高（P<0.05），10 s处理4次时亲水性变化最大，与持续处理相比增加约39.07%。相比于持续处理，间隔处理能够明显提高燕麦种子的发芽势、亲水性，为燕麦种植时缩短浸种时间、增加发芽整齐度提供理论指导。

关键词: 冷等离子体, 发芽率, 亲水性, α-淀粉酶活性

Abstract:

To study the effect of cold plasma treatment on oat seed germination and seedling growth， oat seeds were treated with a cold plasma jet at atmospheric pressure and argon AC discharge. The effects of continuous treatment and interval treatment on oat seed germination and seedling growth were compared and analyzed at a voltage of 4 kV and a total treatment time of 40 and 60 s， respectively. The results showed that interval treatment could significantly improve the germination potential of seeds compared with the continuous treatment （P<0.05）， and the 10 s treatment for 4 times had the greatest improvement， which was about 27.16% higher. Interval treatment could improve seed germination rate， root length， shoot length and dry matter accumulation of seedlings， but the change was not significant. Moreover， the hydrophilicity of oat seeds was significantly improved by interval treatment （P<0.05）， and the hydrophilicity changed the most when treated 4 times 10 s， which increased about 39.07% compared with continuous treatment. Compared with continuous treatment， interval treatment could significantly improve the germination potential， hydrophilicity and water uptake of oat seeds， which could provide a theoretical reference for shortening the soaking time of seeds and increasing the uniformity of germination when planting oats.

Key words: cold plasma, germination rate, hydrophilic, α-amylase activity

中图分类号:

S512.6

任棚, 吕晓桂, 石磊. 大气压冷等离子体持续和间隔处理对燕麦种子萌发的影响[J]. 中国农业科技导报, 2023, 25(7): 215-221.

Peng REN, Xiaogui LYU, Lei SHI. Effects of Atmospheric Pressure Cold Plasma Continuous and Interval Treatments on Oat Seed Germination[J]. Journal of Agricultural Science and Technology, 2023, 25(7): 215-221.

图/表 7

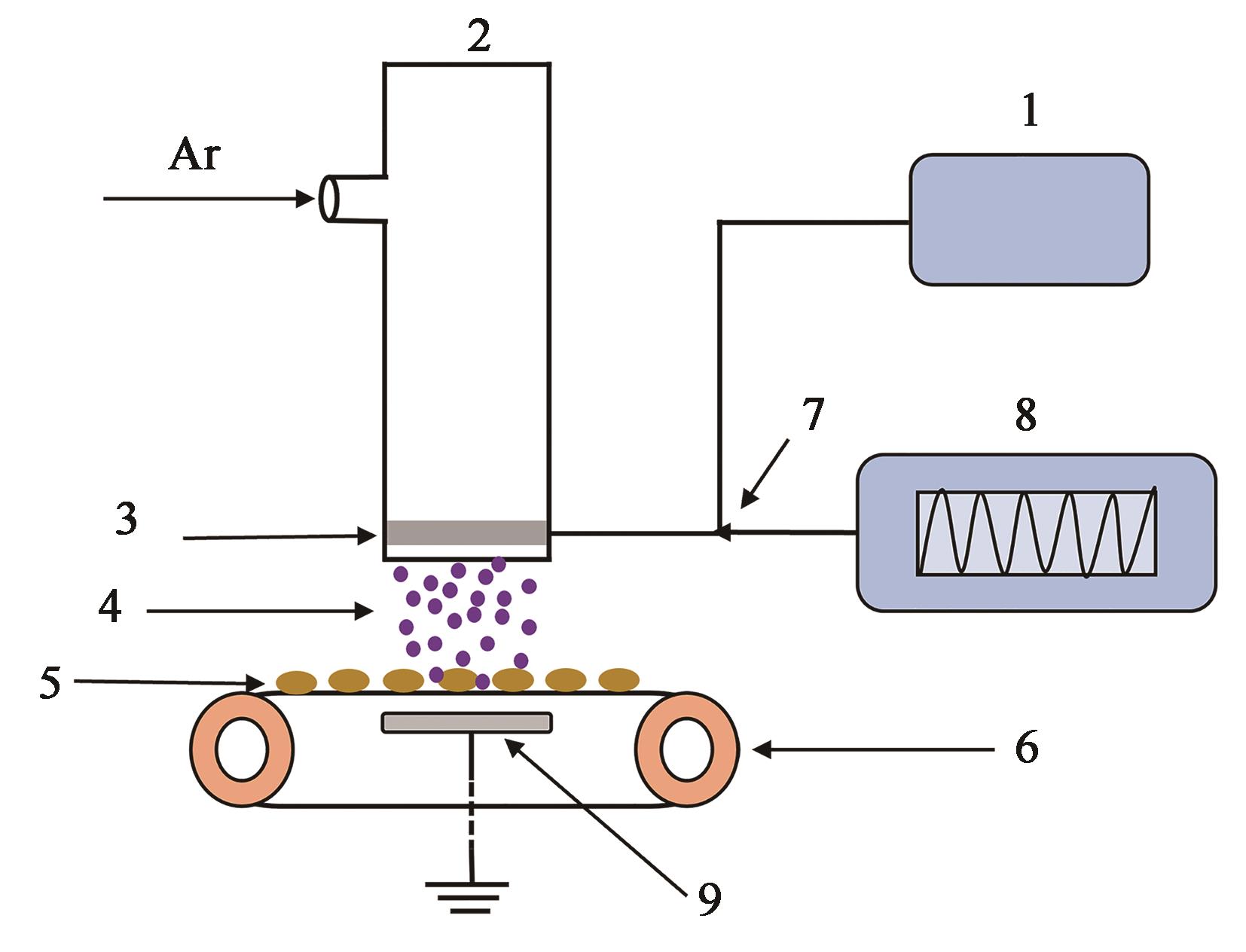

图1 等离子体射流装置注：Ar —氩气；1—高压交流电源；2—扁口状石英管；3—铝箔；4—等离子体射流；5—种子；6—传送带；7—高压探头；8—示波器；9—阴极。

Fig.1 Plasma jet deviceNote：Ar—Argon； 1—High voltage AC power supply； 2—Quartz tube； 3—Aluminum foil； 4—Plasma jet； 5—Seeds；6—Conveyor belt； 7—High voltage probe； 8—Oscilloscope； 9—Cathode.

表1 各组燕麦种子等离子体处理参数

Table 1 Plasma treatment parameters of each group oat seeds

组别

Group

处理时间

Treatment time/s

—

处理次数

Treatment times

—

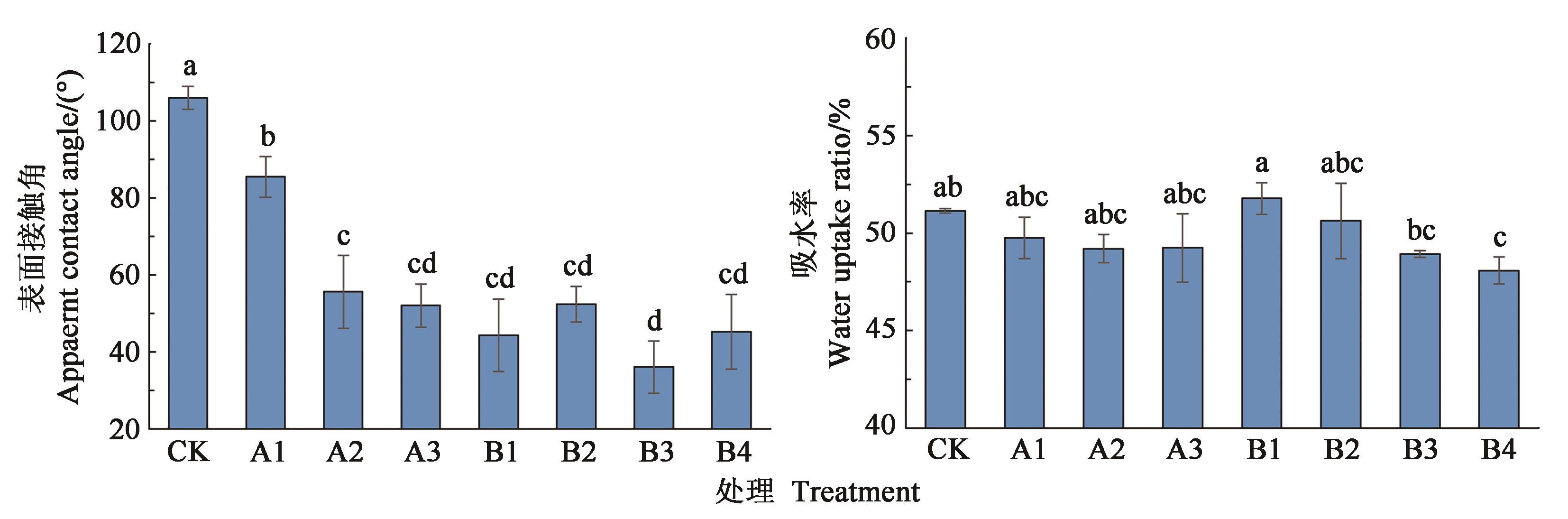

图2 不同处理对燕麦种子亲水性和吸水率的影响注：不同小写字母表示处理之间在P<0.05水平差异显著。

Fig.2 Effects of different treatments on hydrophilicity and water uptake ratio of oat seedsNote：Different lowercase letters indicate significant differences between treatments at P<0.05 level.

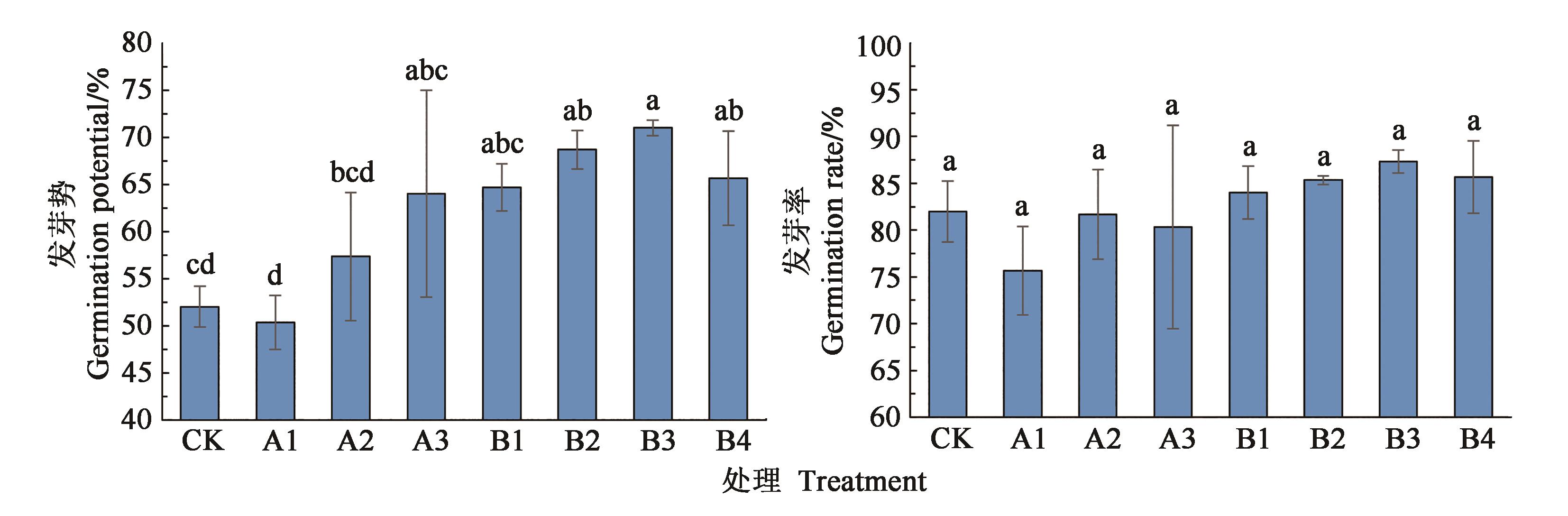

图3 不同处理对燕麦种子发芽势和发芽率的影响注：不同小写字母表示处理之间在P<0.05水平差异显著。

Fig.3 Effects of different treatments on germination potential and rate of oat seedsNote：Different lowercase letters indicate significant differences between treatments at P<0.05 level.

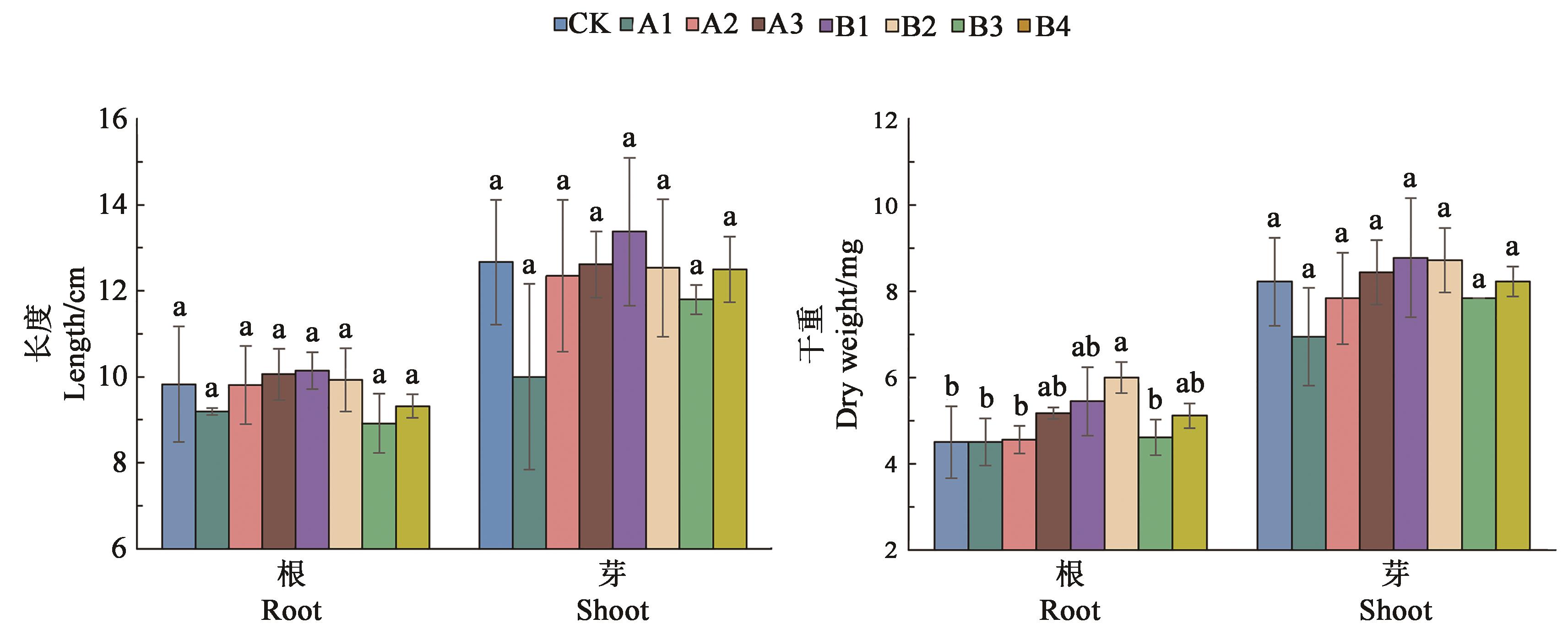

图4 不同处理对燕麦幼苗生长的影响注：同一指标中不同小写字母表示处理之间在P<0.05水平差异显著。

Fig.4 Effects of different treatments on the growth of oat seedlingsNote：Different lowercase letters in same index indicate significant differences between treatments at P<0.05 level.

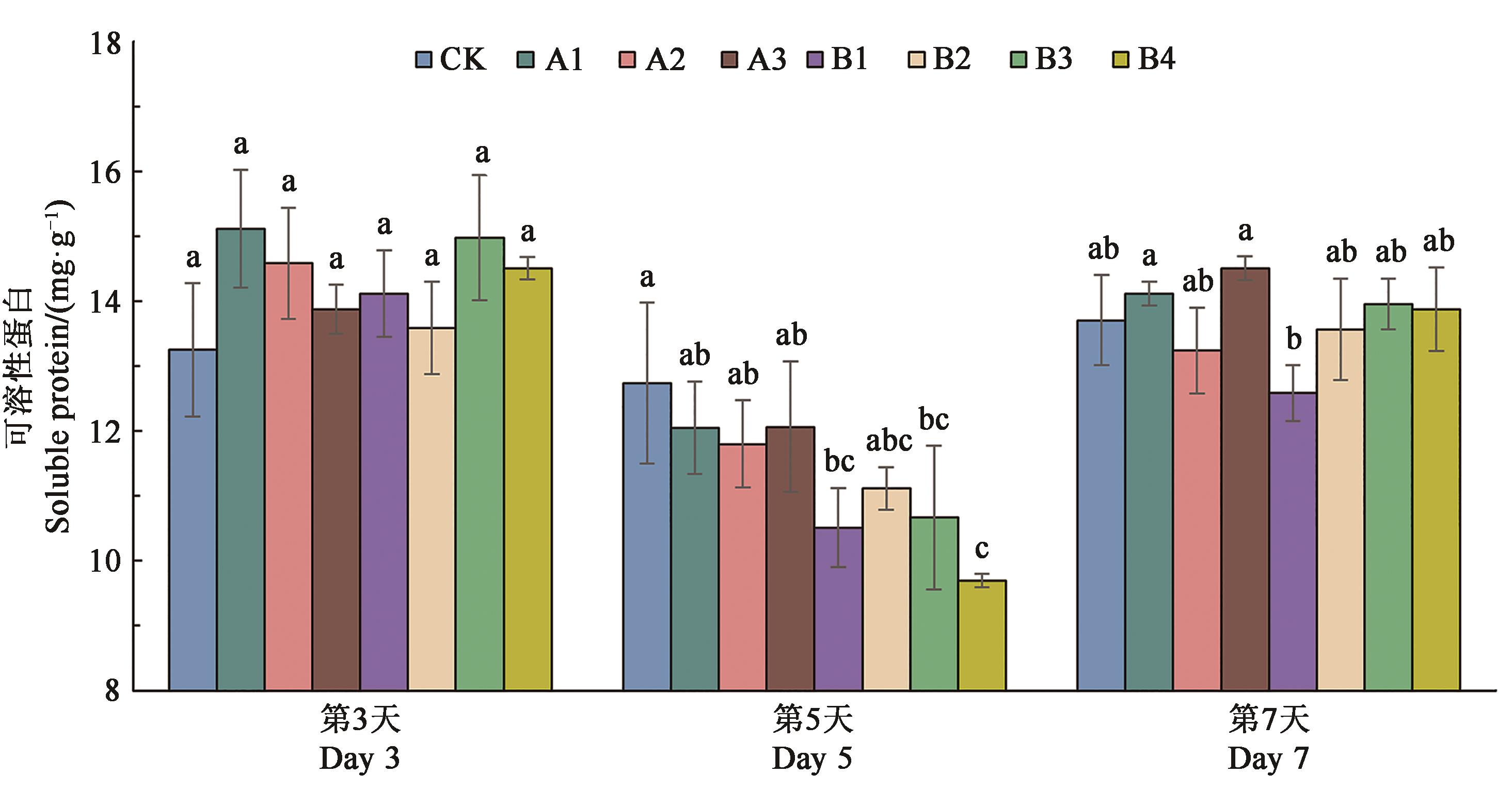

图5 不同处理对种子可溶性蛋白含量的影响注：不同小写字母表示处理之间在P<0.05水平差异显著。

Fig.5 Effects of different treatments on soluble protein content of seedsNote：Different lowercase letters indicate significant differences between treatments at P<0.05 level.

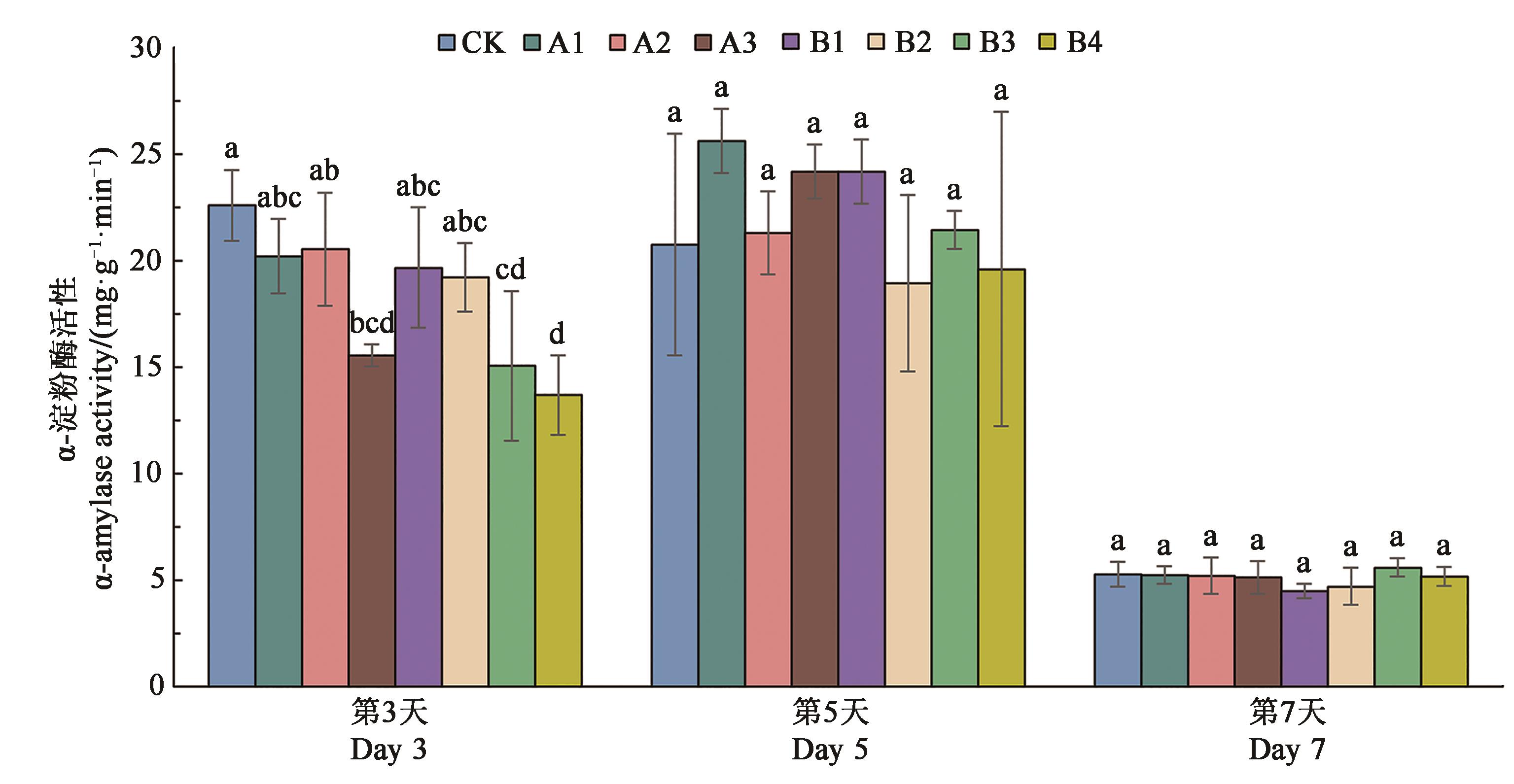

图6 不同处理对种子α-淀粉酶活性的影响注：不同小写字母表示处理之间在P<0.05水平差异显著。

Fig.6 Effects of different treatments on α-amylase activity of seedsNote：Different lowercase letters indicate significant differences between treatments at P<0.05 level.

参考文献 26

1	DUBINOV A E, KOZHAYEVA J P, ZUIMATCH E A. Changing germination rate of brown mustard seeds after treatment with plasmas of nanosecond electric discharges [J]. IEEE Trans. Plasma Sci., 2017, 45(2): 294-300.
2	吕晓桂, 王鹏, 石磊, 等. 大气压等离子体处理对芥菜生长初期特性的影响[J]. 内蒙古农业大学学报(自然科学版), 2021, 42(1): 99-103.
	LYU X G, WANG P, SHI L, et al.. The effects of atmospheric pressure plasma treatment on mustard’‍s early growth characteristics [J]. J. Inner Mongolia Agric. Univ. (Nat. Sci.), 2021, 42(1): 99-103.
3	JIANG J F, HE X, LI L, et al.. Effect of cold plasma treatment on seed germination and growth of wheat [J]. Plasma Sci. Technol., 2014, 16(1): 54-58.
4	冯金奎, 王德成, 邵长勇. 低温等离子体处理功率与时间对玉米发芽特性的影响[J]. 农业工程, 2017, 7(5): 134-139.
	FENG J K, WANG D C, SHAO C Y. Effect of different power and time of low-temperature helium plasma on germination characteristics of maize (Zea mays L.) [J]. Agric. Eng., 2017, 7(5): 134-139.
5	JIANG J F, LI J, DONG Y. Effect of cold plasma treatment on seedling growth and nutrient absorption of tomato [J]. Plasma Sci. Technol., 2018, 20(4): 4-7.
6	邓敏, 赵玲, 滕应, 等. 冷等离子体种子处理对铜胁迫下小麦种子萌发与幼苗生长的影响[J]. 农业环境科学学报, 2018, 37(12): 2669-2677.
	DENG M, ZHAO L, TENG Y, et al.. The effects of cold plasma treatment on wheat seed germination and seedling growth under copper stress [J]. J. Agro-Environ. Sci., 2018, 37(12): 2669-2677.
7	LI L, LI J G, SHAO H L, et al.. Effects of low-vacuum helium cold plasma treatment on seed germination, plant growth and yield of oilseed rape [J]. Plasma Sci. Technol., 2018, 20(9): 124-130.
8	FENG J K, WANG D C, SHAO C Y, et al.. Effects of cold plasma treatment on alfalfa seed growth under simulated drought stress [J]. Plasma Sci. Technol., 2018, 20(3): 133-139.
9	王婧, 李小平, 刘柳, 等. 燕麦等五种谷物的氨基酸含量综合评价[J]. 麦类作物学报, 2019, 39(4): 438-445.
	WANG J, LI X P, LIU L, et al.. Principal component analysis and comprehensive evaluation of amino acids of oat and other four crops [J]. J. Triticeae Crops., 2019, 39(4): 438-445.
10	刚永和. 不同粗饲料育肥青海藏系羊的效果研究[J]. 东北农业科学, 2020, 45(3): 55-59.
	GANG Y H. Effect of different roughage on fattening Qinghai Tibetan sheep [J]. J. Northeast Agric. Sci., 2020, 45(3): 55-59.
11	ZHU Y Y, DONG L G, HUANG L, et al.. Effects of oat β‍-glucan, oat resistant starch, and the whole oat flour on insulin resistance, inflammation, and gut microbiota in high-fat-diet-induced type 2 diabetic rats [J]. J. Funct. Foods, 2020, 69(10): 3939-3949.
12	田西, 代以琴, 杨梅, 等. 燕麦化学成分及其生物活性研究进展[J]. 食品工业科技, 2020, 41(11): 353-362.
	TIAN X, DAI Y Q, YANG M, et al.. Research progress on chemical constituents and biological activities of oats [J]. Sci. Technol. Food Ind., 2020, 41(11): 353-362.
13	ROY N C, HASAN M M, KABIR A H, et al.. Atmospheric pressure gliding arc discharge plasma treatments for improving germination, growth and yield of wheat [J]. Plasma Sci. Technol., 2018, 20(11): 90-104.
14	王志恒, 杨秀柳, 邹芳, 等. 旱盐交叉胁迫对甜高粱种子萌发和生理特性的影响[J]. 中国农业科技导报, 2021, 23(2): 37-49.
	WANG Z H, YANG X L, ZOU F, et al.. Effects of salt and drought cross stress on germination and physiological characteristics of sweet sorghum seeds [J]. J. Agric. Sci. Technol., 2021, 23(2): 37-49.
15	孟祎然. 放电等离子体对小麦种子萌发的生理生化影响[D]. 杨凌: 西北农林科技大学,2018.
	MENG Y R. Physiological and biochemical effects of discharge plasma on seed germination of wheat [D]. Yangling: Northwestern A & F University, 2018.
16	XU W Q, SONG Z Q, LUAN X Y, et al.. Biological effects of high-voltage electric field treatment of naked oat seeds [J]. Appl. Sci., 2019, 9(18): 3829-3842.
17	李瑞敏, 张忠杰, 姚渠, 等. 冷等离子处理对玉米籽粒外观及结构的影响[J]. 中国粮油学报, 2021, 36(11): 29-34.
	LI R M, ZHANG Z J, YAO Q, et al.. Effect of cold plasma treatment on corn kernel appearance and structure [J]. J. Chin. Cereals Oils Assoc., 2021, 36(11): 29-34.
18	李可, 田金凤, 郑思雨, 等. 等离子体对鹰嘴豆分离蛋白溶解性和乳化特性的影响[J]. 农业工程学报, 2021, 37(4): 31-39.
	LI K, TIAN J F, ZHENG S Y, et al.. Effect of plasma on solubility and emulsifying properties of chickpea protein isolates [J]. Trans. Chin. Soc. Agric. Eng., 2021, 37(4): 31-39.
19	温伟. 电场处理对燕麦在盐胁迫下种子萌发及幼苗生长的影响[D]. 呼和浩特: 内蒙古大学, 2020.
	WEN W. Effect of electric filed treatment on oat germination and seedling growth under salt stress [D]. Hohhot: Inner Mongolia University, 2020.
20	BORMASHENKO E, SHAPIRA Y, GRYNYOV R, et al.. Interaction of cold radiofrequency plasma with seeds of beans (Phaseolus vulgaris) [J]. J. Exp. Bot., 2015, 66(13): 4013-4021.
21	陈文利. 生物光子学技术在水稻种子活力和植物应激反应中的应用研究[D]. 广州: 华南师范大学, 2002.
	CHEN W L. Application of biophotonical technique in examining the vigour of rice seeds and stress reaction of injured plant and study of their mechanism [D]. Guangzhou: South China Normal University, 2002.
22	WANG G X, HUANG J L, GAO W N, et al.. The effect of high-voltage electrostatic field (HVEF) on aged rice (Oryza sativa L.) seeds vigor and lipid peroxidation of seedlings [J]. J. Electrost., 2009, 67: 759-764.
23	ŠERÁ B, ŠPATENKA P, ŠERÝ M, et al.. Influence of plasma treatment on wheat and oat germination and early growth [J]. IEEE Trans. Plasma Sci., 2010, 38(10): 2963-2968.
24	黄明镜. 等离子体对小麦萌发过程中某些生理变化的影响[J]. 山西农业科学, 2010, 38(11): 22-25.
	HUANG M J. Physiological effect of plasma on wheat seed germination [J]. J. Shanxi. Agric. Sci., 2010, 38(11): 22-25.
25	孟会峰. 电场处理对燕麦种子萌发和幼苗抗旱能力影响的研究[D]. 呼和浩特: 内蒙古大学, 2006.
	MENG H F. Study of the effects of electric field treatment to Avena Sativa L. on seed germination and drought resistance of young plant [D]. Hohhot: Inner Mongolia University, 2006.
26	黄明镜, 尹美强. 等离子体对干旱胁迫下小麦种子萌发的生物学效应[J]. 中国农学通报, 2010, 26(23): 204-207.
	HUANG M J, YIN M Q. Physiological effects of plasma on seed germination of winter wheat under drought stress [J]. Chin. Agric. Sci. Bull., 2010, 26(23): 204-207.
