一株乳突赤壳属蕨麻致病菌的鉴定及生物学特性

doi:10.13304/j.nykjdb.2022.0973

摘要/Abstract

摘要：

为了明确引起蕨麻根腐病的病原菌及其生物学特性，从青海省门源蕨麻人工种植基地患根腐病的蕨麻块根部分离得到菌株MY-BSX4-1，对其进行致病性检测、形态学观察、rDNA-ITS序列分析鉴定，同时分析不同温度、pH、光照、碳源、氮源、培养基对该病原菌生长及其产孢量的影响。结果表明，根据形态学观察和 rDNA-ITS 序列分析将MY-BSX4-1菌株鉴定为乳突赤壳属（Thelonectria olida）。致病性研究表明，该菌株符合柯赫氏法则，是导致蕨麻根腐病的病原真菌。生物学特性研究表明，菌株MY-BSX4-1菌丝生长和产孢的最适温度均为25 ℃；光照有利于菌丝生长，且对菌落产孢无明显影响；pH 4.0~12.0时菌丝均能较好生长，其中菌丝生长的最适pH为6.0~9.0，产孢最适pH为8.0；碳源中可溶性淀粉利于菌丝生长，乳糖利于产孢，果糖不利于菌丝生长；氮源中牛肉浸膏利于菌丝生长，硝酸铵不利于菌丝生长；蕨麻煎汁培养基和蕨麻煎汁培养基（硝酸钠）有利于菌丝生长和产孢；菌丝致死温度为47 ℃、10 min。

关键词: 蕨麻, 根腐病, 乳突赤壳属菌, 生物学特性

Abstract:

In order to identify the pathogen causing the root rot of Potentilla anserina L. and its biological characteristics， the strain MY-BSX4-1 was as material， which isolated from the tuberous root of Potentilla anserina in the artificial planting base of Menyuan， Qinghai province. The strain MY-BSX4-1 was analyzed by the pathogenic detection， morphological observation， rDNA-ITS sequence analysis. The growth and spore production of the pathogen were analyzed under different temperatures， pH， light， carbon sources， nitrogen sources and culture media. The results showed that MY-BSX4-1 was identified as Thelonectria olida according to its morphological characteristics and rDNA-ITS sequence analysis. It was identified to be the pathogenic fungus of Potentilla anserina L.according to Koch’s rule. The biological characteristics showed that the optimum temperature of strain MY-BSX4-1 was 25 ℃for mycelial growth and spore production. The light condition was beneficial to mycelium growth， but had no obvious effect on spore production. The mycelium could grow well at pH 4.0~12.0， which the optimum pH for mycelium growth was 6.0~9.0 and the optimum pH was 8.0 for spore production. In carbon sources， soluble starch was beneficial to mycelial growth， lactose was beneficial to spore production， while fructose was unfavorable to mycelial growth. In nitrogen sources， beef extract was beneficial to mycelial growth， while ammonium nitrate was unfavorable to mycelial growth. Potentilla anserina L juice medium （JM） and JM （sodium nitrate） were beneficial to mycelial growth and spore production. The lethal temperature of mycelium was 47 ℃ for 10 min.

Key words: Potentilla anserina L., root rot, Thelonectria olida, biological characteristics

中图分类号:

王鑫慈, 李军乔, 李晨芹, 田甜, 曲俊儒. 一株乳突赤壳属蕨麻致病菌的鉴定及生物学特性[J]. 中国农业科技导报, 2023, 25(5): 87-95.

Xinci WANG, Junqiao LI, Chenqin LI, Tian TIAN, Junru QU. Identification and Biological Characteristics of a Thelonectria Pathogenic Fungi of Potentilla anserina L.[J]. Journal of Agricultural Science and Technology, 2023, 25(5): 87-95.

图/表 10

图1 蕨麻根腐病感病田间症状A：田间发病症状；B：患病蕨麻全株；C：患病块根纵切面；D：患病块根横切面

Fig. 1 Field symptoms of Potentilla anserina L. root rot infectionA： Symptoms of disease in the field；B： Whole plant of diseased Potentilla anserina L.；C： Longitudinal section of diseased root tuber；D： Transverse section of diseased root tuber

图2 菌株MY-BSX4-1的形态学鉴定A：田间病部黑色子实体形态；B：正面菌落形态；C：反面菌落形态；D：子囊壳；E：有隔菌丝；F：大型分生孢子；G：小型分生孢子；H：产孢结构

Fig. 2 Morphological identification of MY-BSX4-1A： Morphology of black fruiting bodies of diseased parts in the field； B： Colony morphology （front）； C： Colony morphology （back）； D： Perithecium； E： Septum hyphae； F： Megaconidium； G： Microconidium； H： Sporogenous structure

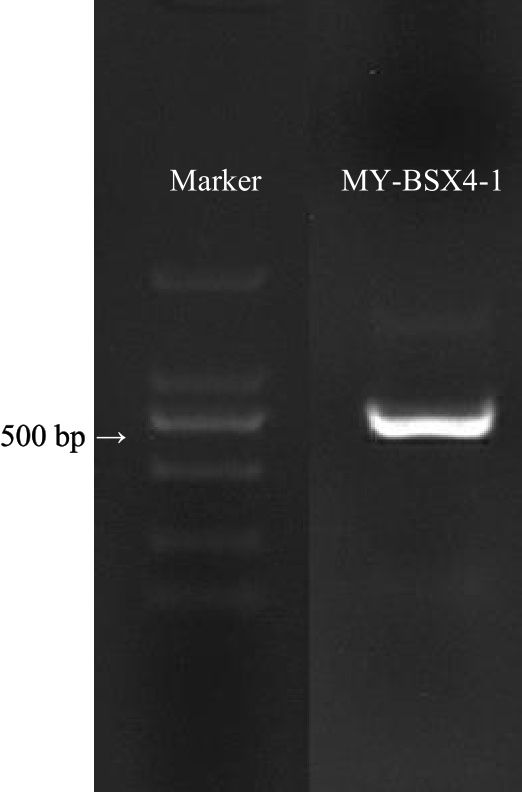

图3 PCR扩增产物电泳结果

Fig. 3 Results of PCR amplification products

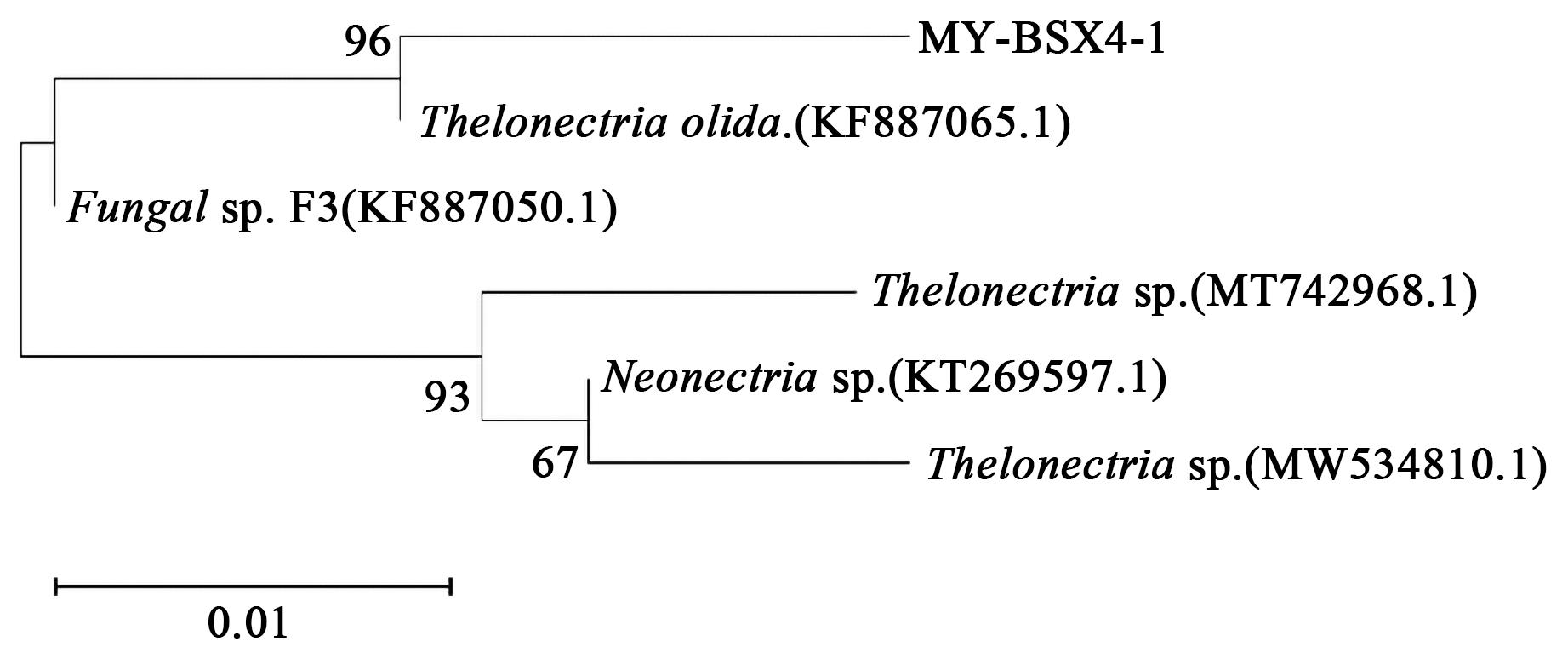

图4 菌株MY-BSX4-1的系统发育树

Fig. 4 Phylogenetic tree of MY-BSX4-1

图5 人工接种MY-BSX4-1后蕨麻植株的发病症状A：有伤口离体回接处理；B：有伤口离体回接处理横截面；C：无伤口离体回接处理；D：无伤口离体回接处理横截面；E：有伤口离体回接CK；F：有伤口离体回接CK横截面；G：无伤口离体回接CK；H：无伤口离体回接CK横截面；I：活体回接植株感病叶腹面部位症状；J：活体回接植株感病叶背面部位症状；K：活体回接植株感病叶部位症状；L：活体回接植株感病茎叶部位症状；M：活体回接植株整株症状；N：活体回接CK

Fig. 5 Symptoms of diseased plant after artificial inoculation of MY-BSX4-1A： In vitro tieback treatment of wound； B： Cross section of wound in vitro tie-in treatment； C： In vitro tieback without wound； D： Cross section of wound free in vitro tieback treatment； E： Connect CK in vitro with wound； F： Cross section of CK connected in vitro with wound； G： No wound in vitro connection CK； H： Cross section of CK without wound in vitro graft； I： Symptoms on the ventral part of infected leaves of living graft plants； J： Symptoms on the back of infected leaves of living grafted plants； K： Symptoms of infected leaves of living grafted plants； L： Symptoms of diseased stems and leaves of living grafted plants； M： Symptoms of whole plant grafted back in vivo； N： Live connection CK

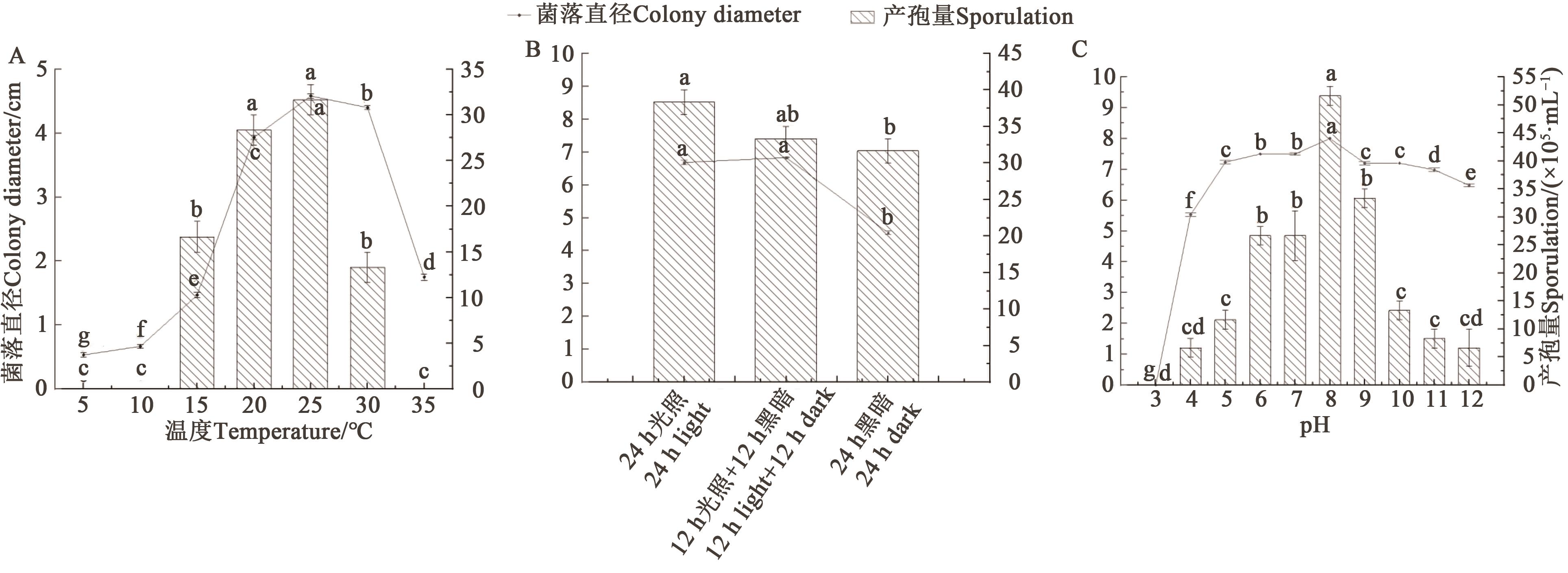

图6 不同生物学特性下MY-BSX4-1菌丝的生长和产孢A：温度；B：光照；C：pH。不同小写字母表示不同处理间在P<0.05水平差异显著

Fig. 6 Mycelium growth and sporulation of MY-BSX4-1 under different biological characteristicsA：Temperature； B： Illumination； C： pH. Differenet lowercase letters indicate significant differences between different treatments at P<0.05 level

表1 不同碳源下MY-BSX4-1的菌丝生长及产孢

Table 1 Growth and sporulation of MY-BSX4-1 mycelium under different carbon source

碳源 Carbon source	菌落直径 Colony diameter/cm	产孢量 Sporulation/（×10⁵·mL^-1）
缺碳对照CK without carbon	4.83±0.03 f	13.33±1.67 cd
葡萄糖Glucose	5.92±0.02 b	23.33±1.67 b
蔗糖Sucrose	5.38±0.02 c	8.33±1.67 de
乳糖Lactose	5.27±0.04 d	40.00±2.89 a
可溶性淀粉Soluble starch	6.97±0.02 a	18.33±1.67 bc
D-果糖D-fructose	3.65±0.05 g	20.00±2.89 b
D-甘露醇D-mannitol	4.93±0.03 e	3.33±1.67 e

表2 不同氮源下MY-BSX4-1的菌丝生长及产孢

Table 2 Mycelium growth and sporulation of MY-BSX4-1 under different nitrogen source

氮源 Nitrogen source	菌落直径 Colony diameter/cm	产孢量 Sporulation/（×10⁵·mL^-1）
缺氮对照CK without nitrogen	5.52±0.02 c	0.00±0.00 d
甘氨酸Glycine	5.02±0.04 d	0.00±0.00 d
磷酸氢铵Ammonium phosphate	4.52±0.03 e	11.67±1.67 c
硝酸铵Ammonium nitrate	3.02±0.04 f	3.33±1.67 d
硫酸铵Ammonium sulphate	5.58±0.04 c	21.67±3.33 b
蛋白胨Peptone	6.00±0.00 b	33.33±3.33 a
牛肉浸膏Beef extract	7.12±0.03 a	16.67±4.41 bc

表3 不同培养基下MY-BSX4-1菌丝生长及产孢

Table 3 Mycelium growth and sporulation of MY-BSX4-1 under different mediums

培养基 Medium	菌落直径 Colony diameter/cm	产孢量 Sporulation/（×10⁵·mL^-1）
蕨麻煎汁培养基P. anserina juice medium	6.82±0.04 c	45.00±2.89 a
蕨麻煎汁培养基（硝酸钠） P. anserina juice medium （sodium nitrate）	7.00±0.00 b	43.33±1.67 a
蕨麻煎汁培养基（葡萄糖） P. anserina juice medium （glucose）	7.20±0.00 a	33.33±3.33 b
LB培养基LB medium	3.43±0.02 f	31.67±1.67 bc
马铃薯培养基PDA medium	4.55±0.06 d	25.00±2.89 c
查氏培养基Czapek medium	3.90±0.03 e	28.33±1.67 bc

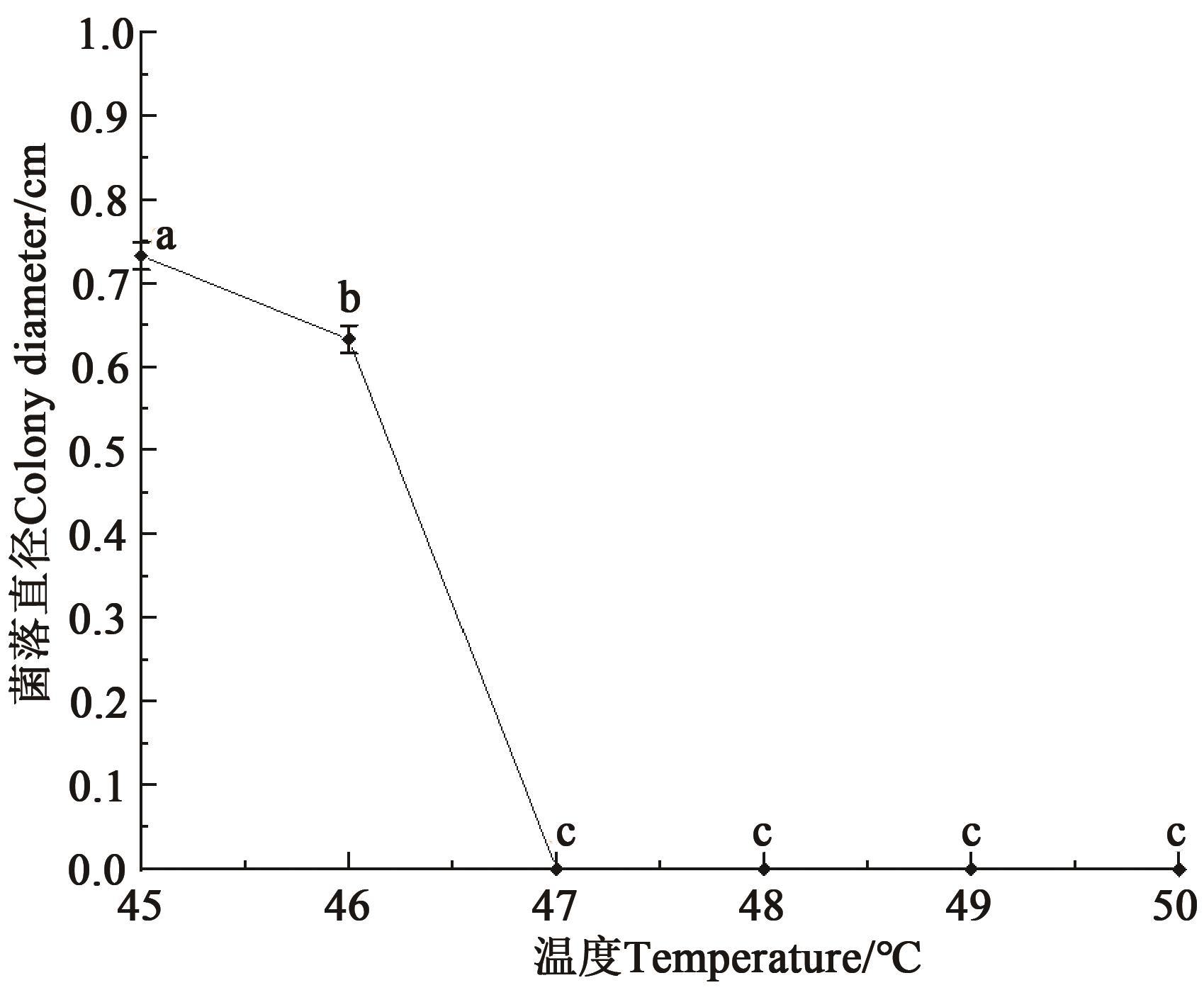

图7 MY-BSX4-1的菌丝致死温度注：不同小写字母表示不同温度间在P<0.05水平差异显著。

Fig. 7 Fatal temperature of MY-BSX4-1 myceliumNote： Different lowercase letters indicate significant differences between different temperatures at P<0.05 level.

参考文献 27

1	李军乔,蔡光明,李灵芝.中国蕨麻[M].北京:科学出版社,2019:1-4.
2	马斌,李军乔,刘贺贺,等.蕨麻品种SSR指纹图谱的构建及遗传相似性分析[J].分子植物育种,2019,17(13):4367-4377.
	MA B, LI J Q, LIU H H, et al.. Construction and analysis of genetic similarity of SSR fingerprints in juema [J]. Mol. Plant Breed., 2019, 17(13):4367-4377.
3	富贵,李军乔,包锦渊,等.磁珠富集法开发蕨麻SSR标记引物[J].草业学报,2018,27(2):124-134.
	FU G, LI J Q, BAO J Y, et al.. Development of microsatellite primers in Potentilla anserina by magnetic beads enrichment [J]. Acta Pratac. Sin., 2018,27(2):124-134.
4	王雅琼,李军乔,白世俊,等.不同种植年限蕨麻根际土壤养分变化规律[J].贵州师范大学学报(自然科学版),2020,38(4):56-63.
	WANG Y Q, LI J Q, BAI S J, et al.. Status and changes of soil nutrients in rhizosphere of Potentilla anserina L.different planting age [J]. J. Guizhou Norm. Univ. (Nat. Sci.), 2020,38(4):56-63.
5	ZHAO B T, TAO F Q, WANG J L, et al..The sulfated modification and antioxidative activity of polysaccharides from Potentilla anserine L. [J]. New J. Chem., 2020, 44(12):4726-4735.
6	MARI A, LYON D, FRAGNER L, et al.. Phytochemical composition of Potentilla anserina L. analyzed by an integrative GC-MS and LC-MS metabolomics platform [J]. Metabolomics, 2013, 9(3):599-607.
7	冯晓莉,申红艳,李万志,等.1961—2017年青藏高原暖湿季节极端降水时空变化特征[J].高原气象,2020,39(4):694-705.
	FENG X L, SHEN H Y, LI W Z, et al.. Spatiotemporal changes for extreme precipitation in wet season over the Qinghai-Tibetan plateau and the surroundings during 1961-2017 [J]. Plateau Meteorol., 2020,39(4):694-705.
8	李林,李红梅,申红艳,等.青藏高原气候变化的若干事实及其年际振荡的成因探讨[J].冰川冻土, 2018, 40(6): 1079-1089.
	LI L, LI H M, SHEN H Y, et al..The truth and inter-annual oscillation causes for climate change in the Qinghai-Tibet plateau [J]. J. Glaciol. Geocryol., 2018, 40(6): 1079-1089.
9	廖长宏,陈军文,吕婉婉,等.根和根茎类药用植物根腐病研究进展[J].中药材, 2017, 40(2): 492-497.
10	方香玲,张彩霞,南志标.紫花苜蓿镰刀菌根腐病研究进展[J].草业学报,2019,28(12):169-183.
	FANG X L, ZHANG C X, NAN Z B. Research advances in Fusarium root rot of alfalfa (Medicago sativa) [J]. Acta Pratac. Sin., 2019,28(12):169-183.
11	WANG Y P, LUO J Q, SHAN S Y, et al.. Isolation and identification of root rot fungus of Astragalus membranaceus [J]. Agric. Biotechnol., 2018, 7(4):246-249.
12	BARBARA, SCHERM, VIRGILIO, et al.. Fusarium culmorum: causal agent of foot and root rot and head blight on wheat [J]. Mol. Plant Pathol., 2013, 14(4):323-341.
13	方中达.植病研究方法[M].北京:中国农业出版社,1998:122-145.
14	邱小燕,汤智鹏,张敏,等.一种适用于多数植物病原真菌的单孢分离方法[J].安徽农业科学,2011,39(9):5263-5264.
	QIU X Y, TANG Z P, ZHANG M, et al.. Research on the isolation method of single spore of most plant pathogenic fungi [J]. J. Anhui Agric. Sci., 2011,39(9):5263-5264.
15	布斯.镰刀菌属[M].陈其,译.北京:农业出版社,1988:1-323.
16	王娜.向日葵列当枯斑病病原菌的分离鉴定及致病力分化[D].呼和浩特:内蒙古农业大学,2021.
	WANG N. Identification and pathogenicity differentiation of the pathogens causing necrotic spot on sunflower broomrape [D]. Hohhot: Inner Mongolia Agriculture University, 2021.
17	梁新乐,李余东,张蕾,等.现代微生物学实验指导[M].杭州:浙江工商大学出版社,2014:1-191.
18	SEMENIUK G. Association of Trematosphaeria circinans with crown and root rot of alfalfa in South Dakota [J]. Mycologia, 2018, 75(4):744-747.
19	CONG L L, SUN Y, WANG Z, et al.. A rapid screening method for evaluating resistance of alfalfa (Medicago sativa L.) to Fusarium root rot [J]. Canadian J. Plant Pathol., 2017, 40(1):61-69.
20	WU L K, WANG J Y, HUANG W M, et al.. Plant-microbe rhizosphere interactions mediated by Rehmannia glutinosa root exudates under consecutive monoculture [J/OL]. Sci. Rep., 2016, 5:15871 [2022-10-10]..
21	高芬,赵晓霞,秦雪梅,等.山西省蒙古黄芪根腐病优势致病菌群分析[J].植物保护学报,2018,45(4):878-885.
	GAO F, ZHAO X X, QIN X M, et al.. Analysis of dominant pathogen community causing Astragalus membranaceus var. mongholicus root rot in Shanxi province [J]. J. Plant Prot., 2018,45(4):878-885.
22	LI S, WANG Z, TANG B F, et al.. A pathogenesis-related protein-like gene is involved in the Panax notoginseng defense response to the root rot pathogen [J/OL]. Front. Plant Sci., 2021, 11:610176 [2022-10-10]. .
23	杨立,缪作清,杨光,等. 丹参枯萎病及其病原菌的研究[J].中国中药杂志, 2013, 38(23):4040-4043.
	YANG L, MIAO Z Q, YANG G, et al.. Research wilt disease of Salvia miltiorrhiza and its pathogen [J]. Chin. J. Chin. Mater. Med., 2013, 38(23):4040-4043.
24	李晨芹,李军乔,王鑫慈,等.蕨麻根腐病病原菌的分离鉴定及其生物学特性研究[J].草业学报,2022,31(4):113-123.
	LI C Q, LI J Q, WANG X C, et al.. Isolation,identification,and biological characteristics of Fusarium perseae isolated from Potentilla anserina roots [J]. Acta Pratac. Sin., 2022,31(4):113-123.
25	戴芳澜.中国真菌总汇[M].北京:科学出版社,1979:819-820.
26	叶清桐,李亚萌,周悦妍,等.国内外葡萄枝干病害的发生危害与病原菌种类[J].果树学报,2021,38(2):278-292.
	YE Q T, LI Y M, ZHOU Y Y, et al.. Occurrence of grapevine trunk diseases caused by fungal pathogens inthe domestic and overseas [J]. J. Fruit Sci., 2021,38(2):278-292.
27	SALGADO S C, ROAAMAN A Y, CHAVERRI P. The genus Thelonectria (Nectriaceae, Hypocreales, Ascomycota) and closely related species with cylindrocarpon-like asexual states [J]. Fungal Diversity, 2016, 80(1): 411-455.
