基于机器视觉与BA-BP的苹果分级系统研究

doi:10.13304/j.nykjdb.2023.0506

摘要/Abstract

摘要：

为实现水果的精确分级，以苹果为分拣对象，设计了基于机器视觉与BA-BP的苹果分级系统。首先，对实时采集的苹果图像进行预处理，得到轮廓图像，采用改进的Canny边缘检测算法提取苹果轮廓，使用最小外接圆法、颜色模型转换和灰度共生矩阵等方法提取苹果果径、色泽度、圆形度和纹理特征；其次，对采集的训练组数据进行滤波和归一化处理，将处理好的数据输入到BP神经网络模型中，再利用蝙蝠算法对BP网络模型进行优化，完成网络模型的训练；最后，将测试组数据分别输入到完成训练的BA-BP神经网络系统和BP神经网络系统中。结果表明，BA-BP神经网络系统识别准确率达到96%，性能明显优于BP神经网络系统，平均分级时间在1.25 s以内。因此，该系统满足实际生产中对于苹果分级的需求，有助于实现对于苹果品级的准确识别。

关键词: 水果分级, 机器视觉, 蝙蝠算法, BP神经网络

Abstract:

In order to achieve accurate fruit classification， an apple classification system based on machine vision and BA-BP was designed with apple as the sorting object. Firstly， the apple image acquired in real time was preprocessed to obtain the apple contour image. The improved Canny edge detection algorithm was used to extract the apple contour， and methods such as minimum circumferential circle method， color model conversion and gray scale co-existence matrix were used to extract the apple diameter， color， roundness and texture features. Secondly， the collected training group data was filtered and normalized， and the processed data was input into the BP neural network model. Then the bat algorithm was used to optimize the BP network model and complete the network model training. Finally， the data of the test group were input into the BA-BP neural network system and the BP neural network system. The experimental results showed that the recognition accuracy of BA-BP neural network system was 96%， the performance was obviously better than BP neural network system， and the average classification time was less than 1.25 s. Therefore， the system could meet the demand of apple grading in actual production and help to realize the accurate identification of apple grade.

Key words: fruit grading, machine vision, bat algorithm, BP neural network

中图分类号:

TP273

刘佳浩, 高军伟. 基于机器视觉与BA-BP的苹果分级系统研究[J]. 中国农业科技导报, 2024, 26(11): 117-125.

Jiahao LIU, Junwei GAO. Research on Apple Grading System Based on Machine Vision and BA-BP[J]. Journal of Agricultural Science and Technology, 2024, 26(11): 117-125.

图/表 12

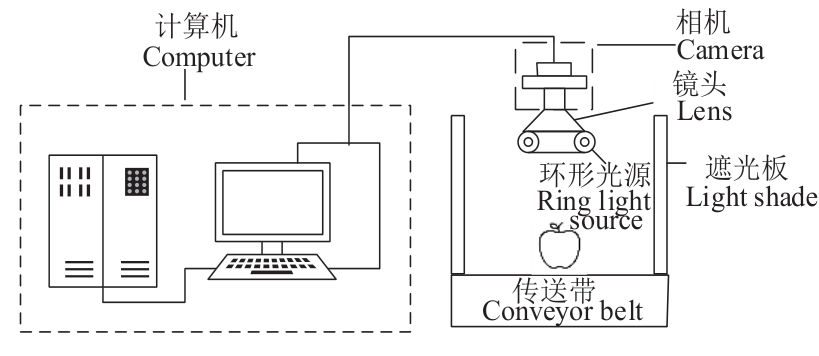

图1 系统硬件结构

Fig. 1 System hardware structure

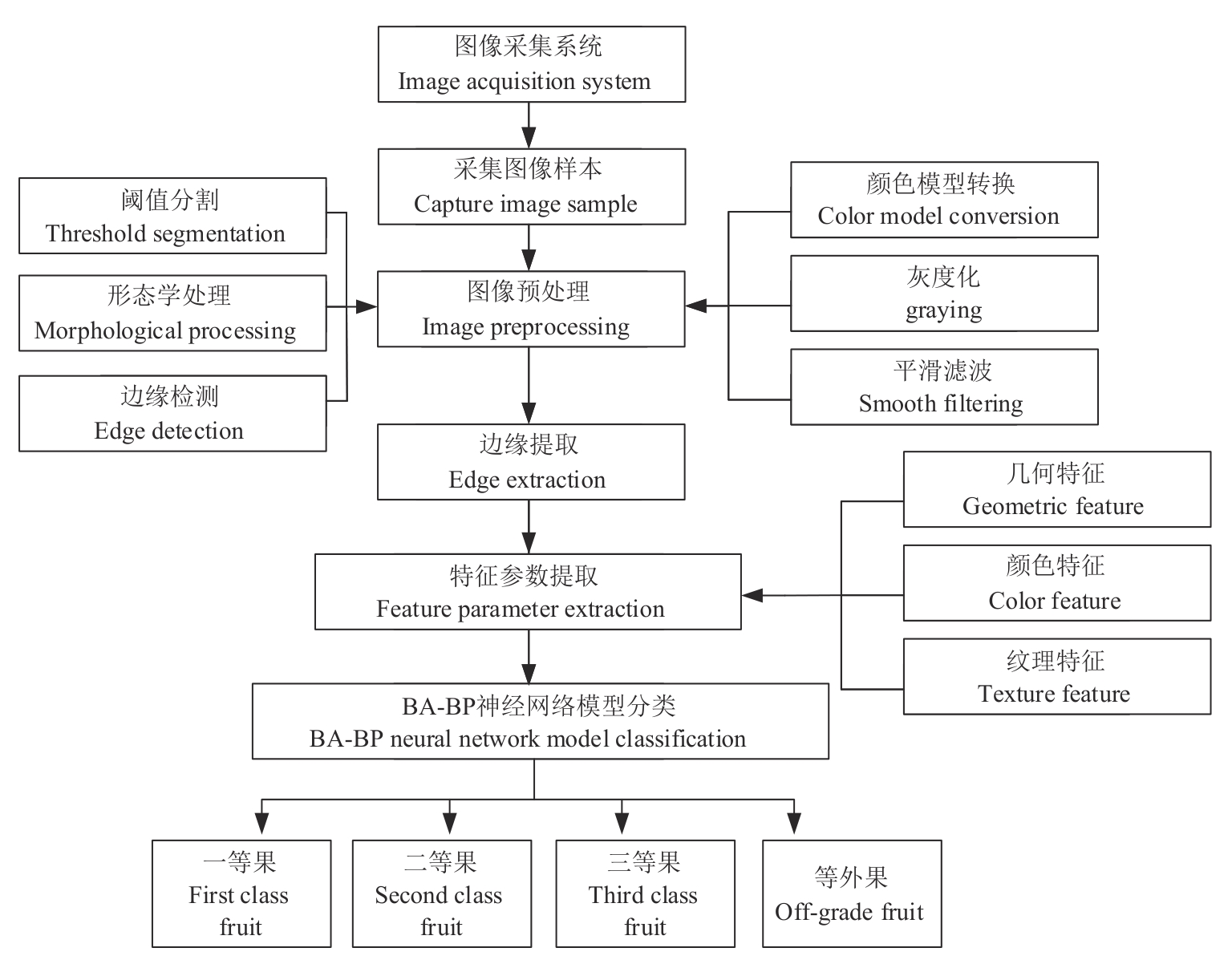

图2 图像采集系统流程

Fig. 2 Flow of image acquisition system

表1 苹果品质分级标准

Table 1 Apple quality grading standards

参数

Parameter

一等果

First class fruit

二等果

Second class fruit

三等果

Third class fruit

等外果

Off-grade fruit

果径

Fruit diameter/mm

色泽度

tincture

圆形度

circularity

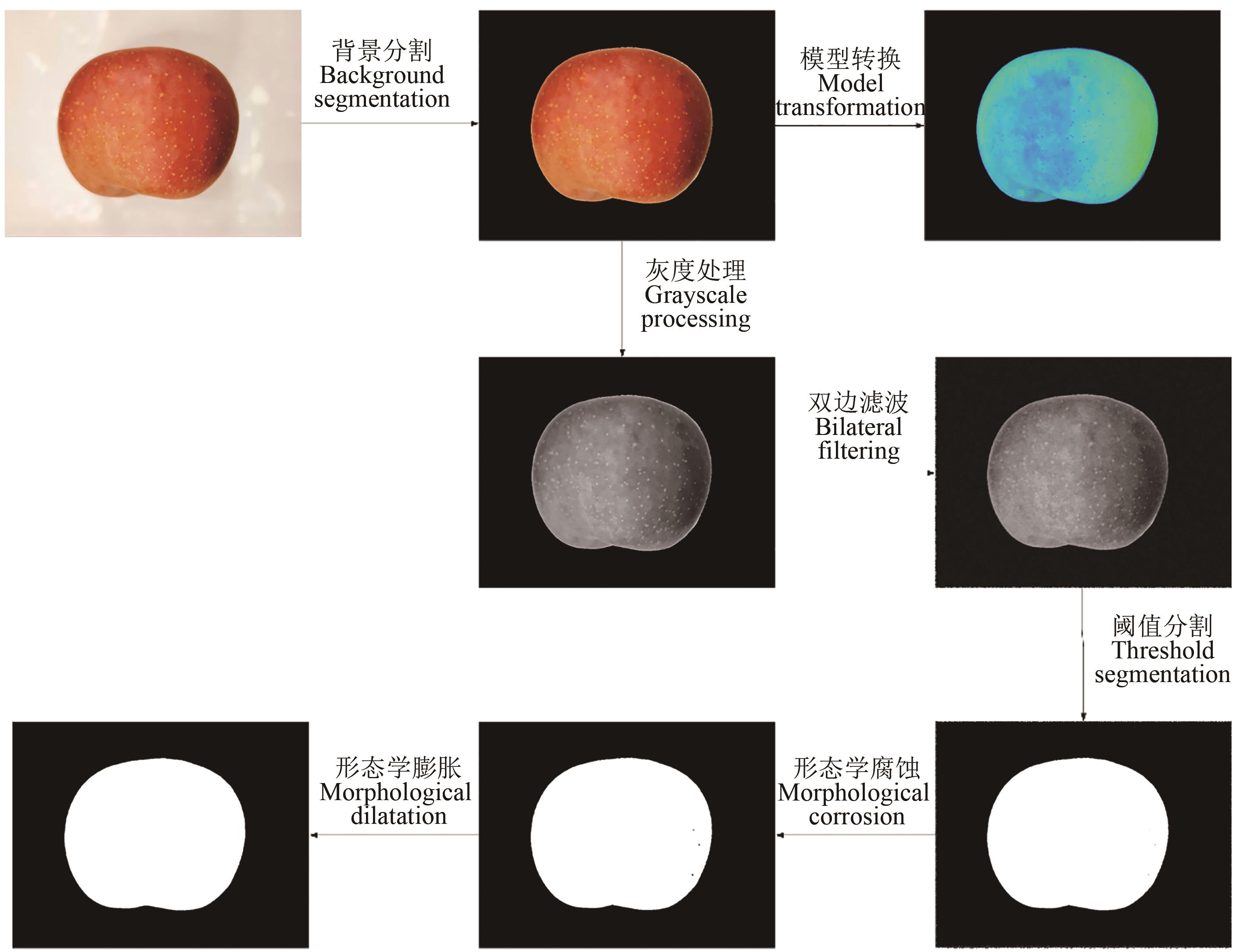

图3 图像预处理

Fig. 3 Image preprocessing

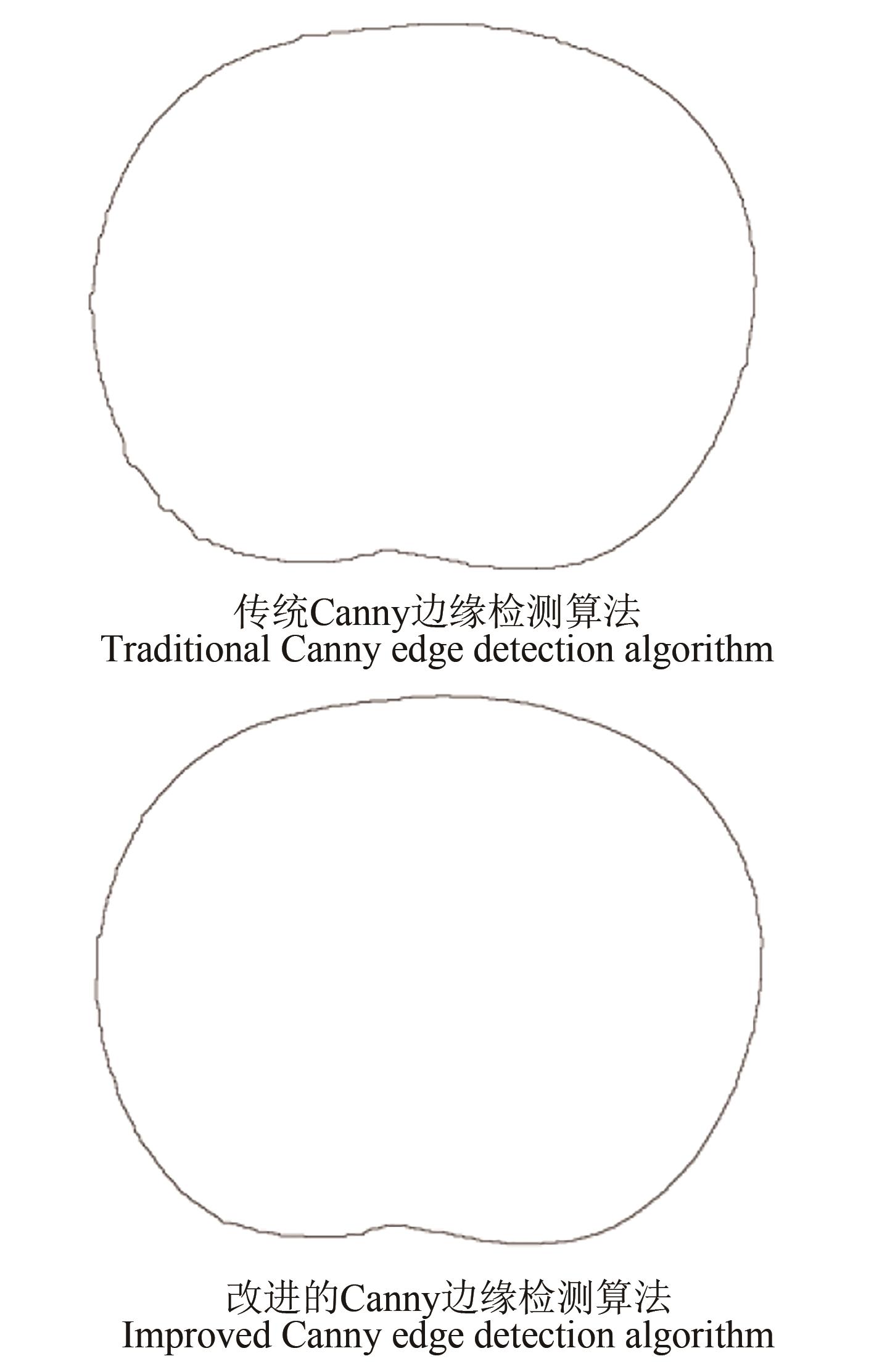

图4 苹果边缘检测结果

Fig. 4 Apple edge detection result

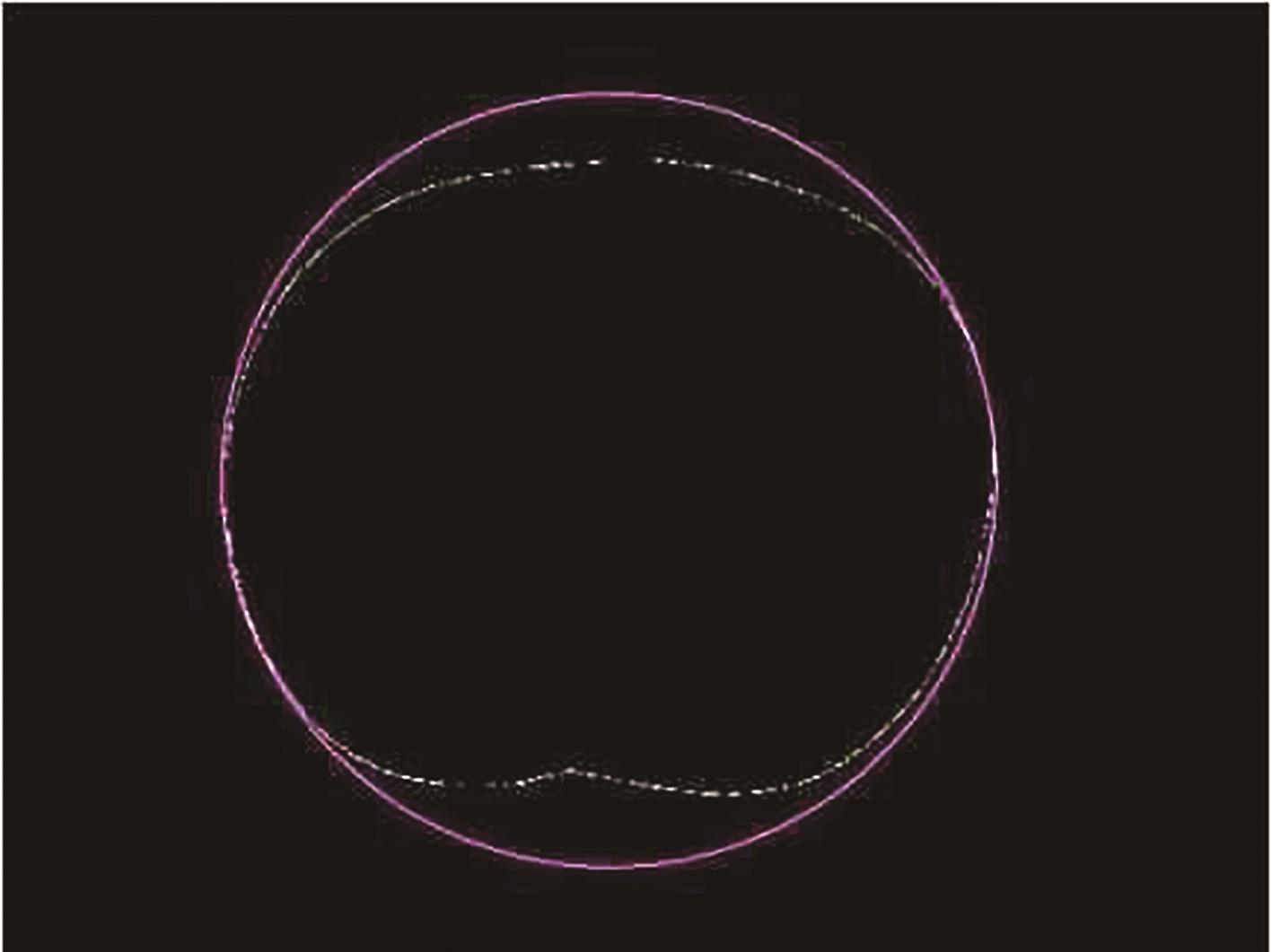

图5 苹果的最小外接圆图像

Fig. 5 Smallest circumscribed circle image of an apple

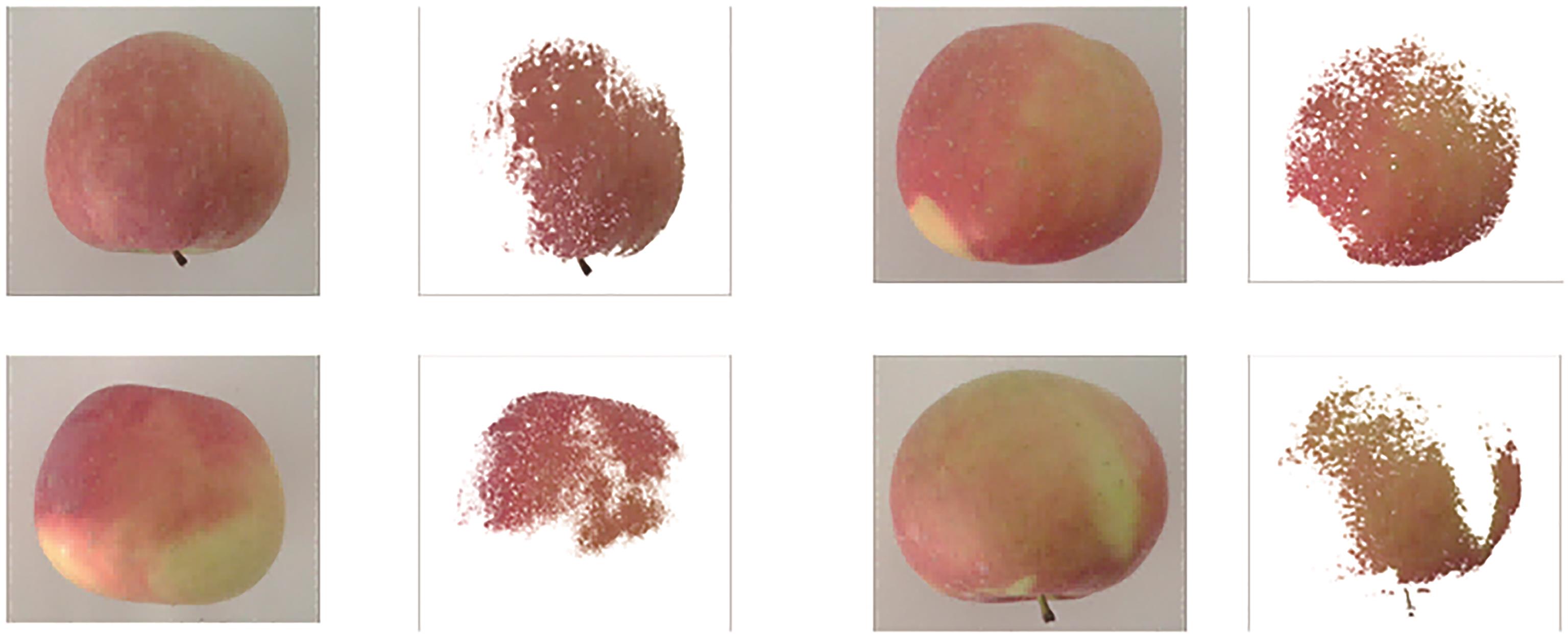

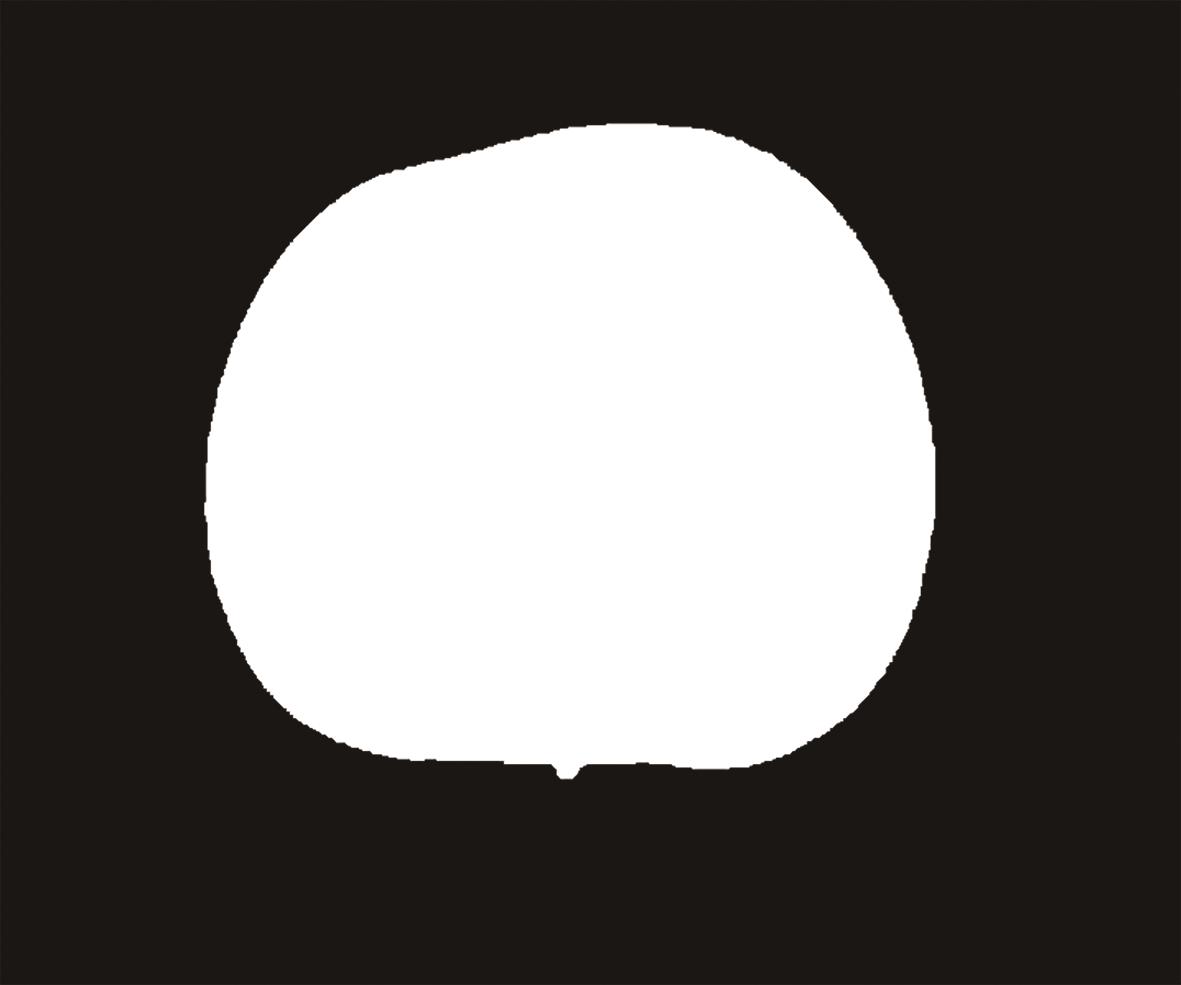

图6 苹果红色区域的分割效果图像

Fig. 6 Segmentation effect image of apple red area

图7 样本圆度值

Fig. 7 Roundness value of sample

表2 苹果纹理特征统计结果

Table 2 Statistical results of apple texture characteristics

样本编号 Sample number	角二阶矩 ASM	对比度 CON	熵 ENT	反差分矩阵 IDM
1	0.70	0.47	9.64	0.91
2	0.68	0.46	9.01	0.86
3	0.68	0.41	8.21	0.84
4	0.60	0.42	7.32	0.76
5	0.56	0.38	6.54	0.77
6	0.50	0.33	5.21	0.64
7	0.49	0.26	4.32	0.62
8	0.32	0.05	2.11	0.55

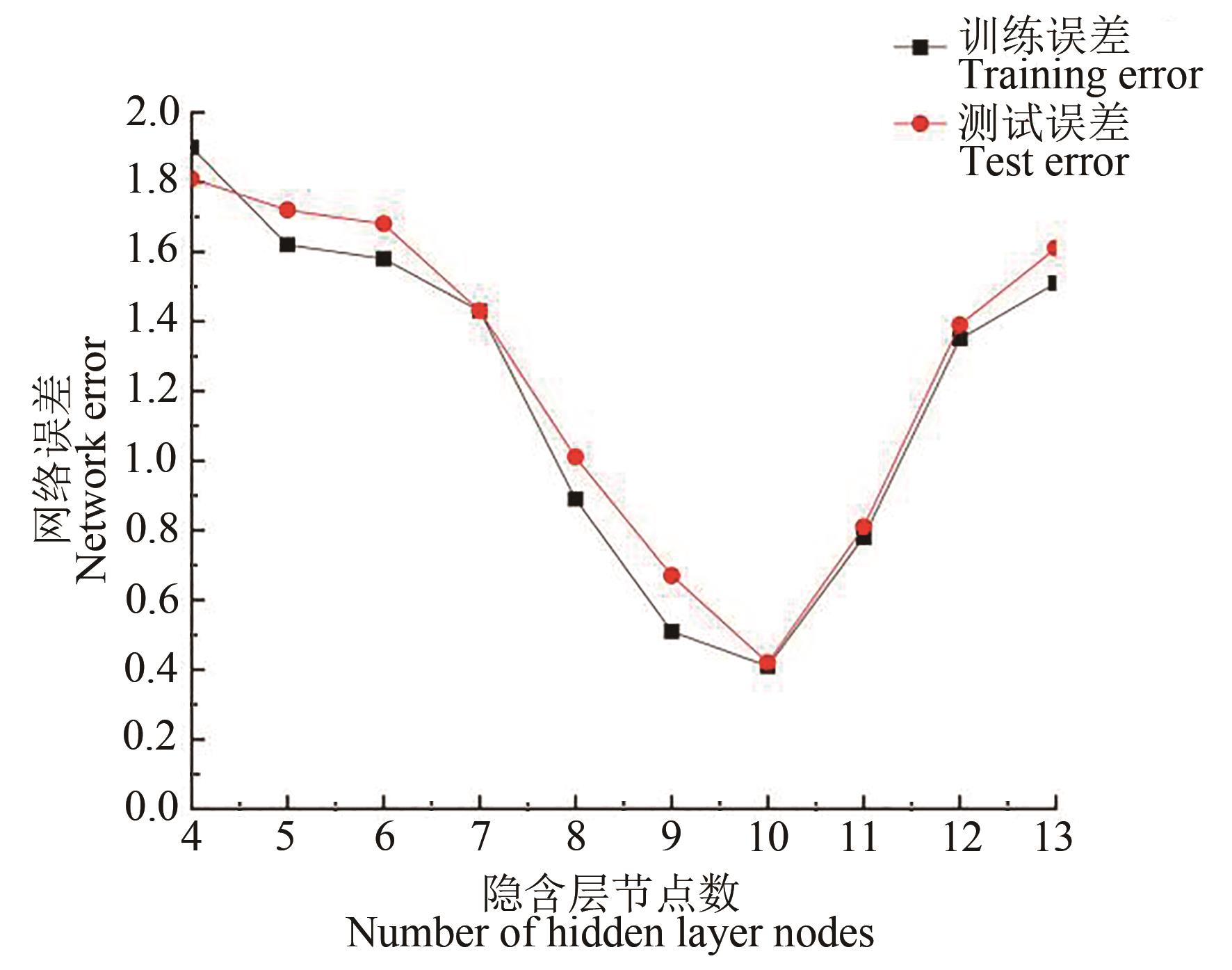

图8 网络误差曲线

Fig. 8 Network error curve

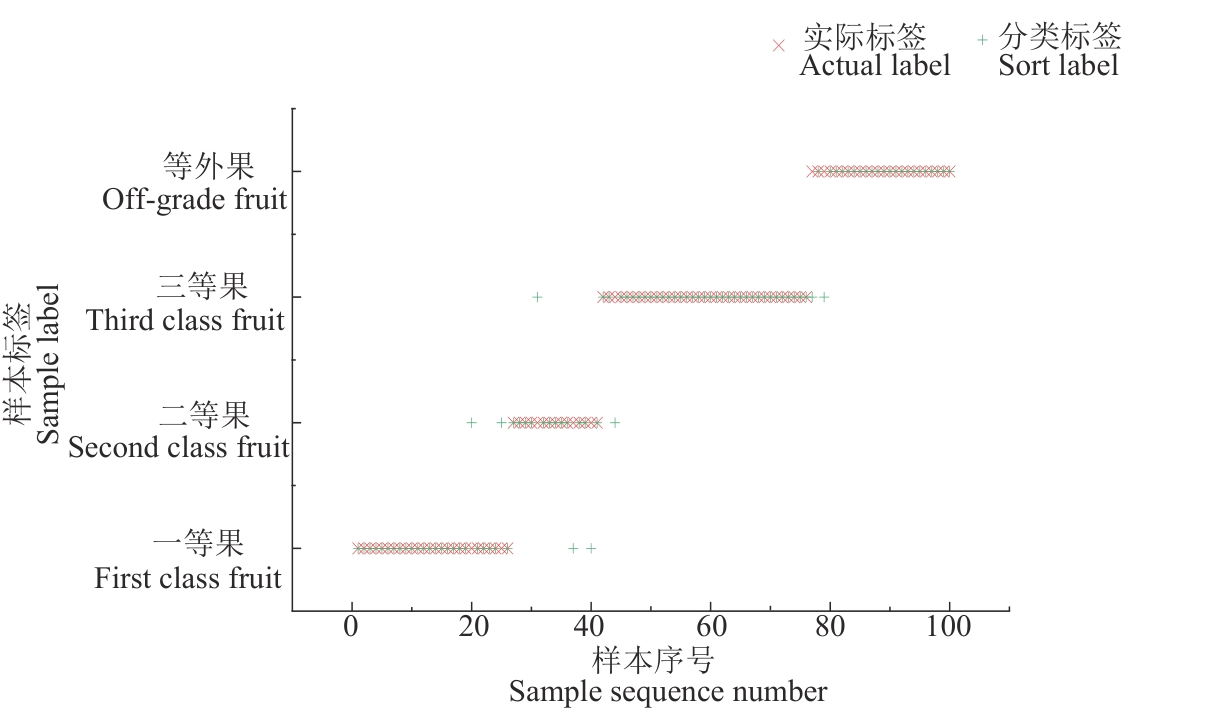

图9 BP神经网络分类结果

Fig. 9 Classification results of BP neural network

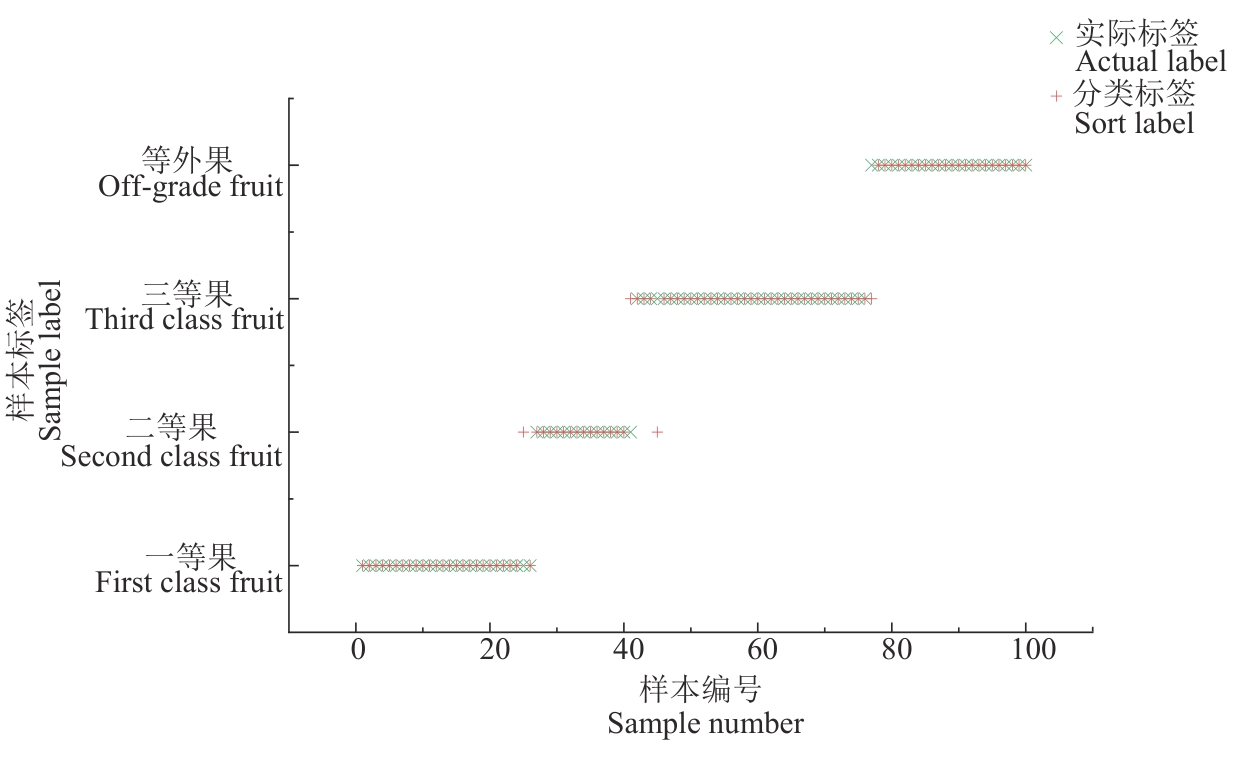

图10 BA-BP神经网络分类结果

Fig. 10 BA-BP neural network classification result
