Effect of Different Emitter Types on Anti-clogging Performance of Biogas Slurry Concentrations

doi:10.13304/j.nykjdb.2021.0408

Abstract

Abstract:

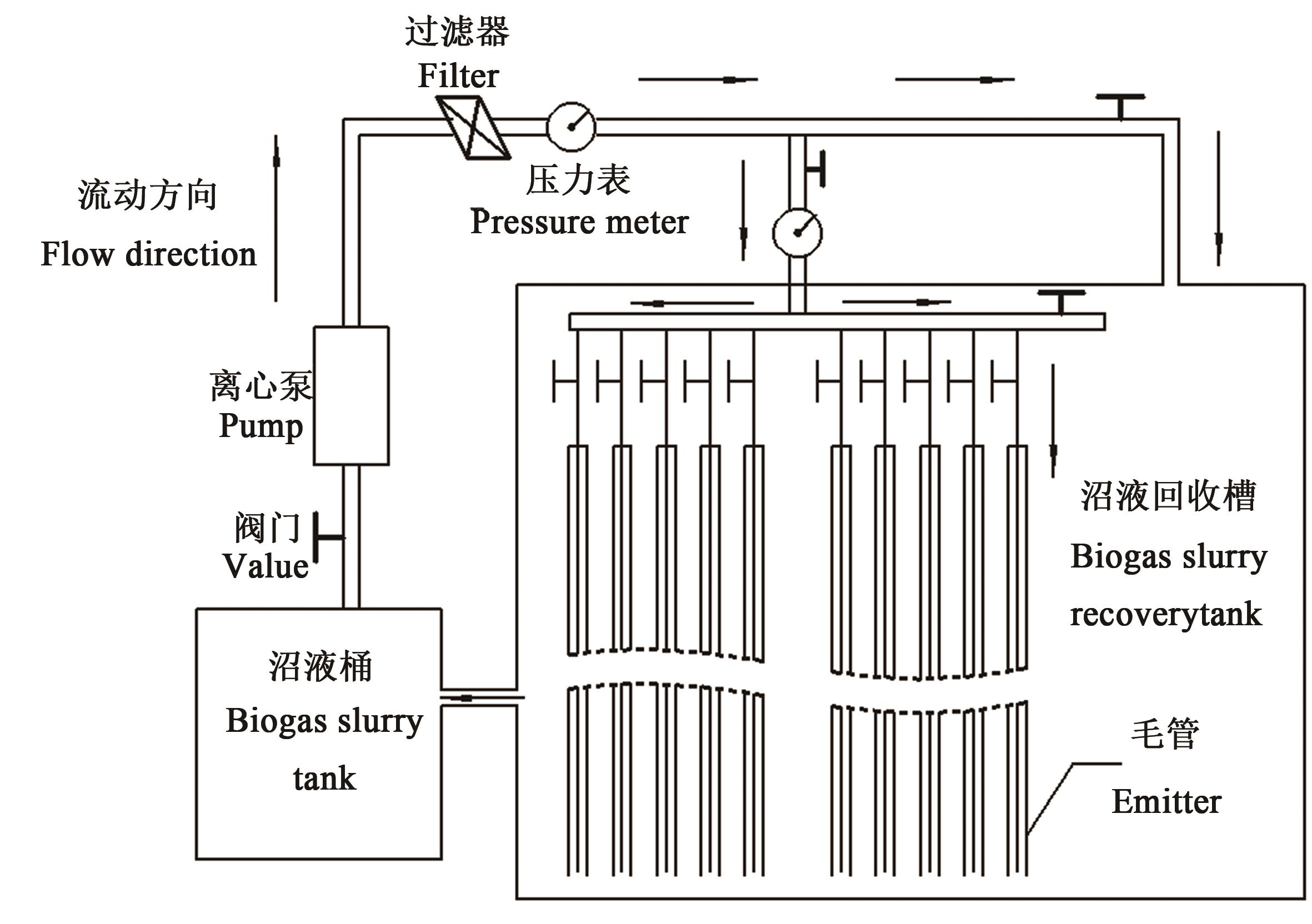

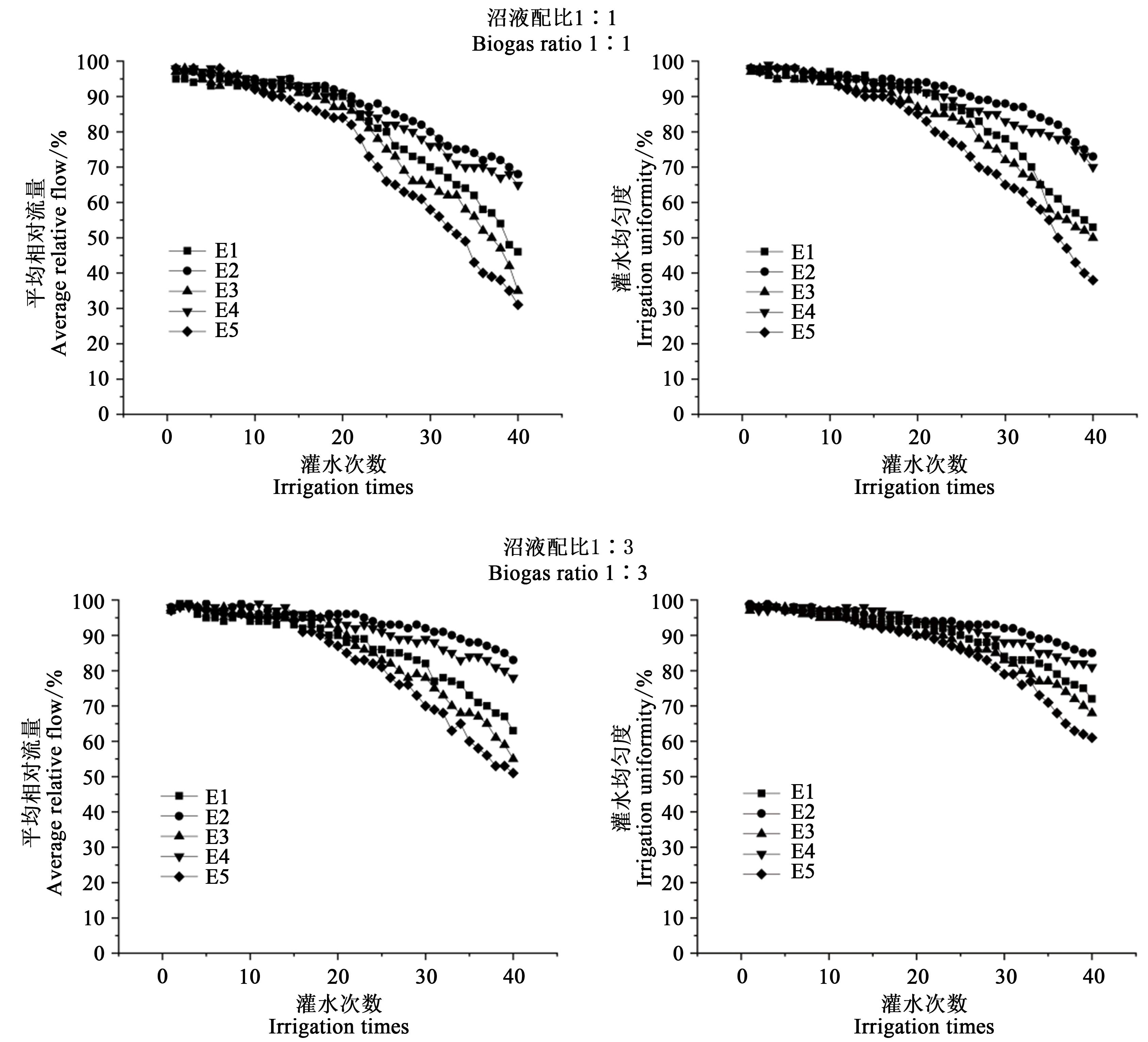

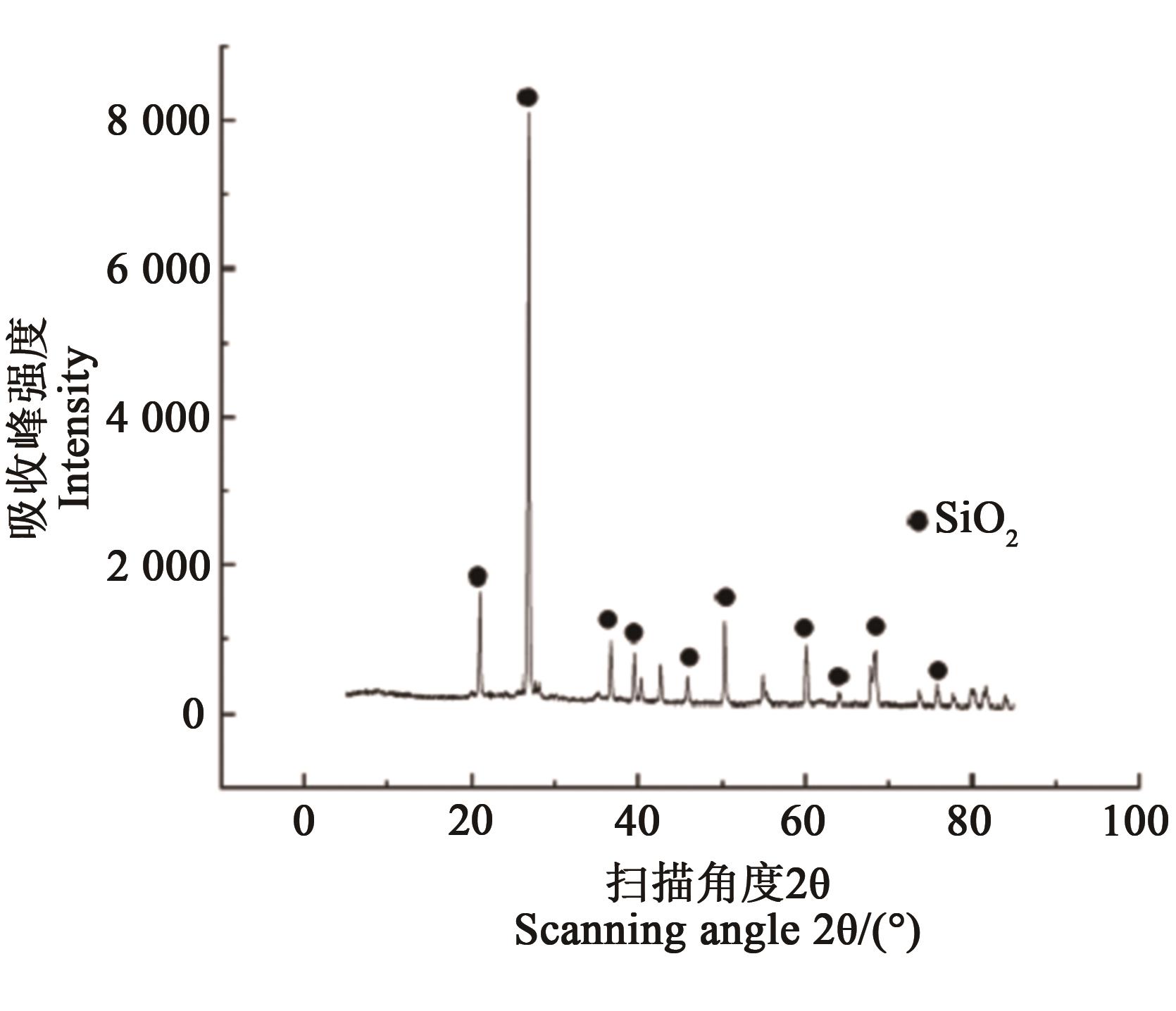

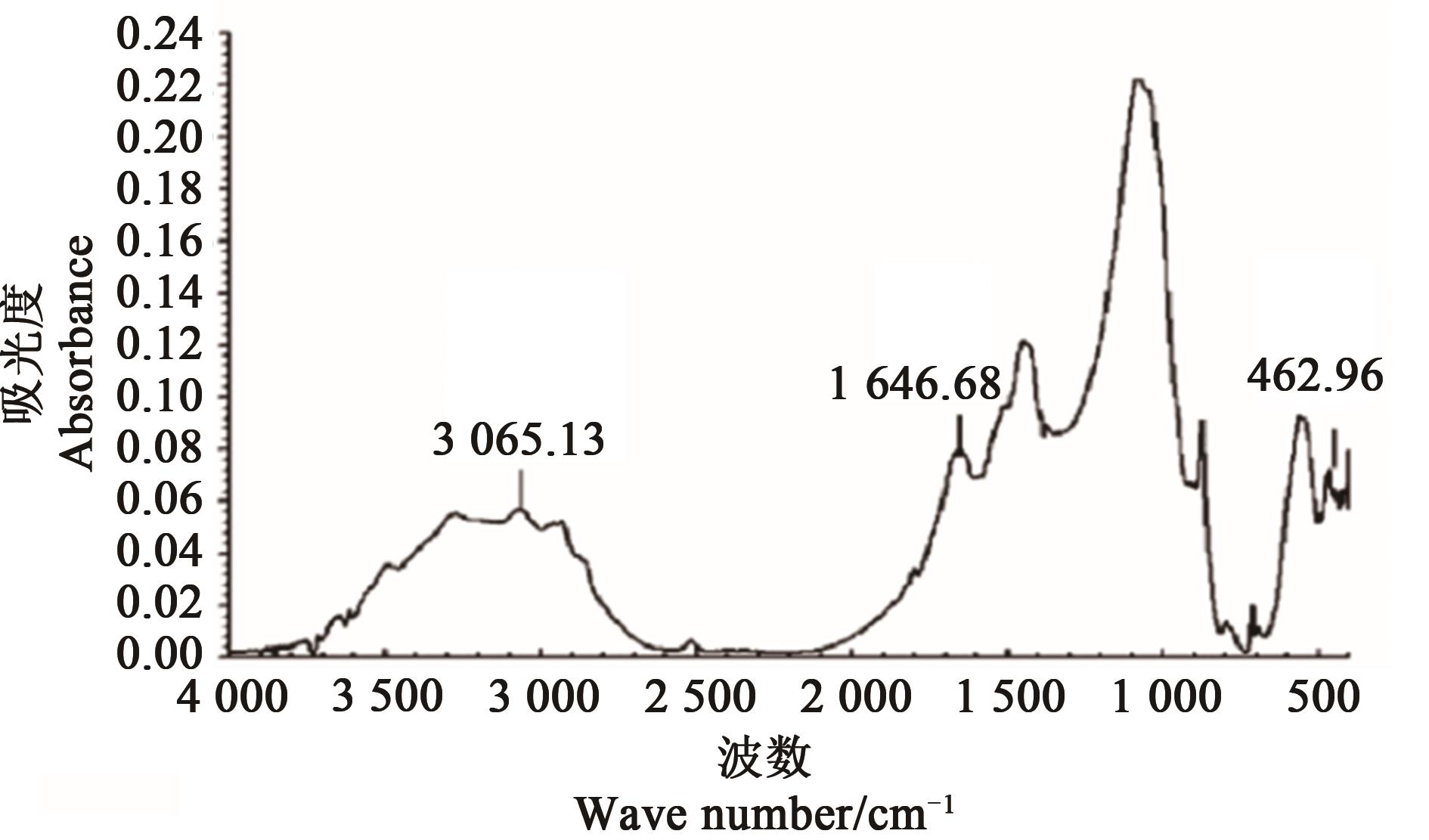

In order to study the effect of different emitter type on the clogging process of biogas slurry drip irrigation， and choose the most suitable emitter for biogas slurry drip irrigation fertilization， this paper selected 2 kinds of plate emitter， 2 kinds of cylinder emitter and 1 kind of plate-compensation emitter， and designed 2 kinds of biogas slurry ratio for periodic intermittent irrigation experiment， and compared the average relative flow rate and irrigation uniformity of different emitters. The experimental results showed as followed： the bigger the ratio of biogas slurry to water and fertilizer was， the easier the emitter clogging was； when the flow rate of emitter was the same， the anti-clogging performance of chip emitter was better than that of cylinder emitter and chip compensation emitter； when the emitter type was the same， the larger the rated flow rate was， the better the anti clogging performance was； the clogging process was more uniform and starts from the end of capillary； the type of blockage was physical and biological compound blockage. According to the test results， the optimal irrigation mode for biogas slurry fertilization was suggested as followed： the ratio of water and fertilizer was 1∶3， the irrigation pressure was 80 kPa， and the emitter was 3 L·h^-1； single stage 120 mesh filter was limited， so multi-stage filter could be added.

Key words: biogas slurry drip irrigation, type of irrigation emitter, clogging performance test, relative flow, irrigation uniformity

摘要：

为了研究不同类型灌水器滴头对不同水肥配比沼液的抗堵塞性能，获得适用于沼液滴灌施肥的滴头，选取2种片式滴头、2种圆柱滴头和1种片式补偿滴头共5种滴头，设计了2种沼液配比进行周期性间歇灌水试验，比较了不同滴头的抗堵塞能力。结果表明，沼液水肥配比越大，滴头越容易发生堵塞；滴头流量相同时，片式滴头抗堵塞性优于圆柱滴头和片式补偿滴头；滴头类型相同时，额定流量越大，抗堵塞性越好；堵塞进程较为均匀，堵塞发生从毛管尾端开始；堵塞类型以物理和生物结合的复合性堵塞为主。根据试验结果，建议沼液施肥时，最优灌溉模式为：水肥配比选择1∶3，灌水压力选择80 kPa，滴头选择3 L·h^-1的片式滴头；单级120目过滤器过滤效果有限，可以考虑增加多级过滤。

关键词: 沼液滴灌, 滴头类型, 堵塞性能试验, 平均相对流量, 灌水均匀度

CLC Number:

S275.6

Jie ZHENG, Hong CHEN, Lingjian MENG, Shanjun LI, Luchang MA. Effect of Different Emitter Types on Anti-clogging Performance of Biogas Slurry Concentrations[J]. Journal of Agricultural Science and Technology, 2022, 24(7): 108-116.

郑杰, 陈红, 孟令剑, 李善军, 马露畅. 不同类型灌水器滴头对沼液抗堵塞性能的影响[J]. 中国农业科技导报, 2022, 24(7): 108-116.

Figures/Tables 9

References 36

1	毕婷婷,胡涵,刘丽春,等.沼液施用对核桃高效生产的影响研究[J].东北农业科学,2020,45(6):119-121, 128.
	BI T T, HU H, LIU L C, et al.. Effect of biogas application on high effcient production of walnut [J]. Northeast Agric. Sci., 2020, 45(6):119-121, 128.
2	孟清波,张谨薇,马万成,等.沼渣沼液肥对辣椒生长发育·果实品质及产量的影响[J].安徽农业科学,2020,48(23):190-193.
	MENG Q B, ZHANG J W, MA W C, et al.. Effects of biogas slurry fertilizer on growth and development, fruit quality and yield nof chili [J]. Anhui Agric. Sci., 2020, 48(23):190-193.
3	杨清霖,杨向德,石元值,等.茶园滴灌与水肥一体化技术研究[J].茶叶学报,2019,242(1):36-41.
	YANG Q L, YANG X D, SHI Y Z, et al.. Fertigation for tea plantations [J]. Acta Tea Sin., 2019, 242(1):36-41.
4	杜文波.日光温室番茄应用滴灌水肥一体化技术初探[J].山西农业科学,2009,37(1):58-60.
	DU W B. Effects of drip fertigation on tomato in the solar greenhouse [J]. Shanxi Agric. Sci., 2009, 37(1):58-60.
5	闫大壮,杨培岭,李云开,等.再生水滴灌条件下滴头堵塞特性评估[J].农业工程学报,2011,27(5):19-24.
	YAN D Z, YANG P L, LI Y K, et al.. Evaluation of drip emitter clogging with reclaimed wastewater irrigation [J]. Trans. Chin. Soc. Agric. Eng., 2011, 27(5):19-24.
6	温圣林,牛文全,邬梦龙,等.浑水滴灌过程中不同类型滴头堵塞的动态变化特征[J].农业机械学报,2020,51(3):287-294.
	WEN S L, NIU W Q, WU M L, et al.. Dynamic characteristics of different emitters clogging in drip irrigation with muddy water [J]. Trans. Chin. Soc. Agric. Mach., 2020, 51(3):287-294.
7	李久生,陈磊,栗岩峰.加氯处理对再生水滴灌系统灌水器堵塞及性能的影响[J].农业工程学报,2010,26(5):7-13.
	LI J S, CHEN L, LI Y F. Effect of chlorination on emitter clogging and system performance for drip irrigation with sewage effluent [J]. Trans. Chin. Soc. Agric. Eng., 2010, 26(5):7-13.
8	ZHOU B, LI Y K, SONG P, et al.. Anti-clogging evaluation for drip irrigation emitters using reclaimed water [J]. Irrig. Sci., 2017, 35(3):181-192.
9	刘海军,黄冠华,王鹏超,等.再生水滴灌对滴头堵塞的影响[J].农业工程学报,2009,25(9):15-20.
	LIU H J, HUANG G H, WANG P C, et al.. Effect of drip irrigation with reclaimed water on emitter clogging [J]. Trans. Chin. Soc. Agric. Eng., 2009, 25(9):15-20.
10	丁京涛,沈玉君,孟海波,等.沼渣沼液养分含量及稳定性分析[J].中国农业科技导报,2016,18(4):139-146.
	DING J T, SHEN Y J, MENG H B, et al.. Nutrition contents and its stability analysis of biogas residue and slurry [J]. J. Agric. Sci. Technol., 2016 18(4):139-146.
11	王小彬,闫湘,李秀英.畜禽粪污厌氧发酵沼液农用之环境安全风险[J].中国农业科学,2021,54(1):110-139.
	WANG X B, YAN X, LI X Y. Environment safety risk for application of anaerobic fermentation biogas slurry from livestock manure in agricultural land China [J]. Sci. Agric. Sin., 2021, 54(1):110-139.
12	盛婧,徐乔,朱普平,等.基于分级过滤的喷灌用沼液颗粒物组成分析[J].农业工程学报,2016,32(8):212-216.
	SHENG J, XU Q, ZHU P P, et al.. Composition analysis of particles filtered from biogas slurry by sieves with different mesh for sprinkling irrigation [J]. Trans. Chin. Soc. Agric. Eng., 2016, 32(8):212-216.
13	席奇亮,葛国锋,周方,等.2种滴灌带灌水均匀度对铺设长度和进水压力的响应[J].灌溉排水学报,2018,37(3):78-83.
	XI Q L, GE G F, ZHOU F, et al.. Responses of irrigation uniformity of two types of drip irrigation belts to inlet pressure and laying length [J]. J. Irrig. Dra, 2018, 37(3):78-83.
14	LIU Z, XIAO W, LI Y, et al.. Influence of operating pressure on emitter anti-clogging performance of drip irrigation system with high-sediment water [J]. Agric. Water Manage., 2019, 213:174-184.
15	陈红,夏彬芸,邵显,等.沼液滴灌系统灌水器堵塞模型构建及系统参数优化[J].农业工程学报,2020,36(3):99-106.
	CHEN H, XIA B Y, SHAO X, et al.. Development of emitter clogging predication for drip irrigation system with biogas slurry and optimization of its system parameters [J]. Trans. Chin. Soc. Agric. Eng., 2020, 36(3):99-106.
16	周博.滴灌系统灌水器生物堵塞特性,评估及机理研究[D].北京:中国农业大学,2016.
	ZHOU B. Characteristics, evaluation and mechanism of biological-clogging process in drip irrigation emitters [D]. Beijing: China Agriculture University, 2016.
17	RAVINA E, PAZ Z, SOFER A, et al.. Control of emitter clogging in drip irrigation with reclaimed wastewater [J]. Irrig. Sci., 1992, 13(3):129-139.
18	RAVINA E, PAZ Z, SOFER A, et al.. Control of clogging in drip irrigation with stored treated municipal sewage effluent [J]. Agric. Water Manage., 1997, 33(2-3):127-137.
19	PUIG-BARGUE J, ARBA G, BARRAGAN J, et al.. Hydraulic performance of drip irrigation subunits using WWTP effluents [J]. Agric. Water Manage., 2004, 77(1):249-262.
20	陈慧芳.微咸水灌溉陶瓷灌水器堵塞规律及控制措施研究[D].杨凌:西北农林科技大学,2020.
	CHEN H F. Rule of the ceramic emitters clogging under irrigation with saline water and its prevention measures [D]. Yangling: Northwest A&F University, 2020.
21	KUMAR M, ADHAM S S, PEARCE W R. Investigation of seawater reverse osmosis fouling and its relationship to pretreatment type [J]. Environ. Sci. Technol., 2006, 40(6):2037-2044.
22	李彬,王志伟,安莹,等.膜-生物反应器处理高盐废水膜面污染物特性研究[J].环境科学,2014,35(2):643-650.
	LI B, WANG Z W, AN Y, et al.. Membrane surface fouling properties in MBRs for high-salinity wastewater treatment [J]. Chin. J. Environ. Sci., 2014, 35(2):643-650.
23	薛怡亭,党岩,郭慧雯,等.外置管式MBR处理垃圾焚烧渗沥液中的膜污染[J].环境工程学报,2015,9(3):1269-1275.
	XUE Y T, DANG Y, GUO H W, et al.. Membrane fouling of recirculated tubular MBR treating leachate from MSW incineration plant [J]. J. Chin. Environ. Eng., 2015, 9(3):1269-1275.
24	翁诗甫.傅里叶变换红外光谱分析[M].北京:化学工业出版社,2010:1-508.
	WENG S F. Fourier Transform Infrared Spectroscopy [M]. Beijing: Chemical Industry Press, 2010:1-508.
25	张钟莉莉. 微咸水滴灌系统灌水器化学堵塞机理及控制方法研究[D].北京:中国农业大学,2016.
	ZHANG Z L L. Mechanism of the emitters chemical-clogging under drip irrigation with saline and its preventation methods [D]. Beijing: China Agriculture University, 2016.
26	冯吉.引黄滴灌系统泥沙逐级调控机制及方法研究[D].北京:中国农业大学,2017.
	FENG J. Step regulation mechanism and method of sediment in drip irrigation system with yellow river water [D]. Beijing: China Agricultural University, 2017.
27	吴显斌,吴文勇,刘洪禄,等.再生水滴灌系统滴头抗堵塞性能试验研究[J].农业工程学报,2008,24(5):61-64.
	WU X B, WU W Y, LIU H L, et al.. Experimental study on anti-clogging performance of emitters for reclaimed wastewater irrigation [J]. Trans. Chin. Soc. Agric. Eng., 2008, 24(5):61-64.
28	李小东,张凤华,朱煜.新疆南疆典型地区农业灌溉水质与土壤盐渍化关系的研究[J].新疆农业科学,2016,53(7):1260-1267.
	LI X D, ZHANG F H, ZHU Y. Agricultural irrigation water quality and soil salinization in typical areas of Southern Xinjiang [J]. Xinjiang Agric. Sci., 2016, 53(7):1260-1267.
29	刘燕芳,吴普特,朱德兰,等.滴灌条件下水的硬度对滴头堵塞的影响[J].农业工程学报,2015,31(20):95-100.
	LIU Y F, WU P T, ZHU D L, et al.. Effect of water hardness on emitter clogging of drip irrigation [J]. Trans. Chin. Soc. Agric. Eng., 2015, 31(20):95-100.
30	吴泽广,牛文全.泥沙级配对迷宫流道滴头堵塞及毛管内泥沙沉积的影响[J].西北农林科技大学学报(自然科学版),2014,42(5):223-228.
	WU Z G, NIU W Q. Influence of sediment composition on clogging of labyrinth channels emitters and deposition in emitter-pipe [J]. J. Northwest Sci-Tech Univ. Agric. For. (Nat. Sci.), 2014, 42(5):223-228.
31	李云开,周博,杨培岭.滴灌系统灌水器堵塞机理与控制方法研究进展[J].水利学报,2018,49(1):103-114.
	LI Y K, ZHOU B, YANG P L. Research advances in drip irrigation emitter clogging mechanism and controlling methods [J]. J. Hydraul. Eng., 2018, 49(1):103-114.
32	夏彬芸,陈红,李善军,等.滴灌条件下水溶性肥料对灌水器堵塞影响[J].中国农业科技导报,2019,21(7):120-127.
	XIA B Y, CHEN H, LI S J, et al.. Effect of emitter clogging on water-soluble fertilizer in drip irrigation system [J]. J. Agric. Sci. Technol., 2019, 21(7):120-127.
33	李康勇,牛文全,张若婵,等.施肥对浑水灌溉滴头堵塞的加速作用[J].农业工程学报,2015,31(17):81-90.
	LI K Y, NIU W Q, ZHANG R C, et al.. Accelerative effect of fertigation on emitter clogging by muddy water irrigation [J]. Trans. Chin. Soc. Agric. Eng., 2015, 31(17):81-90.
34	刘璐,牛文全,武志广,等.施肥滴灌加速滴头堵塞风险与诱发机制研究[J].农业机械学报,2017,48(1):228-236.
	LIU L, NIU W Q, WU Z G, et al.. Risk and inducing mechanism of acceleration emitter clogging with fertigation through drip irrigation systems [J]. Trans. Chin. Soc. Agric. Mach., 2017, 48(1):228-236.
35	陈珂莉,李朋,金伟,等.排水管道沉积物中胞外聚合物的提取及检测方法研究[J].中国给水排水,2018,34(7):32-36.
	CHEN K L, LI P, JIN W, et al.. Extraction and detection method of extracellular polymeric substance (EPS) in sediment of sewage system [J]. China Water Wastewater, 2018, 34(7):32-36.
36	马晓鹏,龚时宏,王建东,等.额定压力及低压下内镶片式滴头抗堵塞性能试验[J].农业机械学报,2011,42(7):86-90, 134.
	MA X P, GONG S H, WANG J D, et al.. Anti-clogging performance of dental labyrinth emitters under rated pressure and low operating pressure [J]. Trans. Chin. Soc. Agric. Mach., 2011, 42(7):86-90, 134.

参数Parameter	值Value
pH	8.2±0.1
总固体Total soilds/ %	0.50±0.02
挥发性固体Volatile solids/ %	0.030±0.002
化学需氧量Chemical oxygen demand/（mg∙L^-1）	2 896.5±120.5
浊度Turbidity/NTU	621.2±13.4
电导率Conductivity/（μs∙cm^-1）	2 875.7±13.2
Ca/（mg∙kg^-1）	489.075
Cu/（mg∙kg^-1）	24.675
Fe/（mg∙kg^-1）	5.200
K/（mg∙kg^-1）	1 852.675
Mg/（mg∙kg^-1）	1 8153.75
Mn/（mg∙kg^-1）	62.950

参数Parameter	值Value
pH	8.2±0.1
总固体Total soilds/ %	0.50±0.02
挥发性固体Volatile solids/ %	0.030±0.002
化学需氧量Chemical oxygen demand/（mg∙L^-1）	2 896.5±120.5
浊度Turbidity/NTU	621.2±13.4
电导率Conductivity/（μs∙cm^-1）	2 875.7±13.2
Ca/（mg∙kg^-1）	489.075
Cu/（mg∙kg^-1）	24.675
Fe/（mg∙kg^-1）	5.200
K/（mg∙kg^-1）	1 852.675
Mg/（mg∙kg^-1）	1 8153.75
Mn/（mg∙kg^-1）	62.950

滴头编号 Emitter number	滴头类型 Emitter type	额定流量 Rated flow/（L·h^-1）	额定压力 Rated pressure/kPa	长×宽×深 Length×width×depth/mm	制造偏差系数 Manufacture warp coefficient/%
E1	片式plate	2.0	160	54.2×1.12×0.82	2.3
E2	片式plate	3.0	180	36.8×1.18×0.93	2.8
E3	圆柱cylinder	2.0	180	162.63×1.12×0.83	4.2
E4	圆柱cylinder	3.0	180	187.83×1.33×1.15	4.1
E5	片式补偿plate-compensation	2.4	350	43.32×1.26×0.85	2.1

滴头编号 Emitter number	滴头类型 Emitter type	额定流量 Rated flow/（L·h^-1）	额定压力 Rated pressure/kPa	长×宽×深 Length×width×depth/mm	制造偏差系数 Manufacture warp coefficient/%
E1	片式plate	2.0	160	54.2×1.12×0.82	2.3
E2	片式plate	3.0	180	36.8×1.18×0.93	2.8
E3	圆柱cylinder	2.0	180	162.63×1.12×0.83	4.2
E4	圆柱cylinder	3.0	180	187.83×1.33×1.15	4.1
E5	片式补偿plate-compensation	2.4	350	43.32×1.26×0.85	2.1

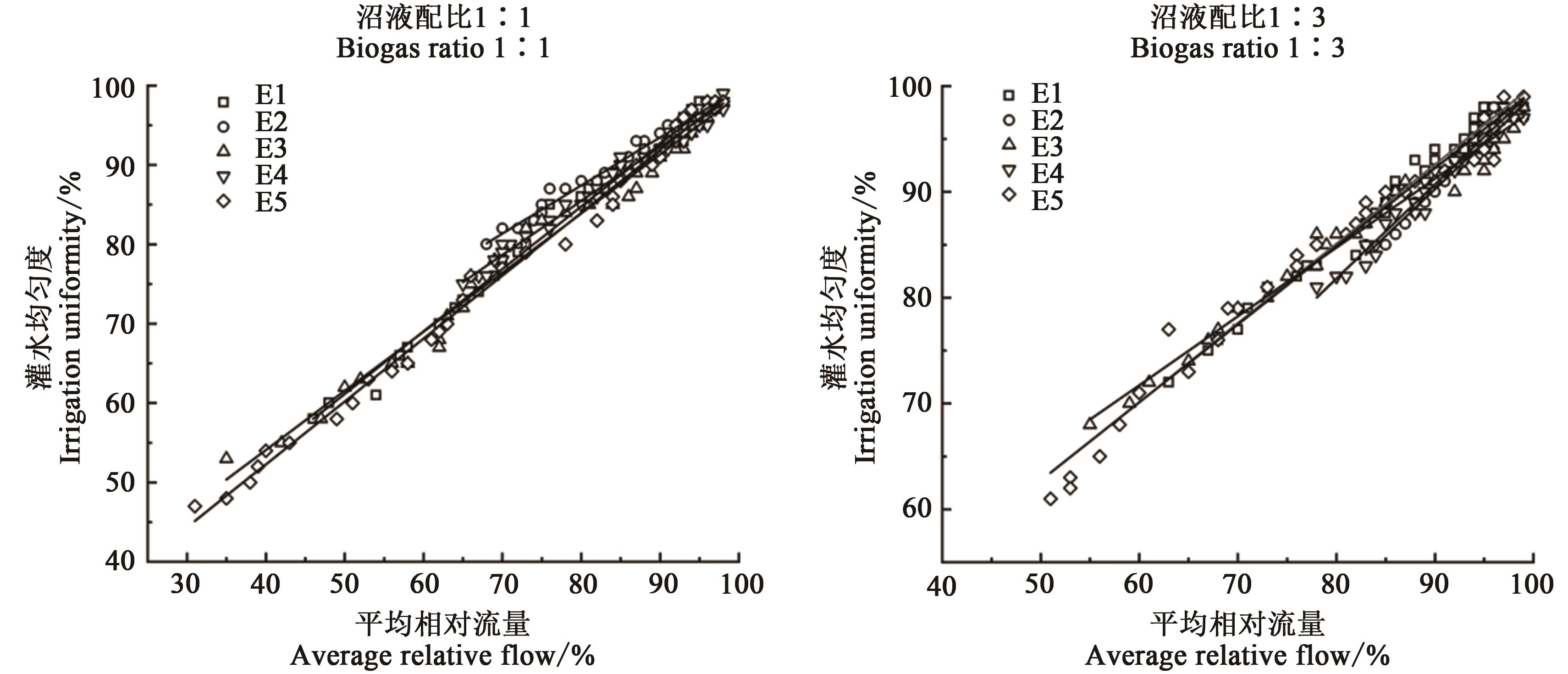

滴头编号 Emitter number	沼液配比1∶1 Biogas ratio 1∶1		沼液配比1∶3 Biogas ratio 1∶3
滴头编号 Emitter number	拟合关系式 Fitting relation	R²	拟合关系式 Fitting relation	R²
E1	y=0.79x+21.78	0.972	y=0.73x+25.84	0.973
E2	y=0.61x+38.84	0.941	y=0.71x+25.11	0.982
E3	y=0.74x+24.29	0.983	y=0.88x+10.81	0.933
E4	y=0.68x+30.92	0.964	y=0.65x+32.68	0.981
E5	y=0.81x+20.58	0.912	y=0.89x+10.53	0.976
