Study on the Extraction of Active Ingredients from Walnut Leaves and Their Mosquito Repellent Activities

doi:10.13304/j.nykjdb.2022.0448

Abstract

Abstract:

In order to screen walnut leaf extracts with strong potency and mosquito repellent effects， ultrasound-assisted hydrodistillation was applied to extract ‘J. regia Wen185’ ‘C. cathayensis’ ‘J. nigra’ and ‘J. regia Shisheng’ leaf volatile oil. With the extraction rate of volatile oil from walnut leaves as the index，orthogonal experiments were conducted on the basis of single-factor experiments to derive the best extraction conditions of volatile oil from walnut leaves， and combined with the mosquito repellent test， the best repellent content of 4 walnut leaf extracts were screened with the repellent rate as the index. It was shown that the best extraction conditions for the extraction of volatile oil from ‘J. nigra’ leaves by ultrasound-assisted water distillation were 8 h， 10 min of ultrasound time， and 1∶10 （g·mL^-1） solid-liquid ratio. Under these conditions， the extraction rate of volatile oil of walnut leaves was 0.475%. Using anhydrous ethanol as the solvent， the mosquito repellent rate of the solutions of four kinds of walnut leaf volatile oil extract solutions were measured under dilution of 10%， 20%， 30% and 40%. The mosquito repellent effect time of ‘J. nigra’ leaf volatile oil extract solution could reach 20 min at 30% content， and when the repellent rate was 85.18%， the repellent effect was the best. Vaporized oil extract solution of ‘J. nigra’ leaves had good mosquito repellent effect and had the potential to be developed as a plant-derived repellent， which was worthy of further promotion and application.

Key words: walnut leaves, optimal extraction conditions, active ingredients, repellent effect on mosquito

摘要：

为筛选具有较强持效性和驱蚊效果的核桃叶片提取物，利用超声辅助水蒸气蒸馏法提取‘温185’‘山核桃’‘美国东部黑核桃’和‘实生核桃’叶片挥发油，以核桃叶片挥发油提取率为指标，在单因素试验的基础上进行正交试验，得出核桃叶片挥发油的最佳提取条件，并结合驱蚊试验，以驱蚊率为指标，筛选4种核桃叶片提取物的最佳驱蚊含量水平。结果表明，超声辅助水蒸气蒸馏法提取‘美国东部黑核桃’叶片挥发油的最佳提取条件为提取时间8 h，超声时间10 min，固液比1∶10 （g·mL^-1）；在此条件下，核桃叶片挥发油的提取率为0.475%。以无水乙醇为溶剂将4种核桃叶片挥发油提取物溶液稀释为10%、20%、30%、40%并测定其溶液的驱蚊率，‘美国东部黑核桃’叶片挥发油提取溶液在30%含量水平下驱蚊时间可达20 min，此时驱蚊率为85.18%，驱蚊效果最佳。‘美国东部黑核桃’叶片挥发油提取物溶液具有良好的驱蚊效果，具有开发为植物源驱避剂的潜力，可进一步推广应用。

关键词: 核桃叶片, 最佳提取条件, 活性成分, 驱蚊效果

CLC Number:

S664.1

Ru WANG, Mengsi YANG, Ping ZHANG, Yali SUN, Haifang HU. Study on the Extraction of Active Ingredients from Walnut Leaves and Their Mosquito Repellent Activities[J]. Journal of Agricultural Science and Technology, 2024, 26(3): 223-233.

王茹, 杨梦思, 张萍, 孙雅丽, 虎海防. 核桃叶片挥发性成分提取及其驱蚊活性的研究[J]. 中国农业科技导报, 2024, 26(3): 223-233.

Figures/Tables 10

References 36

1	GOPALAKRISHNAN R, CHAURASIA A K, BARUAH I, et al.. Durability of protective fabrics against dengue vector Aedes albopictus in northeastern India [J]. Indian J. Med. Res., 2014, 140(2): 314-317.
2	梁子荣, 朱超锋, 张嘉欣, 等. 猫薄荷有效成分提取及其驱蚊活性的研究 [J]. 广东化工, 2020, 47(3): 20-21.
	LIANG Z R, ZHU C F, ZHANG J X, et al.. Study on the extraction of effective components from Mentha felis and its mosquito repellent activity [J]. Guangdong Chem. Ind., 2020, 47(3): 20-21.
3	邓婉. 植物精油对白纹伊蚊和埃及伊蚊的驱避效果研究 [D]. 杭州: 浙江大学, 2015.
	DENG W. Study on repellent effect of plant essential oil against Aedes albopictus and Aedes aegypti [D]. Hangzhou: Zhejiang University, 2015.
4	ERLER F, ULUG I, YALCINKAYA B. Repellent activity of five essential oils against Culex pipiens [J]. Fitoterapia, 2006, 77(7-8): 491-494.
5	STEELE J E. Control of metabolic processes [M]// HAFEZ E.Endocrinology II, 1985:99-145.
6	PARÉ P W, TUMLINSON J H. Induced synthesis of plant volatiles [J]. Nature, 1997, 385(6611):30-31.
7	薛飞群. 昆虫驱避剂的研究概况[J]. 中国兽医科技, 1992(8): 19-20.
	XUE F Q. Research progress of insect repellents [J]. Chin. Veterinary Sci., 1992(8): 19-20.
8	CHAUHAN K R, KLUN J A, DEBBOUN M, et al.. Feeding deterrent effects of catnip oil components compared with two synthetic amides against Aedes aegypti [J]. J. Med. Entomol., 2005, 42(4): 643-646.
9	廉永善. 沙棘属植物天然产物及其主要生理药理功能[J]. 沙棘, 2005(3): 8-19.
	LIAN Y S. Natural products of seabuckthorn and their main physiological and pharmacological functions [J]. Seabuckthorn Hippophae, 2005(3): 8-19.
10	杨中林. 22种植物精油驱蚊活性筛选及制剂制备[D]. 咸阳: 西北农林科技大学, 2016.
	YANG Z L. Mosquito repellent activity screening and preparation of 22 plant essential oils [D]. Xianyang: Northwest A&F University, 2016.
11	林琳. 孔雀草等五种园林植物对蚊的驱避影响及挥发物的成分鉴定 [D]. 成都: 四川农业大学, 2008.
	LIN L. Repellent effects of five garden plants such as malachite grass on mosquitoes and identification of volatile components [D]. Chengdu: Sichuan Agricultural University, 2008.
12	TUNÓN H, THORSELL W, MIKIVER A, et al.. Arthropod repellency, especially tick (Ixodes ricinus), exerted by extract from Artemisia abrotanum and essential oil from flowers of Dianthus caryophyllum [J]. Fitoterapia, 2006, 77(4):257-261.
13	王爱兵, 朱小云, 杨斌, 等. 防蚊整理研究进展[C] //“润禾杯”第八届全国印染后整理学术研讨会论文集. 北京:中国纺织工程学会,2011: 265-269.
14	王越. 四种植物驱蚊剂活性成分地提取分析及驱蚊效果研究 [D]. 大庆: 黑龙江八一农垦大学, 2013.
	WANG Y. Extraction and analysis of active components of four plant mosquito repellents and study on mosquito repellent effect [D]. Daqing:Heilongjaing Bayi Agricultural University, 2013.
15	李文爽, 江晓波, 王涛, 等. 山苍子挥发油超声波辅助提取工艺优化及其GC-MS分析[J]. 食品工业科技, 2015, 36(7): 308-313.
	LI W S, JIANG X B, WANG T, et al.. Optimization of ultrasonic assisted extraction process and GC-MS analysis of volatile oil from litsea cubeba [J]. Sci.Technol. Food Ind., 2015, 36(7): 308-313.
16	吴均, 杨钦滟, 赵晓娟, 等. 山苍子油的抑菌活性及机理研究[J]. 食品工业科技, 2013, 34(17): 119-121, 125.
	WU J, YANG Q Y, ZHAO X J, et al.. Study on antibacterial activity and mechanism of litsea cubeba oil [J]. Sci.Technol. Food Ind., 2013, 34(17): 119-121, 125.
17	周玉慧, 甘仙女, 陈尚钘, 等. 山苍子油及柠檬醛提取分离与生物活性研究进展[J]. 生物灾害科学, 2013, 36(2): 148-153.
	ZHOU Y H, GAN X N, CHEN S Y, et al.. Research progress on extraction, separation and bioactivity of litsea cubeba oil and citral [J]. Biol. Disaster Sci., 2013, 36(2): 148-153.
18	李文爽. 山苍子挥发油的提取、成分分析及抑菌抗氧化活性研究[D]. 成都: 四川农业大学, 2015.
	LI W S. Extraction, component analysis and antibacterial and antioxidant activity of volatile oil from litsea cubeba [D]. Chengdu: Sichuan Agricultural University, 2015.
19	许春晖, 欧祥平, 苏毅生, 等. 复方植物精油驱蚊效果的研究[J]. 中华卫生杀虫药械, 2014, 20(3): 243-244.
	XU C H, OU X P, SU Y S, et al.. Study on mosquito repellent effect of compound plant essential oil [J]. Chin. J. Hyg. Insect Equip., 2014, 20(3): 243-244.
20	徐峰. 川芎挥发油和多糖的同步提取工艺及生物活性研究[D]. 成都: 四川农业大学, 2017.
	XU F. Study on simultaneous extraction technology and biological activity of volatile oil and polysaccharide from ligusticum Chuanxiong [D]. Chengdu: Sichuan Agricultural University, 2017.
21	肖娟, 周康, 胡滨, 等. 超声波辅助水蒸气提取柠檬精油工艺优化及成分分析[J]. 食品与机械, 2018, 34(9): 172-178, 190.
	XIAO J, ZHOU K, HU B, et al.. Optimization of ultrasonic assisted steam extraction of lemon essential oil and its component analysis [J]. Food Machinery, 2018, 34(9): 172-178, 190.
22	PINGRET D, FABIANO-TIXIER A S, CHEMAT F. An improved ultrasound clevenger for extraction of essential oils [J]. Food Analytical Methods, 2014, 7(1): 9-12.
23	敬思群, 艾合买提江·艾海提, 杨玉新. 茴香精油提取工艺优化及成分分析[J]. 中国粮油学报, 2013, 28(3): 53-58.
	JING S Q, AIHEMAITIJIANG A, YANG Y X. Extraction process optimization and component analysis of fennel essential oil [J]. J. Chin. Cereal Oil Ass., 2013, 28(3): 53-58.
24	RAVANFAR R, TAMADAN A M, NIAKOUSARI M. Optimization of ultrasound assisted extraction of anthocyanins from red cabbage using taguchi design method [J]. J. Food Sci. Technol., 2015, 52(12):8140-8147.
25	王艺茜. 桃叶精油最佳提取条件及驱蚊水剂浓度筛选[D]. 咸阳: 西北农林科技大学, 2017.
	WANG Y Q. Optimum extraction conditions of peach leaf essential oil and screening of concentration of mosquito repellent agent [D]. Xianyang: Northwest A&F University, 2017.
26	张鹰, 王满生, 曾新安, 等. 金柚柚皮精油提取条件优化及其抑菌性能研究[J]. 食品工业, 2014, 35(5): 54-58.
	ZHANG Y, WANG M S, ZENG X A, et al.. Optimization of extraction conditions and antibacterial properties of pomelo essential oil [J]. Food Ind., 2014, 35(5): 54-58.
27	华燕青, 李黔蜀, 王云云, 等. 超声辅助蒸馏法提取薄荷挥发油的研究[J]. 陕西农业科学, 2019, 65(8): 16-18.
	HUA Y Q, LI Q S, WANG Y Y, et al.. Study on extraction of volatile oil from mentha mint by ultrasonic assisted distillation [J]. Shaanxi J. Agric. Sci., 2019, 65(8): 16-18.
28	覃勇荣, 刘欣, 黄光兵, 等. 无患子总皂苷提取工艺条件优化及天然洗涤剂研制 [J]. 北方园艺, 2013(16): 143-148.
	QIN Y R, LIU X, HUANG G B, et al.. Optimization of extraction conditions and development of natural detergent [J]. Northern Hortic., 2013(16): 143-148.
29	李琴, 于有伟, 张少颖, 等. 超声波协同水蒸气蒸馏法提取茴香精油的研究[J]. 中国调味品, 2020, 45(3): 23-26.
	LI Q, YU Y W, ZHANG S Y, et al.. Extraction of fennel essential oil by ultrasound and steam distillation [J]. China Condiment, 2020, 45(3): 23-26.
30	LIU Y, QIANG M, SUN Z, et al.. Optimization of ultrasonic extraction of polysaccharides from hovenia dulcis peduncles and their antioxidant potential [J]. Int. J. Biol. Macromol., 2015, 80: 350-357.
31	YI J P, ZHU W X, MA H L, et al.. Optimization on ultrasonic-assisted extraction technology of oil from paeonia suffruticosa Andr. seeds with response surface analysis [J]. Sci. Technol. Food Ind., 2009, 40(6): 103-110.
32	陈卫东, 陈艳丽. 国内天然植物精油的应用研究概况[J]. 现代盐化工, 2019, 46(5): 39-41.
	CHEN W D, CHEN Y L. Application and research of natural plant essential oils in China [J]. Mod. Salt Chem. Ind., 2019, 46(5): 39-41.
33	林燕萍, 杨陈. 天然植物精油改性驱蚊/灭蚊服装面料研究[J]. 产业用纺织品, 2019, 37(5): 36-39.
	LIN Y P, YANG C. Study on mosquito repellent/anti mosquito clothing fabric modified by natural plant essential oil [J]. Technical Textiles, 2019, 37(5): 36-39.
34	郝蕙玲. 植物源气味物质对蚊虫嗅觉定向的影响研究 [J]. 中华卫生杀虫药械, 2009, 15(2): 163-165.
	HAO H L. Effects of plant odorants on olfactory orientation of mosquitoes [J]. Chin. J. Hyg. Insect Equip., 2009, 15(2): 163-165.
35	刘磊, 宋聚友, 周长荣, 等. 比较5种驱蚊植物及植物萃取液驱蚊效果的研究[J]. 贵州医药, 2015, 39(9): 837-838.
	LIU L, SONG J Y, ZHOU C R, et al.. Comparison of mosquito repellent effects of five kinds of mosquito repellent plants and plant extracts [J]. Guizhou Med. J., 2015, 39(9): 837-838.
36	唐丽萍, 郑富强, 吴鹰花, 等. 4种植物精油驱蚊贴驱避效果的初步研究[J]. 中华卫生杀虫药械, 2017, 23(2): 109-111.
	TANG L P, ZHENG F Q, WU Y H, et al.. Preliminary study on repellent effect of four plant essential oils mosquito repellent patches [J]. Chin. J. Hyg. Insect Equip., 2017, 23(2): 109-111.

试验号 Test number	因素Factor			试验结果 Test result
试验号 Test number	A：超声时间 Ultrasound time	B：提取时间 Extraction time	C：固液比 Solid-liquid ratio	试验结果 Test result
1	1	1	1	0.713
2	1	2	2	0.652
3	1	3	3	0.549
4	2	1	2	0.791
5	2	2	3	0.693
6	2	3	1	0.625
7	3	1	3	0.741
8	3	2	1	0.684
9	3	3	2	0.630
S1	1.894	1.989	2.022
S2	2.089	2.245	2.053
S3	2.055	1.804	1.963
K1	0.631	0.663	0.674
K2	0.696	0.748	0.684
K3	0.685	0.601	0.654
极差Range	0.061	0.062	0.030

试验号 Test number	因素Factor			试验结果 Test result
试验号 Test number	A：超声时间 Ultrasound time	B：提取时间 Extraction time	C：固液比 Solid-liquid ratio	试验结果 Test result
1	1	1	1	0.713
2	1	2	2	0.652
3	1	3	3	0.549
4	2	1	2	0.791
5	2	2	3	0.693
6	2	3	1	0.625
7	3	1	3	0.741
8	3	2	1	0.684
9	3	3	2	0.630
S1	1.894	1.989	2.022
S2	2.089	2.245	2.053
S3	2.055	1.804	1.963
K1	0.631	0.663	0.674
K2	0.696	0.748	0.684
K3	0.685	0.601	0.654
极差Range	0.061	0.062	0.030

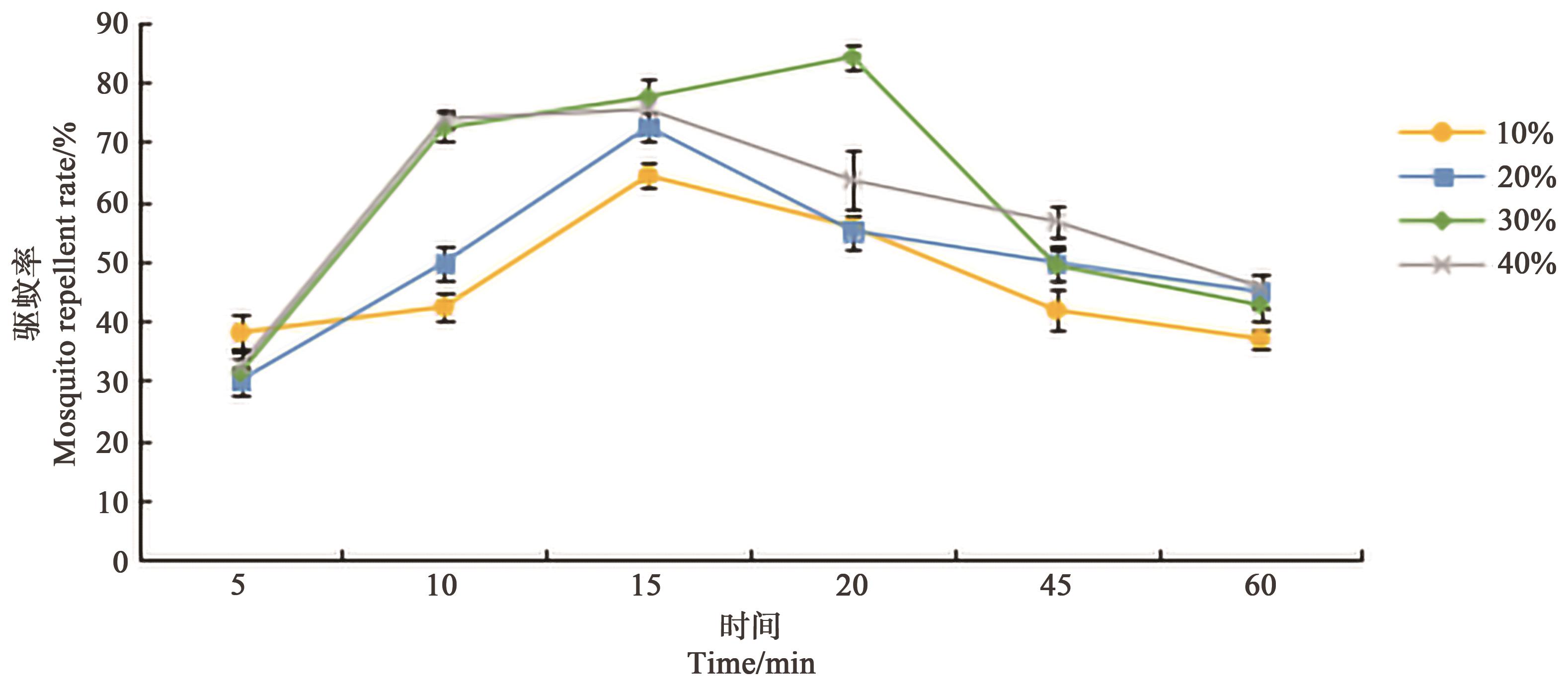

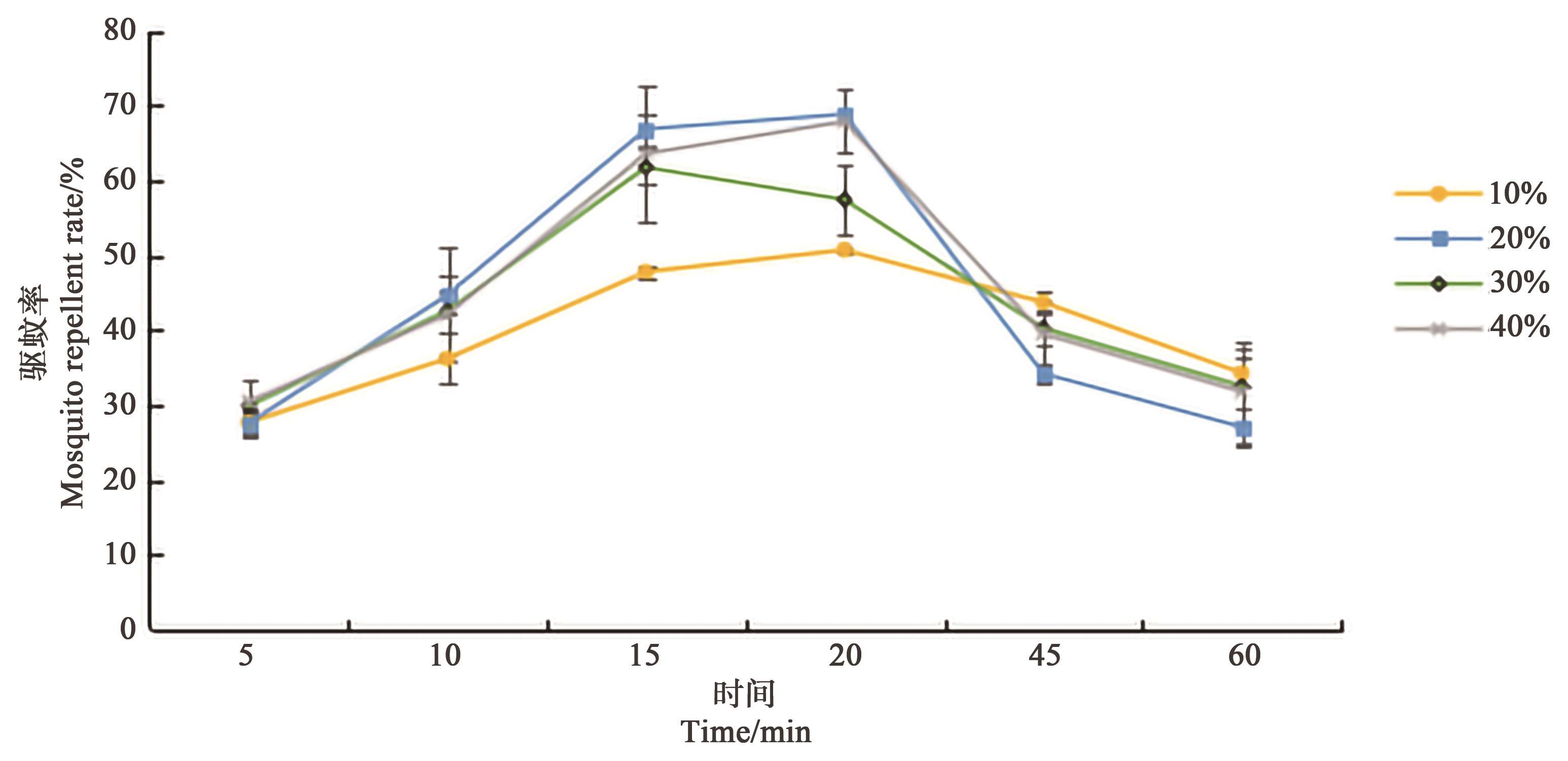

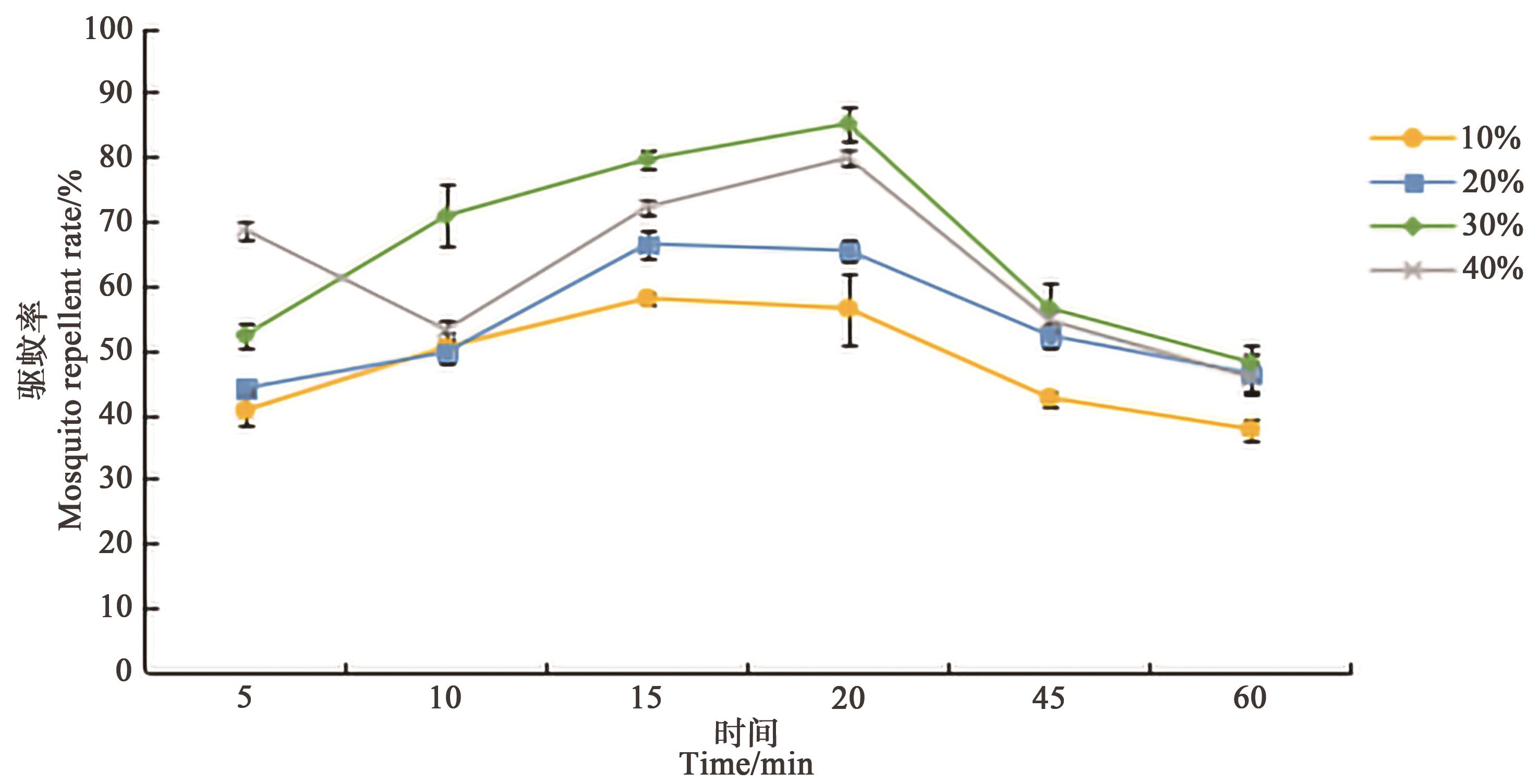

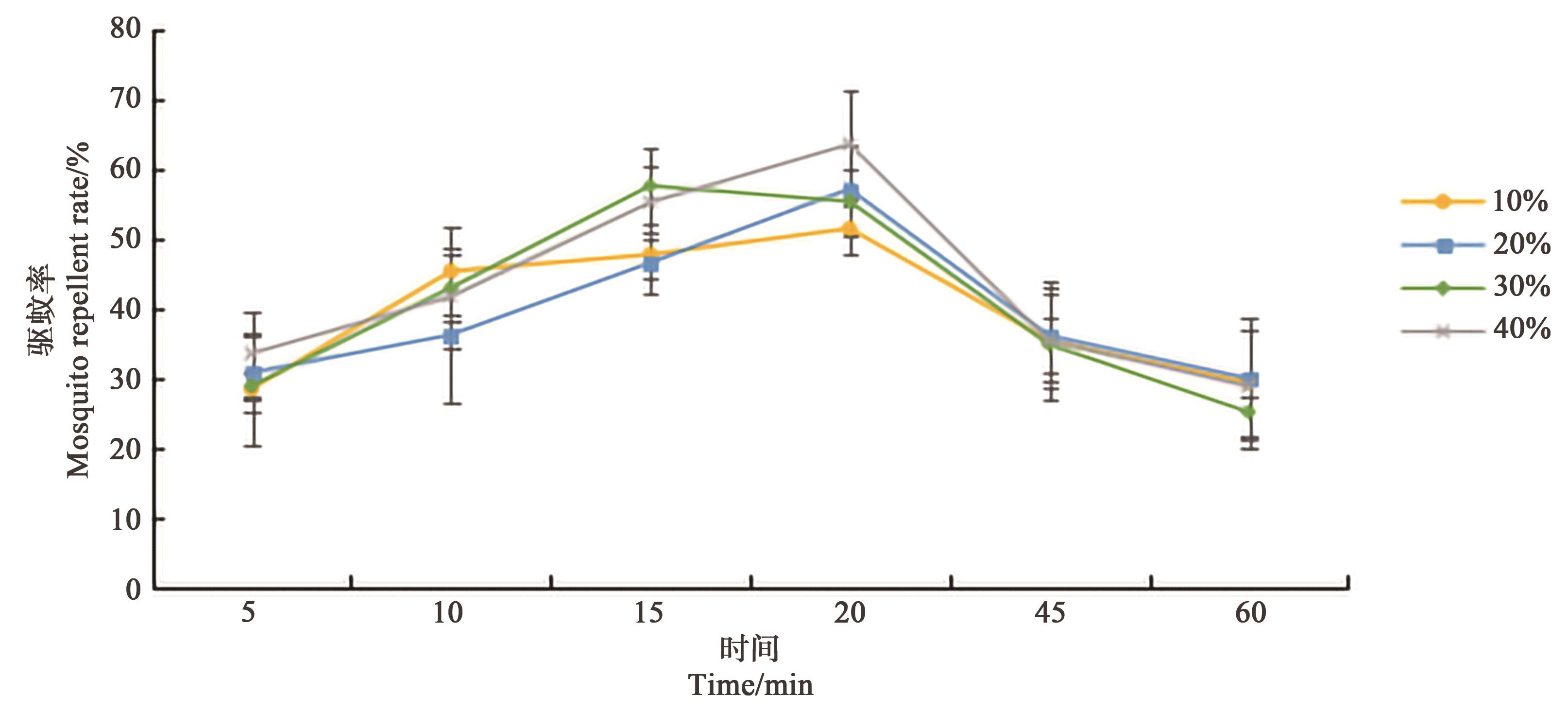

含量水平 Content level/%	试验时间 Proving time/min	品种Variety
含量水平 Content level/%	试验时间 Proving time/min	温185 J. regia Wenl85	美国东部黑核桃 J. nigra	山核桃 C. cathayensis	实生核桃 J. regia Shisheng
10	5	38.07±2.82 cd	40.62±2.46 c	27.66±1.99 e	28.29±8.11 c
	10	42.37±2.45 c	50.45±2.52 b	36.18±0.35 d	45.18±6.17 ab
	15	64.30±2.19 b	58.04±1.06 a	47.76±0.83 b	47.58±3.30 a
	20	55.74±2.15 a	56.47±5.41 a	50.68±0.60 a	51.31±3.44 a
	45	41.81±3.42 cd	42.59±1.14 c	43.70±1.47 c	35.21±6.58 bc
	60	37.03±1.67 d	37.72±1.72 c	34.24±1.94 d	29.23±7.65 d
20	5	30.10±2.35 e	44.07±0.26 e	27.55±1.22 e	30.63±5.47 c
	10	49.77±2.75 c	49.65±1.60 cd	44.67±2.55 c	36.07±9.53 bc
	15	64.97±2.56 b	62.50±2.29 b	63.54±2.18 b	46.40±4.35 ab
	20	72.44±2.85 a	76.01±1.57 a	68.82±0.73 a	56.99±6.16 a
	45	55.10±2.83 c	52.28±2.03 c	34.20±1.31 d	35.96±6.71 bc
	60	44.92±2.93 d	46.39±3.04 de	27.04±2.37 e	29.81±8.77 c
30	5	31.37±1.51 f	52.31±1.18 cd	29.87±0.39 c	28.72±1.14 cd
	10	72.26±1.33 c	70.85±2.77 b	42.55±1.55 b	42.80±2.72 b
	15	77.46±1.64 b	79.64±0.77 a	61.72±4.36 a	57.45±3.14 a
	20	84.11±2.25 a	85.18±3.57 a	57.40±2.77 a	55.19±2.80 a
	45	49.28±1.49 d	56.54±2.18 c	40.23±1.38 b	34.68±5.21 bc
	60	42.65±4.46 e	48.09±1.49 d	32.49±2.91 c	24.98±2.95 d
40	5	50.77±2.37 d	68.69±1.28 c	30.45±2.75 b	33.39±6.11 b
	10	73.79±1.34 b	53.15±1.56 d	42.03±9.07 b	41.52±7.23 b
	15	84.00±2.14 a	72.21±1.39 b	66.81±9.00 a	55.05±5.29 a
	20	84.96±4.91 a	79.85±1.34 a	69.81±4.24 a	63.40±7.84 a
	45	56.61±2.53 c	54.62±1.55 d	39.50±4.31 b	35.23±8.36 b
	60	45.72±2.24 d	45.77±2.35 e	31.76±6.67 b	28.68±1.49 b

含量水平 Content level/%	试验时间 Proving time/min	品种Variety
含量水平 Content level/%	试验时间 Proving time/min	温185 J. regia Wenl85	美国东部黑核桃 J. nigra	山核桃 C. cathayensis	实生核桃 J. regia Shisheng
10	5	38.07±2.82 cd	40.62±2.46 c	27.66±1.99 e	28.29±8.11 c
	10	42.37±2.45 c	50.45±2.52 b	36.18±0.35 d	45.18±6.17 ab
	15	64.30±2.19 b	58.04±1.06 a	47.76±0.83 b	47.58±3.30 a
	20	55.74±2.15 a	56.47±5.41 a	50.68±0.60 a	51.31±3.44 a
	45	41.81±3.42 cd	42.59±1.14 c	43.70±1.47 c	35.21±6.58 bc
	60	37.03±1.67 d	37.72±1.72 c	34.24±1.94 d	29.23±7.65 d
20	5	30.10±2.35 e	44.07±0.26 e	27.55±1.22 e	30.63±5.47 c
	10	49.77±2.75 c	49.65±1.60 cd	44.67±2.55 c	36.07±9.53 bc
	15	64.97±2.56 b	62.50±2.29 b	63.54±2.18 b	46.40±4.35 ab
	20	72.44±2.85 a	76.01±1.57 a	68.82±0.73 a	56.99±6.16 a
	45	55.10±2.83 c	52.28±2.03 c	34.20±1.31 d	35.96±6.71 bc
	60	44.92±2.93 d	46.39±3.04 de	27.04±2.37 e	29.81±8.77 c
30	5	31.37±1.51 f	52.31±1.18 cd	29.87±0.39 c	28.72±1.14 cd
	10	72.26±1.33 c	70.85±2.77 b	42.55±1.55 b	42.80±2.72 b
	15	77.46±1.64 b	79.64±0.77 a	61.72±4.36 a	57.45±3.14 a
	20	84.11±2.25 a	85.18±3.57 a	57.40±2.77 a	55.19±2.80 a
	45	49.28±1.49 d	56.54±2.18 c	40.23±1.38 b	34.68±5.21 bc
	60	42.65±4.46 e	48.09±1.49 d	32.49±2.91 c	24.98±2.95 d
40	5	50.77±2.37 d	68.69±1.28 c	30.45±2.75 b	33.39±6.11 b
	10	73.79±1.34 b	53.15±1.56 d	42.03±9.07 b	41.52±7.23 b
	15	84.00±2.14 a	72.21±1.39 b	66.81±9.00 a	55.05±5.29 a
	20	84.96±4.91 a	79.85±1.34 a	69.81±4.24 a	63.40±7.84 a
	45	56.61±2.53 c	54.62±1.55 d	39.50±4.31 b	35.23±8.36 b
	60	45.72±2.24 d	45.77±2.35 e	31.76±6.67 b	28.68±1.49 b
