基于叶绿素荧光分析的油菜响应低温胁迫机制研究

doi:10.13304/j.nykjdb.2021.0486

摘要/Abstract

摘要：

为探明油菜幼苗叶绿素荧光响应低温胁迫的生理机制，将油菜幼苗进行低温胁迫处理，研究低温胁迫处理下油菜幼苗叶片的叶绿素荧光参数及其光响应曲线的变化特征。结果表明，胁迫处理后油菜幼苗叶片的最大光化学效率（F_v/F_m）与激发能捕获效率（F′_v/F′_m）较对照显著降低；实际光化学效率（F′_q/F′_m）在低温胁迫5~10 d后较对照显著降低，光化学淬灭（F′_q/F′_v）在低温处理1、3 和10 d后较对照无显著变化，由此表明，低温胁迫使PSⅡ反应中心受损，导致反应中心捕获激发能的效率降低；此时虽然反应中心吸收的光能中用于光合电子传递的份额未发生显著变化，但光能转化效率在低温胁迫5和10 d后较对照显著降低。此外，F′_q/F′_v光响应曲线较对照变幅较小；但低温胁迫5~10 d后，F′_v/F′_m与F′_q/F′_m光响应曲线较对照大幅降低；非光化学淬灭（non-photochemical quenching，NPQ）光响应曲线中各荧光值亦在高光强环境中显著升高。综上所述，长期低温与高光强条件下，PSⅡ反应中心通过升高NPQ的光保护机制来耗散过量激发能。以上结果为进一步分析作物响应低温胁迫的生理机制奠定了基础。

关键词: 油菜, 低温胁迫, 荧光参数, 荧光曲线

Abstract:

To explore the physiological mechanism of chlorophyll fluorescence response to low temperature stress in Brassica napus L.， the seedlings of rape were treated by low temperature. The chlorophyll fluorescence parameters and their light-response curves under low temperature stress were studied. The results showed that， compared with controls， F_v/F_m and F′_v/F′_m under low temperature stress significantly decreased， and F′_q/F′_m also decreased significantly after stress 5~10 d， while F′_q/F′_v had no significant differences with control after stress 1~3 and 10 d. Therefore， low temperature stress could damage PSⅡ reaction center and reduce the efficiency of capturing excitation energy. At this time， although the proportion of photosynthetic electron transport in the light energy absorbed by reaction center did not significantly change， the conversion efficiency of light energy still decreased significantly after stress 5~10 d. In addition， compared with controls， F'_q/F'_v was stable under low temperature stress. However， after stress 5~10 d， F'_v/F'_m and F'_q/F'_m decreased sharply， and the non-photochemical quenching （NPQ） increased in high light environment. It suggested that the photo-protective mechanism of NPQ rises was drove to dissipate excess excitation energy under long-term low temperature combined with high light condition. Above results provided guidance for obtaining the physiological mechanism of crop response to low temperature stress by analyzing the changes of chlorophyll fluorescence parameters.

Key words: Brassica napus L., low temperature stress, fluorescence parameters, fluorescence curves

中图分类号:

S311

燕辉. 基于叶绿素荧光分析的油菜响应低温胁迫机制研究[J]. 中国农业科技导报, 2023, 25(1): 58-64.

Hui YAN. Response Mechanism of Chlorophyll Fluorescence to Low Temperature Stress in Brassica napus L.[J]. Journal of Agricultural Science and Technology, 2023, 25(1): 58-64.

图/表 6

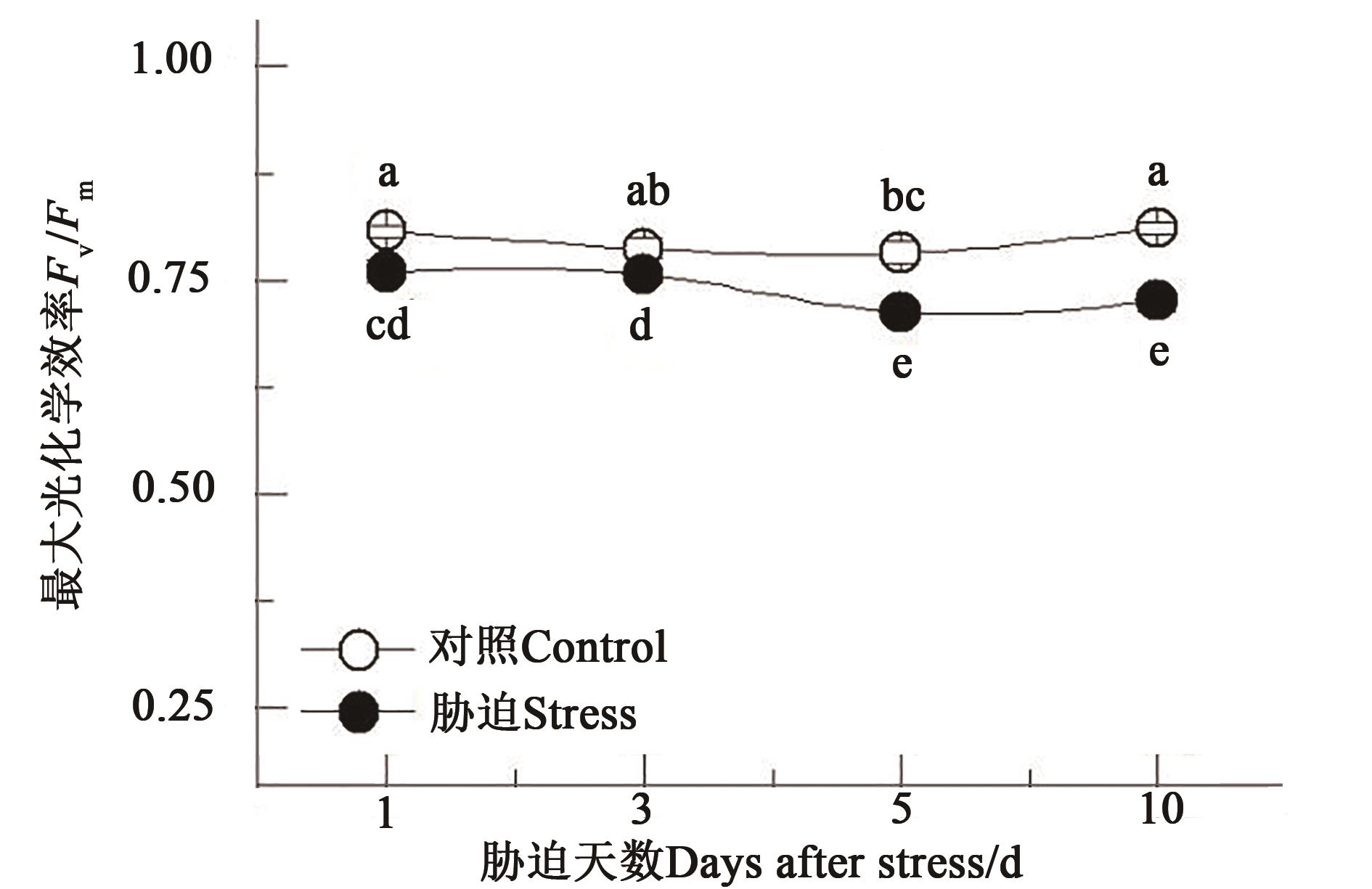

图1 不同处理下油菜叶片的最大光化学效率注：不同小写字母表示在P<0.05水平显著。

Fig. 1 Fv/Fm of rape leaves under different treatmentsNote： Different lowercase letters indicate significant differences at P<0.05 level.

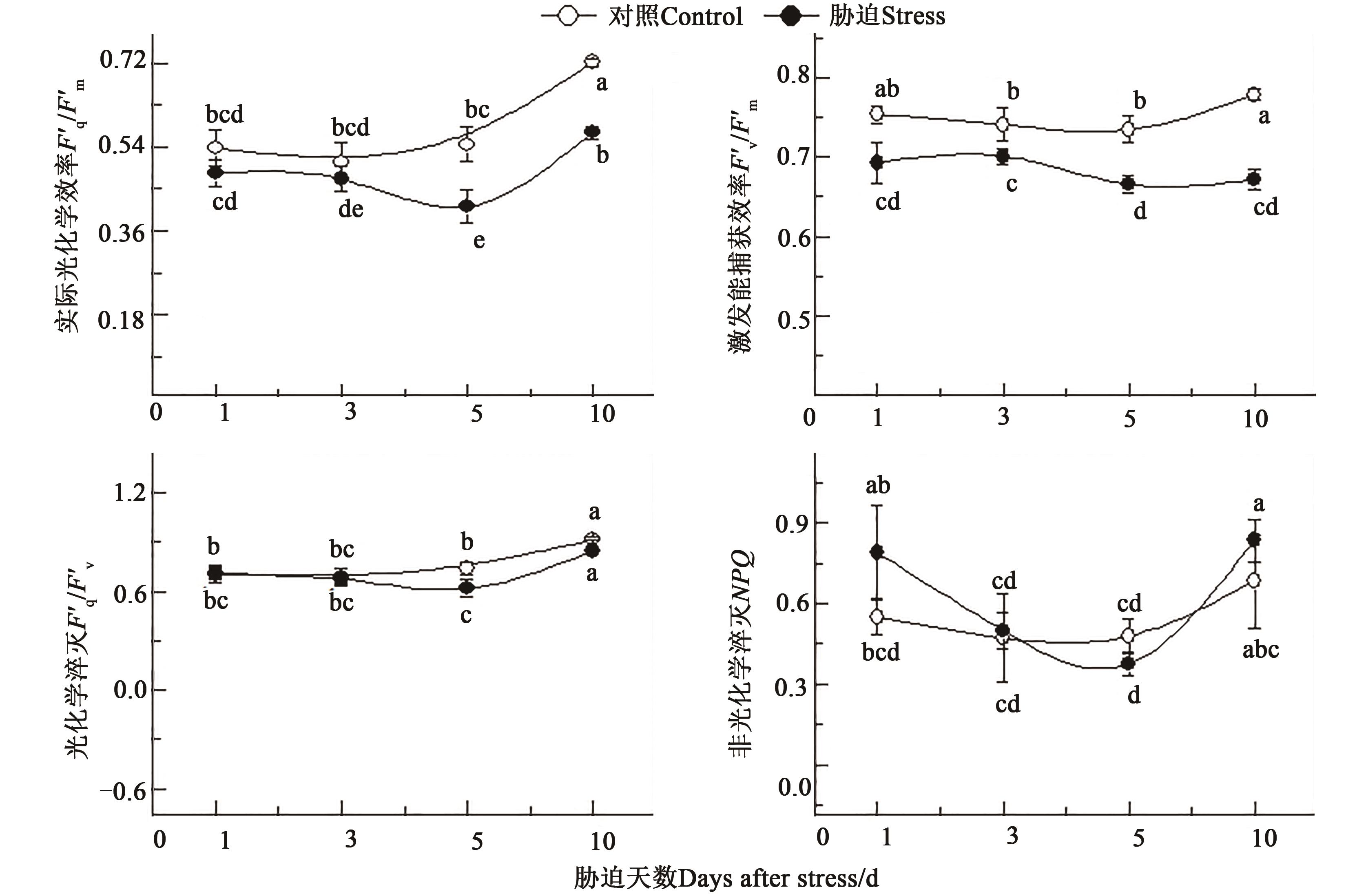

图2 不同处理下油菜叶片荧光参数变化注：不同小写字母表示在P<0.05水平显著。

Fig. 2 Fluorescence parameters of rape leaves under different treatmentsNote： Different lowercase letters indicate significant differences at P<0.05 level.

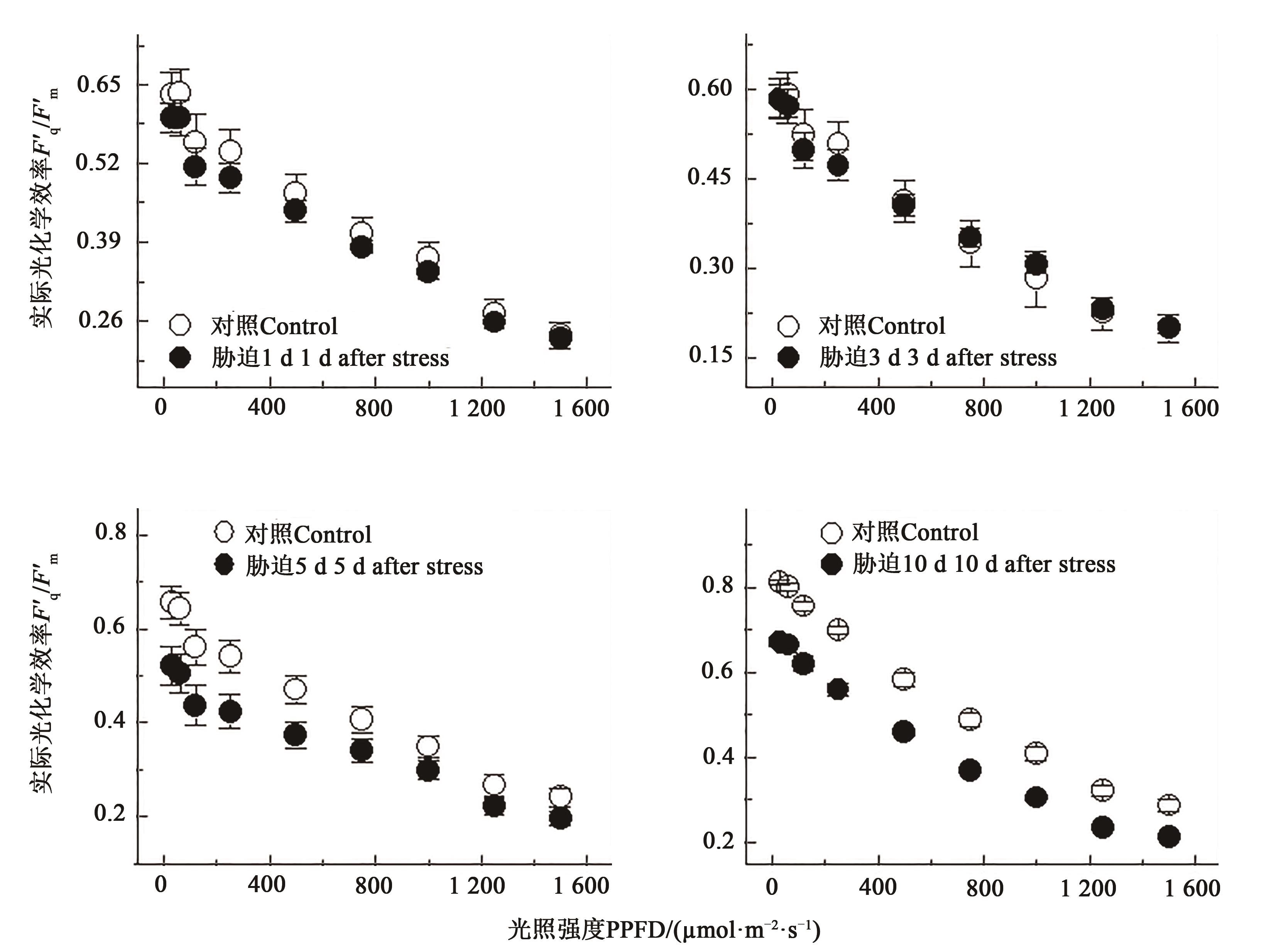

图 3 低温胁迫条件下油菜叶片的F′q/F′m光响应曲线

Fig. 3 Light-response curves of F′q/F′m in rape leaves under low temperature stress

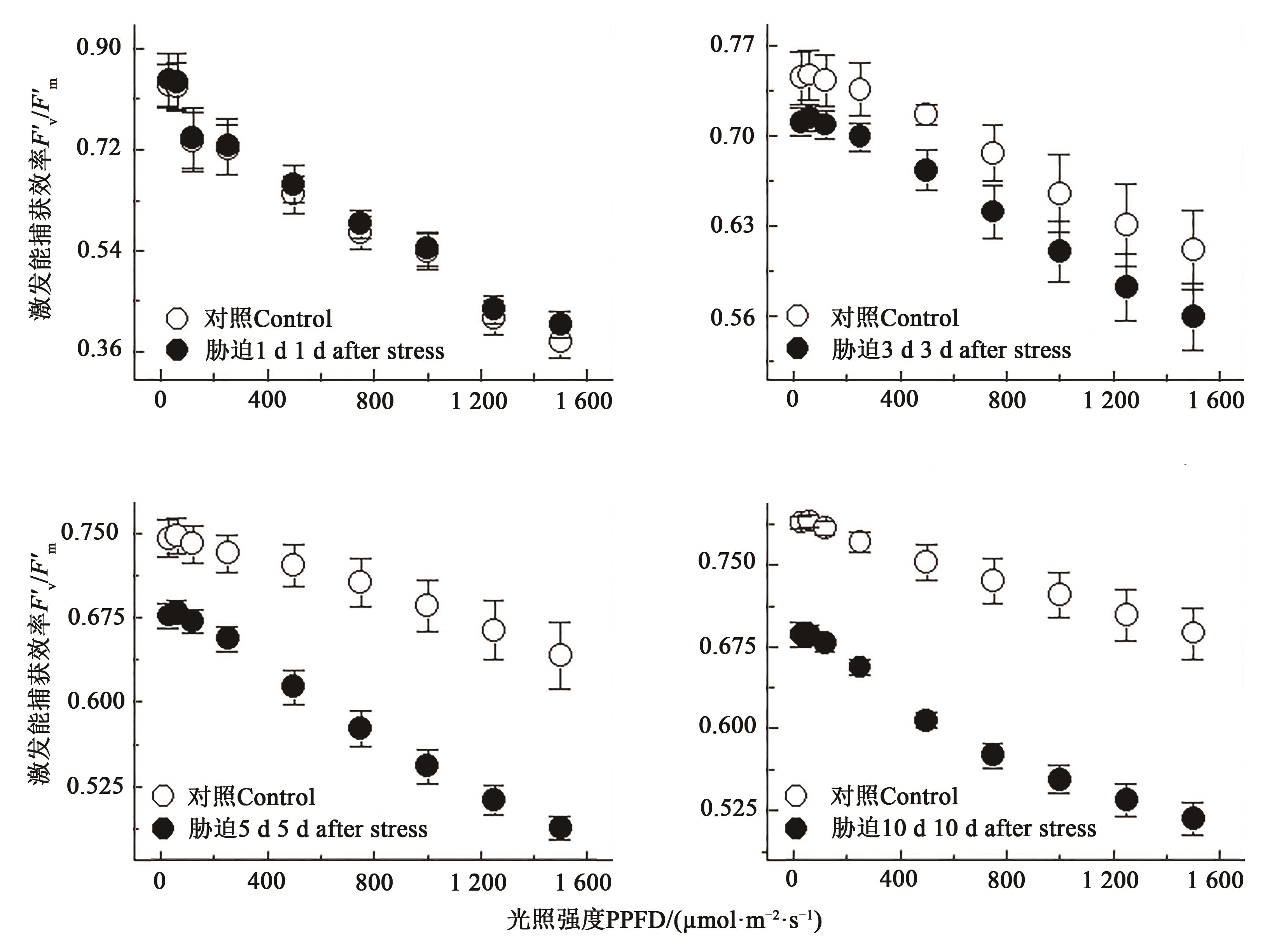

图 4 低温胁迫条件下油菜叶片的F′v/F′m光响应曲线

Fig. 4 Light-response curves of F′v/F′m in rape leaves under low temperature stress

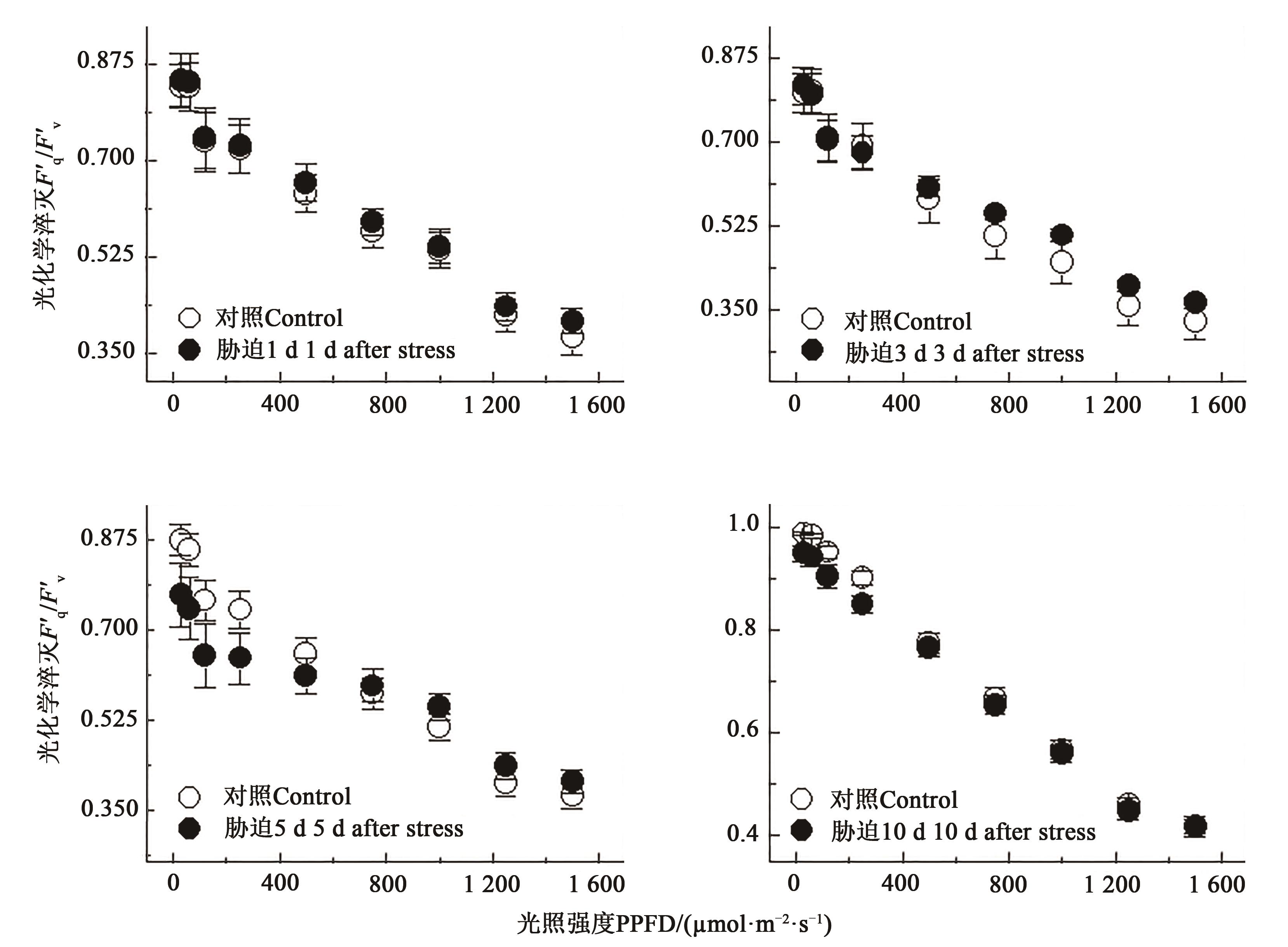

图 5 低温胁迫条件下油菜叶片的F′q/F′v光响应曲线

Fig. 5 Light-response curves of F′q/F′v in rape leaves under low temperature stress

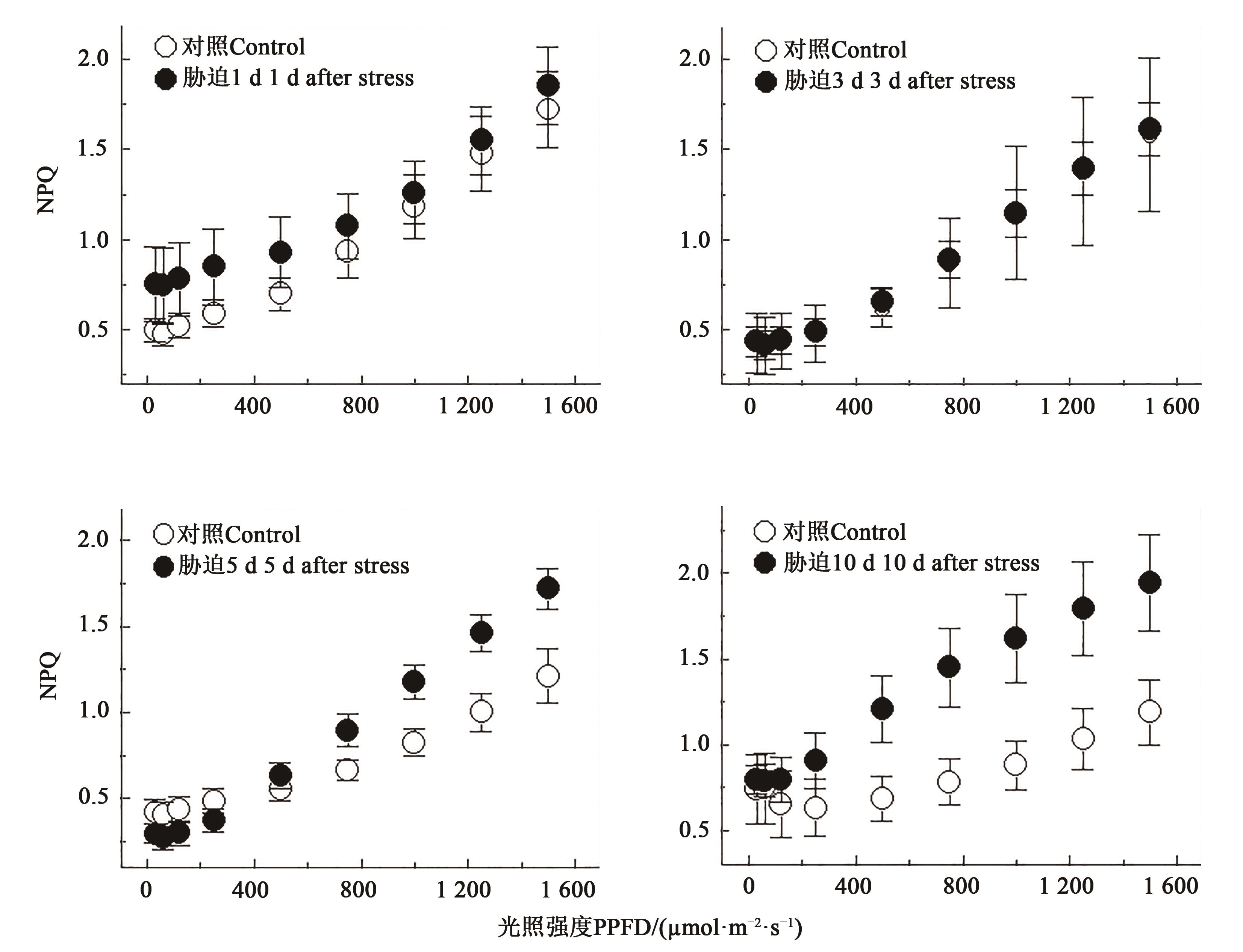

图 6 低温胁迫条件下油菜叶片NPQ光响应曲线

Fig. 6 Light-response curves of NPQ in rape leaves under low temperature stress

参考文献 26

1	张晓红,冯梁杰,杨特武,等.冬季低温胁迫对油菜抗寒生理特性的影响[J].植物生理学报,2015,51(5):737-746.
	ZHANG X H, FENG L J, YANG T W, et al.. Effects of chilling stress on physiological characteristics of rapeseed seedlings in winter [J]. Plant Physiol. J., 2015, 51(5):737-746.
2	张智,张耀文,任军荣,等.多效唑处理后油菜苗在低温胁迫下的光合及生理特性[J].西北农业学报,2013,22(10):103-107.
	ZHANG Z, ZHANG Y W, REN J R, et al.. Photosynthetic and physiological characteristics of Brassica napus seedlings treated with multi-effect triazole under cold stress [J]. Acta Agric. Bor-Occid. Sin., 2013, 22(10):103-107.
3	刘自刚,袁金海,孙万仓,等.低温胁迫下白菜型冬油菜差异蛋白质组学及光合特性分析[J].作物学报,2016,42(10):1541-1550.
	LIU Z G, YUAN J H, SUN W C, et al.. Differential proteomic analysis and photosynthetic characteristics of winter rapeseed under low temperature stress [J]. Acta Agron. Sin., 2016, 42(10):1541-1550.
4	陈奇,袁金海,孙万仓,等.低温胁迫下白菜型冬油菜与春油菜叶片光合特性及内源激素变化比较[J].中国油料作物学报,2017,39(1):37-46.
	CHEN Q, YUAN J H, SUN W C, et al.. Leaf photosynthetics and endogenous hormones of spring and winter rapa (Brassica rapa L.) under low temperature [J]. Chin. J. Oil. Crop. Sci., 2017, 39(1):37-46.
5	岑海燕,姚洁妮,翁海勇,等.叶绿素荧光技术在植物表型分析的研究进展[J].光谱学与光谱分析,2018,38(12):3773-3779.
	CEN H Y, YAO J N, WENG H Y, et al.. Applications of chlorophyll fluorescence in plant phenotyping: a review [J]. Spectrosc. Spect. Anal., 2018, 38(12):3773-3779.
6	ZHANG J, LIU J, ZHAO T, et al.. Effects of drought stress on chlorophyll fluorescence in tomato [J]. Mol. Plant Breeding, 2017, 8(7):65-69.
7	GENTY B, BRIANTAIS J M, BAKER N R. The relationship between quantum yield of photosynthetic electron transport and quenching of chlorophyll fluorescence [J]. Bba-Gen. Subjects., 1989, 990(1):87-92.
8	MAXWELL K, JOHNSON G N. Chlorophyll fluorescence-a practical guide [J]. J. Exp. Bot., 2000, 51(345):659-668.
9	BAKER N R. Chlorophyll fluorescence: a probe of photosynthesis in vivo [J]. Annu. Rev. Plant. Biol., 2008, 59:89-113.
10	尤鑫,龚吉蕊.叶绿素荧光动力学参数的意义及实例辨析[J].西部林业科学,2012,41(5):90-94.
	YOU X, GONG J R. Significance and application of chlorophyll fluorescence dynamics process parameters [J]. J. West. China. For. Sci., 2012, 41(5):90-94.
11	DEVACHT S, LOOTENS P, BAERT J, et al.. Evaluation of cold stress of young industrial chicory (Cichorium intybus L.) plants by chlorophyll a fluorescence imaging. I. light induction curve [J]. Photosynthetica, 2011, 49(2):161-171.
12	ZHOU R, YU X Q, KJæR K H, et al.. Screening and validation of tomato genotypes under heat stress using F_v/F_m to reveal the physiological mechanism of heat tolerance [J]. Environ. Exp. Bot., 2015, 118:1-11.
13	XU L, PAN R, SHABALA L, et al.. Temperature influences waterlogging stress-induced damage in Arabidopsis through the regulation of photosynthesis and hypoxia-related genes [J]. Plant Growth Regul., 2019, 89:143-152.
14	SOUZA R P, MACHADO E C, SILVA J A B, et al.. Photosynthetic gas exchange, chlorophyll fluorescence and some associated metabolic changes in cowpea (Vigna unguiculata) during water stress and recovery [J]. Environ. Exp. Bot., 2004, 51(1):45-56.
15	ZHAO X, ZHONG Y, ZHANG H, et al.. Cooperation between photosynthetic and antioxidant systems: an important factor in the adaptation of Ulva prolifera to abiotic factors on the sea surface [J/OL]. Front. Plant Sci., 2019, 10:648 [2021-05-05]. .
16	MATESE A, BARALDI R, BERTON A, et al.. Estimation of water stress in grapevines using proximal and remote sensing methods [J/OL]. Remote. Sens., 2018, 10(1):114 [2021-05-05]. .
17	PANDIT A, REWS M, MOROSINOTTO T, et al.. An NMR comparison of the light-harvesting complex II (LHCII) in active and photoprotective states reveals subtle changes in the chlorophyll a ground-state electronic structures [J]. BBA-Bioenergetics, 2013, 1827(6):738-744.
18	QUAAS T, BERTEOTTI S, BALLOTTARI M, et al.. Non-photochemical quenching and xanthophyll cycle activities in six green algal species suggest mechanistic differences in the process of excess energy dissipation [J]. J. Plant Physiol., 2015, 172(1):92-103.
19	CISSE A, ZHAO X, FU W, et al.. Non-photochemical quenching involved in the regulation of photosynthesis of rice leaves under high nitrogen conditions [J/OL]. Int. J. Mol. Sci., 2020, 21(6):2115 [2021-05-05]. .
20	SHANGGUAN Z P, SHAO M A, DYCKMANS J. Nitrogen nutrition and water stress effects on leaf photosynthetic gas exchange and water use efficiency in winter wheat [J]. Environ. Exp. Bot., 2000, 44:141-149.
21	孙永平,汪良驹.ALA处理对遮荫下西瓜幼苗叶绿素荧光参数的影响[J].园艺学报,2007,34(4):901-908.
	SUN Y P, WANG L J. Effects of 5-am inolevulinic acid (ALA) on chlorophyll fluorescence dynamics of watermelon seedlings under shade condition [J]. Acta. Hortic. Sin., 2007, 34(4):901-908.
22	康琅,汪良驹.ALA对西瓜叶片叶绿素荧光光响应曲线的影响[J].南京农业大学学报,2008,31(1):31-36.
	KANG L, WANG L J. Effects of ALA treatments on light response curves of chlorophyll fluorescence of water melon leaves [J]. J. Nanjing. Agric. Univ., 2008, 31(1):31-36.
23	许耀照,曾秀存,张芬琴,等.白菜型冬油菜叶片结构和光合特性对冬前低温的响应[J].作物学报,2017,43(3):432-441.
	XU Y Z, ZENG X C, ZHANG F Q, et al.. Response of leaf anatomical structure and photosynthetic characteristics of winter turnip rape (Brassica rapa L.) to low temperature before winter [J]. Acta. Agron. Sin., 2017, 43(3):432-441.
24	杨佳伟,文仕知,何功秀,等.施肥对闽楠幼树 PSⅡ叶绿素荧光快速光响应曲线的影响[J].中南林业科技大学学报,2018,38(2):43-49.
	YANG J W, WEN S Z, HE G X, et al.. Rapid light curves of PSⅡ chlorophyll fluorescence parameters in leaves of Phoebe bournei saplings fertilized [J]. J. Cent. South Univ. For. Tech., 2018, 38(2):43-49.
25	QIU N, LU Q, LU C. Photosynthesis, photosystem II efficiency and the xanthophyll cycle in the salt-adapted halophyte Atriplex centralasiatica [J]. New Phytol., 2003, 159:479-486.
26	HUI Y, WU L, FILARDO F, et al.. Chemical and hydraulic signals regulate stomatal behavior and photosynthetic activity in maize during progressive drought [J/OL]. Acta. Physiol. Plant, 2017, 39:125 [2021-05-05]. .
