Signal Peptide Optimization Increases Glucose Oxidase Expression in Pichia pastoris

doi:10.13304/j.nykjdb.2020.0219

Abstract

Abstract:

Glucose oxidase （GOD） is widely used in food processing， feed additives， biosensors and industrial production. Compared to Aspergillus， Pichia pastoris is a microorganism that has the potential to produce GOD more efficiently， with fewer by-products and simpler separation purification. However， due to factors such as exogenous genes， gene dosage， and secretion signals， the GOD yield of Pichia pastoris is still low， which limits the large-scale application of GOD in food processing and other fields. In this study， based on Pichia pastoris codon preference and mRNA secondary structure energy， the alpha factor signal peptide in Pichia pastoris recombinant expression cassette was modified to obtain 4 Pichia recombinant strains containing different signal peptides. The results showed that the GOD activity of the recombinant strain containing the highest codon frequency signal peptide α¹was 2.01 times that of the starting strain， while the GOD enzyme activity of the recombinant strain containing low codon frequency signal peptide α⁴ was only 41%. The above results also indicated that the arrangement of the signal peptide nucleic acid sequence in Pichia pastoris expression vector could affect the expression level of recombinant GOD， which provided a new research idea for increasing the expression level of Pichia pastoris recombinant protein.

Key words: glucose oxidase, signal peptide, Pichia pastoris, protein expression

摘要：

葡萄糖氧化酶（glucose oxidase，GOD）广泛用于食品加工、饲料添加剂、生物传感器及工业生产等领域。较曲霉而言，毕赤酵母是更具高效生产GOD潜力的微生物，其副产物少，分离纯化简单。但由于外源基因、基因剂量以及分泌信号等因素的影响，毕赤酵母GOD产量仍然较低，限制了GOD在食品加工等领域的大规模应用。基于毕赤酵母密码子偏好性和mRNA二级结构能量，对毕赤酵母重组表达盒中的α因子信号肽进行改造，得到4种含有不同信号肽的毕赤酵母重组菌株。结果表明，使用含最高密码子频率信号肽α¹重组菌株的GOD酶活力是出发菌株的2.01倍；而使用含低密码子频率信号肽α⁴重组菌株的GOD酶活力仅为出发菌株的41%。综上所述，毕赤酵母表达载体中的信号肽核酸序列排布能够影响重组GOD的表达量，为提高毕赤酵母重组蛋白表达量提供了新的研究思路。

关键词: 葡萄糖氧化酶, 信号肽, 毕赤酵母, 蛋白表达

CLC Number:

Na ZHANG, Yaru YAN, Yun WU, Yuhong ZHANG, Wei ZHANG. Signal Peptide Optimization Increases Glucose Oxidase Expression in Pichia pastoris[J]. Journal of Agricultural Science and Technology, 2023, 25(2): 211-219.

张娜, 闫亚茹, 武运, 张宇宏, 张伟. 信号肽优化提高葡萄糖氧化酶在毕赤酵母中的表达量[J]. 中国农业科技导报, 2023, 25(2): 211-219.

Figures/Tables 8

Table 1 Primers for gene amplification

引物名称Primer name	引物序列Primer sequence（5’-3’）
α-signal-F	ACAACTAATTATTCGAAACGAGATCAAAAAACAACTAATTATTCG
α-signal-R	TCGATTCCATTGGAGAATTCAGCTTCAGCCTCTCTTTTCTCGAGA
ZT-pPICZαA-F	AGATCAAAAAACAACTAATTATTCGAAACG
ZT-pPICZαA-R	CAATGAAGCTTCGATTCCATTGGAGAATTC

Fig. 1 DNA sequence alignment of five different signal peptide

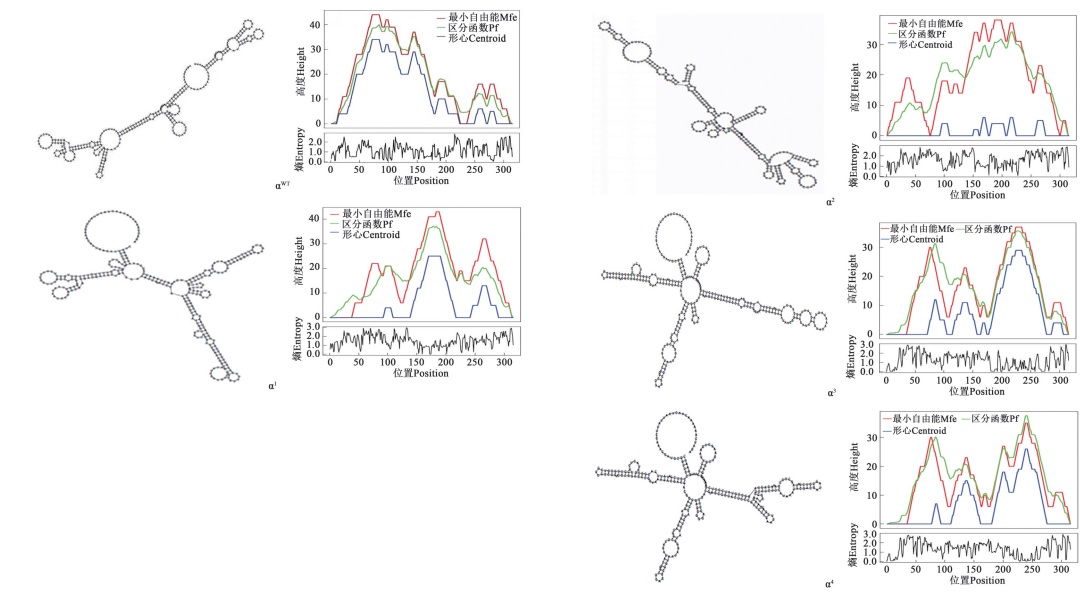

Fig. 2 Secondary structure of five α-signal peptide mRNAs

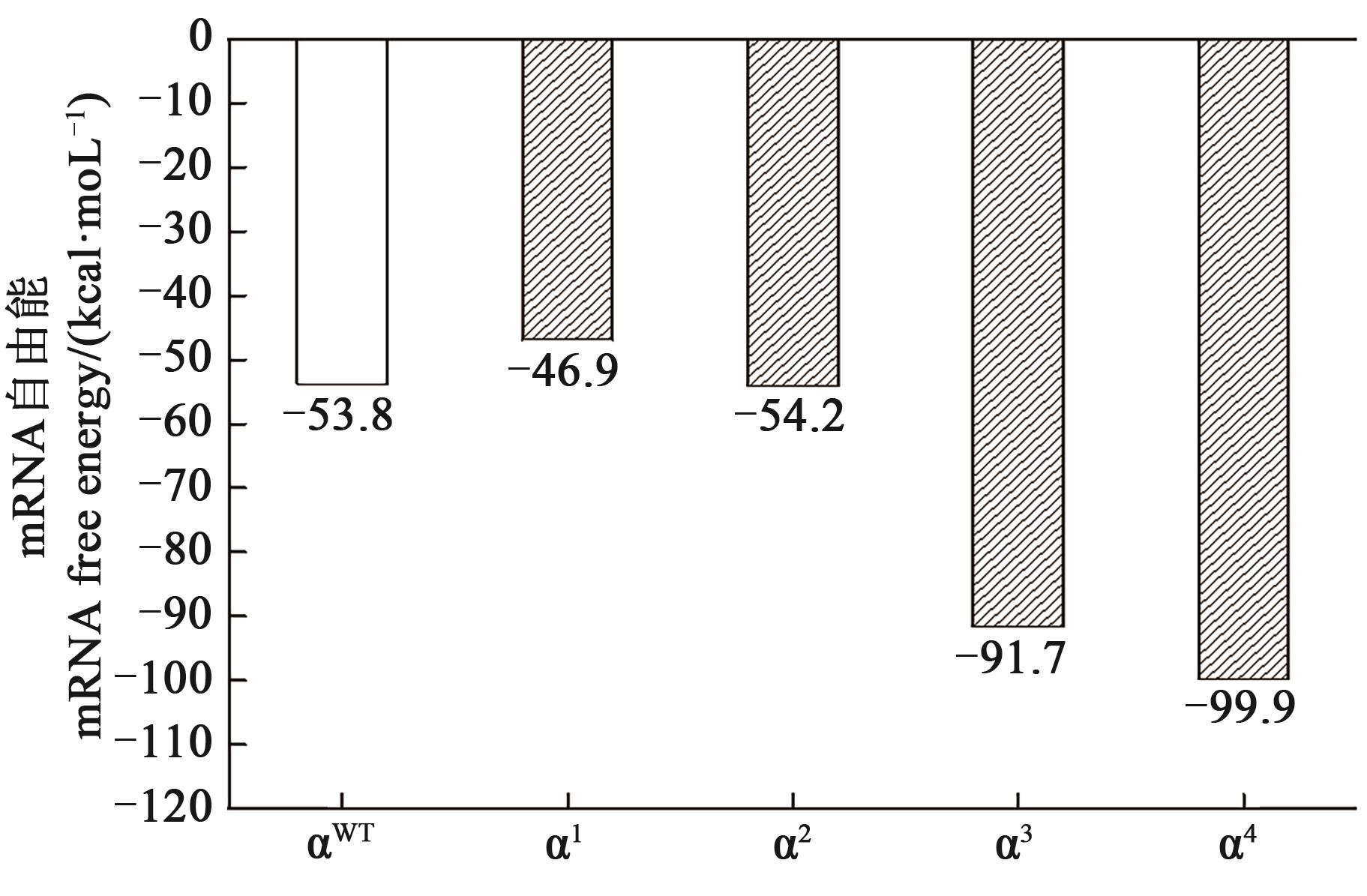

Fig. 3 mRNA secondary structure energy of five α-signal peptides

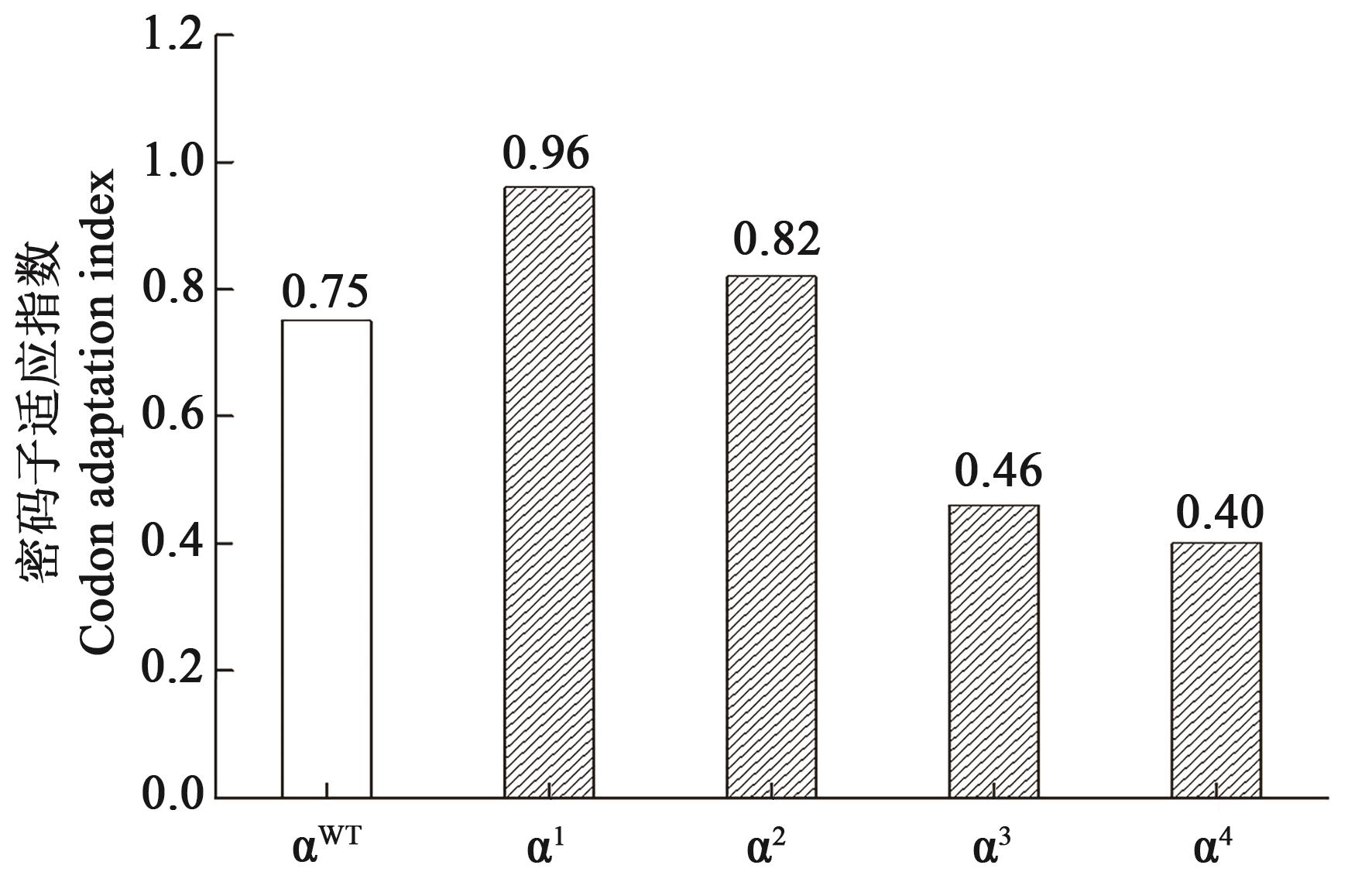

Fig. 4 Codon adaptation indices of five α-signal peptides

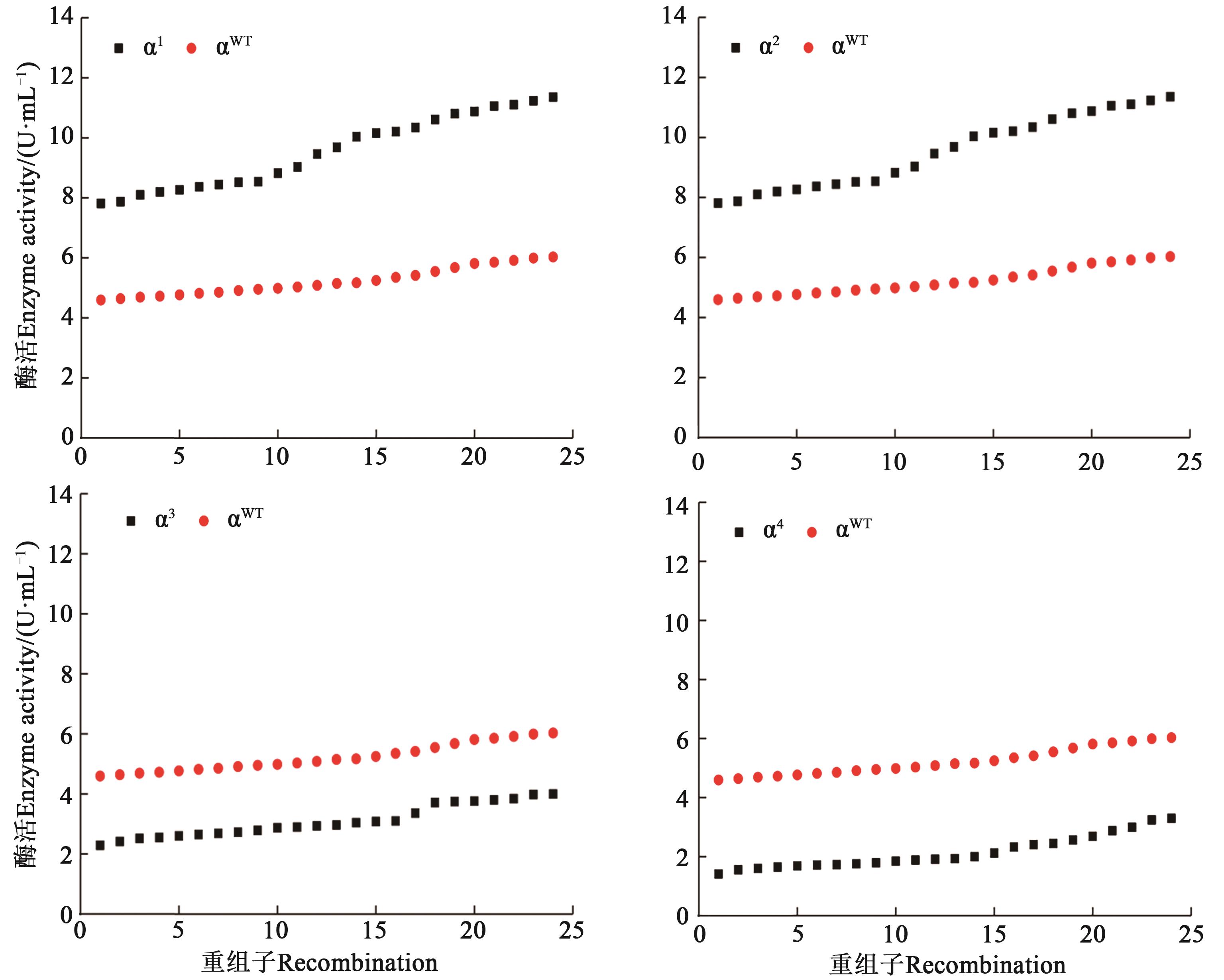

Fig. 5 GOD enzyme activity of recombinant strains with different signal peptides and recombinant strains containing wild-type signal peptides

Fig. 6 Enzyme activity average

Fig. 7 SDS-PAGE analysis of recombinant strains GODNote： M-Protein molecular weight marker.

References 29

1	BANKS J G, BOARD R G, SPARKS N H. Natural antimicrobial systems and their potential in food preservation of the future [J]. Biotechnol. Appl. Biochem., 1986, 8(2-3):103-147.
2	王冶, 郑甲, 唐诗哲, 等. 外源蛋白在巴斯德毕赤酵母中高效分泌表达的前沿技术[J]. 基因组学与应用生物学, 2014,33(3): 689-694.
	WANG Y, ZHENG J, TANG S Z, et al.. Frontier technology for efficient secretion and expression of foreign proteins in Pichia pastoris [J]. Genomics Appl. Biol., 2014, 33(3): 689-694.
3	BONET A, ROSELL C M, CABALLERO P A, et al.. Glucose oxidase effect on dough rheology and bread quality: a study from macroscopic to molecular level [J]. Food Chem., 2006, 99(2): 408-415.
4	GÓMEZ E, MARTÍNEZ A, LAENCINA J. Prevention of oxidative browning during wine storage [J]. Food Res. Int., 1995, 28(3): 213-217.
5	TZANOV T, COSTA S A, GEORG M, et al.. Hydrogen peroxide generation with immobilized glucose oxidase for textile bleaching [J]. J. Biotechnol., 2002, 93(1): 87-94.
6	张艳丽.葡萄糖氧化酶的高效表达及耐热性分子改良[D].北京: 中国农业科学院, 2018.
	ZHANG Y L. High-efficiency expression of glucose oxidase and molecular improvement of heat tolerance [D]. Beijing: Chinese Academy of Agricultural Sciences, 2018.
7	CHANG G, TATSU Y, GOTO T, et al.. Glucose concentration determination based on silica sol-gel encapsulated glucose oxidase optical biosensor arrays [J]. Talanta, 2010, 83(1): 61-65.
8	郭贺楠, 杨勇智, 董冰, 等. 葡萄糖氧化酶研究进展[J]. 中国畜牧杂志, 2018, 54(4): 10-14.
	GUO H N, YANG Y Z, DONG B, et al.. Research progress of glucose oxidase [J]. Chin. J. Animal Sci., 2018, 54(4): 10-14.
9	KO J H, HAHM M S, KANG H A, et al.. Secretory expression and purification of Aspergillus niger glucose oxidase in Saccharomyces cerevisiae mutant deficient in PMR1 gene [J]. Protein Exp. Purification, 2002, 25(3): 488-493.
10	郜赵伟. 葡萄糖氧化酶基因密码子优化及其在毕赤酵母中的高效表达[D]. 重庆: 西南大学, 2010.
	GAO Z W. Codon optimization of glucose oxidase gene and its high expression in Pichia pastoris [D]. Chongqing: Southwest University, 2010.
11	VALDIVIESO-UGARTE M, RONCHEL C, OSCAR B, et al.. Expression of an Aspergillus niger glucose oxidase in saccharomyces cerevisiae and its use to optimize fructo-oligosaccharides synthesis [J]. Biotechnol. Progress, 2006, 22(4): 1096-1101.
12	LI X, ZHANG P, ZHANG N, et al.. Secretory expression and characterization of chinese narcissus GNA-like lectin in Pichia pastoris [J]. Appl. Biochem. Biotechnol., 2017, 182(4): 1433-1443.
13	周亚凤, 张先恩, 刘虹, 等. 黑曲霉葡萄糖氧化酶基因的克隆及其在酵母中的高效表达[J].生物工程学报, 2001,17(4):400-405.
	ZHOU Y F, ZHANG X E, LIU H, et al.. Cloning of Aspergillus niger glucose oxidase gene and its high expression in yeast [J]. J. Bioeng., 2001, 17(4): 400-405.
14	石义超. 葡萄糖氧化酶基因在毕赤酵母中的高效表达研究[D]. 重庆: 西南大学, 2018.
	SHI Y C. High-efficiency expression of glucose oxidase gene in Pichia pastoris [D]. Chongqing: Southwest University, 2018.
15	WANG Y R, REN H W, AN L, et al.. Expression of human trefoil factor 3 in Pichia pastoris and its biological activity analysis [J]. Acta Biochem. Biophysica Sin., 2001, 33(6):653-658.
16	WANG T Y, WANG C M, WEI G, et al.. Expression of the recombinant human interleukin-11 in Pichia pastoris [J]. Acta Biochem. Biophysica Sin., 2001, 33(6): 659-664.
17	侯晟琦. pPIC9K α因子密码子改造对内切葡聚糖酶基因在毕赤酵母中表达的影响[D]. 成都: 四川农业大学, 2012.
	HOU S Q. Effect of pPIC9K alpha factor codon modification on the expression of endoglucanase gene in Pichia pastoris [D]. Chengdu: Sichuan Agricultural University, 2012.
18	OTTE S, BARLOWE C. Sorting signals can direct receptor-mediated export of soluble proteins into COPII vesicles [J]. Nat. Cell Biol., 2004, 6(12):1189-1194.
19	DANCOURT J, BARLOWE C. Protein sorting receptors in the early secretory pathway [J]. An. Review Biochem., 2010, 79(1):777-802.
20	TANAKA H, OKUNO T, MORIYAMA S, et al.. Acidophilic xylanase from Aureobasidium pullulans: efficient expression and secretion in Pichia pastoris and mutational analysis [J]. J. Biosci. Bioeng., 2004, 98(5):338-343.
21	GHOSALKAR A, SAHAI V, SRIVASTAVA A. Secretory expression of interferon-alpha 2b in recombinant Pichia pastoris using three different secretion signals [J]. Protein Expression Purification, 2008, 60(2):100-109.
22	GURRAMKONDA C, POLEZ S, SKOKO N, et al.. Application of simple fed-batch technique to high-level secretory production of insulin precursor using Pichia pastoris with subsequent purification and conversion to human insulin [J]. Microbial Cell Factories, 2010, 9(1):31-33.
23	LIN-CEREGHINO G P, STARK C M, KIM D, et al.. The effect of α-mating factor secretion signal mutations on recombinant protein expression in Pichia pastoris [J]. Gene, 2013, 519(2):311-317.
24	熊爱生, 彭日荷, 李贤, 等. 信号肽序列对毕赤酵母表达外源蛋白质的影响[J]. 生物化学与生物物理学报, 2003, 35(2):154-160.
	XIONG A S, PENG R H, LI X, et al.. Effect of signal peptide sequence on the expression of foreign proteins in Pichia pastoris [J]. J. Biochem. Biophysics, 2003, 35(2):154-160.
25	GOODMAN D B, CHURCH G M, KOSURI S. Causes and effects of N-terminal codon bias in bacterial genes [J]. Science (New York, N.Y.), 2013, 342(6157):475-484.
26	O'BRIEN E P, EDWARD P, CIRYAM P, et al.. Understanding the influence of codon translation rates on cotranslational protein folding [J]. Accounts Chem. Res., 2014, 47(5): 1536-1544.
27	BARRERO J J, CASLER J C, VALERO F, et al.. An improved secretion signal enhances the secretion of model proteins from Pichia pastoris [J]. Microbial Cell Factories, 2018, 17(1):161-166.
28	LSADA-LOMBANA P B, SILVA N A D. Engineering the early secretory pathway for increased protein secretion in Saccharomyces cerevisiae [J]. Metabolic Eng., 2019, 55:142-151.
29	OBERSTE M S, MAHER K, KILPATRICK D R, et al.. Molecular evolution of the human enteroviruses: correlation of serotype with vp1 sequence and application to picornavirus classification [J]. J. Virol., 1999, 73(3): 1941-1948.
