Tuber Physical Characteristics and Calibration of Discrete Element Simulation Parameters of Pinellia ternata

doi:10.13304/j.nykjdb.2021.0868

Abstract

Abstract:

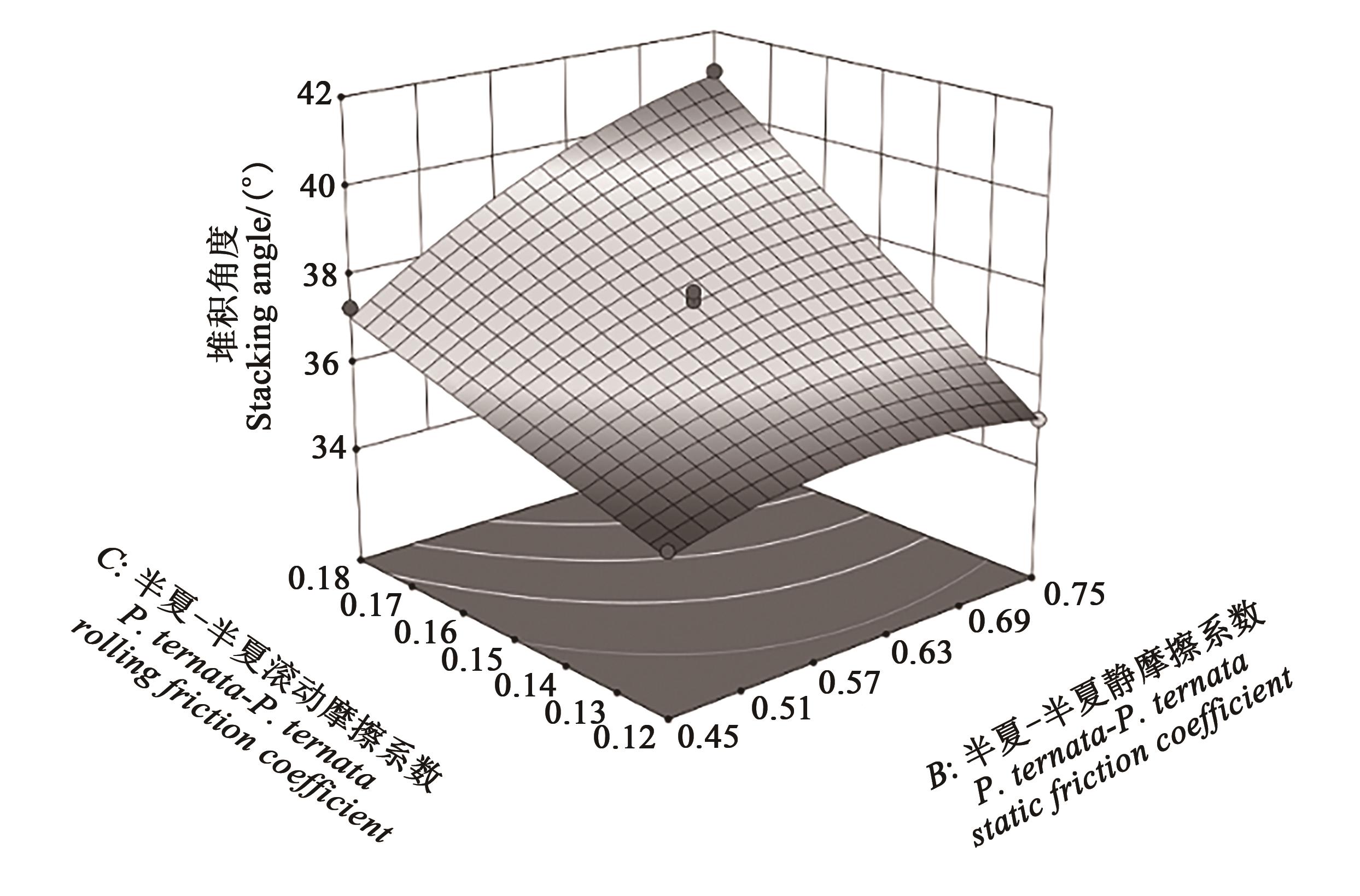

In order to design and study the sowing and metering device of Pinellia ternata， the physical parameters of the tuber were measured， and the discrete element simulation parameters were calibrated. Through rying test， soaking test， uniform speed compression test， and it was determined that the water content of pinellia seeds was 62.23%， density was 1 210 kg·m^-3， Poisson’s ratio was 0.373 1， and elastic modulus was 5.751 MPa. The regression model was established through the actual crash test and simulation test， and the crash recovery coefficient of pinellia was 0.472 0， and the crash recovery factor of P. ternata-stainless steel plate was 0.635 8. Through the slope sliding test combined with the simulation regression model， the static friction coefficient between pinellia and stainless steel plate was determined to be 0.615 4. Using the cylinder lifting test combined with the steepest climbing test and the Box-Behnken test， the rolling friction coefficient between pinellia and stainless steel plate was 0.15， the static friction coefficient between pinellia was 0.554， and the rolling friction coefficient between pinellia and pinellia was 0.157. The research results provided theoretical references and design basis for the design research and structural optimization of pinellia mechanized production equipment.

Key words: P. ternata, discrete element, physical parameters, stacking angle, calibration

摘要：

为设计研究半夏撒播排种器，测定了半夏的本征物理特性参数，并对半夏离散元仿真参数进行标定。通过烘干试验、浸液试验、匀速压缩试验，确定了半夏种子的含水率为62.23%、密度为1 210 kg·m^-3、泊松比为0.373 1、弹性模量为5.751 MPa；通过实际碰撞试验结合仿真试验建立了回归模型，测定半夏-半夏的碰撞恢复系数为0.472 0、半夏-不锈钢板间碰撞恢复系数为0.635 8；通过实际的斜面滑动试验结合仿真试验，确定了半夏-不锈钢板间的静摩擦系数为0.615 4；利用圆筒提升试验结合最陡爬坡试验和Box-Behnken试验，确定了半夏-不锈钢板间的滚动摩擦系数为0.150、半夏-半夏的静摩擦系数为0.554、半夏-半夏的滚动摩擦系数为0.157。该研究结果可为半夏机械化生产装备设计研究和结构优化提供理论参考及设计依据。

关键词: 半夏, 离散元, 物理特性, 堆积角, 标定

CLC Number:

S223

Guichuan YANG, Fugui ZHANG, Le ZHENG, Zhen WANG, Manman KONG, Xinpeng ZHANG. Tuber Physical Characteristics and Calibration of Discrete Element Simulation Parameters of Pinellia ternata[J]. Journal of Agricultural Science and Technology, 2022, 24(10): 99-108.

杨贵川, 张富贵, 郑乐, 王震, 孔曼曼, 章鑫鹏. 半夏块茎物理特性研究及离散元仿真参数标定[J]. 中国农业科技导报, 2022, 24(10): 99-108.

Figures/Tables 12

References 29

1	黄凤英,高健美,龚其海.半夏药理作用及其毒性研究进展[J].天然产物研究与开发,2020,32(10):1773-1781.
	HUANG F Y, GAO J M, GONG Q H. Research progress on pharmacological effects and toxicity of Pinellia ternate [J]. Nat. Prod. Res. Dev., 2020,32(10):1773-1781.
2	蔡世珍,邹忠梅,徐丽珍,等.半夏属药用植物的研究进展[J].国外医学(中医中药分册),2004(1):17-24.
3	WANG Y P. Chinese pharmacopoeia [J]. China Standardization, 2015,4(73):132-135.
4	中药材天地网半夏市场价格[EB/OL]. (2021-09-01)[2021-09-15]. .
5	王小勇.赫章半夏:打开药材“基因库”推动地方品牌“出圈”[EB/OL]. (2020-07-27) [2021-09-15]. .
6	文恩杨,李玉华,牛子孺,等.蒜种颗粒离散元模型参数标定[J].农机化研究,2021,43(5):160-167.
	WEN E Y, LI Y H, NIU Z R, et al.. Parameters calibration of discrete element model for garlic particles [J]. J. Agric. Mech. Res., 2021,43(5):160-167.
7	文恩杨.大蒜播种机排种与扶正装置仿真模拟与试验研究[D].泰安:山东农业大学,2020.
	WEN E Y. Simulation and experimental study on metering and righting device of garlic planter [D]. Tai’an: Shandong Agricultural University,2020.
8	文恩杨,吴彦强,李天华,等.牵引式大蒜播种机的设计[J].农机化研究,2020,42(1):96-100.
	WEN E Y, WU Y Q, LI T H, et al.. Design of traction garlic sowing machine [J]. J. Agric. Mech. Res., 2020,42(1):96-100.
9	刘文政,何进,李洪文,等.基于振动排序的马铃薯微型种薯播种机设计与试验[J].农业机械学报,2019,50(8):70-80.
	LIU W Z, HE J, LI H W, et al.. Design and experiment of vibration-arranging based seeder for potato micro-seed [J]. Trans. Chin. Soc. Agric. Mach., 2019,50(8):70-80.
10	刘文政,何进,李洪文,等.马铃薯微型种薯振动排序播种装置播种性能优化[J].农业工程学报,2019,35(7):1-11.
	LIU W Z, HE J, LI H W, et al.. Seeding performance optimization on vibration-arranging type seeding device for potato micro-seed [J]. Trans. Chin. Soc. Agric. Eng., 2019,35(7):1-11.
11	刘文政,何进,李洪文,等.基于离散元的微型马铃薯仿真参数标定[J].农业机械学报,2018,49(5):125-135.
	LIU W Z, HE J, LI H W, et al.. Calibration of simulation parameters for potato minituber based on EDEM [J]. Trans. Chin. Soc. Agric. Mach., 2018,49(5):125-135.
12	温翔宇,袁洪方,王刚,等.颗粒肥料离散元仿真摩擦系数标定方法研究[J].农业机械学报,2020,51(2):115-122.
	WEN X Y, YUAN H F, WANG G, et al.. Calibration method of friction coefficient of granular fertilizer by discrete element simulation [J]. Trans. Chin. Soc. Agric. Mach., 2020,51(2):115-122.
13	刘彩玲,黎艳妮,宋建农,等.基于EDEM的离心甩盘撒肥器性能分析与试验[J].农业工程学报,2017,33(14):32-39.
	LIU C L, LI Y N, SONG J N, et al.. Performance analysis and experiment on fertilizer spreader with centrifugal swing disk based on EDEM [J]. Trans. Chin. Soc. Agric. Eng., 2017, 33(14): 32-39.
14	刘彩玲,魏丹,宋建农,等.颗粒肥料离散元仿真边界参数系统化研究[J].农业机械学报,2018,49(9):82-89.
	LIU C L, WEI D, SONG J N, et al.. Systematic study on boundary parameters of discrete element simulation of granular fertilizer [J]. Trans. Chin. Soc. Agric. Mach., 2018,49(9):82-89.
15	吴孟宸,丛锦玲,闫琴,等.花生种子颗粒离散元仿真参数标定与试验[J].农业工程学报,2020,36(23):30-38.
	WU M C, CONG J L, YAN Q, et al.. Calibration and experiments for discrete element simulation parameters of peanut seed particles [J]. Trans. Chin. Soc. Agric. Eng., 2020,36(23):30-38.
16	赖庆辉,贾广鑫,苏微,等.凸包异形孔窝眼轮式人参精密排种器设计与试验[J].农业机械学报,2020,51(7):60-71.
	LAI Q H, JIA G X, SU W, et al.. Design and test of ginseng precision special-hole type seed-metering device with convex hull [J]. Trans. Chin. Soc. Agric. Mach., 2020,51(7):60-71.
17	赖庆辉,于庆旭,苏微,等.三七超窄行气吸式精密排种器设计与试验[J].农业机械学报,2019,50(4):102-112.
	LAI Q H, YU Q X, SU W, et al.. Design and experiment of air-suction ultra-narrow-row device for precise Panax notoginseng seed metering [J]. Trans. Chin. Soc. Agric. Mach.,2019,50(4):102-112.
18	赖庆辉,袁海阔,胡子武,等.三七种苗物料特性研究及离散元法参数标定[J].扬州大学学报(农业与生命科学版),2018,39(2):74-79.
	LAI Q H, YUAN H K, HU Z W, et al.. Experimental study of physical characteristics and parameters calibration of Panax notoginseng seedling [J]. J. Yangzhou Univ. (Agric. Life Sci.),2018,39(2):74-79.
19	赖庆辉,袁海阔,胡子武,等.滚筒板齿式三七种苗分离装置结构设计与试验[J].农业机械学报,2018,49(4):121-129.
	LAI Q H, YUAN H K, HU Z W, et al.. Design and experiment on seedling separation device of Panax notoginseng seedlings based on roller zigzag mechanism [J]. Trans. Chin. Soc. Agric. Mach., 2018,49(4):121-129.
20	马彦华,宋春东,宣传忠,等.苜蓿秸秆压缩仿真离散元模型参数标定[J].农业工程学报,2020,36(11):22-30.
	MA Y H, SONG C D, XUAN C Z, et al.. Parameters calibration of discrete element model for alfalfa straw compression simulation [J]. Trans. Chin. Soc. Agric. Eng.,2020,36(11):22-30.
21	马秋成,郭耿君,马婕,等.莲仁力学特性参数测定及挤压破碎特性试验[J].农业工程学报,2018,34(6):263-271.
	MA Q C, GUO G J, MA J, et al.. Determination of mechanical characteristic parameters and extrusion crushing characteristics test for lotus seed kernel [J]. Trans. Chin. Soc. Agric. Eng.,2018,34(6):263-271.
22	成大先.机械设计手册第1卷[M]. 第三版.北京:化学工业出版社,2017:1-365.
23	GHODKI B M, GOSWAMI T K. DEM simulation of flow of black pepper seeds in cryogenic grinding system [J]. J. Food. Eng., 2017,196: 36-51.
24	YANG C H, KUANG X, LI B, et al.. Study on release mechanism of inhibitory components from cinnamon and clove powders [J]. J. Food. Safe., 2012,32(2):189-197.
25	ZHOU Y C, XU B H, YU A B, et al.. An experimental and numerical study of the angle of repose of coarse spheres [J]. Power Technol., 2002,125(1):45-54.
26	石林榕,吴建民,孙伟,等.基于离散单元法的水平圆盘式精量排种器排种仿真试验[J].农业工程学报,2014,30(8):40-48.
	SHI L R, WU J M, SUN W, et al.. Simulation test for metering process of horizontal disc precision metering device based on discrete element method [J]. Trans. Chin. Soc. Agric. Eng., 2014,30(8):40-48.
27	贾富国,韩燕龙,刘扬,等.稻谷颗粒物料堆积角模拟预测方法[J].农业工程学报,2014(11):254-260.
	JIA F G, HAN Y L, LIU Y, et al.. Simulation prediction method of repose angle for rice particle materials [J]. Trans. Chin. Soc. Agric. Eng., 2014(11):254-260.
28	周德义,马成林,左春柽,等.散粒农业物料孔口出流成拱的离散单元仿真[J].农业工程学报,1996, 12(2):190-193.
	ZHOU D Y, MA C L, ZUO C C, et al.. Discrete element simulation for arch flowing of agricultural particle material in outlet [J]. Trans. Chin. Soc. Agric. Eng., 1996, 12(2):190-193.
29	陆仲华.散粒农业物料孔口出流成拱机理分析[J].农业工程学报,1991, 7(1):78-85.
	LU Z H. The mechanism analysis of flowing agricultural particle material arching in hole [J]. Trans. Chin. Soc. Agric. Eng., 1991, 7(1):78-85.

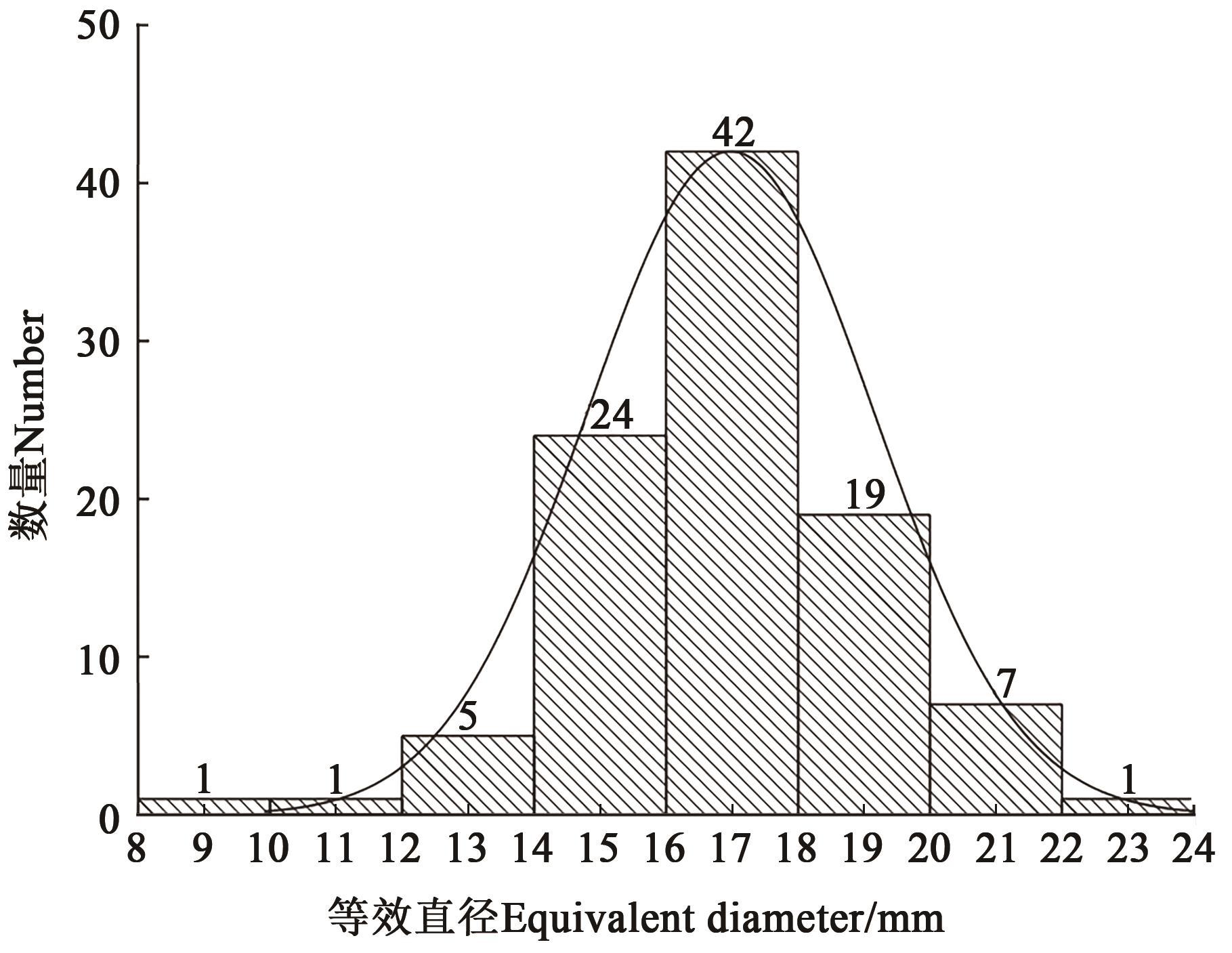

压缩速率Compression rate/ （mm·min^-1）	参数 Paramter	试验编号Test number									平均值Average
压缩速率Compression rate/ （mm·min^-1）	参数 Paramter	1	2	3	4	5	6	7	8	9	平均值Average
1	泊松比μ₁	0.369 5	0.328 7	0.360 0	0.322 6	0.424 4	0.290 4	0.364 1	0.398 8	0.366 5	0.358 3
1	弹性模量E/MPa	4.441 4	4.861 7	4.903 9	5.273 5	6.529 2	5.546 5	4.607 9	4.523 4	5.155 0	5.093 6
3	泊松比μ₁	0.472 8	0.416 0	0.321 7	0.310 2	0.345 3	0.347 6	0.387 1	0.383 3	0.455 6	0.382 2
3	弹性模量E/MPa	5.706 8	6.398 7	6.986 3	5.505 2	6.299 6	7.351 6	7.236 3	5.751 7	6.007 6	6.360 4
5	泊松比μ₁	0.298 8	0.461 9	0.347 0	0.358 4	0.335 6	0.418 6	0.343 4	0.424 0	0.432 2	0.378 7
5	弹性模量E/MPa	4.777 2	6.739 2	5.968 6	6.707 3	7.255 8	6.491 0	4.481 3	4.773 9	5.160 5	5.817 2

压缩速率Compression rate/ （mm·min^-1）	参数 Paramter	试验编号Test number									平均值Average
压缩速率Compression rate/ （mm·min^-1）	参数 Paramter	1	2	3	4	5	6	7	8	9	平均值Average
1	泊松比μ₁	0.369 5	0.328 7	0.360 0	0.322 6	0.424 4	0.290 4	0.364 1	0.398 8	0.366 5	0.358 3
1	弹性模量E/MPa	4.441 4	4.861 7	4.903 9	5.273 5	6.529 2	5.546 5	4.607 9	4.523 4	5.155 0	5.093 6
3	泊松比μ₁	0.472 8	0.416 0	0.321 7	0.310 2	0.345 3	0.347 6	0.387 1	0.383 3	0.455 6	0.382 2
3	弹性模量E/MPa	5.706 8	6.398 7	6.986 3	5.505 2	6.299 6	7.351 6	7.236 3	5.751 7	6.007 6	6.360 4
5	泊松比μ₁	0.298 8	0.461 9	0.347 0	0.358 4	0.335 6	0.418 6	0.343 4	0.424 0	0.432 2	0.378 7
5	弹性模量E/MPa	4.777 2	6.739 2	5.968 6	6.707 3	7.255 8	6.491 0	4.481 3	4.773 9	5.160 5	5.817 2

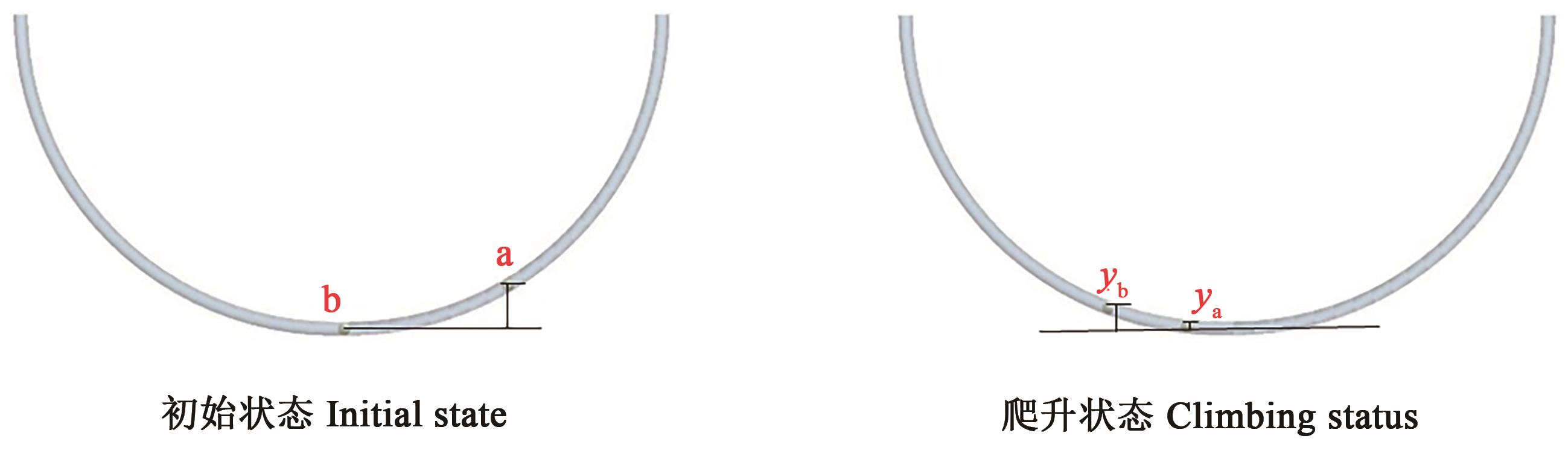

序号 Number	x：恢复系数 Recovery coefficient	碰撞后最大爬升高度Maximum climb height after collision/mm
序号 Number	x：恢复系数 Recovery coefficient	y_a：块茎a Tuber a	y_b：块茎b Tuber b
1	0.20	8.96	17.91
2	0.30	6.40	19.84
3	0.35	6.51	22.55
4	0.40	4.29	21.98
5	0.45	4.68	26.50
6	0.50	4.21	27.48
7	0.60	1.81	30.81
8	0.70	1.36	34.45
9	0.80	1.36	39.74
10	1.00	0.00	50.00

序号 Number	x：恢复系数 Recovery coefficient	碰撞后最大爬升高度Maximum climb height after collision/mm
序号 Number	x：恢复系数 Recovery coefficient	y_a：块茎a Tuber a	y_b：块茎b Tuber b
1	0.20	8.96	17.91
2	0.30	6.40	19.84
3	0.35	6.51	22.55
4	0.40	4.29	21.98
5	0.45	4.68	26.50
6	0.50	4.21	27.48
7	0.60	1.81	30.81
8	0.70	1.36	34.45
9	0.80	1.36	39.74
10	1.00	0.00	50.00

序号 Number	x₁：恢复系数Recovery coefficient	y₁：回弹高度Rebound height/ mm
1	0.58	37.58
2	0.60	40.43
3	0.62	43.29
4	0.64	46.24
5	0.66	49.46
6	0.68	52.70
7	0.70	55.98
