中国农业科技导报 ›› 2023, Vol. 25 ›› Issue (12): 44-57.DOI: 10.13304/j.nykjdb.2022.0366
贾毅男1(), 万仲武2(
), 许昌1, 张光弟1,3(
), 王江龙1, 张昆明1, 侯小健1, 包文毅1, 王玉1, 陈卫军4
收稿日期:
2022-05-03
接受日期:
2022-08-15
出版日期:
2023-12-15
发布日期:
2023-12-12
通讯作者:
张光弟
作者简介:
贾毅男E-mail: 1191604805@qq.com基金资助:
Yinan JIA1(), Zhongwu WAN2(
), Chang XU1, Guangdi ZHANG1,3(
), Jianglong WANG1, Kunming ZHANG1, Xiaojian HOU1, Wenyi BAO1, Yu WANG1, Weijun CHEN4
Received:
2022-05-03
Accepted:
2022-08-15
Online:
2023-12-15
Published:
2023-12-12
Contact:
Guangdi ZHANG
摘要:
为了探究露地栽培‘大青葡萄’(Vitis vinifera L. Daqing)架面及单穗不同位置果实理化指标及挥发性物质的特点,并建立其果实质量评价体系,在果实成熟期,通过常规指标检测、全质构分析及气相离子迁移谱(GC-IMS)技术,测定了宁夏‘大青葡萄’架面及单穗不同位置果实的相关品质指标。结果表明:架面后部果实总糖和Vc含量较中部和前部果实分别显著(P<0.05)提高了8.92%、10.38%和22.29%、62.00%;总酸含量最高的是前部果实,较中部和后部分别高出11.81%、17.21%。单穗肩部果实在可溶性固形物、总糖、Vc含量上均显著(P<0.05)的高于尖部,分别高出5.62%、6.10%、13.02%;总酸含量最高的是尖部果实,较肩部高出9.46%。质构指标分析发现,架面后部果实在单粒重和硬度上较中部、前部果实分别高出14.84%、19.12%和4.44%、5.36%,存在显著差异(P<0.05);单穗肩部果实在单粒重和硬度上均高于尖部,分别高出6.02%、3.22%。通过气相离子迁移谱技术对挥发性物质分析发现,架面前部果实表现出青草、麦芽香气特点;中部果实体现脂肪香气;后部果实具备水果、青草香气特征;在一些酯类和萜烯类物方面,后部果实与中部和前部位置果实存在显著差异(P<0.05)。单穗尖部果实青草和奶油香气表现突出,肩部果实则是果香和坚果香味较为明显;肩部果实一些脂类物质和萜烯类物质(β-蒎烯、α-水芹烯、乙酸乙酯等)的积累量显著(P<0.05)高于尖部的果实,分别高出27.68%、50.88%、785.43%。结合常规品质指标、质构指标以及挥发性物质特征,‘大青葡萄’果实在架面不同空间位置的品质高低综合排序为后部>中部>前部;单穗不同部位的果实为肩部优于尖部。露地大棚架栽培‘大青葡萄’存在架面不同空间位置上的果实品质与挥发性物质上的差异,并且单穗果实同样表现出不同部位的品质区别。研究结果为宁夏露地大棚架栽培‘大青葡萄’建立了果实质量评价体系,以指导采后保鲜与供应不同目标市场。
中图分类号:
贾毅男, 万仲武, 许昌, 张光弟, 王江龙, 张昆明, 侯小健, 包文毅, 王玉, 陈卫军. 露地栽培‘大青葡萄’架面不同位置果实品质指标分析[J]. 中国农业科技导报, 2023, 25(12): 44-57.
Yinan JIA, Zhongwu WAN, Chang XU, Guangdi ZHANG, Jianglong WANG, Kunming ZHANG, Xiaojian HOU, Wenyi BAO, Yu WANG, Weijun CHEN. Analysis of ‘Daqing Grape’ Quality Index Based on Big-trellis in Open Field Cultivation[J]. Journal of Agricultural Science and Technology, 2023, 25(12): 44-57.

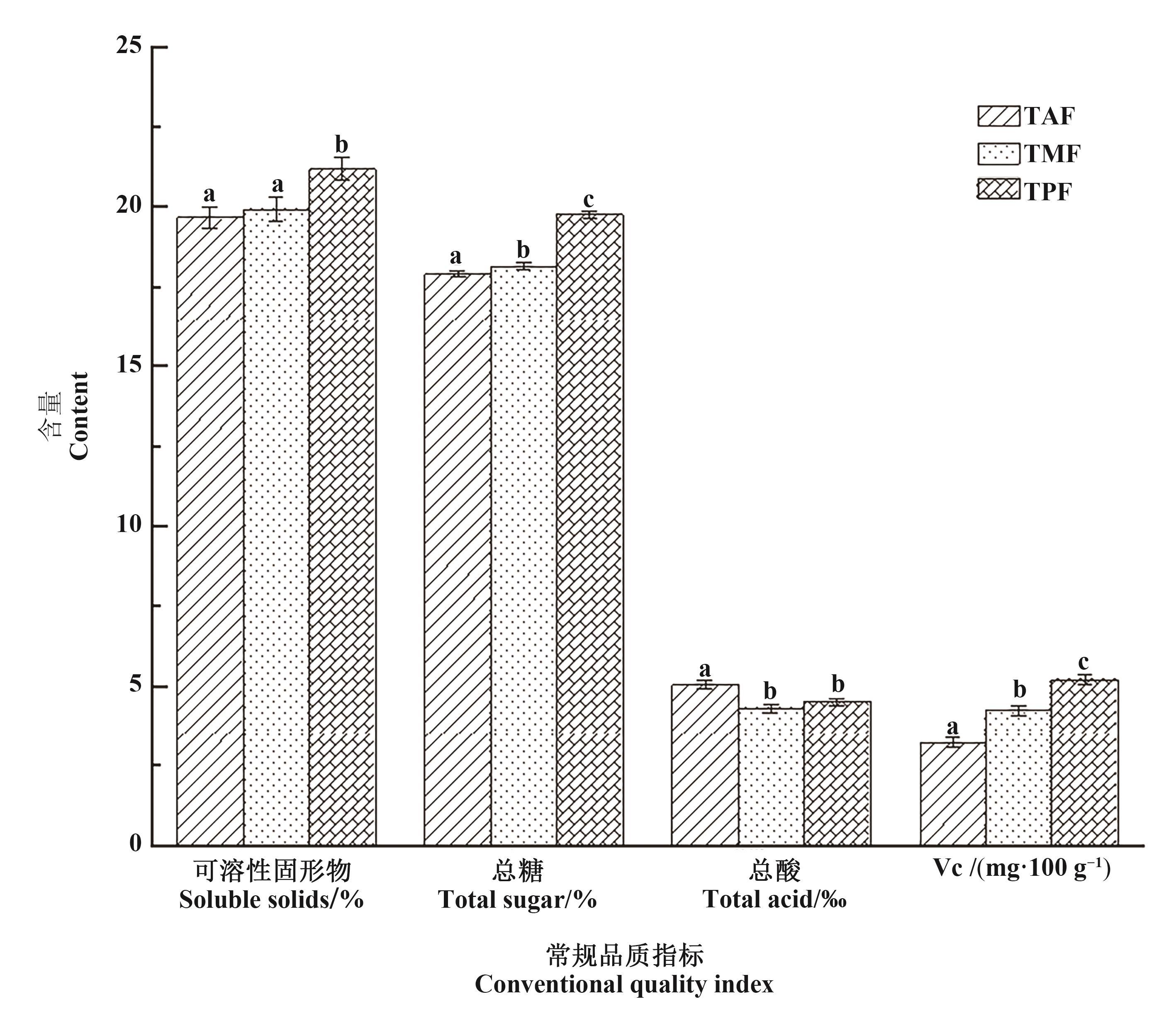

图3 架面不同空间位置果实常规品质指标变化趋势注:图中不同小写字母表示P<0.05水平差异显著。
Fig. 3 Variation trend of chemical indicators of fruit at different spatial position on big-trellisNote:Different letters indicate significant differences at P<0.05 level.
处理 Treatment | 单粒重 Single grain weight/g | 硬度 Hardness/g | 咀嚼性 Chewiness | 弹性 Springiness | 内聚性 Cohesiveness |
---|---|---|---|---|---|
TAF | 5.00±0.12 a | 553.99±1.69 a | 116.14±3.47 a | 0.07±0.01 a | 0.26±0.10 a |
TMF | 5.19±0.09 b | 558.88±1.12 b | 141.61±5.94 b | 0.13±0.02 b | 0.30±0.08 a |
TPF | 5.96±0.15 c | 583.70±1.36 c | 106.91±8.11 c | 0.100±0.01 c | 0.25±0.11 a |
表1 架面不同空间位置果实质构指标变化
Table 1 Variation of physical indicators of fruit at different spatial position on big-trellis
处理 Treatment | 单粒重 Single grain weight/g | 硬度 Hardness/g | 咀嚼性 Chewiness | 弹性 Springiness | 内聚性 Cohesiveness |
---|---|---|---|---|---|
TAF | 5.00±0.12 a | 553.99±1.69 a | 116.14±3.47 a | 0.07±0.01 a | 0.26±0.10 a |
TMF | 5.19±0.09 b | 558.88±1.12 b | 141.61±5.94 b | 0.13±0.02 b | 0.30±0.08 a |
TPF | 5.96±0.15 c | 583.70±1.36 c | 106.91±8.11 c | 0.100±0.01 c | 0.25±0.11 a |

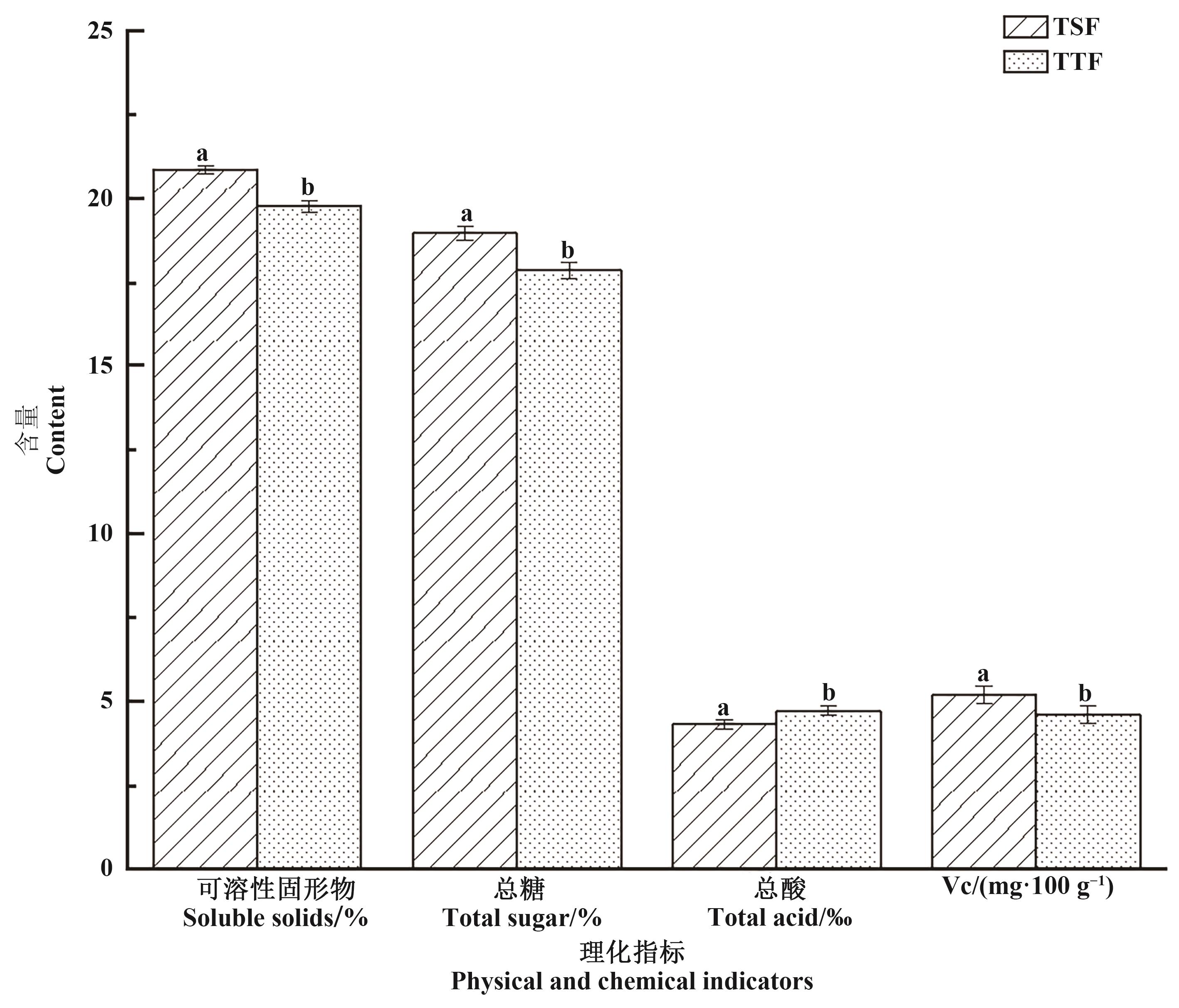

图4 单穗不同部位果实常规品质指标变化注:图中不同小写字母表示P<0.05水平差异显著。
Fig. 4 Variation trend of chemical indicators per grape-cluster of fruit at different spatial positionNote:Different letters indicate significant differences at P<0.05 level.
处理 Treatment | 单粒重 Single grain weight/g | 硬度 Hardness /g | 咀嚼性 Chewiness | 弹性 Springiness | 内聚性 Cohesiveness |
---|---|---|---|---|---|
TSF | 5.13±0.12 a | 584.01±5.57 a | 133.38±2.87 a | 0.12±0.02 a | 0.32±0.03 a |
TTF | 4.84±0.06 b | 565.78±3.25 b | 137.30±6.11 a | 0.12±0.04 a | 0.31±0.01 a |
表2 单穗不同部位果实质构指标变化
Table 2 Variation of physical indicators per grape-cluster of fruit at different spatial position
处理 Treatment | 单粒重 Single grain weight/g | 硬度 Hardness /g | 咀嚼性 Chewiness | 弹性 Springiness | 内聚性 Cohesiveness |
---|---|---|---|---|---|
TSF | 5.13±0.12 a | 584.01±5.57 a | 133.38±2.87 a | 0.12±0.02 a | 0.32±0.03 a |
TTF | 4.84±0.06 b | 565.78±3.25 b | 137.30±6.11 a | 0.12±0.04 a | 0.31±0.01 a |
图5 架面不同结果位置果实挥发性物质PCA分析注:图内带数字的箭头是各类挥发性物质的代号,与表1的序号相对应;椭圆圈出的为主要挥发性物质。
Fig. 5 The PCA analysis of volatile organic compounds for fruit at different spatial position on big-trellisNote: The number of transverse axes in the figure is the symbol of volatile organic compounds corresponding to table 1; the main volatile organic componds was circled by elliptic.
类型Type | 化合物名称Compound | 气味 Odor | CAS# | 分子式 Molecular formula | RI | RT | DT | TAF峰体积 TAF peak volume | TMF较TAF变幅 Change of TMF to TAF/% | TPF较TAF变幅 Change of TPF to TAF/% | TTF峰体积 TTF peak volume | TSF较TTF变幅 Change of TSF to TTF/% |
---|---|---|---|---|---|---|---|---|---|---|---|---|
醛类 Aldehydes | 己醛Hexanal | 青草Grass | C66251 | C6H12O | 798.2 | 239.07 | 1.26 | 6 809.67 | 36.78 | 94.80 | 5 224.28 | 99.96 |
己醛二聚体Hexanal-D | 青草Grass | C66251 | C6H12O | 782.3 | 225.22 | 1.55 | 1 376.93 | 2.83 | 4.37 | 1 141.31 | 99.65 | |
(E)-2-庚烯醛(E)-2-Heptenal | 苹果Apple | C18829555 | C7H120 | 951.7 | 432.51 | 1.25 | 137.96 | 314.14 | 614.91 | 116.14 | 94.96 | |
(E)-2-庚烯醛二聚体(E)-2-Heptenal-D | 苹果Apple | C18829555 | C7H120 | 950.8 | 430.95 | 1.66 | 207.90 | 29.38 | 63.31 | 597.45 | 98.67 | |
(E)-2-己烯醛(E)-2-hexenal | 绿叶Green leaf | C2492435 | C6H8O2 | 844.5 | 283.33 | 1.51 | 10 500.22 | 22.41 | 46.21 | 8 823.18 | 99.89 | |
(E)-2-己烯醛二聚体(E)-2-hexenal-D | 绿叶Green leaf | C2492435 | C6H8O2 | 851.6 | 290.94 | 1.17 | 9 527.22 | 28.52 | 54.13 | 216.17 | 94.60 | |
2-甲基丁醛2-methylbutanal | 麦芽Malt | C96173 | C5H10O | 652.4 | 141.18 | 1.41 | 1 871.03 | 1 130.34 | 929.85 | 586.38 | 97.64 | |
癸醛Decanal | 橘皮Orange peel | C112312 | C10H20O | 1 201.1 | 951.6 | 1.54 | 19.89 | -1.75 | -26.24 | 42.36 | 68.23 | |
3-甲基-2-丁烯醛3-methyl-2-butenal | 可可Cocoa | C107868 | C5H8O | 759 | 205.92 | 1.08 | 8.18 | -82.61 | -89.46 | 26.12 | 48.75 | |
2-甲基丙醛2-methylpropanal | 桃子Peache | C78842 | C4H8O | 512.1 | 94.185 | 1.09 | 511.37 | -57.80 | -61.83 | 701.31 | 97.19 | |
壬醛Nonanal | 脂肪Fat | C124196 | C9H18O | 1 099.9 | 733.39 | 1.47 | 228.66 | 6.44 | 18.00 | 119.53 | 83.15 | |
异丁醛Methyl-propanal | 花香Flower | C78842 | C4H8O | 571.2 | 113.29 | 1.27 | 22.07 | -57.05 | 20.50 | 90.35 | 76.55 | |
苯甲醛Benzaldehyde | 药草Herb | C100527 | C7H6O | 949.5 | 428.80 | 1.46 | 25.07 | -21.34 | -22.49 | 33.40 | 43.97 | |
反-2-辛烯醛E-2-octenal | 绿叶Green leaf | C2548870 | C8H14O | 1 062.5 | 652.86 | 1.32 | 37.00 | -16.72 | -2.67 | 80.81 | 70.47 | |
异戊醛3-methylbutanal | 麦芽Malt | C590863 | C5H10O | 650 | 140.20 | 1.19 | 579.22 | 23.98 | 142.31 | 56.97 | 58.31 | |
醇类 Alcohols | 异戊醇Isopentanol | 水果Fruit | C123513 | C5H120 | 762.4 | 208.65 | 1.26 | 299.45 | -43.23 | -44.13 | 277.54 | 89.10 |
正己醇1-hexanol | 油脂Fat | C111273 | C6H14O | 870.6 | 312.39 | 1.32 | 1 938.69 | 0.40 | -4.38 | 1 315.32 | 97.45 | |
4-甲基-1-戊醇4-methyl-1-pentanol | 烟草Tobacco | C626891 | C6H140 | 866.7 | 307.90 | 1.64 | 464.54 | -1.02 | -31.86 | 440.53 | 92.15 | |
乙醇Ethanol | 蜂蜜Sweet | C64175 | C2H6O | 451.1 | 74.49 | 1.13 | 140.62 | -90.58 | -82.20 | 1 563.44 | 97.60 | |
2-丙醇2-propanol | 坚果Nut | C67630 | C3H8O | 481.9 | 84.43 | 1.22 | 29.19 | -44.10 | -29.90 | 182.29 | 80.23 | |
2-乙基己醇2-ethyl-1-hexanol | 坚果Nut | C104767 | C8H18O | 1 034.1 | 592.99 | 1.41 | 25.67 | -9.49 | 7.63 | 86.95 | 61.09 | |
3-甲基-1-丁醇3-methyl-1-butano | 麦芽Malt | C123513 | C5H12O | 743.6 | 193.83 | 1.25 | 260.86 | 2.15 | 15.96 | 111.65 | 67.08 |
表3 果实样品挥发性组分性质及峰体积
Table 3 Qualitative of volatile organic compounds in samples and the peak volume
类型Type | 化合物名称Compound | 气味 Odor | CAS# | 分子式 Molecular formula | RI | RT | DT | TAF峰体积 TAF peak volume | TMF较TAF变幅 Change of TMF to TAF/% | TPF较TAF变幅 Change of TPF to TAF/% | TTF峰体积 TTF peak volume | TSF较TTF变幅 Change of TSF to TTF/% |
---|---|---|---|---|---|---|---|---|---|---|---|---|
醛类 Aldehydes | 己醛Hexanal | 青草Grass | C66251 | C6H12O | 798.2 | 239.07 | 1.26 | 6 809.67 | 36.78 | 94.80 | 5 224.28 | 99.96 |
己醛二聚体Hexanal-D | 青草Grass | C66251 | C6H12O | 782.3 | 225.22 | 1.55 | 1 376.93 | 2.83 | 4.37 | 1 141.31 | 99.65 | |
(E)-2-庚烯醛(E)-2-Heptenal | 苹果Apple | C18829555 | C7H120 | 951.7 | 432.51 | 1.25 | 137.96 | 314.14 | 614.91 | 116.14 | 94.96 | |
(E)-2-庚烯醛二聚体(E)-2-Heptenal-D | 苹果Apple | C18829555 | C7H120 | 950.8 | 430.95 | 1.66 | 207.90 | 29.38 | 63.31 | 597.45 | 98.67 | |
(E)-2-己烯醛(E)-2-hexenal | 绿叶Green leaf | C2492435 | C6H8O2 | 844.5 | 283.33 | 1.51 | 10 500.22 | 22.41 | 46.21 | 8 823.18 | 99.89 | |
(E)-2-己烯醛二聚体(E)-2-hexenal-D | 绿叶Green leaf | C2492435 | C6H8O2 | 851.6 | 290.94 | 1.17 | 9 527.22 | 28.52 | 54.13 | 216.17 | 94.60 | |
2-甲基丁醛2-methylbutanal | 麦芽Malt | C96173 | C5H10O | 652.4 | 141.18 | 1.41 | 1 871.03 | 1 130.34 | 929.85 | 586.38 | 97.64 | |
癸醛Decanal | 橘皮Orange peel | C112312 | C10H20O | 1 201.1 | 951.6 | 1.54 | 19.89 | -1.75 | -26.24 | 42.36 | 68.23 | |
3-甲基-2-丁烯醛3-methyl-2-butenal | 可可Cocoa | C107868 | C5H8O | 759 | 205.92 | 1.08 | 8.18 | -82.61 | -89.46 | 26.12 | 48.75 | |
2-甲基丙醛2-methylpropanal | 桃子Peache | C78842 | C4H8O | 512.1 | 94.185 | 1.09 | 511.37 | -57.80 | -61.83 | 701.31 | 97.19 | |
壬醛Nonanal | 脂肪Fat | C124196 | C9H18O | 1 099.9 | 733.39 | 1.47 | 228.66 | 6.44 | 18.00 | 119.53 | 83.15 | |
异丁醛Methyl-propanal | 花香Flower | C78842 | C4H8O | 571.2 | 113.29 | 1.27 | 22.07 | -57.05 | 20.50 | 90.35 | 76.55 | |
苯甲醛Benzaldehyde | 药草Herb | C100527 | C7H6O | 949.5 | 428.80 | 1.46 | 25.07 | -21.34 | -22.49 | 33.40 | 43.97 | |
反-2-辛烯醛E-2-octenal | 绿叶Green leaf | C2548870 | C8H14O | 1 062.5 | 652.86 | 1.32 | 37.00 | -16.72 | -2.67 | 80.81 | 70.47 | |
异戊醛3-methylbutanal | 麦芽Malt | C590863 | C5H10O | 650 | 140.20 | 1.19 | 579.22 | 23.98 | 142.31 | 56.97 | 58.31 | |
醇类 Alcohols | 异戊醇Isopentanol | 水果Fruit | C123513 | C5H120 | 762.4 | 208.65 | 1.26 | 299.45 | -43.23 | -44.13 | 277.54 | 89.10 |
正己醇1-hexanol | 油脂Fat | C111273 | C6H14O | 870.6 | 312.39 | 1.32 | 1 938.69 | 0.40 | -4.38 | 1 315.32 | 97.45 | |
4-甲基-1-戊醇4-methyl-1-pentanol | 烟草Tobacco | C626891 | C6H140 | 866.7 | 307.90 | 1.64 | 464.54 | -1.02 | -31.86 | 440.53 | 92.15 | |
乙醇Ethanol | 蜂蜜Sweet | C64175 | C2H6O | 451.1 | 74.49 | 1.13 | 140.62 | -90.58 | -82.20 | 1 563.44 | 97.60 | |
2-丙醇2-propanol | 坚果Nut | C67630 | C3H8O | 481.9 | 84.43 | 1.22 | 29.19 | -44.10 | -29.90 | 182.29 | 80.23 | |
2-乙基己醇2-ethyl-1-hexanol | 坚果Nut | C104767 | C8H18O | 1 034.1 | 592.99 | 1.41 | 25.67 | -9.49 | 7.63 | 86.95 | 61.09 | |
3-甲基-1-丁醇3-methyl-1-butano | 麦芽Malt | C123513 | C5H12O | 743.6 | 193.83 | 1.25 | 260.86 | 2.15 | 15.96 | 111.65 | 67.08 |
类型Type | 化合物名称Compound | 气味 Odor | CAS# | 分子式 Molecular formula | RI | RT | DT | TAF峰体积 TAF peak volume | TMF较TAF变幅 Change of TMF to TAF/% | TPF较TAF变幅 Change of TPF to TAF/% | TTF峰体积 TTF peak volume | TSF较TTF变幅 Change of TSF to TTF/% |
---|---|---|---|---|---|---|---|---|---|---|---|---|
酯类 Esters | 乙酸乙酯Ethyl acetate | 菠萝Pineapple | C141786 | C4H8O2 | 519.9 | 96.71 | 1.33 | 185.35 | -88.30 | -98.33 | 520.10 | 91.53 |
异丁酸戊酯n-pentyl butanoate | 水果Fruit | C2445729 | C9H18O2 | 1 101.7 | 737.1 | 1.94 | 32.99 | -32.30 | -66.40 | 3.16 | -76.71 | |
丁酸甲酯Methyl butanoate | 水果Fruit | C623427 | C5H10O2 | 998.7 | 520.85 | 1.40 | 30.24 | -43.69 | -43.29 | 92.70 | 57.52 | |
丙酸异丙酯Ethyl propanoate | 水果Fruit | C105373 | C5H10O2 | 701.5 | 165.16 | 1.24 | 33.91 | -76.53 | -88.15 | 175.62 | 74.21 | |
顺乙酸-3-己烯酯(Z)-3-hexenyl acetate | 水果Fruit | C1708823 | C8H14O2 | 984.4 | 492.96 | 1.17 | 27.53 | -43.85 | -45.98 | 147.69 | 69.09 | |
乙酸叶醇酯Cis-3-hexenyl acetate | 青草Grass | C3681718 | C8H14O2 | 997.2 | 517.92 | 1.30 | 106.99 | -41.05 | -46.56 | 99.02 | 55.91 | |
萜烯类 Terpenoids | 芳樟醇Linalol | 薰衣草Lavender | C78706 | C10H18O | 1 094.8 | 722.28 | 1.25 | 50.78 | 55.43 | 41.67 | 17.18 | -25.60 |
β罗勒烯beta-ocimene | 甜草药Sweet herb | C3779611 | C10H16 | 1 044.5 | 614.64 | 1.25 | 44.87 | -49.76 | -77.65 | 94.51 | 51.81 | |
α-松油烯α-terpinene | 柠檬Lemon | C99865 | C10H16 | 1 014.8 | 553.21 | 1.38 | 63.00 | -77.18 | -95.17 | 135.48 | 62.76 | |
松油烯Terpinolene | 柠檬Lemon | C586629 | C10H16 | 1 088.9 | 709.60 | 1.21 | 119.96 | 4.74 | 3.18 | 102.67 | 52.48 | |
α-水芹烯α-phellandrene | 薄荷Mint | C99832 | C10H16 | 1 002.9 | 529.23 | 1.67 | 99.84 | 52.17 | 56.58 | 92.67 | 47.48 | |
α-水芹烯二聚体α-phellandrene-D | 薄荷Mint | C99832 | C10H16 | 996.1 | 515.77 | 1.21 | 24.38 | -48.06 | -58.55 | 46.75 | 15.79 | |
β-蒎烯beta-Pinene | 树脂Turpentine | C127913 | C10H16 | 985.1 | 494.32 | 1.24 | 100.02 | -63.18 | -61.20 | 150.85 | 62.33 | |
杂环类 Heterocyclic | 甲基吡嗪Methylpyrazine | 坚果Nut | C109080 | C5H6N2 | 838.3 | 276.9 | 1.38 | 154.10 | 55.51 | -10.40 | 60.49 | 25.38 |
2-甲基-3-甲硫基呋喃 2-methyl-3-methylthiofuran | 油脂Fat | C63012975 | C6H8OS | 952.3 | 433.68 | 1.14 | 38.96 | -88.00 | -78.17 | 46.61 | 11.49 | |
2,5-二甲基吡嗪 2,5-dimethylpyrazine | 奶油Cream | C123320 | C6H8N2 | 905.4 | 358.02 | 1.11 | 57.24 | -54.16 | -51.77 | 14.80 | -43.93 | |
酮类 Ketones | 3-羟基-2-丁酮3-hydroxy-2-butanone | 油脂Fat | C513860 | C4H8O2 | 713.2 | 172.38 | 1.34 | 42.79 | 157.57 | 27.68 | 521.13 | 86.07 |
过氧化乙酰丙酮Acetoxyacetone | 杏仁Almond | C592201 | C5H8O3 | 496.4 | 89.115 | 1.20 | 5.67 | -86.72 | 10.42 | 115.43 | 48.53 | |
2,3-丁二酮2,3-butanedione | 奶油Cream | C431038 | C4H6O2 | 575.4 | 114.66 | 1.17 | 85.04 | -65.96 | 29.34 | 373.41 | 80.21 | |
酸类Acids | 醋酸Acetic acid | 酸味Sour | C64197 | C2H4O2 | 609.1 | 125.58 | 1.16 | 17.49 | -76.30 | -83.52 | 35.36 | -8.58 |
酚类 Phenols | 愈创木酚Guaiacol | 甜草药Sweet herb | C90051 | C7H8O2 | 1 101.6 | 736.90 | 1.23 | 7.06 | 253.32 | -28.53 | 97.37 | 38.73 |
表3 果实样品挥发性组分性质及峰体积 (续表Continued)
Table 3 Qualitative of volatile organic compounds in samples and the peak volume
类型Type | 化合物名称Compound | 气味 Odor | CAS# | 分子式 Molecular formula | RI | RT | DT | TAF峰体积 TAF peak volume | TMF较TAF变幅 Change of TMF to TAF/% | TPF较TAF变幅 Change of TPF to TAF/% | TTF峰体积 TTF peak volume | TSF较TTF变幅 Change of TSF to TTF/% |
---|---|---|---|---|---|---|---|---|---|---|---|---|
酯类 Esters | 乙酸乙酯Ethyl acetate | 菠萝Pineapple | C141786 | C4H8O2 | 519.9 | 96.71 | 1.33 | 185.35 | -88.30 | -98.33 | 520.10 | 91.53 |
异丁酸戊酯n-pentyl butanoate | 水果Fruit | C2445729 | C9H18O2 | 1 101.7 | 737.1 | 1.94 | 32.99 | -32.30 | -66.40 | 3.16 | -76.71 | |
丁酸甲酯Methyl butanoate | 水果Fruit | C623427 | C5H10O2 | 998.7 | 520.85 | 1.40 | 30.24 | -43.69 | -43.29 | 92.70 | 57.52 | |
丙酸异丙酯Ethyl propanoate | 水果Fruit | C105373 | C5H10O2 | 701.5 | 165.16 | 1.24 | 33.91 | -76.53 | -88.15 | 175.62 | 74.21 | |
顺乙酸-3-己烯酯(Z)-3-hexenyl acetate | 水果Fruit | C1708823 | C8H14O2 | 984.4 | 492.96 | 1.17 | 27.53 | -43.85 | -45.98 | 147.69 | 69.09 | |
乙酸叶醇酯Cis-3-hexenyl acetate | 青草Grass | C3681718 | C8H14O2 | 997.2 | 517.92 | 1.30 | 106.99 | -41.05 | -46.56 | 99.02 | 55.91 | |
萜烯类 Terpenoids | 芳樟醇Linalol | 薰衣草Lavender | C78706 | C10H18O | 1 094.8 | 722.28 | 1.25 | 50.78 | 55.43 | 41.67 | 17.18 | -25.60 |
β罗勒烯beta-ocimene | 甜草药Sweet herb | C3779611 | C10H16 | 1 044.5 | 614.64 | 1.25 | 44.87 | -49.76 | -77.65 | 94.51 | 51.81 | |
α-松油烯α-terpinene | 柠檬Lemon | C99865 | C10H16 | 1 014.8 | 553.21 | 1.38 | 63.00 | -77.18 | -95.17 | 135.48 | 62.76 | |
松油烯Terpinolene | 柠檬Lemon | C586629 | C10H16 | 1 088.9 | 709.60 | 1.21 | 119.96 | 4.74 | 3.18 | 102.67 | 52.48 | |
α-水芹烯α-phellandrene | 薄荷Mint | C99832 | C10H16 | 1 002.9 | 529.23 | 1.67 | 99.84 | 52.17 | 56.58 | 92.67 | 47.48 | |
α-水芹烯二聚体α-phellandrene-D | 薄荷Mint | C99832 | C10H16 | 996.1 | 515.77 | 1.21 | 24.38 | -48.06 | -58.55 | 46.75 | 15.79 | |
β-蒎烯beta-Pinene | 树脂Turpentine | C127913 | C10H16 | 985.1 | 494.32 | 1.24 | 100.02 | -63.18 | -61.20 | 150.85 | 62.33 | |
杂环类 Heterocyclic | 甲基吡嗪Methylpyrazine | 坚果Nut | C109080 | C5H6N2 | 838.3 | 276.9 | 1.38 | 154.10 | 55.51 | -10.40 | 60.49 | 25.38 |
2-甲基-3-甲硫基呋喃 2-methyl-3-methylthiofuran | 油脂Fat | C63012975 | C6H8OS | 952.3 | 433.68 | 1.14 | 38.96 | -88.00 | -78.17 | 46.61 | 11.49 | |
2,5-二甲基吡嗪 2,5-dimethylpyrazine | 奶油Cream | C123320 | C6H8N2 | 905.4 | 358.02 | 1.11 | 57.24 | -54.16 | -51.77 | 14.80 | -43.93 | |
酮类 Ketones | 3-羟基-2-丁酮3-hydroxy-2-butanone | 油脂Fat | C513860 | C4H8O2 | 713.2 | 172.38 | 1.34 | 42.79 | 157.57 | 27.68 | 521.13 | 86.07 |
过氧化乙酰丙酮Acetoxyacetone | 杏仁Almond | C592201 | C5H8O3 | 496.4 | 89.115 | 1.20 | 5.67 | -86.72 | 10.42 | 115.43 | 48.53 | |
2,3-丁二酮2,3-butanedione | 奶油Cream | C431038 | C4H6O2 | 575.4 | 114.66 | 1.17 | 85.04 | -65.96 | 29.34 | 373.41 | 80.21 | |
酸类Acids | 醋酸Acetic acid | 酸味Sour | C64197 | C2H4O2 | 609.1 | 125.58 | 1.16 | 17.49 | -76.30 | -83.52 | 35.36 | -8.58 |
酚类 Phenols | 愈创木酚Guaiacol | 甜草药Sweet herb | C90051 | C7H8O2 | 1 101.6 | 736.90 | 1.23 | 7.06 | 253.32 | -28.53 | 97.37 | 38.73 |

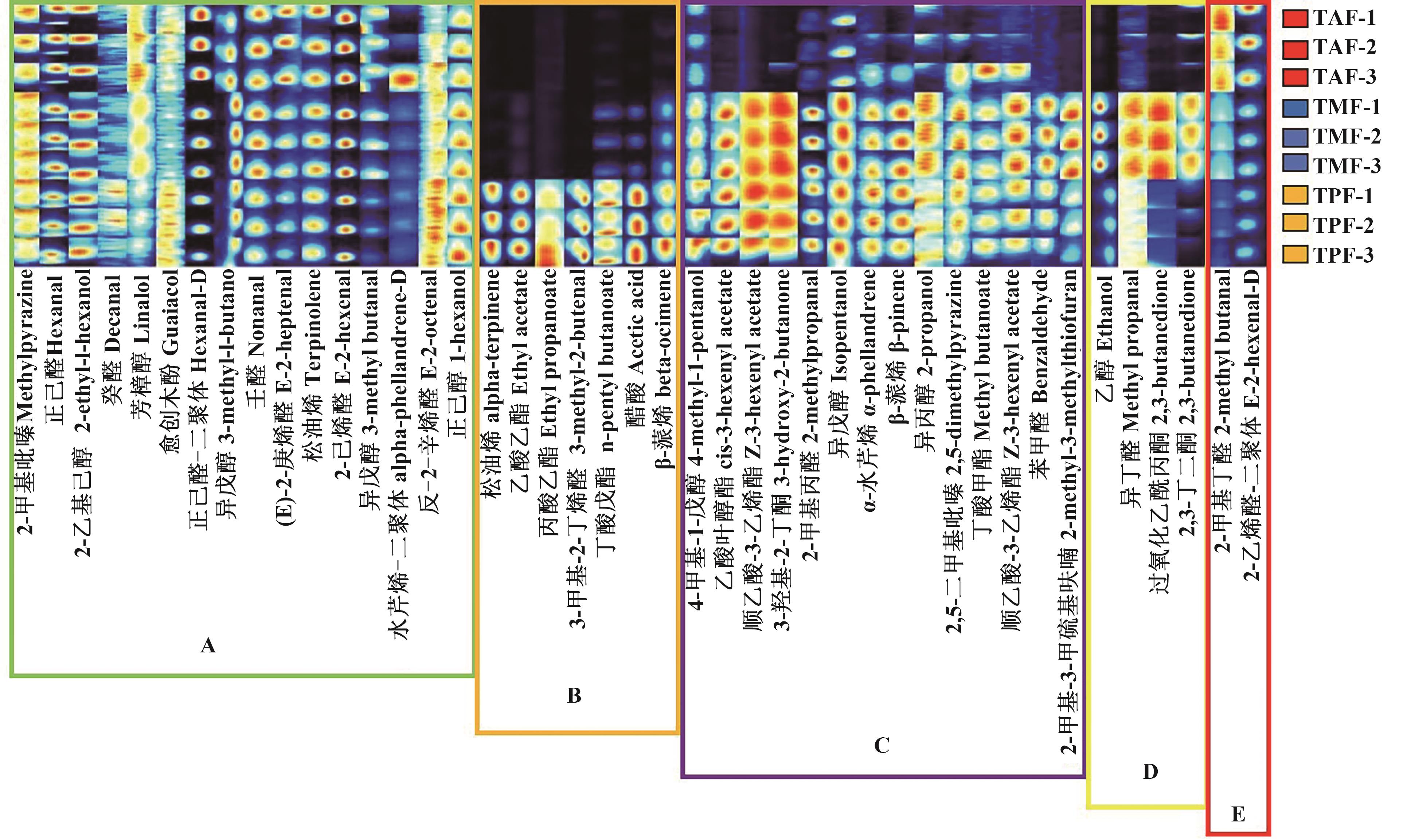

图6 架面不同空间位置果实挥发性物质指纹图谱注:指纹图谱划分为A~E共5个部分。
Fig. 6 Gallery of volatile organic compounds of fruit at different spatial position on big-trellisNote: Gallery was divided into 5 parts, A~E.

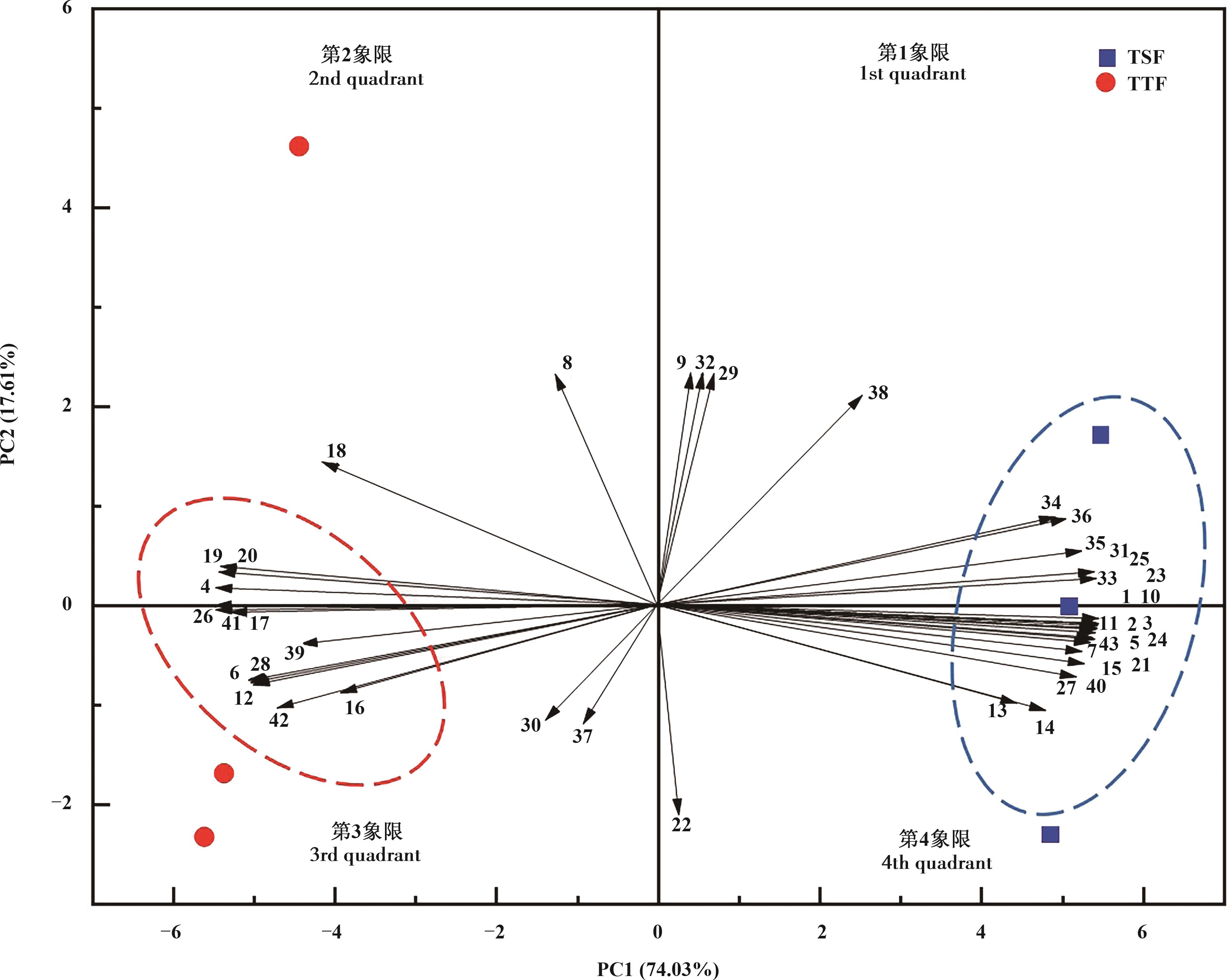

图7 单穗不同部位果实挥发性物质PCA分析注:图内带数字的箭头是各类挥发性物质的代号,与表1的序号相对应;椭圆圈出的为主要挥发性物质。
Fig. 7 PCA analysis of volatile organic compounds of fruit at different spatial position of single grape-clusterNote: The number of transverse axes in the figure is the symbol of volatile organic compounds corresponding to table 1; the main volatile organic componds was circled by elliptic.

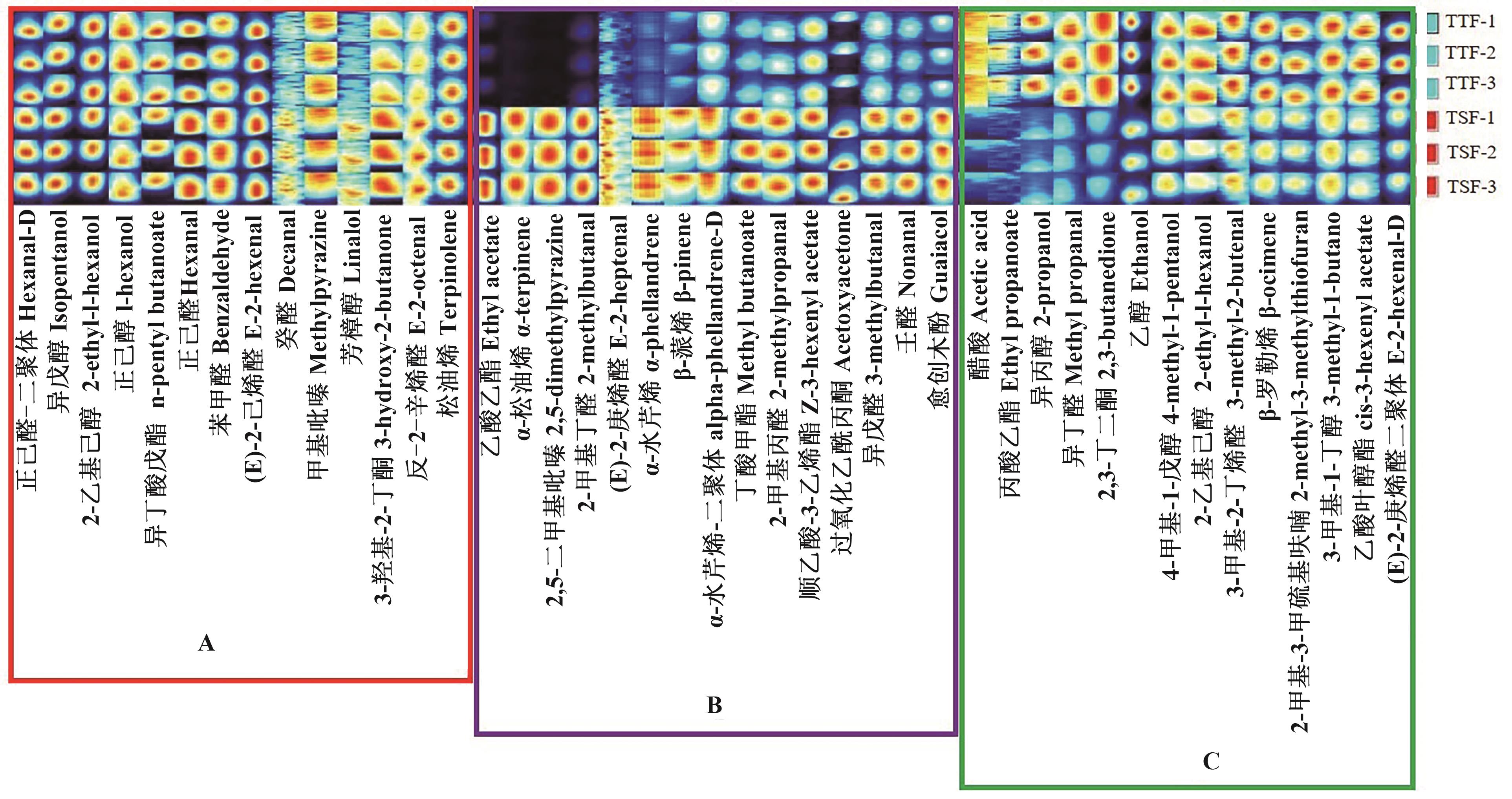

图8 单穗不同部位果实挥发性物质指纹图谱注:指纹图谱划分为A~C共3个部分。
Fig. 8 Gallery of volatile organic compounds of fruit at different spatial position on per grape-clusterNote: Gallery was divided into 3 parts, A~C.
1 | 牛锦凤,韩林芮,许晓钰,等.宁夏大青葡萄资源及栽植情况调查[J].宁夏农林科技, 2019, 60(5): 30-33. |
NIU J F. HAN L R, XU X Y,et al.. The report on the resource and planting situation of Vitis vinifera 'Daqing' in Ningxia [J]. Ningxia J. Agric. For. Sci. Tech. 2019, 60(5): 30-33. | |
2 | 刘宗怀,马小河,武岗.中国葡萄品种[M].北京:中国农业出版社, 2014: 5-8. |
LIU Z H, MA X H, WU G. Grape Varieties in China [M]. Beijing: China Agricultural Press, 2014: 5-8. | |
3 | 王锡林,陈卫平,原秦英.宁夏葡萄主要品种栽培技术[M].银川:阳光出版社, 2014: 10-16. |
4 | 程大伟,何莎莎,李明,等.不同葡萄品种果实营养品质差异及综合评价[J].江西农业学报, 2020, 32(10): 72-76. |
CHENG D W, HE S S, LIN M, et al.. Difference and comprehensive evaluation of fruit nutritional quality of different grape varieties [J]. Acta Agric. Jiangxi, 2020, 32(10): 72-76. | |
5 | 牟开萍,吕晨菲,杨静慧,等.市售不同产地'红地球'葡萄品质差异分析[J].天津农学院学报, 2019, 26(3): 43-46. |
MOU K P, LYU C F, YANG J H, et al.. Quality difference of ‘red globe’ grape from different producing areas [J]. J. Tianjin Agric. Univ., 2019, 26(3):43-46. | |
6 | ILHAMA K, AHAD N, ELZA O. Determining the pectinesterase enzyme activity when storing table grape varieties depending on the degree of ripening [J]. Eastern-Eur. J. Enterprise Technol., 2021, 6(11). |
7 | ALI I F, WANG X K, ABBAS W M, et al.. Quality responses of table grapes ‘Flame Seedless’ as effected by foliarly applied micronutrients [J/OL]. Horticulturae, 2021, 7(11): 462 [2023-09-21]. . |
8 | 张光弟,孙青松,姜兴盛,等.多效唑对宁夏圆葡萄的生长发育及浆果贮藏性的影响[J].宁夏农学院学报, 1999(1): 29-33. |
ZHANG G D, SUN Q S, JIANG X S, et al.. The effect of palcobutrazol on the vagetative growth and store-ability of the berry of Ningxia Yuan grape [J]. J. Ningxia Agric. Coll., 1999(1): 29-33. | |
9 | 王江龙,张光弟,张浩宇,等.叶面喷硅对‘红地球’葡萄果实挥发性物质的影响[J].中外葡萄与葡萄酒, 2021(6): 29-34. |
WANG J L, ZHANG G D, ZHANG H Y, et al.. Effect of exogenous silicon foliar spraying on fruit quality of ‘Red Globe’ grape [J]. Sion-Overseas Grapevine Wine, 2021(6): 29-34. | |
10 | 赵新节.栽培架式及负荷对酿酒葡萄和葡萄酒风味物质的影响[D].泰安:山东农业大学, 2005. |
ZHAO X J. Effect of trellis system and crop load on flavour compounds in winegrapes and wine [D]. Taian: Shandong Agricultural University, 2005. | |
11 | 肖玥惠子.缓释型臭氧对红地球葡萄保鲜关键技术的研究[D].长沙:中南林业科技大学, 2018. |
XIAO Y H Z. Study on the key technology of slowly releasing ozone preservation of red globe grape [D]. Changsha: Central South University of Forestry and Technology, 2018. | |
12 | 贾聚金,陈香玲,孙权,等.沃柑树冠不同结果部位光照条件对果实品质的影响[J].华中农业大学学报, 2021, 40(6): 112-118. |
JIA J J, CHEN X L, SUN Q, et al.. Effects of light conditions fruit quality in different fruiting positions of orah mandarin canopy [J]. J. Huazhong Agric. Univ., 2021, 40(6): 112-118. | |
13 | 金方伦,李晓松,周光萍,等.不同结果部位对猕猴桃果实产量及品质的影响[J].北方园艺, 2012(14): 15-20. |
JIN F L, LI X S, ZHOU G P, et al.. Influence of different fruit parts on yields and quality of the kiwi fruit [J]. Northern Hortic., 2012(14): 15-20. | |
14 | 张胜珍.不同结果部位对‘秋红晚蜜’桃果实品质的影响[J].西南农业学报, 2013, 26(3): 1175-1177. |
ZHANG S Z. Effects of setting fruit position on quality of ‘Qiuhongwanmi’ peach [J]. Southwest China J. Agric. Sci., 2013, 26(3): 1175-1177. | |
15 | 王少敏,魏树伟.不同结果部位对栖霞大香水梨果实香气的影响[J].山东农业科学, 2014, 46(10): 57-59, 80. |
WANG S M, WEI S W. Effect of different fruit setting positions on aroma of Qixia Daxiangshui pear [J]. Shandong Agric. Sci., 2014, 46(10): 57-59, 80. | |
16 | 刘程斐,王新,王开真.酿酒葡萄直立独龙蔓不同结果部位果实品质的差异[J].农业与技术, 2018, 38(2):38. |
17 | 胡帆,张振文,李梅花.直立独龙蔓不同结果部位葡萄果实及其葡萄酒中酚类物质的研究[J]. 北方园艺, 2014(20): 9-12. |
HU F, ZHANG Z W, LI M H. Phenolic compounds of different fruiting height of grape berries and its wine from vertical single cordons [J]. Northern Hortic., 2014(20): 9-12. | |
18 | 胡帆.直立独龙蔓不同结果部位果实与葡萄酒质量的研究[D].杨凌:西北农林科技大学, 2014. |
HU F. Effect of different cropping zone on grape berry and wine quality from the vertical single cordons [D]. Yangling: Northwest A&F University, 2014. | |
19 | 冯学梅,梁玉文,李阿波,等.宁夏贺兰山东麓酿酒葡萄产量控制对果实品质及葡萄酒质量的影响[J].宁夏农林科技, 2020, 61(10): 6-9. |
FENG X M, LIANG Y W, LI A B, et al.. Effects of grape yield control on fruit quality and wine quality in Eastern Foothills of Helan Mountain in Ningxia [J]. Ningxia J. Agric. Forestry Sci. Technol., 2020, 61(10): 6-9. | |
20 | 刘小云,江昱轩,王智情,等.脐橙常规品质测定及复检的主要影响因素研究[J].赣南师范大学学报, 2020, 41(6): 100-103. |
LIU X Y, JIANG Y X, WANG Z Q, et al.. Main influencing factors to Navel orange quality testing and retesting [J]. J. Gannan Norm. Univ., 2020, 41(6): 100-103. | |
21 | 史星雲,王向红,金娜,等.褪黑素对设施延后栽培‘红地球’葡萄果实品质的影响[J].中国果树, 2020(2): 40-44. |
SHI X Y, WANG X H, JIN N, et al.. Effects of melatonin on quality of ‘Red Globe’ grape under delayed cultivation in greenhouse [J]. China Fruits, 2020(2): 40-44. | |
22 | 谢林君,成果,周咏梅,等.阳光玫瑰冬葡萄贮藏期果实质构特性变化研究[J].南方园艺, 2021, 32(1): 14-20. |
23 | 王冬.葡萄干特征干化香气组成及其产生机制研究[D].北京:中国农业大学, 2017. |
WANG D. Study on the composition and the generation mechanism of char acter istic raisin aroma compounds in raisins [D]. Beijing: China Agricultural University, 2017. | |
24 | 李欢康,杨佳玮,刘文玉,等.不同工艺核桃油挥发性物质比对及关键香气成分表征[J].食品科学, 2021, 42(16): 185-192. |
LI H K, YANG JW, LIU W Y, et al.. Comparison of volatile components and characterization of key aroma components of walnut oil produced by different processes [J]. Food Sci., 2021, 42(16): 185-192. | |
25 | CHRISTOPHE A, GUILLAUME C. Chemical composition, bioactive compounds, and volatiles of six table grape varieties (Vitis vinifera L.) [J]. Food Chem., 2018, 240(1): 524-533. |
26 | LONGO R, CAREW A, SAWYER S, et al.. A review on the aroma composition of Vitis vinifera L. Pinot noir wines: origins and influencing factors [J]. Crit. Rev. Food Sci. Nutr., 2020, 61(10): 1589-1604. |
27 | 张峰玮."厂"字整形下不同负载量对葡萄果实和葡萄酒品质的影响[D].银川:宁夏大学, 2016. |
ZHANG F W. Effect on different Crop-Loading on the quality of grape berry and wine in “厂” Shape Training System [D]. Yinchuan:Ningxia Univ.ersity, 2016. | |
28 | FENG M X, JIN X Q, YAO H, et al.. Evolution of volatile profile and aroma potential of ‘Gold Finger’ table grapes during berry ripening [J]. J. Sci. Food Agric., 2022, 102(1):291-298. |
29 | YAO H, JIN X Q, FENG M X, et al.. Evolution of volatile profile and aroma potential of table grape Hutai-8 during berry ripening [J/OL]. Food Res. Int., 2021, 143(5): 110330 [2023-04-03]. . |
30 | 刘玲,雷小明,张军贤,等.不同高度结果部位对酿酒葡萄果实品质的影响[J].北方园艺, 2010(24): 21-24. |
LIU L, LEI X M, ZHANG J X, et al.. Effect of different fruit set heights on quality of wine grape [J]. Northern Hortic., 2010(24): 21-24. | |
31 | 伍新宇,廖康.架面不同部位对无核剂处理木纳格葡萄无核化效果的影响[J].北方园艺, 2006(4): 47-49. |
WU X Y, LIAO K. The effect of different site of grape shelves on munake grapes treated | |
with seedless medicament [J]. Northern Hortic., 2006(4): 47-49. | |
32 | 张钥.不同频次水分调亏对寒香蜜葡萄果实品质的影响[D]. 扬州:扬州大学, 2021. |
ZHANG Y. Effects of different frequency water regulated feficit irrigation on fruit quality of reliance grape [D]. Yangzhou:Yangzhou University, 2021. | |
33 | 刘春艳.水分胁迫对赤霞珠葡萄果实挥发性风味物质的影响[D]. 银川:宁夏大学, 2018. |
LIU C Y. Effects of water stress on volatile flavor of cabernet sauvignon grape [D]. Yinchuan: Ningxia University, 2018. |
[1] | 杜彩艳, 鲁海燕, 熊艳竹, 孙曦, 孙秀梅, 普继雄, 张乃明. 连续两年沼液与化肥配施对桃生长及土壤理化性质的影响[J]. 中国农业科技导报, 2023, 25(8): 165-175. |
[2] | 白世践, 户金鸽, 吴久赟, 张雯, 谢辉, 赵荣华, 陈光, 蔡军社. 不同砧木对吐鲁番地区‘克瑞森无核’葡萄生长特性及果实品质的影响[J]. 中国农业科技导报, 2023, 25(8): 76-87. |
[3] | 朱士江, 李虎, 徐文, 冯雅婷. 三峡库区土壤含水量对柑橘园果实品质的影响[J]. 中国农业科技导报, 2023, 25(6): 201-207. |
[4] | 贾毅男, 张光弟, 张浩宇, 许昌, 张昆明, 王江龙, 侯晓健. 根区施用硅肥对‘玫瑰香’葡萄果实品质的影响[J]. 中国农业科技导报, 2023, 25(5): 215-223. |
[5] | 郭娟娟, 王珊, 栾好安, 李寒, 郭素萍, 齐国辉, 张雪梅. 微生物菌剂对红树莓生长、果实品质及土壤磷钾的影响[J]. 中国农业科技导报, 2023, 25(10): 198-209. |
[6] | 刘迁杰,程云霞,贾凯,时振宇,张婧,魏少伟,吴慧*. 施氮量对复合沙培番茄氮代谢酶活性及品质和产量的影响[J]. 中国农业科技导报, 2021, 23(4): 183-191. |
[7] | 杨梦宇1,张琦1*,袁振杨1,陈俊1,闫利2. 温室生草对南疆桃叶片、果实质量的影响[J]. 中国农业科技导报, 2021, 23(3): 178-185. |
[8] | 李泰, 卢士军, 黄家章, 陈磊, 范协裕. 苹果品质评价标准研究进展[J]. 中国农业科技导报, 2021, 23(11): 121-130. |
[9] | 梁艳琼,李锐,吴伟怀,习金根,谭施北,郑金龙,黄兴,陆英,贺春萍*,易克贤*. Bacillus subtilis Czk1挥发性化合物对橡胶树红根病菌的抑制作用[J]. 中国农业科技导报, 2020, 22(11): 116-123. |
[10] | 程大伟,陈锦永*,顾红,鲁会冉,张洋,郭西智,祁帅,李正阳. 红地球葡萄花穗整形方式研究[J]. 中国农业科技导报, 2019, 21(9): 44-50. |
[11] | 师建华1§,齐连芬1§,王丹丹1,李燕1,张庆银1,葛喜珍2,田东良1*. 不同防控措施对温室番茄品质、产量及发病率的影响[J]. 中国农业科技导报, 2019, 21(4): 88-95. |
[12] | 马文瑶1,2,程大伟2,黄海娜2,陈锦永2*,杨英军1*. PDJ对‘巨玫瑰’葡萄果实着色及品质的影响[J]. 中国农业科技导报, 2019, 21(3): 118-125. |
[13] | 张任,张鹏程,邬欢欢,张学东*. 气象因子对南疆地区骏枣果实品质的影响[J]. 中国农业科技导报, 2018, 20(7): 113-122. |
[14] | 王成1,2,吴东峰2,何伟忠2,吴文良1*. 新疆骏枣营养品质特点及其表征指标初探[J]. 中国农业科技导报, 2018, 20(12): 91-98. |
[15] | 于立洋1,左力辉1,李秀平2,李顺华3,王宇攀1,张军1,杨敏生1*. 4个新疆野苹果优系果实品质比较[J]. 中国农业科技导报, 2017, 19(8): 33-40. |
阅读次数 | ||||||
全文 |
|
|||||
摘要 |
|
|||||
