Journal of Agricultural Science and Technology ›› 2022, Vol. 24 ›› Issue (9): 96-105.DOI: 10.13304/j.nykjdb.2021.0612
• INTELLIGENT AGRICULTURE & AGRICULTURAL MACHINERY • Previous Articles Next Articles
Yue ZHAO1(), Yong WEI1, Huiyong SHAN1, Zhimin MU2, ZHANGJianxin1, Haiyun WU1, Hui ZHAO1(
), Jianlong HU3
Received:
2021-07-24
Accepted:
2021-11-22
Online:
2022-09-15
Published:
2022-10-11
Contact:
Hui ZHAO
赵越1(), 卫勇1, 单慧勇1, 穆志民2, 张健欣1, 吴海云1, 赵辉1(
), 胡建龙3
通讯作者:
赵辉
作者简介:
赵越 E-mail:119788584@qq.com;
基金资助:
CLC Number:
Yue ZHAO, Yong WEI, Huiyong SHAN, Zhimin MU, ZHANGJianxin, Haiyun WU, Hui ZHAO, Jianlong HU. Wheat Ear Detection Method Based on Deep Learning[J]. Journal of Agricultural Science and Technology, 2022, 24(9): 96-105.
赵越, 卫勇, 单慧勇, 穆志民, 张健欣, 吴海云, 赵辉, 胡建龙. 基于深度学习的高分辨率麦穗图像检测方法[J]. 中国农业科技导报, 2022, 24(9): 96-105.
模型 Model | 图片尺寸 Image size | 裁剪后分辨率 Cropped resolution | 图片数量 Image number |
---|---|---|---|
#1 | 6 000×4 000 | 500×500 | 3 000 |
#2 | 6 000×4 000 | 1 000×1 000 | 3 000 |
#3 | 6 000×4 000 | 1 500×1 500 | 3 000 |
#4 | 6 000×4 000 | 2 000×2 000 | 3 000 |
#5 | 6 000×4 000 | 2 500×2 500 | 3 000 |
#6 | 6 000×4 000 | 3 000×3 000 | 3 000 |
Table 1 Model with different resolution
模型 Model | 图片尺寸 Image size | 裁剪后分辨率 Cropped resolution | 图片数量 Image number |
---|---|---|---|
#1 | 6 000×4 000 | 500×500 | 3 000 |
#2 | 6 000×4 000 | 1 000×1 000 | 3 000 |
#3 | 6 000×4 000 | 1 500×1 500 | 3 000 |
#4 | 6 000×4 000 | 2 000×2 000 | 3 000 |
#5 | 6 000×4 000 | 2 500×2 500 | 3 000 |
#6 | 6 000×4 000 | 3 000×3 000 | 3 000 |
模型Model | 方法Method | 分辨率Resolution | 均类平均精度mAP/% |
---|---|---|---|
#1 | YOLOv4 | 500×500 | 90.6 |
#2 | YOLOv4 | 1 000×1 000 | 92.3 |
#3 | YOLOv4 | 1 500×1 500 | 93.7 |
#4 | YOLOv4 | 2 000×2 000 | 91.6 |
#5 | YOLOv4 | 2 500×2 500 | 90.3 |
#6 | YOLOv4 | 3 000×3 000 | 89.1 |
Table 3 Model performance at different resolutions

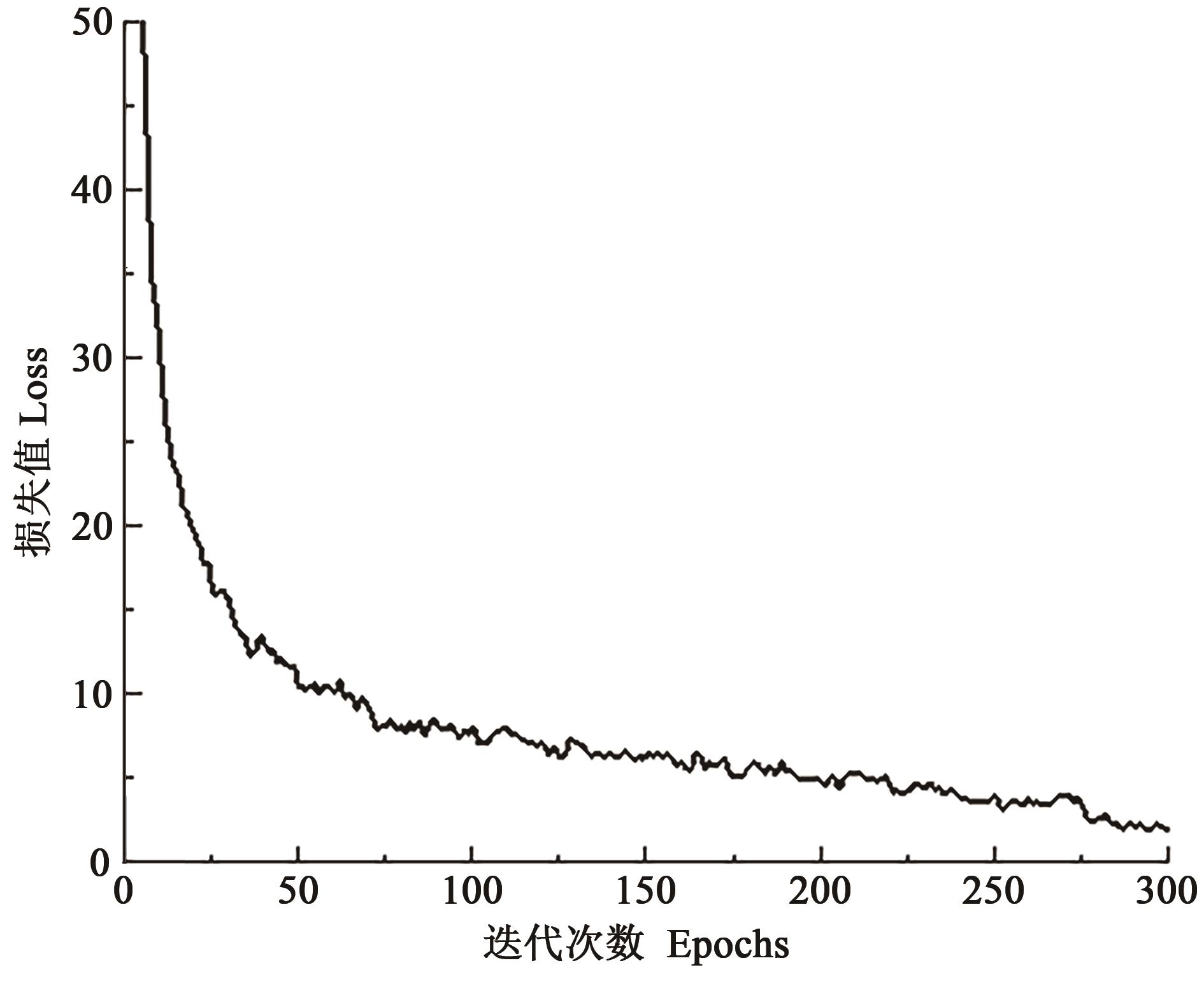

模型Model | 方法Method | 分辨率Resolution | 均类平均精度mAP/% |
---|---|---|---|
#1 | YOLOv4 | 500×500 | 90.6 |
#2 | YOLOv4 | 1 000×1 000 | 92.3 |
#3 | YOLOv4 | 1 500×1 500 | 93.7 |
#4 | YOLOv4 | 2 000×2 000 | 91.6 |
#5 | YOLOv4 | 2 500×2 500 | 90.3 |
#6 | YOLOv4 | 3 000×3 000 | 89.1 |
方法Method | 损失值Loss | F1值F1 score | 交并比IoU | 类平均精度mAP/% | 检测速度FPS |
---|---|---|---|---|---|
YOLOv3 | 2.4 | 0.786 | 0.842 | 89.4 | 57 |
YOLOv4-tiny | 2.8 | 0.764 | 0.823 | 87.3 | 137 |
YOLOv4 | 0.7 | 0.837 | 0.886 | 93.7 | 52 |
FasterR-CNN | 0.9 | 0.823 | 0.874 | 92.8 | 7 |

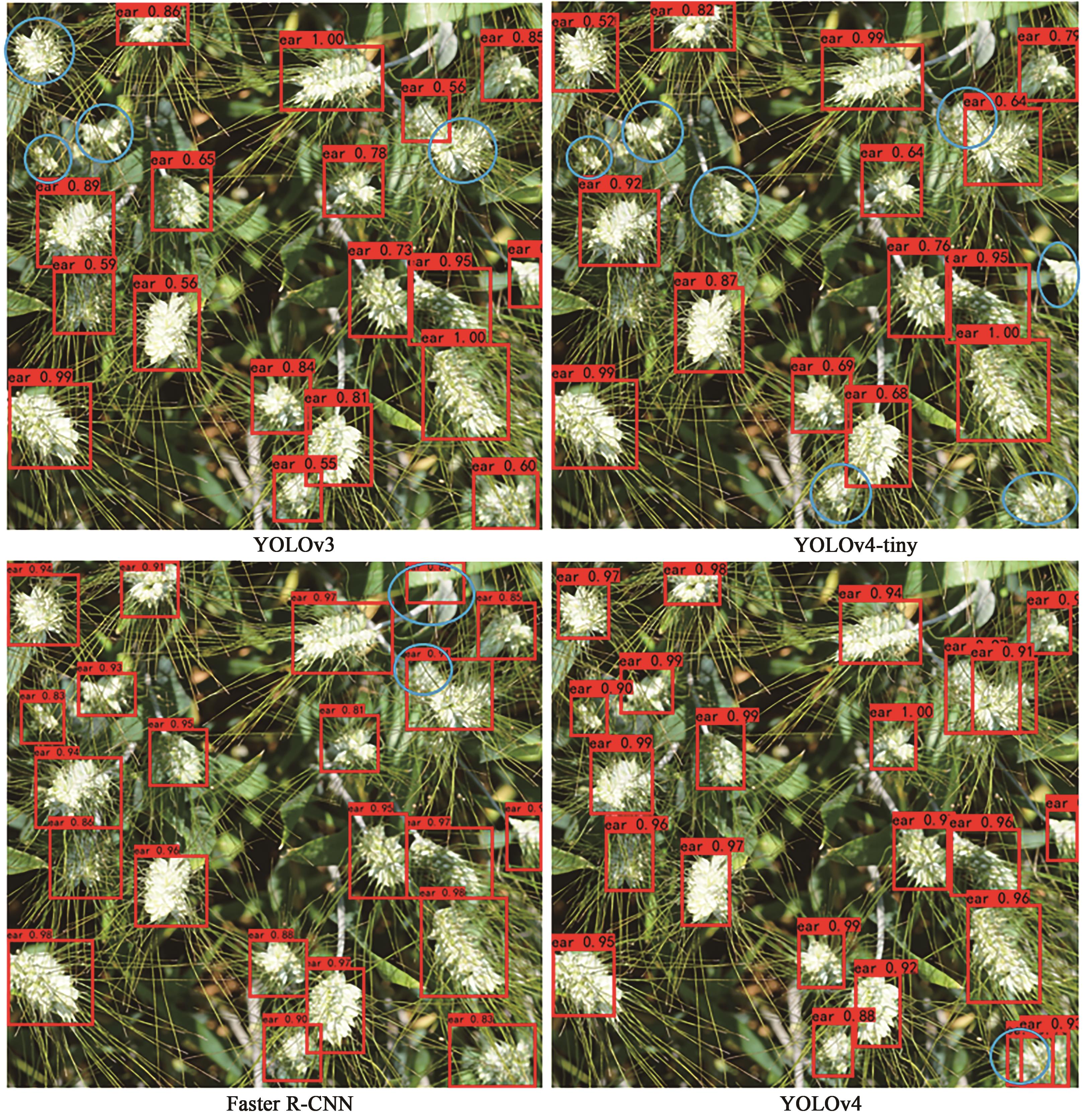

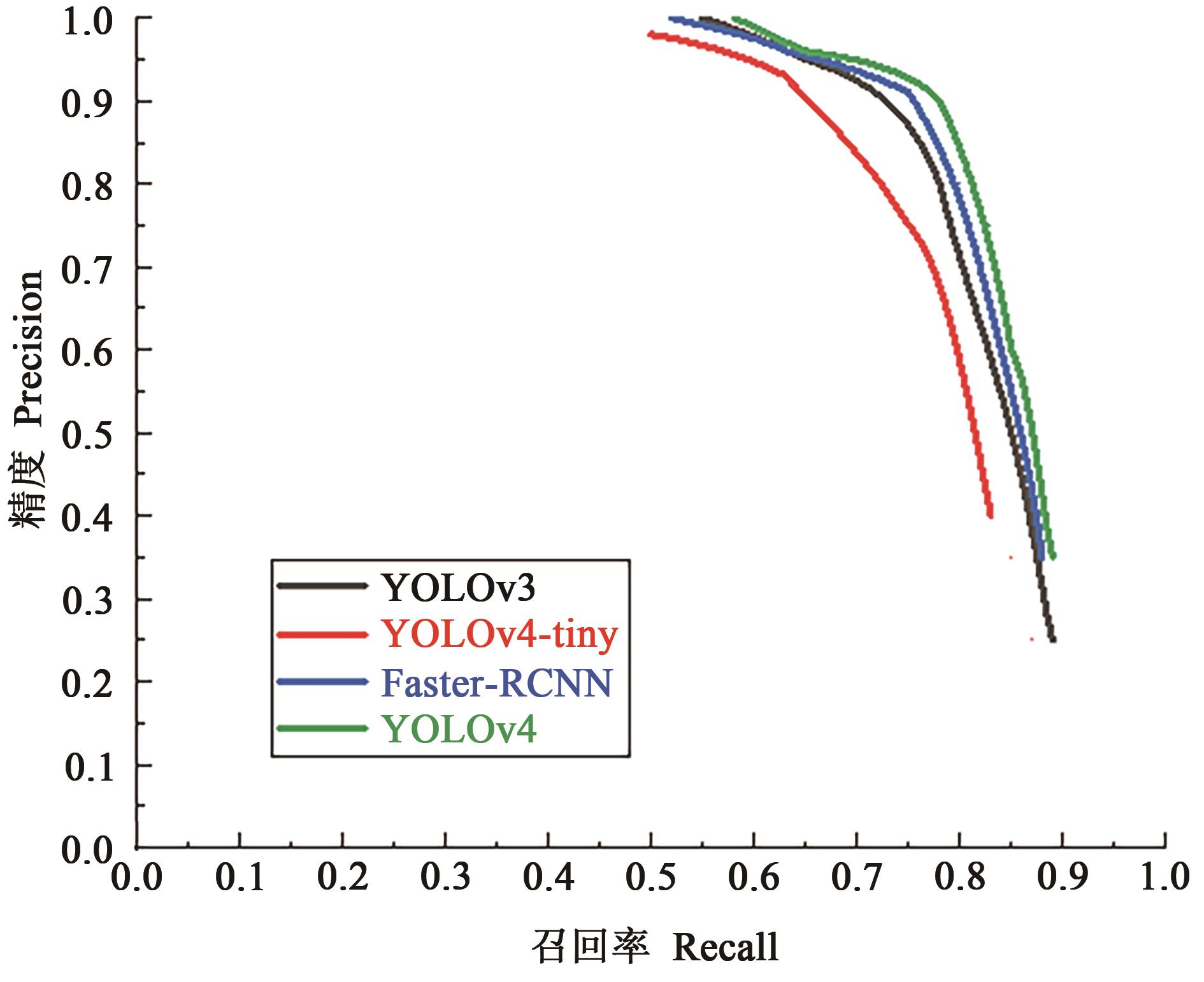

Table 4 Model performance of different network

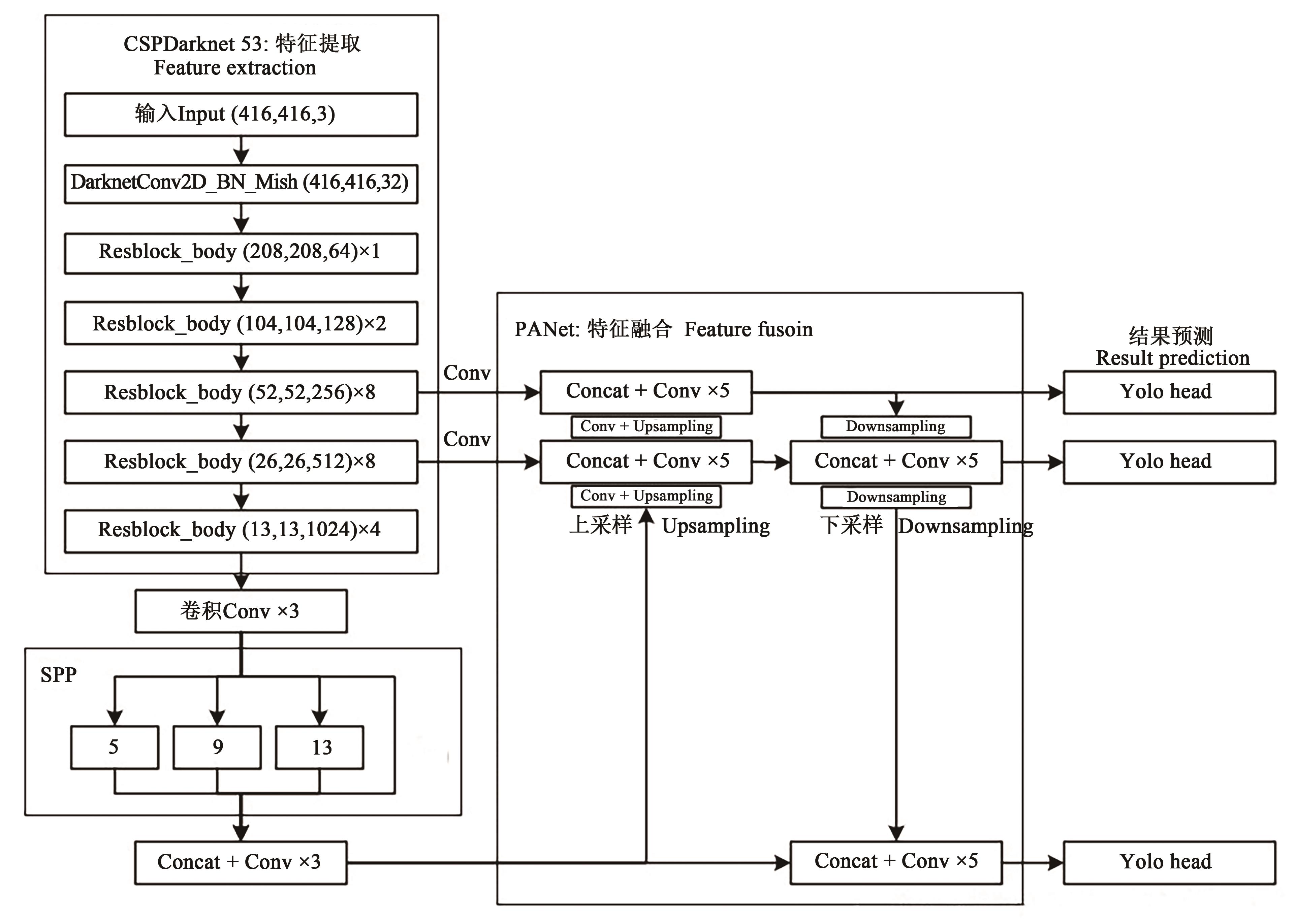

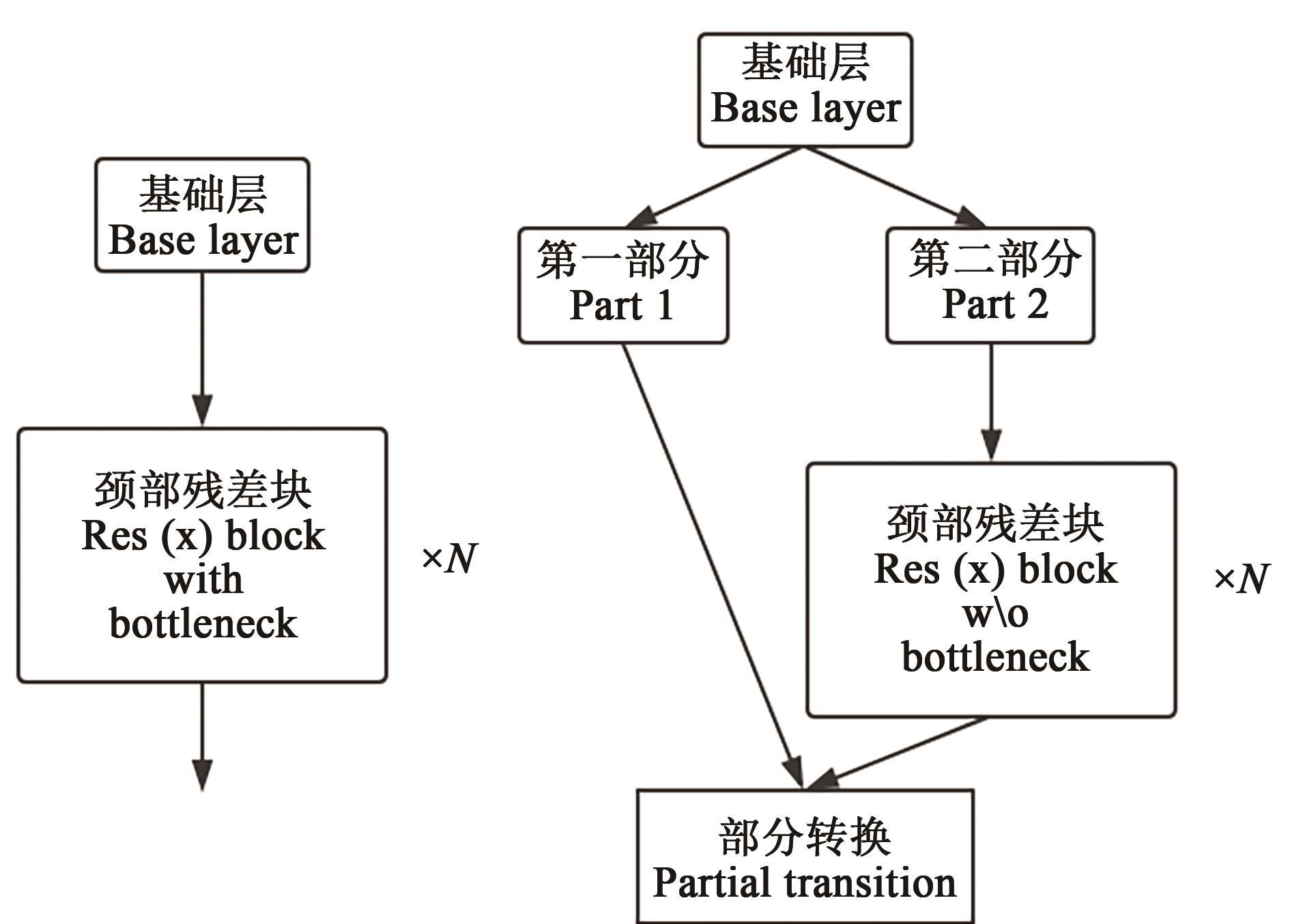

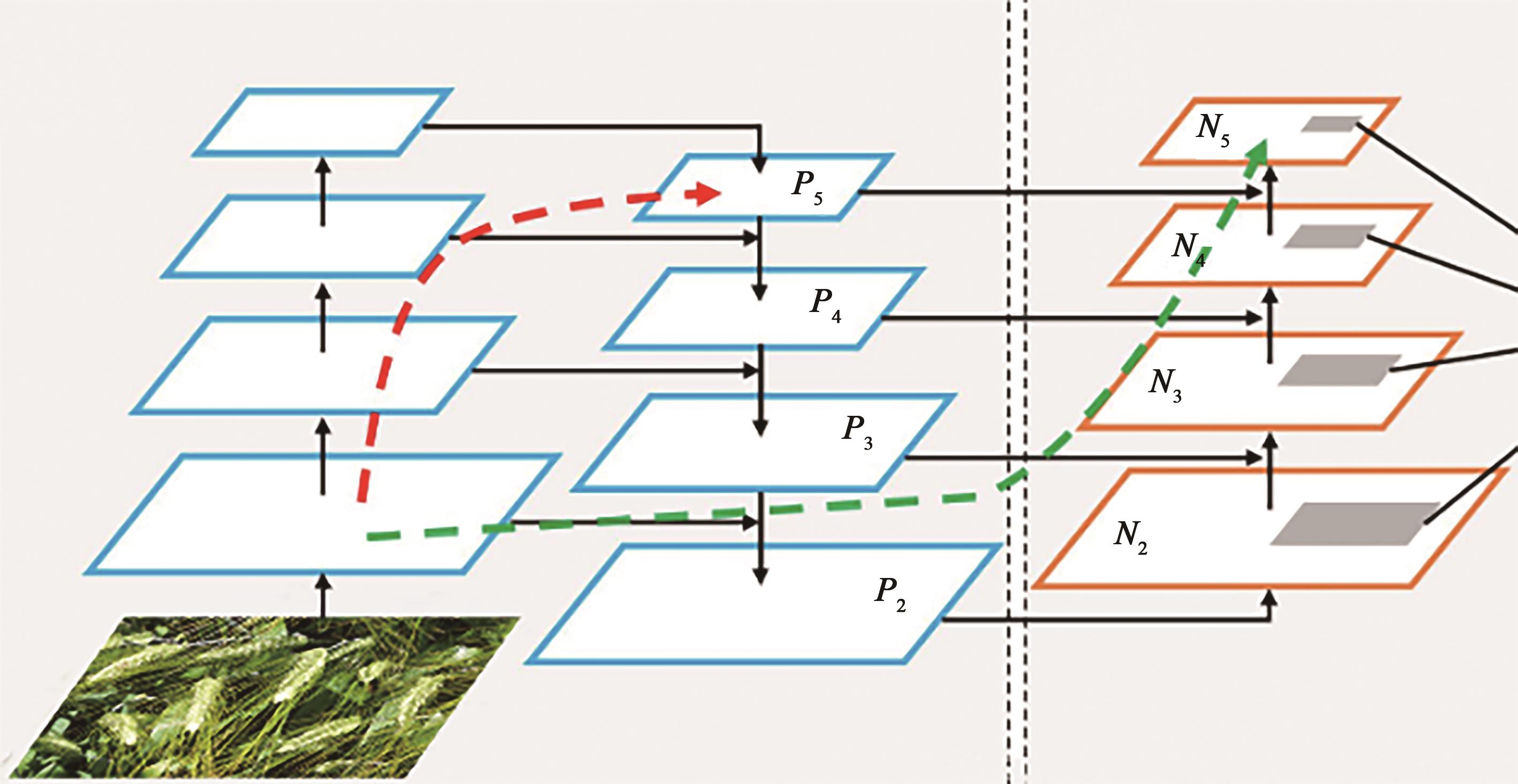

方法Method | 损失值Loss | F1值F1 score | 交并比IoU | 类平均精度mAP/% | 检测速度FPS |
---|---|---|---|---|---|
YOLOv3 | 2.4 | 0.786 | 0.842 | 89.4 | 57 |
YOLOv4-tiny | 2.8 | 0.764 | 0.823 | 87.3 | 137 |
YOLOv4 | 0.7 | 0.837 | 0.886 | 93.7 | 52 |
FasterR-CNN | 0.9 | 0.823 | 0.874 | 92.8 | 7 |
1 | CAO S, XU D, HANIF M, et al.. Genetic architecture underpinning yield component traits in wheat [J]. Theor. Appl. Genet., 2020, 133:1811-1823. |
2 | XU X, LI H, YIN F, et al.. Wheat ear counting using K-means clustering segmentation and convolutional neural network [J]. Plant Methods, 2020, 106(16): 1-13. |
3 | 岑海燕,朱月明,孙大伟,等.深度学习在植物表型研究中的应用现状与展望[J].农业工程学报,2020,36(9):1-16. |
CEN H Y, ZHU Y M, SUN D W, et al.. Current status and future perspective of the application of deep learning in plant phenotype research [J]. Trans. Chin. Soc. Agric. Eng., 2020, 36(9): 1-16. | |
4 | 孙红,李松,李民赞,等.农业信息成像感知与深度学习应用研究进展[J].农业机械学报,2020,51(5):1-17. |
SUN H, LI S, LI Z M, et al.. Research Progress of Image Sensing and Deep Learning in Agriculture [J]. Trans. Chin. Soc. Agric. Mach., 2020 51(5): 1-17. | |
5 | WU W, YANG T, LI R, et al.. Detection and enumeration of wheat grains based on a deep learning method under various scenarios and scales [J]. J. Int. Agr, 2020, 8(19): 1998-2008. |
6 | MA J, LI Y, DU K, et al.. Segmenting ears of winter wheat at flowering stage using digital images and deep learning [J]. Comput. Electron. Agric., 2020, 2(168): 1-16. |
7 | HASAN M M, CHOPIN J P, LAGA H, et al.. Detection and analysis of wheat spikes using Convolutional neural networks [J]. Plant Methods, 2018, 100(14): 1-13. |
8 | MADEC, JINX., LUH., et al.. Ear density estimation from high resolution RGB imagery using deep learning technique [J]. Agric. For. Met., 2019, 3(264): 225-234. |
9 | DU Z, YIN J, YANG J. Expanding receptive field YOLO for small object detection [J]. IOP Publ., 2019, 3(1314): 1-6. |
10 | XIAO J. exYOLO: A small object detector based on YOLOv3 object detector [J]. Computer Sci., 2021, 188: 18-25. |
11 | LabelImg is a graphical image annotation tool and label object bounding boxes in images [EB/OL]. (2017-04-03)[2018-12-03]. . |
12 | BOCHKOVSKIY A, WANG C, LIAO H M. YOLOv4: Optimal speed and accuracy of object detection [EB/OL]. (2020-04-23) [2021-12-23]. . |
13 | WANG C, LIAO H M, WU Y, et al.. CSPNet: a new backbone that can enhance learning capability of CNN [C]// Proceedings of 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW). Seattle, WA, USA: IEEE, 2020:1571-1580. |
14 | HE K, ZHANG X, REN S, et al.. Spatial pyramid pooling in deep convolutional networks for visual recognition [J]. IEEE Comp. Vis. Patt. Rec., 2015, 9(37): 1904-1906. |
15 | LIU S, QI L, QIN H, et al.. Path aggregation network for instance segmentation [C]// Proceedings of 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Salt Lake City, UT, USA: IEEE, 2018: 8759-8768. |
16 | M-TPHAM, COURTRAI L, FRIGUET C, et al.. YOLO-fine: one-stage detector of small objects under various backgrounds in remote sensing images [J/OL]. RemoteSens., 2020, 12(15): 2501 [2021-12-23]. . |
17 | XU D, WU Y. Improved YOLO-V3 with DenseNet for multi-scale remote sensing target detection [J/OL]. Sensors, 2020, 20(15):4276 [2021-12-23]. . |
18 | YANG B, FU X, SIDIROPOULOS ND, et al.. Towards K-means-friendly spaces: simultaneous deep learning and clustering [J]. Proc. Mach. Res., 2017, 70: 3861-3870. |
19 | LIU M, WANG X, ZHOU X, et al.. UAV-YOLO: small object detection on unmanned aerial vehicle perspective [J/OL]. Sensors, 2020, 20(8): 2238 [2021-12-23]. . |
20 | XIE Y, CAI J, BHOJWANI R, et al.. A locally-constrained YOLO framework for detecting small and densely-distributed building footprints [J]. Int. J. Geogr. Inf. Sci., 2019, 4(34): 1-25. |
21 | WU D, LV S, JIANG M, et al.. Using channel pruning-based YOLO v4 deep learning algorithm for the real-time and accurate detection of apple flowers in natural environments [J]. Comput. Electron. Agric., 2020, 178: 1-12. |
22 | XU Z, SHI H, LI N, et al.. Vehicle detection under UAV based on optimal dense YOLO method [C]// Proceedings of 2018 5th International Conference on Systems and Informatics. Nanjing, China: IEEE, 2018: 407-411. |
23 | NALLDRIN, KRASIN I, PONT-TUSET J, et al.. The open images dataset [EB/OL]. (2016-11-03) [2021-12-23]. . |
24 | TIAN Y, YANG G, WANG Z, et al.. Apple detection during different growth stages in orchards using the improved YOLO-V3 model [J]. Comput. Electron. Agric., 2019, 157: 417-426. |
