Influence of Roof Ventilation of Solar Greenhouse on Temperature and Humidity and Carbon Dioxide Level in Cold and Arid Regions

doi:10.13304/j.nykjdb.2023.0197

Abstract

Abstract:

In order to study the influence of the indoor temperature， humidity and carbon dioxide level in a solar greenhouse in cold and arid areas under the ventilation mode of opening the top vent on， the environmental monitoring system of the greenhouse was built by means of RS-485， and the data of temperature， humidity and carbon dioxide content at 20， 80 and 180 cm above the ground in the greenhouse during the ventilation period were collected and analyzed. On this basis， the least square method was used to establish the regression model of temperature， humidity and carbon dioxide content in the crop area at 20 cm height above the ground before and after ventilation， and the regression model of indoor temperature， humidity and carbon dioxide content change after ventilation for 0.5 h. The results showed that closing the vent before 14：30 could make the indoor temperature rise again， opening the top vent ventilation made the indoor temperature， relative humidity and carbon dioxide content close to the outdoor. The distribution of environmental factors in different positions in the greenhouse before and after ventilation was non-uniform， with the maximum difference of temperature 11.6 ℃， relative humidity 11.8% and carbon dioxide content 68 μmol·mol^-1. The coefficients of determination of the regression models were above 0.567， indicating that the independent variables in each model had a certain correlation with the dependent variables. It was possible to estimate the temperature， humidity and carbon dioxide content in the crop area at 20 cm height above the ground and the temperature， humidity and carbon dioxide content change after ventilation for 0.5 h through the data of a few sensors. Above results provided theoretical basis and technical reference for precise control of environmental factors of solar greenhouse in the northern cold and dry areas.

Key words: solar greenhouse, roof ventilation, temperature and humidity, carbon dioxide level, regression

摘要：

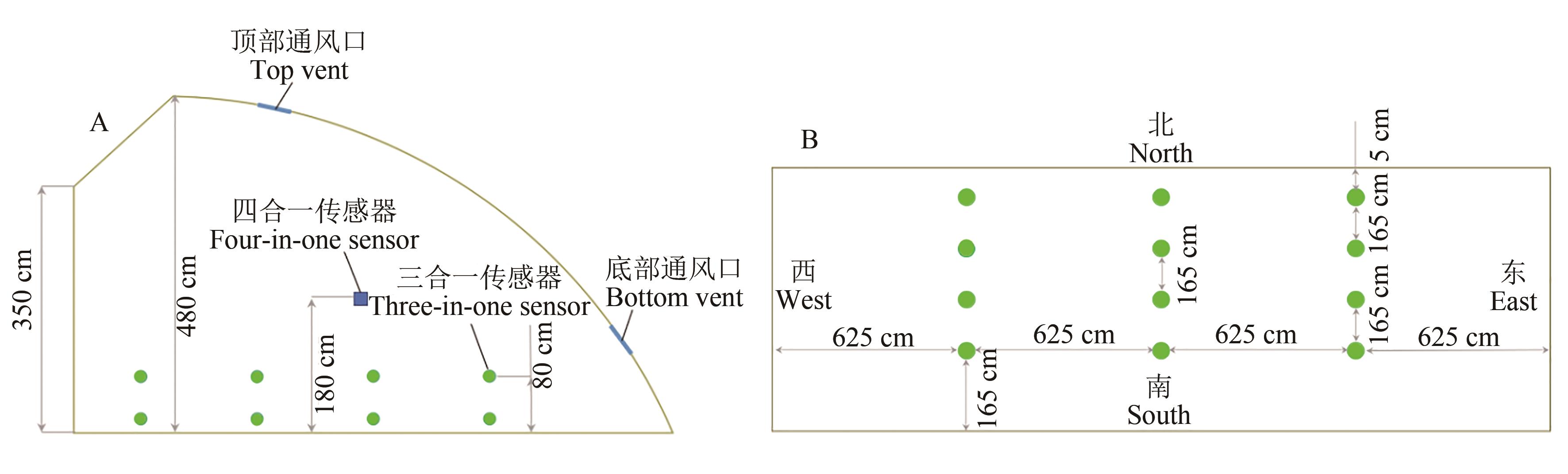

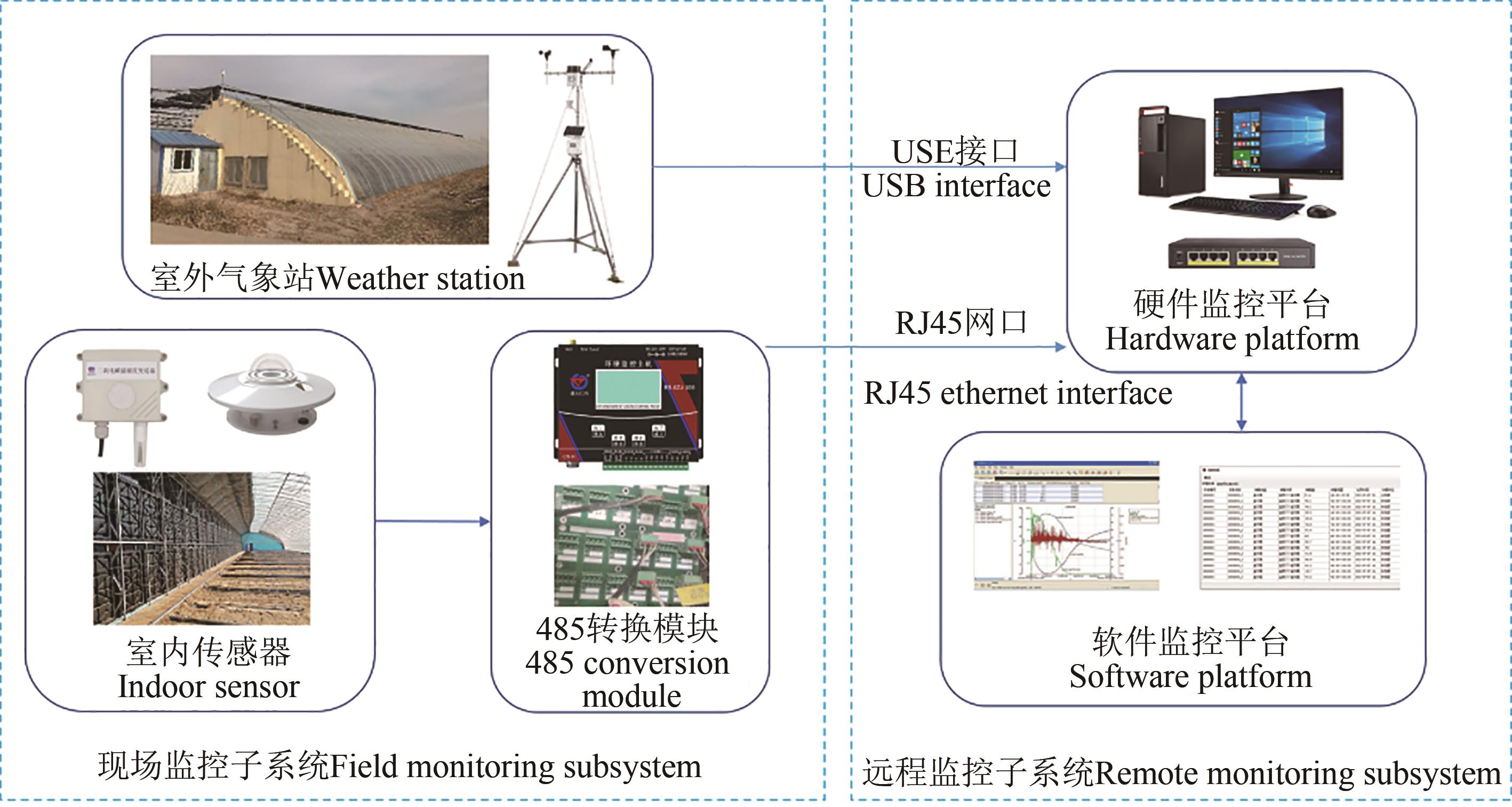

为研究寒冷干旱地区日光温室开启顶部通风口通风方式对室内温湿度及二氧化碳水平的影响，采用RS-485总线方式搭建温室环境监测系统，对通风时段温室内距地面20、80和180 cm处的温湿度及二氧化碳含量数据进行采集和分析。在此基础上利用最小二乘法建立通风前后温室20 cm高度作物区温湿度及二氧化碳含量回归模型与通风0.5 h室内温湿度及二氧化碳含量变化回归模型。结果表明，14：30前关闭通风口可使室内温度回升，开启顶部通风口通风使室内温度、相对湿度和二氧化碳含量接近室外；通风前后温室内不同位置的环境因子分布是非均匀的，温度最大相差11.6 ℃，相对湿度最大相差11.8%，二氧化碳含量最大相差68 μmol·mol^-1；回归模型决定系数均在0.567以上，表明各模型中自变量与因变量具有一定的相关性，可通过少数传感器的数据估算温室20 cm高度作物区及通风0.5 h室内温湿度及二氧化碳含量。以上研究结果为北方寒旱地区日光温室环境因子精准调控提供一定的理论依据与技术参考。

关键词: 日光温室, 顶部通风, 温湿度, 二氧化碳水平, 回归分析

CLC Number:

S625.5

Xiaokai LI, Tana, Caixia YAN, Caizhu SONG, Mengjie GUO. Influence of Roof Ventilation of Solar Greenhouse on Temperature and Humidity and Carbon Dioxide Level in Cold and Arid Regions[J]. Journal of Agricultural Science and Technology, 2024, 26(12): 187-200.

李晓凯, 塔娜, 闫彩霞, 宋财柱, 郭梦杰. 寒旱区日光温室顶通风方式对温湿度与二氧化碳水平的影响[J]. 中国农业科技导报, 2024, 26(12): 187-200.

Figures/Tables 15

References 32

1	宋阳, 李志鑫, 吴春华, 等. 一类适于北方高寒地区越冬蔬菜栽培的装配式水蓄热双膜双被日光温室[J]. 农业工程技术, 2020, 40(31): 12-16.
2	李艳, 周长吉, 富建鲁. 甘肃日光温室的特色及改进建议[J]. 中国蔬菜, 2021(10): 8-14.
3	BONUSO S, PANICO S, BAGLIVO C, et al.. Dynamic analysis of the natural and mechanical ventilation of a solar greenhouse by coupling controlled mechanical ventilation (CMV) with an earth-to-air heat exchanger (EAHX) [J/OL]. Energies, 2020, 13(14): 3676[2023-02-20]. .
4	JUNG D H, KIM H J, KIM J Y, et al.. Design optimization of proportional plus derivative band parameters used in greenhouse ventilation by response surface methodology [J]. Hortic. Sci. Technol., 2020, 38(2): 187-200.
5	马文娟, 塔娜, 五十六, 等. 冷风挡帘对日光温室内气温影响的数值模拟及其结构优化[J]. 中国农业大学学报, 2017, 22(5): 108-117.
	MA W J, Tana, Wushiliu, et al.. Numerical simulation and verification for the effect of keep-off shade on temperature field in solar greenhouse [J]. J. Chin. Agric. Univ., 2017, 22(5): 108-117.
6	ZHANG G, FU Z, YANG M, et al.. Nonlinear simulation for coupling modeling of air humidity and vent opening in Chinese solar greenhouse based on CFD [J]. Comp. Elec. Agric., 2019, 162: 337-347.
7	JIAO W, LIU Q, GAO L J, et al.. Computational fluid dynamics-based simulation of crop canopy temperature and humidity in double-film solar greenhouse [J/OL]. J. Sensors, 2020,4:8874468 [2023-02-20]. .
8	张军华, 沈楷程, 陈丹艳, 等. 基于物联网的日光温室冠层特征温度时空变化规律分析[J]. 农业机械学报, 2021, 52(7): 335-342.
	ZHANG J H, SHEN K C, CHEN D Y, et al.. Spatio-temporal variation of canopy characteristic temperature in solar greenhouse [J]. Trans. Chin. Soc. Agric. Mach., 2021, 52(7): 335-342.
9	李康吉, 张世通, 孟凡跃, 等. 考虑时空变异特性的温室多环境因子优化策略[J]. 农业机械学报, 2021, 52(11): 343-350.
	LI K J, ZHANG S T, MENG F Y, et al.. Optimization strategy of greenhouse multiple environmental factors considering temporal and spatiotemporal variability [J]. Trans. Chin. Soc. Agric. Mach., 2021, 52(11): 343-350.
10	LI H, LI Y M, YUE X, et al.. Evaluation of airflow pattern and thermal behavior of the arched greenhouses with designed roof ventilation scenarios using CFD simulation [J/OL]. PLoS One, 2020, 15(9): e0239851 [2023-02-20]. .
11	GHANI S, EL-BIALY E, BAKOCHRISTOU F, et al.. Experimental and numerical investigation of the thermal performance of evaporative cooled greenhouses in hot and arid climates [J]. Sci. Technol. Built Environ., 2020, 26(2): 141-160.
12	葛建坤, 辛清聪, 龚雪文, 等. 温室通风控水条件对番茄耗水特性及产量的影响[J]. 农业工程学报, 2021, 37(15): 204-213.
	GE J K, XIN Q C, GONG X W, et al.. Effects of greenhouse ventilation and water control conditions on water consumption characteristics and yield of tomato [J]. Trans. Chin. Soc. Agric. Eng., 2021, 37(15): 204-213.
13	严露露, 荆海薇, 鲍恩财, 等. 不同自然通风方式对日光温室性能的影响 [J]. 中国农业大学学报, 2020, 25(3): 71-78.
	YAN L L, JING H W, BAO E C, et al.. Effects of different natural ventilation methods on the performance of solar greenhouse [J]. J. Chin. Agric. Univ., 2020, 25 (3) : 71-78.
14	SUN Y C, BAO E C, ZHU C M, et al.. Effects of window opening style on inside environment of solar greenhouse based on CFD simulation [J]. Int. J. Agric. Bio. Eng., 2020, 13(6): 53-59.
15	LI H, JI D, HU X, et al.. Comprehensive evaluation of combining CFD simulation and entropy weight to predict natural ventilation strategy in a sliding cover solar greenhouse [J]. Int. J. Agric. Biol. Eng., 2021, 14(6): 213-221.
16	宋成宝, 柳平增, 刘兴华, 等. 基于HSIC的日光温室温度传感器优化配置策略 [J]. 农业工程学报, 2022, 38(8): 200-208
	SONG C B, LIU P Z, LIU X H, et al.. Optimal configuration strategy for temperature sensors in solar greenhouse based on HSIC [J]. Trans. Chin. Soc. Agric. Eng., 2022, 38(8): 200-208.
17	HOU Y C, LI A G, LI Y, et al.. Analysis of microclimate characteristics in solar greenhouses under natural ventilation [J]. Build. Simulation, 2021, 14(6): 1811-1821.
18	薛晓萍, 宿文. 基于CFD的自然通风对日光温室湿度分布模拟分析[J]. 海洋气象学报, 2019, 39(4): 90-96.
	XUE X P, SU W. CFD simulation of humidity distribution in solar greenhouse under natural ventilation [J]. J. Mar. Met., 2019, 39(4) : 90-96.
19	焦巍. 寒旱区典型双层膜日光温室土壤-作物-环境水热系统试验与模拟研究[D]. 呼和浩特: 内蒙古农业大学, 2021.
	JIAO W. Research on experimental and simulation of soil-crop-environment hydrothermal system in typical double-flim solar greenhouse in cold and arid regions [D]. Hohhot: Inner Mongolia Agricultural University, 2021.
20	陈盟. 设施菜田温室气体体积浓度分布特征及N₂O排放监测方法比较研究 [D]. 保定: 河北农业大学, 2019.
	CHEN M. Research on greenhouse gas levels distribution characteristics and comparison of N₂O emission monitoring methods in facility vegetable field [D]. Baoding: Hebei Agricultural University, 2019.
21	刘琦, 塔娜, 焦巍, 等. 日光温室作物冠层温湿度时空分布及预测模型 [J]. 北方园艺, 2019 (17): 56-65
	LIU Q, Tana, JIAO W, et al.. Spatial temporal distribution and prediction model ofcanopy temperature and humidity in greenhouse [J]. Northern Hortic., 2019 (17): 56-65.
22	塔娜, 马文娟, 张海鑫. 日光温室在自然通风状态下内拱膜对室内温度的影响[J]. 内蒙古农业大学学报(自然科学版), 2016, 37(3): 88-92.
	Tana, MA W J, ZHANG H X. Effect of internal film on temperature field in solar greenhouse with natural ventilation [J]. J. Inner Mongolia Agric. Univ. (Nat. Sci. ), 2016, 37(3): 88-92.
23	程陈, 冯利平, 董朝阳, 等. 利用Elman神经网络的华北棚型日光温室室内环境要素模拟 [J]. 农业工程学报, 2021, 37(13): 200-208
	CHENG C, FENG L P, DONG C Y, et al.. Simulation of inside environmental factors in solar greenhouses using Elman neural network in North China [J]. Trans. Chin. Soc. Agric. Eng., 2021, 37(13): 200-208.
24	LIANG B H, ZHAO S M, LI Y F, et al.. Study on the natural ventilation characteristics of a solar greenhouse in a high-altitude area [J/OL]. Agronomy, 2022, 12(10): 2387 [2023-02-20]. .
25	刘艳峰, 田师果, 周勇, 等. 附加阳光间型被动式太阳房传热量简化计算方法研究[J]. 太阳能学报, 2022, 43(4): 256-263.
	LIU Y F, TIAN S G, ZHOU Y, et al.. Study on simplified calculation method of heat transfer in passive house with attached sunspace [J]. Acta Energiae Solaris Sin., 2022, 43(4): 256-263.
26	伍新宇, 钟海霞, 潘明启, 等. 高寒区戈壁日光温室最冷月地温与气温变化规律及相关性研究[J]. 新疆农业科学, 2016, 53(7): 1329-1336.
	WU X Y, ZHONG H X, PAN M Q, et al.. Research of paramos region gobi sunlight greenhouse soil temperature and the temperature change rule and correlation studies in the coldest months [J]. Xinjiang Agric. Sci., 2016, 53(7): 1329-1336.
27	庞超明, 黄弘. 试验方案优化设计与数据分析[M]. 南京:东南大学出版社, 2018:1-324.
28	何科奭, 陈大跃, 孙丽娟, 等. 不同风况和开窗配置对夏季单栋塑料温室微气候的影响[J]. 农业机械学报, 2017, 48(12): 311-318, 339
	HE K S, CHEN D Y, SUN L J, et al.. Effects of wind regime and window opening on microclimate of single plastic greenhouse in summer [J]. Trans. Chin. Soc. Agric. Mach., 2017, 48 (12) : 311-318, 339
29	FU Q Q, LI X X, ZHANG G X, et al.. A temperature and vent opening couple model in solar greenhouses for vegetable cultivation based on dynamic solar heat load using computational fluid dynamics simulations [J/OL]. J. Food Proc. Eng., 2022, 46(6): 14240 [2023-02-20]. .
30	陈宝东,杨振超.节能日光温室内二氧化碳廓线分布[J].天津农业科学,2012,18(2):114-118.
	CHEN B D, YANG Z C. Distribution of carbon dioxide in the sunlight greenhouse [J]. Tianjin Agric. Sci., 2012, 18(2):114-118.
31	刘焕,杨延杰,史宇亮,等. 胶东地区日光温室周年温湿度变化规律分析及预测[J].中国农业科技导报, 2021, 23(12):136-144.
	LIU H, YANG Y J, SHI Y L, et al.. Analysis and prediction on the annual temperature and humidity change of solar greenhouse in Jiaodong area [J]. J. Agric. Sci. Technol., 2021, 23(12):136-144.
32	李亚迪,苗腾,朱超,等. 北方日光温室智能监控系统的设计与实现[J].中国农业科技导报,2016,18(5):94-101.
	LI Y D, MIAO T, ZHU C, et al.. The design and implementation of intelligent monitoring system for solar greenhouse in northern China [J]. J. Agric. Sci. Technol., 2016,18(5):94-101.

模型 Model		自由度 Degree of freedom	平方和 Sum of squares	均方 Mean square	F值 F value	P值 P value
温度 Temperature	回归 Regression	6	183.404	30.567	14.768	0.000
	残差 Residual	31	64.166	2.070	—	—
	总计 Aggregate	37	247.571	—	—	—
湿度 Humidity	回归 Regression	6	1 315.014	219.169	22.162	0.000
	残差 Residual	31	306.565	9.889	—	—
	总计 Aggregate	37	1 621.579	—	—	—
CO₂含量 CO₂ content	回归 Regression	7	9 073.873	1 296.268	32.076	0.000
	残差 Residual	13	525.365	40.413	—	—
	总计 Aggregate	20	9 599.238	—	—	—

模型 Model		自由度 Degree of freedom	平方和 Sum of squares	均方 Mean square	F值 F value	P值 P value
温度 Temperature	回归 Regression	6	183.404	30.567	14.768	0.000
	残差 Residual	31	64.166	2.070	—	—
	总计 Aggregate	37	247.571	—	—	—
湿度 Humidity	回归 Regression	6	1 315.014	219.169	22.162	0.000
	残差 Residual	31	306.565	9.889	—	—
	总计 Aggregate	37	1 621.579	—	—	—
CO₂含量 CO₂ content	回归 Regression	7	9 073.873	1 296.268	32.076	0.000
	残差 Residual	13	525.365	40.413	—	—
	总计 Aggregate	20	9 599.238	—	—	—

常量/变量 Constant/variable	标准误差 Standard error			回归系数 Regression coefficient			P值 P value
常量/变量 Constant/variable	温度模型M1	湿度模型 M2	CO₂含量模型M3	温度模型M1	湿度模型 M2	CO₂含量模型M3	温度模型M1	湿度模型 M2	CO₂含量模型M3
常量 Constant	85.896	220.224	707.484	-1.423	-2.234	0.645	0.165	0.033	0.530
阵风速度 Gust velocity	0.211	0.530	1.688	-2.084	-2.134	0.425	0.045	0.041	0.678
室外温度 Outdoor temperature	0.106	0.294	0.714	1.602	2.595	-1.165	0.119	0.014	0.265
室外湿度 Outdoor humidity	0.048	0.103	0.369	-0.996	-2.060	-1.710	0.327	0.048	0.111
室内温度 Indoor temperature	0.133			3.317			0.002
室内湿度 Indoor humidity		0.146			1.765			0.087
室内CO₂含量 Indoor CO₂ content			0.073			2.810			0.015
太阳辐射强度 Solar radiation intensity	0.008	0.014	0.041	4.224	-4.755	-0.950	0.000	0.000	0.359
大气压强 Atmospheric pressure	0.945	2.473	7.722	1.535	2.468	-0.608	0.135	0.019	0.554
室外CO₂含量 Outdoor CO₂ content			0.106			7.453			0.000

常量/变量 Constant/variable	标准误差 Standard error			回归系数 Regression coefficient			P值 P value
常量/变量 Constant/variable	温度模型M1	湿度模型 M2	CO₂含量模型M3	温度模型M1	湿度模型 M2	CO₂含量模型M3	温度模型M1	湿度模型 M2	CO₂含量模型M3
常量 Constant	85.896	220.224	707.484	-1.423	-2.234	0.645	0.165	0.033	0.530
阵风速度 Gust velocity	0.211	0.530	1.688	-2.084	-2.134	0.425	0.045	0.041	0.678
室外温度 Outdoor temperature	0.106	0.294	0.714	1.602	2.595	-1.165	0.119	0.014	0.265
室外湿度 Outdoor humidity	0.048	0.103	0.369	-0.996	-2.060	-1.710	0.327	0.048	0.111
室内温度 Indoor temperature	0.133			3.317			0.002
室内湿度 Indoor humidity		0.146			1.765			0.087
室内CO₂含量 Indoor CO₂ content			0.073			2.810			0.015
太阳辐射强度 Solar radiation intensity	0.008	0.014	0.041	4.224	-4.755	-0.950	0.000	0.000	0.359
大气压强 Atmospheric pressure	0.945	2.473	7.722	1.535	2.468	-0.608	0.135	0.019	0.554
室外CO₂含量 Outdoor CO₂ content			0.106			7.453			0.000

模型 Model	常量/变量 Constant/variable	标准误差 Standard error	回归系数 Regression coefficient	P值 P value
温度 Temperature	常量 Constant	3.658	1.892	0.067
	室内温度 Indoor temperature	0.134	3.790	0.000
	太阳辐射强度 Solar radiation intensity	0.007	3.510	0.001
湿度 Humidity	常量 Constant	193.516	-3.597	0.001
	阵风速度 Gust velocity	0.473	-3.379	0.002
	室外温度 Outdoor temperature	0.240	4.507	0.000
	室外湿度 Outdoor humidity	0.106	-2.058	0.048
	太阳辐射强度 Solar radiation intensity	0.014	-5.210	0.000
	大气压强 Atmospheric pressure	2.132	3.989	0.000
CO₂含量 CO₂ content	常量 Constant	27.384	1.177	0.254
	室内CO₂含量 Indoor CO₂ content	0.068	2.790	0.012
	室外CO₂含量 Outdoor CO₂ content	0.088	8.217	0.000
