Analysis of Characteristics of Heavy Metal Accumulation in Soil and Crops in Industrial Agglomeration Zone

doi:10.13304/j.nykjdb.2024.0047

Abstract

Abstract:

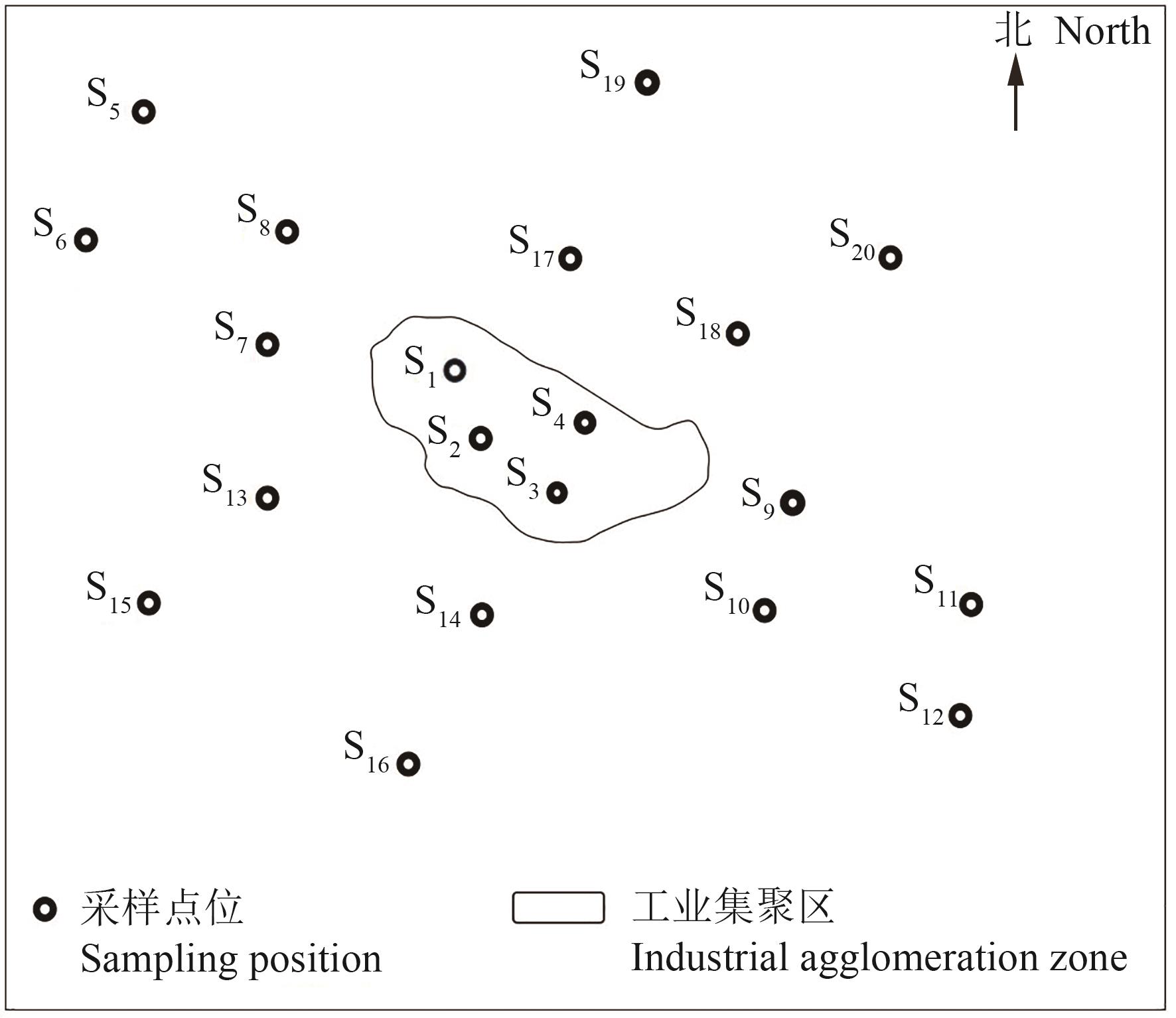

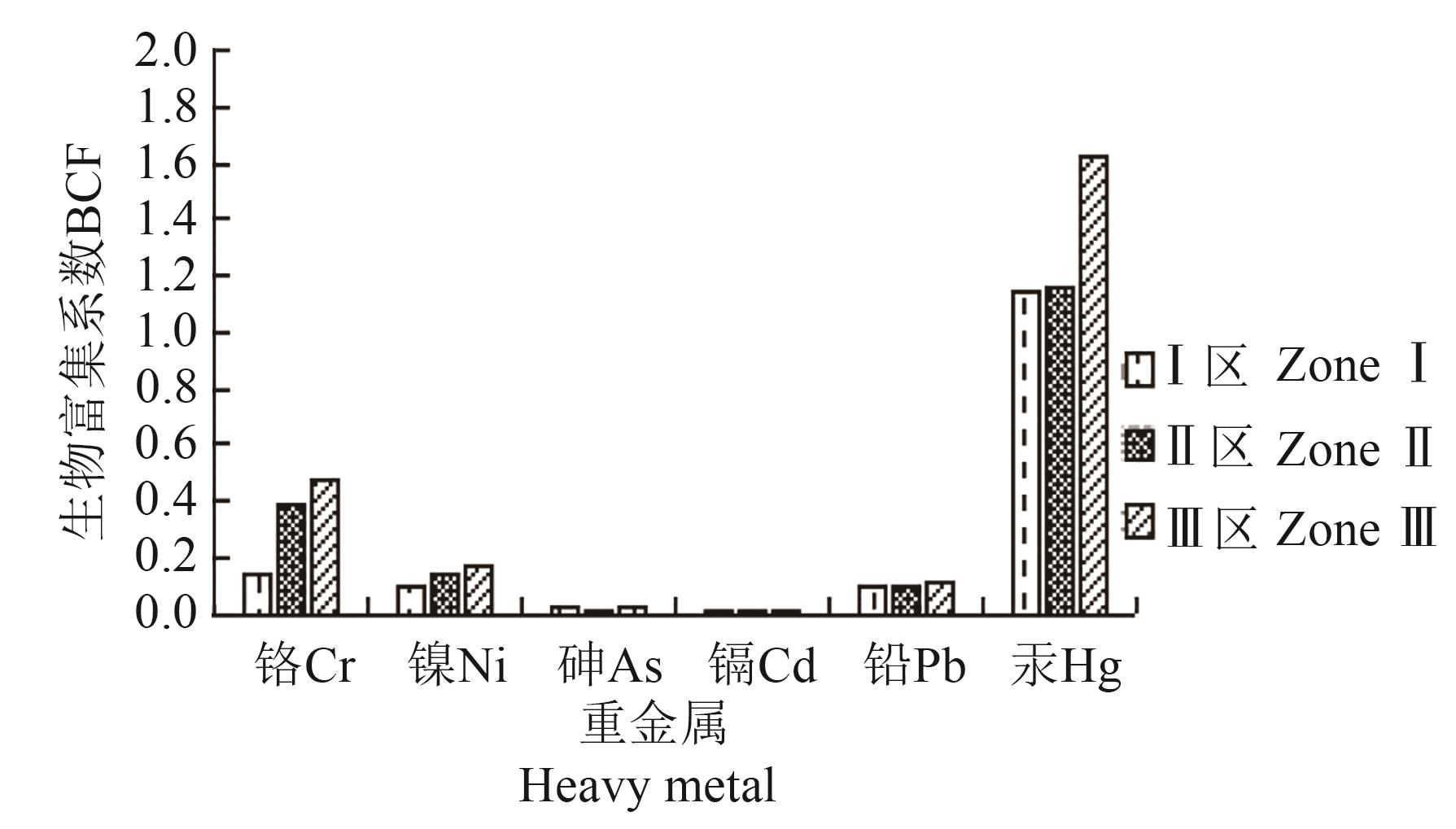

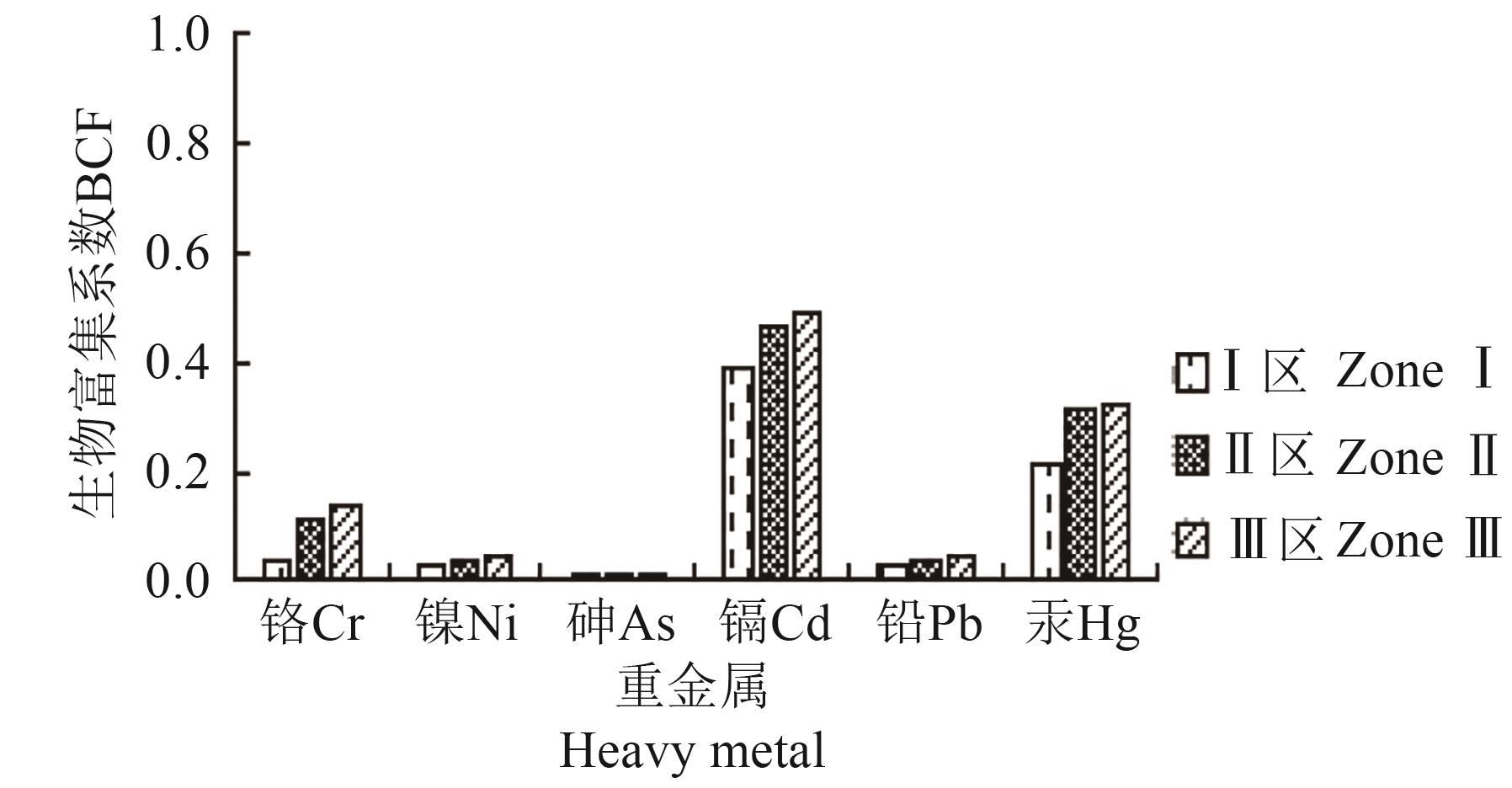

In order to systematically study on heavy metal pollution in soil and crops in industrial agglomeration area， the heavy metal content of soil and crops wheat in different directions and distances of industrial agglomeration area were determined and analyzed by single factor pollution index， Nemerow pollution index （NPI） and bioconcentration factors methods. The results showed that the heavy metal pollution of soil and crops wheat in the industrial agglomeration area were serious （NPI>2）. Within the influence range of 5 km from the industrial agglomeration area， except for mercury （Hg）， plumbum （Pb） and zinc （Zn）， other heavy metals were relatively serious（NPI>1）， the heavy metal pollution outside the 5 km range was relatively light （NPI<1）. In addition， there were significant correlation between heavy metal content in crops and soil， among which cadmium （Cd）， mercury （Hg）， plumbum （Pb）， nickel （Ni） and arsenic （As） in wheat grains were positively correlated with soil heavy metals， with correlation coefficients of 0.484， 0.409， 0.018， 0.679 and 0.480， respectively， while chromium （Cr） in grains were negatively correlated with soil heavy metals with a correlation coefficient of -0.133. The results indicated that wheat should not be planted in the industrial agglomeration area， and crops （wheat） planted within 5 km from the industrial agglomeration area only could be consumed as grains. Crops （wheat） production could be safely carried out 5 km away from the industrial agglomeration area.

Key words: industrial agglomeration zone, heavy metal pollution, soil pollution, crops

摘要：

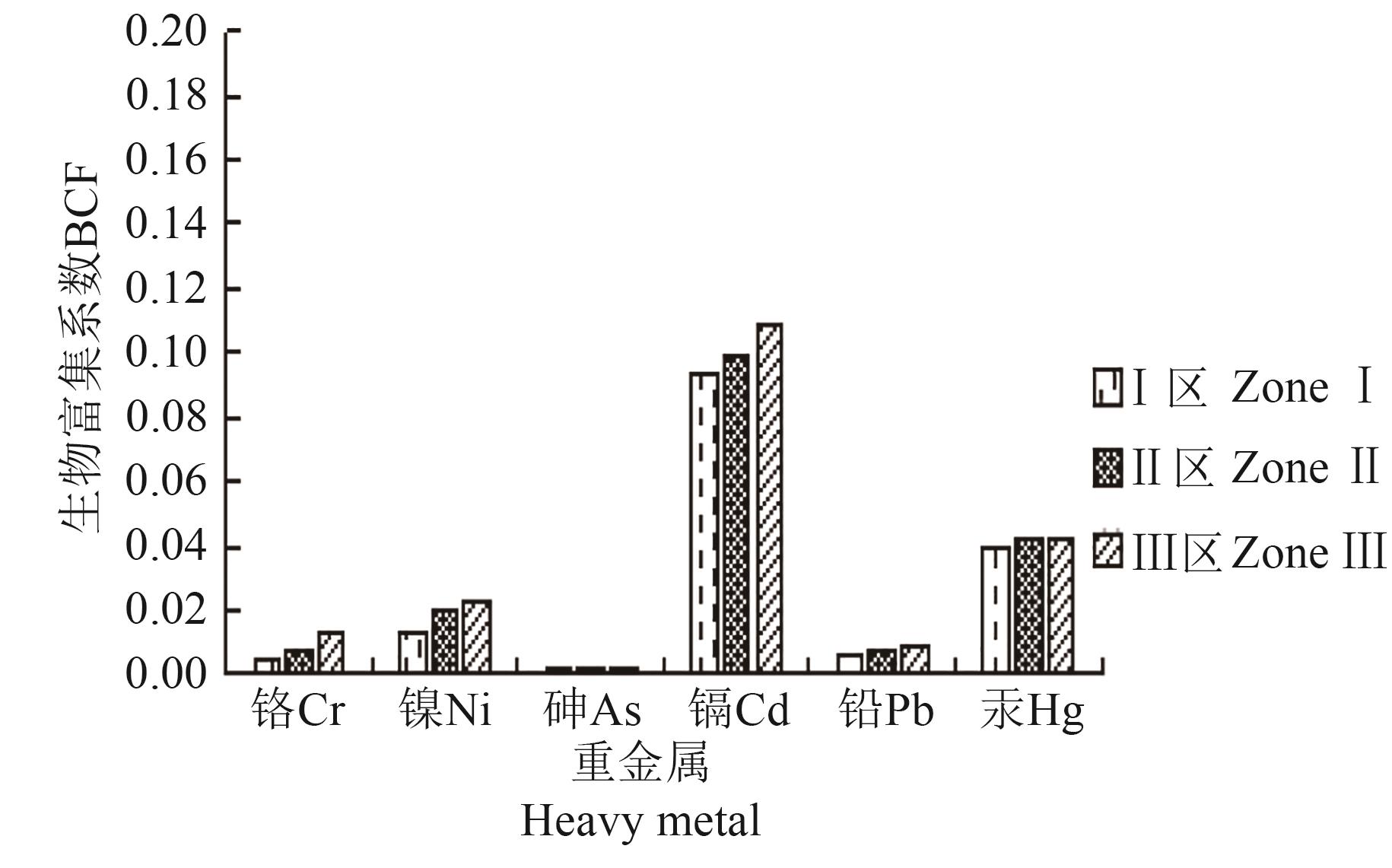

为系统研究工业集聚区土壤和农作物重金属污染，对工业集聚区不同方位、不同距离的土壤和小麦重金属含量进行测定，采用单因子污染指数法、内梅罗综合污染指数法（Nemero composite pollution index，NPI）及生物富集系数法进行分析。结果表明，工业集聚区内土壤和小麦重金属污染严重（NPI>2），工业集聚区外至5 km范围内，除汞（Hg）、铅（Pb）和锌（Zn）污染较轻，其他重金属污染相对较严重（NPI>1），工业集聚区5 km范围之外土壤和小麦重金属污染相对小（NPI<1）。同时小麦重金属含量与土壤重金属含量存在显著相关性，主要食用组织籽粒中镉（Cd）、Hg、Pb、镍（Ni）、砷（As）与土壤重金属含量呈正相关，相关系数分别为0.484、0.409、0.018、0.679，0.480，籽粒中铬（Cr）与土壤重金属含量呈负相关，相关系数为-0.133。依据研究结果，建议工业集聚区内不宜种植农作物（小麦），工业集聚区外至5 km范围内种植的小麦只可食用籽粒，工业集聚区5 km范围之外可安全开展农作物（小麦）生产。

关键词: 工业集聚区, 重金属污染, 土壤污染, 农作物

CLC Number:

X826

Peiqiang ZHAO, Yongfeng CUI, Ya XU, Mingli LI. Analysis of Characteristics of Heavy Metal Accumulation in Soil and Crops in Industrial Agglomeration Zone[J]. Journal of Agricultural Science and Technology, 2024, 26(8): 163-171.

赵培强, 崔永峰, 徐亚, 李明丽. 工业集聚区土壤和农作物重金属赋存特征解析[J]. 中国农业科技导报, 2024, 26(8): 163-171.

Figures/Tables 9

References 24

1	刘意章,肖唐付,熊艳,等. 西南高镉地质背景区农田土壤与农作物的重金属富集特征[J].环境科学, 2019,40(6):2877-2884.
	LIU Y Z, XIAO T F, XIONG Y, et al.. Accumulation of heavy metals in agricultural soils and crops from an area with a high geochemical background of cadmium, Southwestern China [J]. Environ. Sci., 2019, 40(6): 2877-2884.
2	徐建明,孟俊,刘杏梅,等. 我国农田土壤重金属污染防治与粮食安全保障[J].中国科学院院刊, 2018, 33 (2): 153- 159.
	XU J M, MENG J, LIU X M, et al.. Control of heavy metal pollution in farmland of china in terms of food security [J]. Bull. Chin. Acad. Sci., 2018, 33 (2): 153-159.
3	环境保护部,国土资源部. 全国土壤污染状况调查公报[EB/OL]. (2014-04-17)[2023-12-18]. http: / /.
4	赵其国,黄国勤,钱海燕.生态农业与食品安全[J].土壤学报, 2007, 44(6): 1127-1134.
	ZHAO Q G, HUANG G Q, QIAN H Y. Ecological agriculture and food safety [J]. Acta Pedol. Sin., 2007, 44 (6):1127-1134.
5	李瑾,王艳平,李艳丽,等.火电厂周边土壤污染及农作物重金属的累积特征评价[J].昆明理工大学学报(自然科学版), 2020, 45(1): 87-92.
	LI J, WANG Y P, LI Y L, et al.. Evaluation of soil pollution around thermal power plants and accumulation characteristics of heavy metals in crops [J]. J. Kunming Univ. Sci. Technol. (Nat. Sci.), 2020, 45(1):87-92.
6	刘继瑞,党辉,张宝善,等. 陕西安康地区农作物重金属浓度空间变异及污染评价[J].食品安全质量检测学报,2022,13(4):1318-1326.
	LIU J R, DANG H, ZHANG B S, et al.. Spatial variability and pollution valuation of heavy metal concentration in crops in Ankang area, Shaanxi province [J]. J. Food Safety Quality, 2022,13(4):1318-1326.
7	刘钢,史正涛,曾建军,等. 大气降水中重金属离子特征研究[J].环境科学与管理, 2014, 39(11): 41-44.
	LIU G, SHI Z T, ZENG J J, et al.. Summary of charcateristics of heavy metals in atmospheric precipitation [J]. Environ. Sci. Manage., 2014, 39(11): 41-44.
8	陈其永,浩允兵,倪润详,等. 2000—2018年我国大气重金属沉降通量时空变化特征[J].环境科学, 2022, 43(9): 4413-4424.
	CHEN Q Y, HAO Y B, NI R X, et al.. Temporal and spatial variation charcateristics of heavy metal in atmospheric deposition in China from 2000 to 2018 [J]. Environ. Sci., 2022, 43(9): 4413-4424.
9	张乃明. 大气沉降对土壤累积的影响[J].土壤与环境,2001,10(2):91-93.
	ZHANG N M. Effects of air settlement on heavy metal accumulation in soil [J]. Soil Environ. Sci., 2001, 10(2): 91-93.
10	吴同亮,王玉军,陈怀满. 2016—2020年环境十壤学研究进展与热点分析[J].农业环境科学学报, 2021, 40(1): 1-15.
	WU T L, WANG Y J, CHEN H M. Research progress and hotspot of environmental soil science between 2016—2020 based on biblometrice analysis [J]. J. Agro-Environ. Sci., 2021, 40(1): 1-15.
11	王梦梦,原梦云,苏德纯. 我国大气重金属干湿沉降特征及时空变化规律[J].中国环境科学,2017,37(11):4085-4096.
	WANG M M, YUAN M Y, SU D C. Characteristics and spatial-temporal variation of heavy metals in atmospheric dry and wet deposition of China [J].Chin. Environ. Sci., 2017, 37(11):4085-4096.
12	周雯靖,贺惠. 我国农田土壤重金属污染来源及特点[J].科教文汇, 2013(4):102-103.
13	RAI S, GUPTA S, MITTAL P C. Dietary in takes and health risk of toxic and essential heavy metals through the food chain in agricultural, industrial, and coal mining areas of northern India [J]. Human Ecol. Risk Asses., 2015, 21(4): 913-933.
14	王玉锁,李洁芬,冯梓琪,等.土壤重金属污染程度对农作物生长影响的研究[J].环境科学与管理, 2021, 46(5): 165-170.
	WANG Y S, LI J F, FENG Z Q, et al.. Analysis on infiuence of soil heavy metal pollution crop growth [J]. Environ. Sci. Manage., 2021,46(5): 165-170.
15	PEREIRA P A P, LOPES W A, CARVALHO L S, et al.. Atmospheric concentrations and dry deposition fluxes of particulate trace metals in Salvador, Bahia, Brazil [J]. Atmos. Environ., 2007, 41(36):7837-7850.
16	GRAY C W, MCLAREN R G, ROBERTS A H C. Ahnospheric accessions of heavy metals to some New Zealand Pastoral soils [J]. Sci. Total Environ., 2003, 305(13):105-115.
17	梁鸿霞, 翟通德, 陈中兰, 等. 南充市区绿化植物叶片重金属元素含量及其大气污染评价[J].西华师范大学学报(自然科学版), 2006, 27(4):435-438.
	LIANG H X, ZHAI T D, CHEN Z L,et al.. Contents of heavy metal in leaves of plants and air pollution evaluation in Nanchong region [J]. J. Weast Norm. Univ. (Nat. Sci.), 2006, 27(4): 432-438.
18	任乃林,陈炜彬,黄俊生,等. 用植物叶片中重金属元素含量指示大气污染的研究[J].广东微量元素科学, 2004, 11(10): 41-48.
	REN N L, CHEN W B, HUANG J S,et al.. Study on air enbironmnent pollutiong by the content of heavy metals in leaves of plants [J]. Guangdong Trace Elements Sci., 2004, 11(10): 41-48.
19	章明奎,刘兆云,周翠. 铅锌矿区附近大气沉降对蔬菜中重金属积累的影响[J].浙江大学学报(农业与生命科学版), 2010, 36(2):221-229.
	ZHANG M K, LIU Z Y, ZHOU C. Effect of atmospheric deposition on heavy metal accumulation in vegetable crop near a lead-zinc smelt mine [J]. J. Zhejiang Univ.(Agric. Life Sci.), 2010, 36(2):221-229.
20	中华人民共和国生态环境部,国家市场监督管理总局. 土壤环境质量农用地土壤污染风险管控标准(试行): [S].北京:中国标准出版社, 2018.
21	中华人民共和国国家卫生和计划生育委员会, 国家食品药品监督管理总局. 食品安全国家标准食品中污染物限量: [S].北京:中国标准出版社, 2017.
22	李堆淑,胡景红,张善红. 陕西商洛某冶炼厂周边农作物重金属污染评价[J].西北农林科技大学学报(自然科学版), 2016, 44(6):85-92.
	LI D S, HU J H, ZHANG S H. Evaluationg of heavy metal pollution of crops around a smelting plant in Shangluo, Shaanxi [J].J. NorthwestＡ＆F Univ. (Nat. Sci.), 2016, 44(6):85-92.
23	陈凤,董泽琴,王程程,等.锌冶炼区耕地土壤和农作物重金属污染状况及重金属评价[J].环境科学, 2017,38(10):4360-4369.
	CHEN F, DONG Z Q, WANG C C, et al.. Heavy metal contamination of soils and crops near a zinc melter [J].Environ. Sci., 2017, 38(10):4360-4369.
24	SALT D E, BLAYLOCK M, KUMAR N P B A, et al.. Phytoremediation: a novel strategy for theremoval of toxic metals from the environment using plants [J].Bio-Technology, 1995, 13(50):468-474.

等级Classification	内梅罗综合污染指数NPI	污染等级Pollution classification	污染水平Pollution level
Ⅰ	NPI≤0.7	安全 Safety	清洁 Clean
Ⅱ	0.7<NPI≤1	警戒级 Alert level	尚清洁 Clean yet
Ⅲ	1<NPI≤2	轻度污染 Slight pollution	开始污染 Begin to be Polluted
Ⅳ	2<NPI≤3	中度污染 Moderate pollution	污染明显 Obvious pollution
Ⅴ	NPI>3	重度污染 Heavy pollution	污染严重 Seriously pollution

等级Classification	内梅罗综合污染指数NPI	污染等级Pollution classification	污染水平Pollution level
Ⅰ	NPI≤0.7	安全 Safety	清洁 Clean
Ⅱ	0.7<NPI≤1	警戒级 Alert level	尚清洁 Clean yet
Ⅲ	1<NPI≤2	轻度污染 Slight pollution	开始污染 Begin to be Polluted
Ⅳ	2<NPI≤3	中度污染 Moderate pollution	污染明显 Obvious pollution
Ⅴ	NPI>3	重度污染 Heavy pollution	污染严重 Seriously pollution

研究区 Study zone	指标 Indicator	单因子污染指数P_i								内梅罗综合污染指数NPI	污染等级 Pollution classification	污染水平 Pollution level
研究区 Study zone	指标 Indicator	铬Cr	镍Ni	铜Cu	砷As	镉Cd	铅Pb	锌Zn	汞Hg	内梅罗综合污染指数NPI	污染等级 Pollution classification	污染水平 Pollution level
Ⅰ区 Zone I	最大值 Maximum	1.63	1.78	1.69	3.82	1.30	0.98	0.45	0.10	2.89	中度污染 Moderate pollution	开始污染 Begin to be polluted
	最小值 Minimum	1.32	1.58	1.26	2.46	0.93	0.78	0.35	0.02	1.92	轻度污染 Slight pollution	污染明显 Obvious pollution
	平均值 Mean	1.51	1.76	1.51	3.15	1.03	0.87	0.40	0.07	2.41	中度污染 Moderate pollution	污染明显 Obvious pollution
	超标率 Over-standard rate/%	100.00	100.00	100.00	100.00	50.00	0.00	0.00	0.00
	标准差 Standard deviation	0.21	0.12	0.27	0.78	0.21	0.15	0.05	0.06	0.42
	极差 Range	0.31	0.18	0.43	1.36	0.37	0.20	0.10	0.08	0.97
Ⅱ区 Zone Ⅱ	最大值 Maximum	1.43	1.52	1.85	2.75	1.21	0.65	0.48	0.02	2.11	中度污染 Moderate pollution	污染明显 Obvious pollution
	最小值 Minimum	0.67	0.41	0.30	0.52	0.31	0.07	0.13	0.11	0.74	警戒级 Alert level	尚清洁 Clean yet
	平均值 Mean	1.00	0.82	0.87	1.50	0.67	0.46	0.33	0.05	1.19	轻度污染 Slight pollution	开始污染 Begin to be polluted
	超标率 Over-standard rate/%	37.00	25.00	12.00	75.00	12.00	0.00	0.00	0.00
	标准差 Standard deviation	0.52	0.97	1.23	1.85	0.68	0.49	0.27	0.04	1.22
	极差 Range	0.76	1.11	1.52	2.23	0.84	0.58	0.35	0.09	1.37
Ⅲ区 Zone Ⅲ	最大值 Maximum	0.89	0.86	0.63	0.97	0.50	0.36	0.41	0.18	0.76	警戒级 Alert level	尚清洁 Clean yet
	最小值 Minimum	0.23	0.18	0.26	0.23	0.21	0.11	0.17	0.01	0.30	安全 Safety	清洁 Clean
	平均值 Mean	0.43	0.35	0.39	0.60	0.39	0.19	0.27	0.06	0.53	安全 Safety	清洁 Clean
	超标率 Over-standard rate/%	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
	标准差 Standard deviation	0.21	0.37	0.11	0.42	0.10	0.16	0.17	0.06	0.31
	极差 Range	0.66	0.68	0.24	0.74	0.29	0.25	0.24	0.17	0.46

研究区 Study zone	指标 Indicator	单因子污染指数P_i								内梅罗综合污染指数NPI	污染等级 Pollution classification	污染水平 Pollution level
研究区 Study zone	指标 Indicator	铬Cr	镍Ni	铜Cu	砷As	镉Cd	铅Pb	锌Zn	汞Hg	内梅罗综合污染指数NPI	污染等级 Pollution classification	污染水平 Pollution level
Ⅰ区 Zone I	最大值 Maximum	1.63	1.78	1.69	3.82	1.30	0.98	0.45	0.10	2.89	中度污染 Moderate pollution	开始污染 Begin to be polluted
	最小值 Minimum	1.32	1.58	1.26	2.46	0.93	0.78	0.35	0.02	1.92	轻度污染 Slight pollution	污染明显 Obvious pollution
	平均值 Mean	1.51	1.76	1.51	3.15	1.03	0.87	0.40	0.07	2.41	中度污染 Moderate pollution	污染明显 Obvious pollution
	超标率 Over-standard rate/%	100.00	100.00	100.00	100.00	50.00	0.00	0.00	0.00
	标准差 Standard deviation	0.21	0.12	0.27	0.78	0.21	0.15	0.05	0.06	0.42
	极差 Range	0.31	0.18	0.43	1.36	0.37	0.20	0.10	0.08	0.97
Ⅱ区 Zone Ⅱ	最大值 Maximum	1.43	1.52	1.85	2.75	1.21	0.65	0.48	0.02	2.11	中度污染 Moderate pollution	污染明显 Obvious pollution
	最小值 Minimum	0.67	0.41	0.30	0.52	0.31	0.07	0.13	0.11	0.74	警戒级 Alert level	尚清洁 Clean yet
	平均值 Mean	1.00	0.82	0.87	1.50	0.67	0.46	0.33	0.05	1.19	轻度污染 Slight pollution	开始污染 Begin to be polluted
	超标率 Over-standard rate/%	37.00	25.00	12.00	75.00	12.00	0.00	0.00	0.00
	标准差 Standard deviation	0.52	0.97	1.23	1.85	0.68	0.49	0.27	0.04	1.22
	极差 Range	0.76	1.11	1.52	2.23	0.84	0.58	0.35	0.09	1.37
Ⅲ区 Zone Ⅲ	最大值 Maximum	0.89	0.86	0.63	0.97	0.50	0.36	0.41	0.18	0.76	警戒级 Alert level	尚清洁 Clean yet
	最小值 Minimum	0.23	0.18	0.26	0.23	0.21	0.11	0.17	0.01	0.30	安全 Safety	清洁 Clean
	平均值 Mean	0.43	0.35	0.39	0.60	0.39	0.19	0.27	0.06	0.53	安全 Safety	清洁 Clean
	超标率 Over-standard rate/%	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
	标准差 Standard deviation	0.21	0.37	0.11	0.42	0.10	0.16	0.17	0.06	0.31
	极差 Range	0.66	0.68	0.24	0.74	0.29	0.25	0.24	0.17	0.46

研究区 Study zone	部位 Position	指标 Indicator	单因子污染指数P_i						内梅罗综合污染指数NPI	超标率 Over-standard rate/%	污染等级 Pollution classification	污染水平 Pollution level
研究区 Study zone	部位 Position	指标 Indicator	铬Cr	镍Ni	砷As	镉Cd	铅Pb	汞Hg	内梅罗综合污染指数NPI	超标率 Over-standard rate/%	污染等级 Pollution classification	污染水平 Pollution level
Ⅰ区 Zone Ⅰ	根 Root	最大值 Maximum	3.19	3.45	2.03	1.55	1.65	0.94	2.77	83.00	中度污染 Moderate pollution	污染明显 Obvious pollution
		最小值 Minimum	3.07	2.75	1.34	1.04	1.16	0.68	2.54
		平均值 Mean	3.09	3.17	1.69	1.24	1.45	0.79	2.66
	茎叶 Stem and leaf	最大值 Maximum	5.61	4.12	3.96	3.10	4.21	0.89	4.67	83.00	重度污染 Heavy pollution	污染严重 Seriously pollution
		最小值 Minimum	3.98	3.58	2.15	2.40	3.21	0.74	3.60
		平均值 Mean	4.77	3.82	2.92	2.73	3.71	0.82	4.08
