低温胁迫后紫花苜蓿叶片光合作用的恢复特性研究

doi:10.13304/j.nykjdb.2022.0873

摘要/Abstract

摘要：

为探究低温解除后苜蓿光合作用恢复过程中的限制位点，以‘新牧4号’和‘甘农5号’2个品种紫花苜蓿为材料，测定其低温胁迫及恢复过程中苜蓿叶片光合活性的变化。结果表明，低温胁迫下2个苜蓿品种叶片叶绿素含量、净光合速率以及光系统Ⅱ（photosystem Ⅱ，PSⅡ）活性显著下降，非光化学淬灭系数（non-photochemical quenching factor，NPQ）显著上升，但对光系统Ⅰ（photosystem Ⅰ，PSⅠ）的活性无显著影响；其中，‘甘农5号’叶绿素对低温更敏感，含量下降较多。室温恢复72 h后，2个品种苜蓿叶片PSⅡ的活性及净光合速率都有上升但均未恢复至处理前水平；NPQ缓慢下降至处理前水平，‘甘农5号’NPQ较‘新牧4号’更高，表明在恢复过程中仍有过剩光能需通过NPQ消耗。苜蓿叶片的电子传递链在低温下受抑制显著，恢复72 h后PSⅡ受体侧活性基本恢复至处理前，而PSⅡ供体侧活性显著下降。2个品种苜蓿单位反应中心捕获的用于电子传递的能量（energy captured by unit reaction center for electron transfer，ET_O/RC）和单位反应中心捕获的用于还原Q_A的能量（energy captured by the unit reaction center for reducing Q_A，TR_O/RC）在低温处理72 h后显著下降，解除低温后恢复至处理前水平，且2个品种无显著差异；2个苜蓿品种单位反应中心耗散掉的能量（energy dissipated by the unit reaction center，DI_O/RC）未恢复至处理前水平，且‘甘农5号’在恢复72 h后DI_O/RC显著升高。综上，低温胁迫显著伤害紫花苜蓿叶片光合机构，降低了光合速率，光合速率未恢复到处理前与PSⅡ的活性显著相关，限制光合作用恢复的位点在其供体侧，非光化学淬灭是恢复24 h过剩光能的主要分配途径。

关键词: 紫花苜蓿, 低温胁迫, 胁迫解除, 光合作用, 光合机构活性

Abstract:

In order to investigate the restriction sites during the recovery of photosynthesis in alfalfa after the low temperature was lifted， using‘Xinmu 4’and‘ Gannong 5’2 varieties of alfalfa as materials， the changes in photosynthetic activity of alfalfa leaves during the low temperature stress and recovery process were determined. The results showed that chlorophyll content， photosynthetic rate and photosystem Ⅱ（PSⅡ） activity of the 2 alfalfa varieties decreased significantly under low temperature stress， while non-photochemical quenching factor （NPQ） increased significantly， but had no significant effect on photosystem Ⅰ （PSⅠ） activity； the chlorophyll of‘ Gannong 5’ was more sensitive to low temperature and its content decreased more. The activity of PSⅡ and photosynthetic rate of both varieties of alfalfa increased after 72 h recovery from room temperature but did not recover to the pre-treatment level； NPQ slowly decreased and dropped to the pre-treatment level， but NPQ of ‘Gannong 5’ was higher than that of ‘Xinmu 4’ during the recovery process， which indicated that ‘Gannong 5’ still had excess light energy production to be consumed through NPQ during the recovery process. The electron transport chain of alfalfa leaves was severely restricted at low temperature， and the restriction on the PS Ⅱ acceptor side at low temperatures was largely lifted after 72 h of recovery， while the PS Ⅱ donor side was significantly restricted after 72 h of recovery. The efficiency of energy captured per unit reaction centre for electron transfer （ET_O/RC） and energy captured per unit reaction centre for reducing Q_A （TR_O/RC） of both alfalfa varieties decreased significantly at 72 h of low temperature treatment and recovered to pre-treatment after lifting the low temperature， and there was no significant difference between the 2 varieties. The energy dissipated by the unit reaction center （DI_O/RC） of both alfalfa varieties did not recover to the pre-treatment level， and the energy required for recovery of ‘Gannong 5’ at 72 h was significantly higher. In summary， low temperature stress significantly injured the photosynthetic machinery of alfalfa leaves reducing photosynthetic rate， which was not restored to pre-treatment levels and was strongly correlated with PSⅡ activity， and the site limiting photosynthetic recovery was on its donor side. Non-photochemical quenching was the main way to restore 24 h excess light energy.

Key words: alfalfa, low-temperature stress, stress relief, photosynthesis, photosynthetic mechanism activity

中图分类号:

S541.9

苗宇, 王婕, 赵尧尧, 张丽佳, 刘美君. 低温胁迫后紫花苜蓿叶片光合作用的恢复特性研究[J]. 中国农业科技导报, 2024, 26(2): 80-89.

Yu MIAO, Jie WANG, Yaoyao ZHAO, Lijia ZHANG, Meijun LIU. Study on Recovery Characteristics of Photosynthesis in Alfalfa Leaves After Low Temperature Stress[J]. Journal of Agricultural Science and Technology, 2024, 26(2): 80-89.

图/表 7

图1 不同处理下紫花苜蓿的光合作用参数注：不同小写字母表示不同处理和不同品种紫花苜蓿在P<0.05水平差异显著。

Fig. 1 Photosynthetic parameters of alfalfa under different treatmentNote：Different lowercase letters indicate significant differences between treatments and different varieties of alfalfa at P<0.05 level.

图2 不同处理下紫花苜蓿的最大光化学效率和热耗散

Fig. 2 Maximum photochemical efficiency and non-photochemical quenching in alfalfa under different treatment

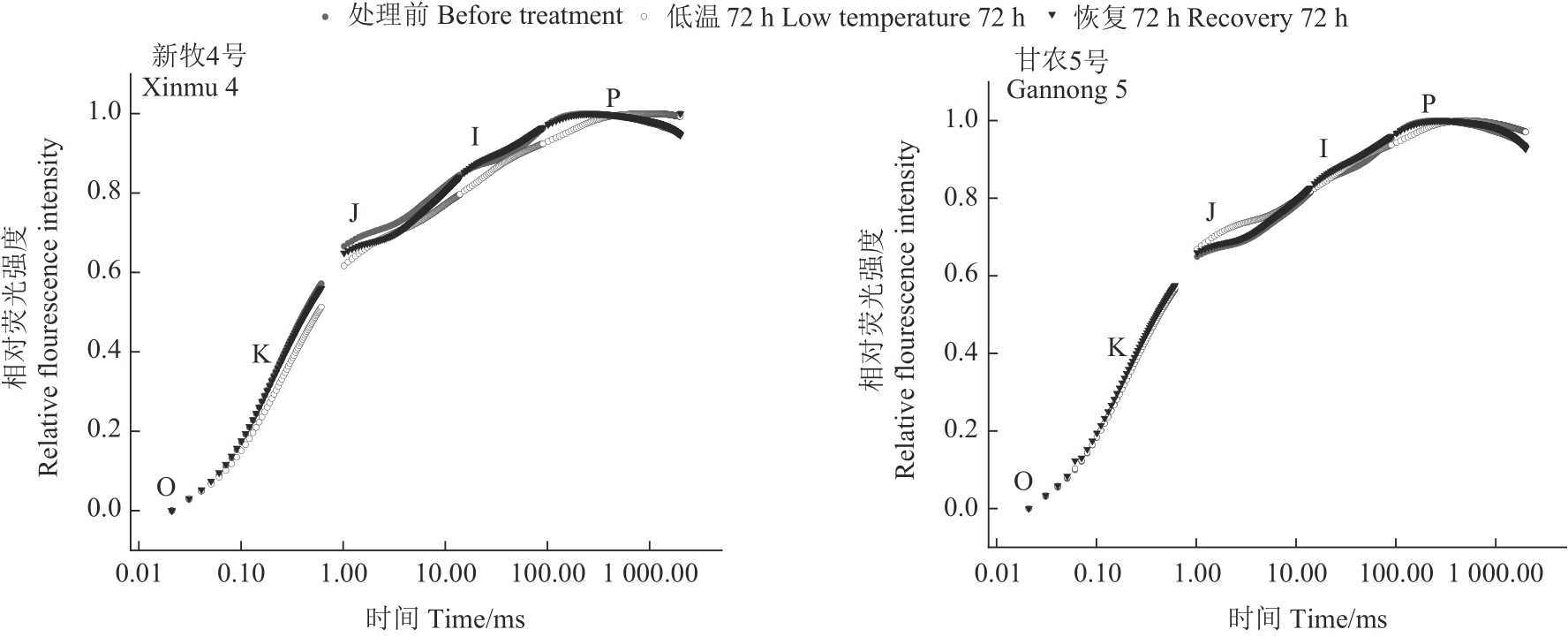

图3 不同处理下紫花苜蓿的OJIP曲线

Fig. 3 OJIP curve of alfalfa under different treatment

图4 不同处理下紫花苜蓿K点的荧光

Fig. 4 K-dot fluorescence in alfalfa under different treatment

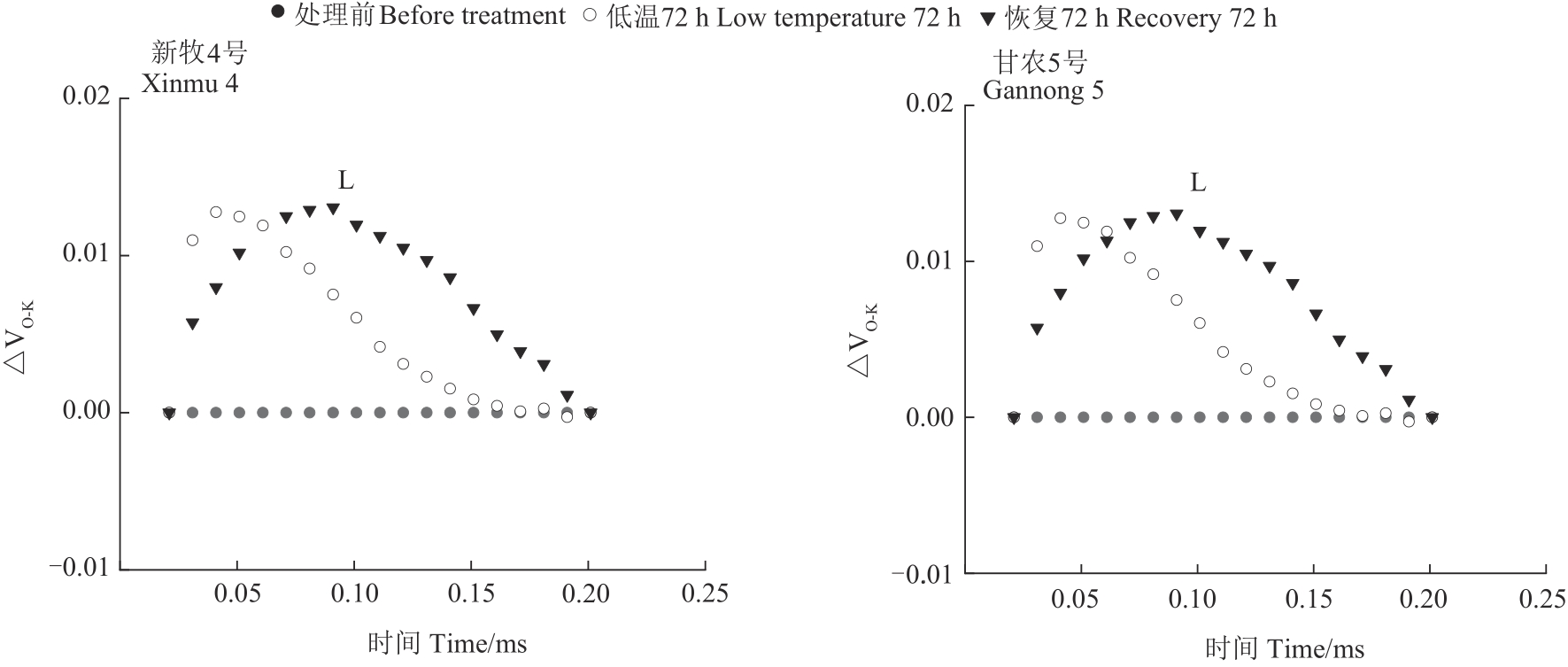

图5 不同处理下L点的荧光

Fig. 5 L-dot fluorescence under different treatment

图6 不同处理下紫花苜蓿的PSⅡ受体侧荧光参数注：不同小写字母表示不同处理和不同品种紫花苜蓿在P<0.05水平差异显著。

Fig. 6 Fluorescence parameters of PSⅡ receptor side of alfalfa under different treatmentNote：Different lowercase letters indicate significant differences between treatments and different varieties of alfalfa at P<0.05 level.

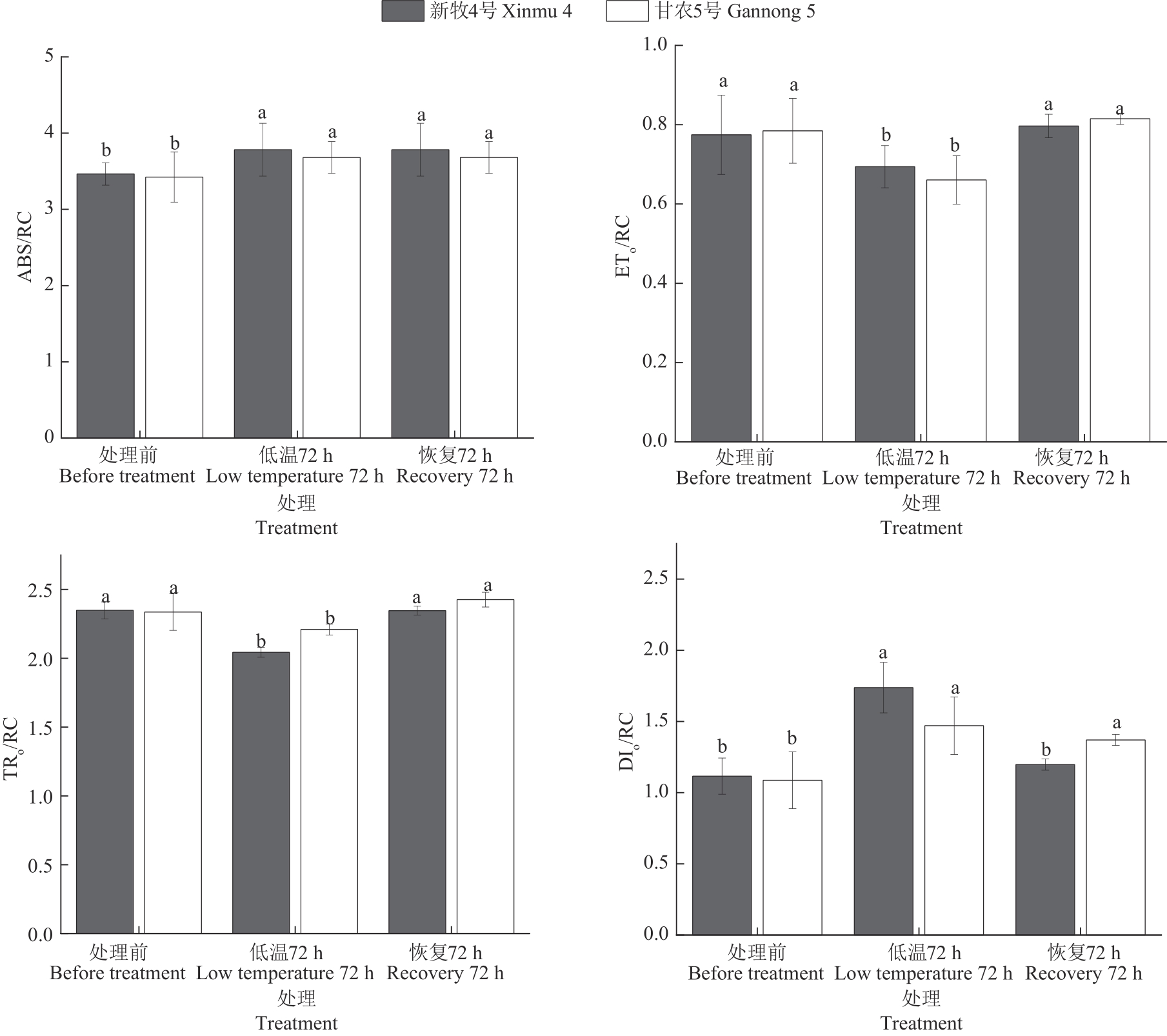

图7 不同处理下紫花苜蓿的比活性参数注：不同小写字母表示不同处理和不同品种紫花苜蓿在P<0.05水平差异显著。

Fig. 7 Specific activity parameters of alfalfa under different treatmentNote：Different lowercase letters indicate significant differences between treatments and different varieties of alfalfa at P<0.05 level.

参考文献 36

1	项洪涛,郑殿峰,何宁,等.植物对低温胁迫的生理响应及外源脱落酸缓解胁迫效应的研究进展[J].草业学报,2021,30(1):208-219.
	XIANG H T, ZHENG D F, HE N, et al.. Research progress on the physiological response of plants to low temperature and theamelioration effcectiveness of exogenous ABA [J]. Acta Pratac. Sin., 2021,30(1):208-219.
2	赵文静,张浩阳,徐燕妮,等.不同温度下AOX和COX途径对苜蓿种子萌发和幼根生长的影响[J].草地学报,2022,30(1):84-92.
	ZHAO W J, ZHANG H Y, XU Y N, et al.. Effects of the alternative oxdase and cytochrome oxidase pathways on the germination of seeds and growth of roots of alfalfa seedlings under different temperatures [J]. Acta Agrestia Sin., 2022,30(1):84-92.
3	张尚雄,尼玛平措,徐雅梅,等.3个披碱草属牧草对低温胁迫的生理响应及苗期抗寒性评价[J].草业科学,2016,33(66):1154-1163.
	ZHANG S X, Nimapingcuo, XU Y M, et al.. Physiological reponses to low temperature stress and cold tolerance evaluation in three Elymus species [J]. Pratac. Sci., 2016, 33(66):1154-1163.
4	吕优伟,贺佳圆,白小明,等. 9个野生早熟禾对低温胁迫的生理响应及苗期抗寒性评价[J].草地学报,2014,22(2):326-333.
	LYU Y W, HE J Y, BAI X M, et al.. Evaluation of phsiological responses and resistance of nine wild Poa to low temperature [J]. Acta Agrestia Sin., 2014,22(2):326-333.
5	史毅,牛奎举,余倩倩,等.低温对青海扁茎早熟禾活性氧代谢的影响和相关基因表达分析[J].草业学报,2017,26(12):98-107.
	SHI Y, NIU K J, YU Q Q, et al.. Effect of freezing stress on ROS metabolism and cold-induced genes in Poa pratensis var. anceps cv. Qinghai [J]. Acta Pratac. Sin., 2017,26(12):98-107.
6	莫亿伟,郭振飞,谢江辉. 温度胁迫对柱花草叶绿素荧光参数和光合速率的影响[J].草业学报,2011,20(1):96-101.
	MO Y W, GUO Z F, XIE J H. Effects of tempertatrue stress on chlorophy Ⅱ fluorescence parameters and photosynthetic rates of Stylosanthes guianensis [J]. Acta Pratac. Sin., 2011,20(1): 96-101.
7	王运涛,于林清,王富贵,等.低温胁迫对返青期苜蓿叶片荧光参数的影响[J].中国草地学报,2013,35(1):29-34.
	WANG Y T, YU L Q, WANG F G, et al.. Effects of low-temperature stress on chlorophy Ⅱ fluoresecence parameters of alfalfa in returning green period [J]. Chin. J. Grassland, 2013,35(1):29-34.
8	武辉,戴海芳,张巨松,等.棉花幼苗叶片光合特性对低温胁迫及恢复处理的响应[J].植物生态学报,2014,38(10):1124-1134.
	WU H, DAI H F, ZHANG J S, et al.. Responses of photosynthetic characteristics to low temperature stress and recovery treatment in cotton seedling leaves [J].Chin. J. Plant Ecol., 2014,38(10):1124-1134.
9	王玉萍,郜春晓,王盛祥,等.低温弱光胁迫下芸豆叶片光抑制与类囊体膜脂构成变化[J].草业学报,2020,29(8):116-125.
	WANG Y P, GAO C X, WANG C X, et al.. Changes in photionhibition and fatty acid composition in the thylakoid membrane of kidney bean leaves under low temperature and weak light stress [J]. Acta Pratac. Sin., 2020,29(8):116-125.
10	张毅,顾慰连,戴俊英,等.低温胁迫后恢复生长期间玉米光合作用的变化规律[J].华北农学报,1991,6(1):123.
	ZHANG Y, GU W L, DAI J Y, et al.. Changes of photosynthesis of maize plants during restoration after chilling stress [J]. Acta Agric Boreali-Sin., 1991, 6(1):123.
11	梁芳,郑成淑,孙宪芝,等.低温弱光胁迫及恢复对切花菊光合作用和叶绿素荧光参数的影响[J].应用生态学报,2010,21(1):29-35.
	LIANG F, ZHENG C S, SUN X Z, et al.. Effects of low temperature-and weak light stress and its recovery on the photosyn thesis and chlorophy Ⅱfluorescence parameters of cut flower chrysan themum [J]. Chin. J. Appl. Ecol., 2010,21(1):29-35.
12	POWLES S B. Photoinhibition of photosynthesis induced by visible light [J]. Ann. Rev. Plant Physiol., 1984, 35: 15-44.
13	张子山,杨程,高辉远,等.低温光抑制恢复过程中黄瓜叶片PSⅡ活性及其电子传递对PSⅠ的影响[J].应用生态学报,2012,23(4):1049-1054.
	ZHANG Z S, YANG C, GAO H Y, et al.. Effects of cucumber leaf's PS Ⅱ activity and electron transfer on its PS Ⅰ activity inrecovery process after chilling-induced photoinhibition [J].Chin. J. Appl. Ecol., 2012,23(4):1049-1054.
14	胡文海,胡雪华,闫小红,等.低温胁迫及恢复对番茄快速叶绿素荧光诱导动力学特征的影响[J].中国农业气象,2021,42(10):859-869.
	HU W H, HU X H, YAN X H, et al.. Response of chlorophyll fluorescence transient in leaves of tomato under chilling stress and subsequent recovery [J]. Chin. J. Agrometeorol., 2021,42(10):859-869.
15	AGRAWAL D, JAJOO A. Study of high temperature stress induced damage and recovery in photosystem Ⅱ (PSⅡ) and photosystem Ⅰ (PSⅠ) in Spinach leaves (Spinacia oleracia) [J]. J. Plant Biochem. Biot., 2021,25(7):20-25.
16	LUO H B, LING M, XI H F, et al.. Photosynthetic responses to heat treatments at different temperatures and following recovery in grapevine (Vitis amurensis L.) leaves [J/OL]. PLoS One, 2011,6(8):e23033 [2022-09-12]. .
17	LI X G, WANG X M, MEMG Q W, et al.. Factors limiting photosynthetic recovery in sweet pepper leaves after short-term chilling stress under low irradiance [J].Photosynthetica, 2004,42(2):257-262.
18	HOLA D, LANGROVA K, KOVOVA M, et al.. Photosynthetic parameters of maize (Zea mays L.) inbred lines and F₁ hybrids: their different response to, and recovery from rapid or gradual onset of low-temperature stress [J]. Photosynthetica, 2003,41(3):429-442.
19	梁金,金娟,贺春贵,等.甘肃苜蓿秋眠性评定技术标准的研究[J].草地学报,2013,21(5):1023-1027.
	LIANG J, JIN J, HE C G, et al.. Evaluating standards of alfalfa fall dormancy in Gansu province [J]. Acta Agrestia Sin., 2013,21(5):1023-1027.
20	SONOIKE K. The different roles of chilling temperatures in the photoinhibition of photosystem Ⅰ and photosystem Ⅱ [J]. J. Photochem. Photobiol. B: Biol., 1999, 48: 136-141.
21	李德耀,邱国雄,沈允钢.氧电极法测叶片光合作用技术探讨[J].植物生理学通讯,1982(5):23-25.
22	张子山,张立涛,高辉远,等.不同光强与低温交叉胁迫下黄瓜PSⅠ与PSⅡ的光抑制研究[J].中国农业科学,2009,42(12):4288-4293.
	ZHANG Z S, ZHANG L T, GAO H Y, et al.. Research of the photoinhibition of PSⅠ and PSⅡ in leaves of cucumber under chilling stress combined with different light intensities [J]. Sci. Agric. Sin., 2009,42(12):4288-4293.
23	徐若涵,杨再强,申梦吟,等.苗期低温胁迫对“红颜”草莓叶绿素含量及冠层高光谱的影响[J].中国农业气象,2022,43(2):148-158.
	XU R H, YANG Z Q, SHEN M Y, et al.. Effects of low temperature stress at seedling stage on chlorophyll content and canopy hyperspectral of "Hongyan" strawberry [J].Chin. J. Agrometeorol., 2022,43(2):148-158.
24	GARSTKA M, VENEMA J H, RUMAK I, et al.. Contrasting effect of dark-chilling on chloroplast structure and arrangement of chlorophyll-protein complexes in pea and tomato: plants with a different susceptibility to non-freezing temperature [J]. Planta, 2007,226: 1165-1181.
25	郑友峰,陈家兰,肖昉,等.不同温度对苋菜光合特性及光合作用相关基因表达的影响[J].植物资源与环境学报,2022,31(5):50-57.
	ZHENG Y F, CHEN J L, XIAO F, et al.. Effects of different temperatures on photosynthetic characteristics and expression of photosynthesis-related genes in Amaranthus tricolor [J]. J. Plant Resour. Environ., 2022,31(5):50-57.
26	逯久幸,苗润田,王司琦,等.低温胁迫下秋菊叶片光系统特性分析[J].植物生理学报,2022,58(2):425-434.
	LU J X, MIAO R T, WANG S Q, et al.. Analysis of photosystem features in autumn chrysanthemum leaves under low temperature stress [J]. Plant Physiol. J., 2022, 58(2): 425-434.
27	LI Y T, XU W W, REN B Z, et al.. High temperature reduces photosynthesis in maize leaves by damaging chloroplast ultrastructure and photosystem Ⅱ [J/OL]. J. Agron. Crop Sci., 2020, 206(9):12401 [2022-09-12]. .
28	COHEN R O, SHEN G Z, GOLBECK J H, et al.. Evidence for asymmetric electron transfer in cyanobacterial photosystem I: analysis of a methionine-to-leucine mutation of the ligand to the primary electron acceptor A₀ [J]. Biochemistry, 2004,43: 4741-4754.
29	SONOIKE K. Photoinhibition and protection of photosystem I[C]// GOLBECK J H. Photosystem Ⅰ: The Light-Driven Plastocyanin:Ferredoxin Oxidoreductase. Dordrecht: Springer,2006:657-668.
30	MURATA N, TAKAHASHI S, NISHIYAMA Y, et al.. Photoinhibition of photosystem Ⅱ under environmental stress [J]. BBA-Bioenergetics, 2007,1767(6): 414-421.
31	孙鲁龙,耿庆伟,邢浩,等.低温处理葡萄根系对叶片PSII活性的影响[J].植物学报,2017,52(2):159-166.
	SUN L L, GENG Q W, XING H, et al.. Effect of low temperature treatments in root of grapevine on PSⅡ activity in leaves [J]. Chin. Bull. Bot., 2017,52(2):159-166.
32	LI X G, WANG X M, MENG Q W, et al.. Factors limiting photosynthetic recovery in sweet pepper leaves after short-term chilling stress under low irradiance [J]. Photosynthetica, 2004,42(2):257-262.
33	YORDANOV I, VELIKOVA V. Photoinhibition of photosystem Ⅰ [J]. Bulg. J. Plant Physiol., 2000,26:70-92.
34	YAMAMOTO Y, KAI S, OHNISHI A, et al.. Quality control of PSⅡ: behavior of PSⅡ in the highly crowded grana thylakoids under excessive light [J]. Plant Cell Physiol., 2014,55(7):1206-1215.
35	TEICHER H B, MOLLER B L, SCHELLER H V. Photoinhibition of photosystem Ⅰ in field-grown barley (Hordeum vulgare L.): induction, recovery and acclimation [J]. Photosynth. Res., 2000,64:53-61.
36	XU C, WANG M T, YANG Z Q, et al.. Low temperature and low irradiation induced irreversible damage of strawberry seedlings [J]. Photosynthetica, 2020,58(1):156-164.
