Journal of Agricultural Science and Technology ›› 2023, Vol. 25 ›› Issue (10): 22-34.DOI: 10.13304/j.nykjdb.2023.0108
• BIOTECHNOLOGY & LIFE SCIENCE • Previous Articles Next Articles
Hui ZHANG1,2(), Yueyue WANG2,3, Bo ZHAO2,3, Liling ZHANG3, Qianru QIE3, Yuanhuai HAN2,3, Xukai LI1,2(
)
Received:
2023-02-17
Accepted:
2023-06-14
Online:
2023-10-15
Published:
2023-10-27
Contact:
Xukai LI
张会1,2(), 王越越2,3, 赵波2,3, 张丽玲3, 郄倩茹3, 韩渊怀2,3, 李旭凯1,2(
)
通讯作者:
李旭凯
作者简介:
张会 E-mail:huizhang@sxau.edu.cn;
基金资助:
CLC Number:
Hui ZHANG, Yueyue WANG, Bo ZHAO, Liling ZHANG, Qianru QIE, Yuanhuai HAN, Xukai LI. Identification of Co-expression Genes Related to Cold Stress in Foxtail Millet by WGCNA[J]. Journal of Agricultural Science and Technology, 2023, 25(10): 22-34.
张会, 王越越, 赵波, 张丽玲, 郄倩茹, 韩渊怀, 李旭凯. 基于WGCNA的谷子苗期冷胁迫应答基因网络构建与核心因子发掘[J]. 中国农业科技导报, 2023, 25(10): 22-34.
基因 Gene | 上游引物 Forward primer (5’-3’) | 下游引物 Reverse primer (5’-3’) |
---|---|---|
Actin | TGCTCAGTGGAGGCTCAACA | CCAGACACTGTACTTGCGCTC |
Si2g38970 | GCCGGATGTTCTGGTGGTAT | CCTTGAAACTGCGTTCACCG |
Si3g02940 | TATACCGCACCAGCGATGAC | TCCTTTGGGACCTGATTGCC |
Si3g08050 | CTCCGACACCGACTCATTCT | AAGAAGATGACCGACACCCG |
Si5g36480 | CAGCATCCCCAGAGAGCAAA | GCACCTTGGGAACTGTGTCT |
Si6g03220 | GAGCATCGTGCTGTCAGAGG | CGTTGGGTCCAGGAACAGAT |
Si9g50340 | CCTCACAGACATGCCCATCG | TCGACATCGACTCAGTTGCC |
Table 1 RT-qPCR primer sequence
基因 Gene | 上游引物 Forward primer (5’-3’) | 下游引物 Reverse primer (5’-3’) |
---|---|---|
Actin | TGCTCAGTGGAGGCTCAACA | CCAGACACTGTACTTGCGCTC |
Si2g38970 | GCCGGATGTTCTGGTGGTAT | CCTTGAAACTGCGTTCACCG |
Si3g02940 | TATACCGCACCAGCGATGAC | TCCTTTGGGACCTGATTGCC |
Si3g08050 | CTCCGACACCGACTCATTCT | AAGAAGATGACCGACACCCG |
Si5g36480 | CAGCATCCCCAGAGAGCAAA | GCACCTTGGGAACTGTGTCT |
Si6g03220 | GAGCATCGTGCTGTCAGAGG | CGTTGGGTCCAGGAACAGAT |
Si9g50340 | CCTCACAGACATGCCCATCG | TCGACATCGACTCAGTTGCC |

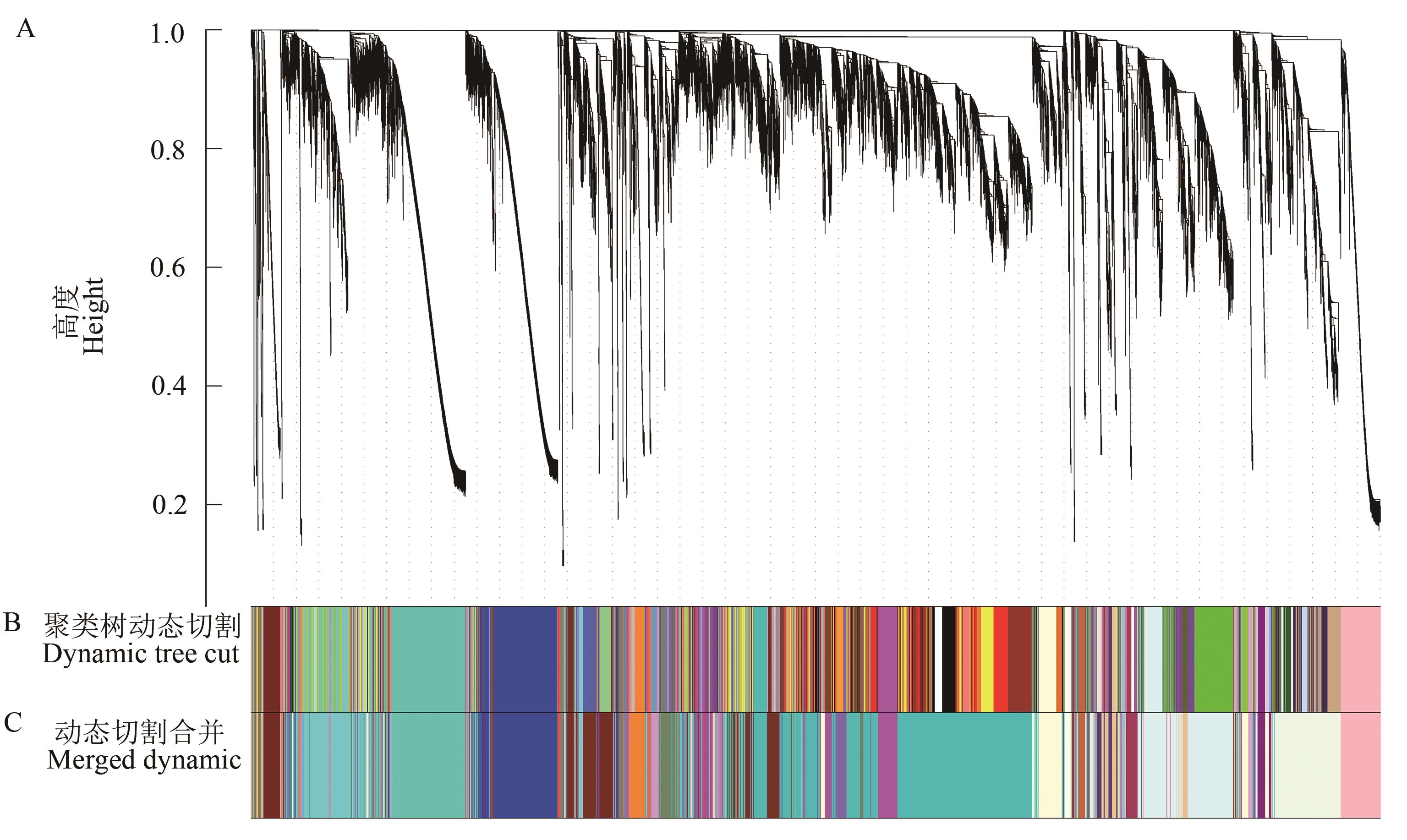

Fig. 1 Gene cluster dendrogram and module detectingA: Clustering of genes based on the topological overlap; B: Dynamic tree cut represents the module divided according to the expression of each gene, colors represent modules; C: Merged dynamic is the result of merging similar modules according to the dynamic tree cut

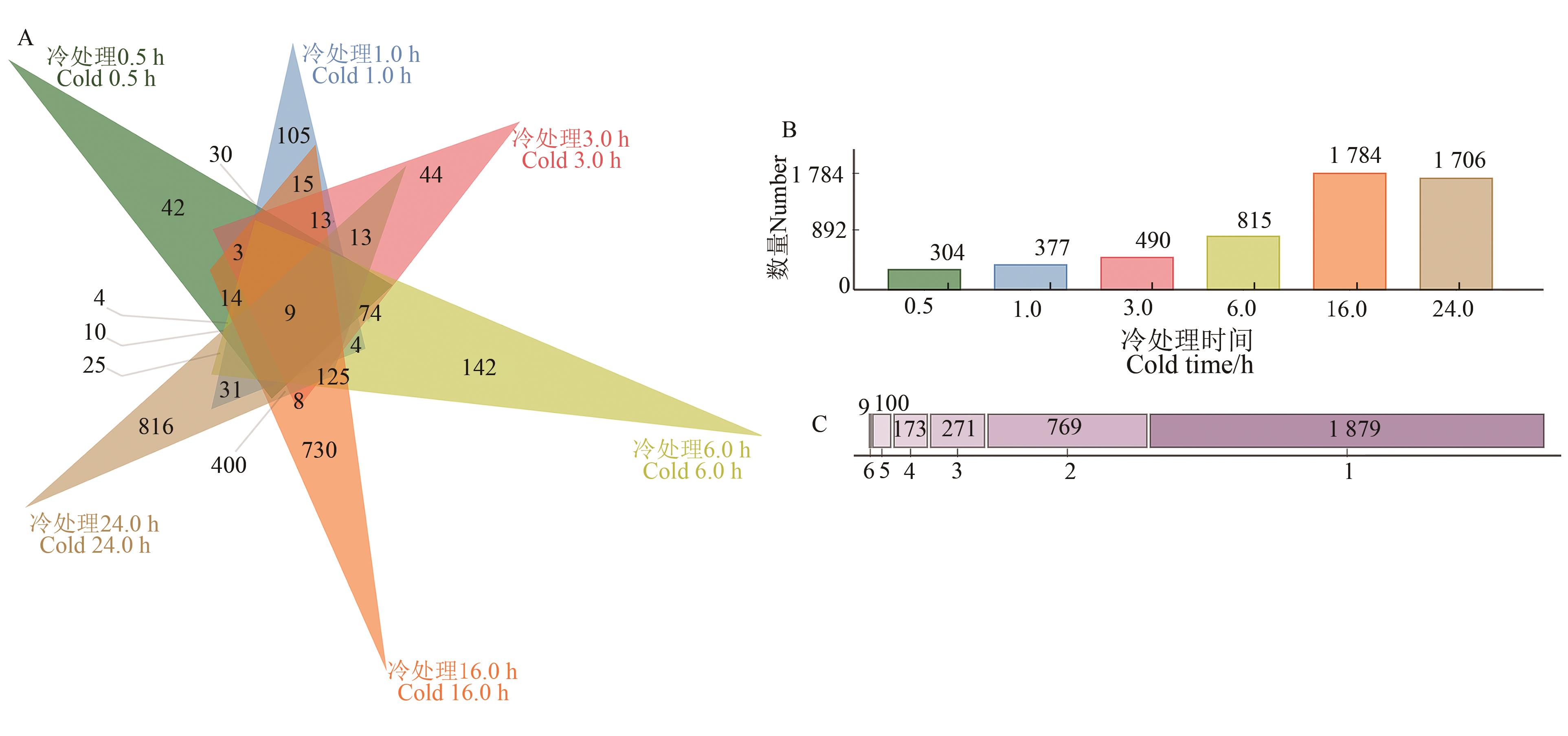

Fig. 2 Analysis of differentially expressed genes in foxtail millet under cold stressA: Venn diagram of number of the differentially expressed genes among 6 different cold stress conditions; B: Number of the differentially expressed genes in 6 different cold stress conditions; C:Number of the differentially expressed genes that are unique or shared under 6 different cold stress conditions,1~6 in the X-axis mean the frequency of the differentially expressed genes among 6 different cold stress conditions
基因 Gene | 水稻同源基因 Homologous gene in rice | 功能注释 Function annotation | 拟南芥同源基因 Homologous gene in Arabidopsis thaliana | 功能注释 Function annotation |
---|---|---|---|---|
Si2g38970 | LOC_Os07g42650 | 保守假蛋白 Conserved hypothetical protein | At4g33980 | 冷调控基因28 Cold-regulate gene 28 |
Si3g01950 | LOC_Os04g58710 | 4-香豆酸-Co-A连接酶类蛋白 4-coumarate-Co-A ligase (4CL) like protein | At1g77230 | 四肽重复类超家族蛋白 Tetratricopeptide repeat (TPR)-like superfamily protein |
Si3g02940 | LOC_Os04g57550 | 多胺氧化酶,种子萌发 Polyamine oxidase (PAO2), seed germination | At2g43020 | 多肽氧化酶2 Polyamine oxidase 2, ATPAO2 |
Si3g08050 | LOC_Os05g11810 | 类赤霉素2-β-双加氧酶 Similar to gibberellin 2-beta-dioxygenase | At1g30040 | 赤霉素2-氧化酶 Gibberellin 2-oxidase |
Si5g36480 | LOC_Os01g60600 | WRKY 转录因子 WRKY transcription factor | At5g22570 | WRKY DNA 结合蛋白38 WRKY DNA-binding protein 38 |
Si5g39150 | LOC_Os05g37060 | R-R型MYB类转录因子 R-R-type MYB-like transcription factor | At5g67420 | 含LOB结构域的蛋白37 LOB-domain-containing protein 37 |
Si6g03220 | LOC_Os04g52090 | APETALA 2 类转录因子 APETALA-2-like transcription factor | At5g44210 | ERF 结构域蛋白9 ERF domain protein- 9 |
Si7g06300 | LOC_Os04g23550 | 螺旋-环-螺旋转录激活因子 Basic helix-loop-helix (bHLH) transcription activator | At4g16430 | bHLH DNA 结合超家族蛋白 bHLH DNA-binding superfamily protein |
Si9g50340 | LOC_Os07g42370 | 含TIFY结构域蛋白 TIFY domain containing protein | At1g74950 | TIFY结构域/发散CCT基序家族蛋白 TIFY domain/divergent CCT motif family protein |
Table 2 Differentially expressed genes under 6 cold stress conditions in foxtail millet
基因 Gene | 水稻同源基因 Homologous gene in rice | 功能注释 Function annotation | 拟南芥同源基因 Homologous gene in Arabidopsis thaliana | 功能注释 Function annotation |
---|---|---|---|---|
Si2g38970 | LOC_Os07g42650 | 保守假蛋白 Conserved hypothetical protein | At4g33980 | 冷调控基因28 Cold-regulate gene 28 |
Si3g01950 | LOC_Os04g58710 | 4-香豆酸-Co-A连接酶类蛋白 4-coumarate-Co-A ligase (4CL) like protein | At1g77230 | 四肽重复类超家族蛋白 Tetratricopeptide repeat (TPR)-like superfamily protein |
Si3g02940 | LOC_Os04g57550 | 多胺氧化酶,种子萌发 Polyamine oxidase (PAO2), seed germination | At2g43020 | 多肽氧化酶2 Polyamine oxidase 2, ATPAO2 |
Si3g08050 | LOC_Os05g11810 | 类赤霉素2-β-双加氧酶 Similar to gibberellin 2-beta-dioxygenase | At1g30040 | 赤霉素2-氧化酶 Gibberellin 2-oxidase |
Si5g36480 | LOC_Os01g60600 | WRKY 转录因子 WRKY transcription factor | At5g22570 | WRKY DNA 结合蛋白38 WRKY DNA-binding protein 38 |
Si5g39150 | LOC_Os05g37060 | R-R型MYB类转录因子 R-R-type MYB-like transcription factor | At5g67420 | 含LOB结构域的蛋白37 LOB-domain-containing protein 37 |
Si6g03220 | LOC_Os04g52090 | APETALA 2 类转录因子 APETALA-2-like transcription factor | At5g44210 | ERF 结构域蛋白9 ERF domain protein- 9 |
Si7g06300 | LOC_Os04g23550 | 螺旋-环-螺旋转录激活因子 Basic helix-loop-helix (bHLH) transcription activator | At4g16430 | bHLH DNA 结合超家族蛋白 bHLH DNA-binding superfamily protein |
Si9g50340 | LOC_Os07g42370 | 含TIFY结构域蛋白 TIFY domain containing protein | At1g74950 | TIFY结构域/发散CCT基序家族蛋白 TIFY domain/divergent CCT motif family protein |

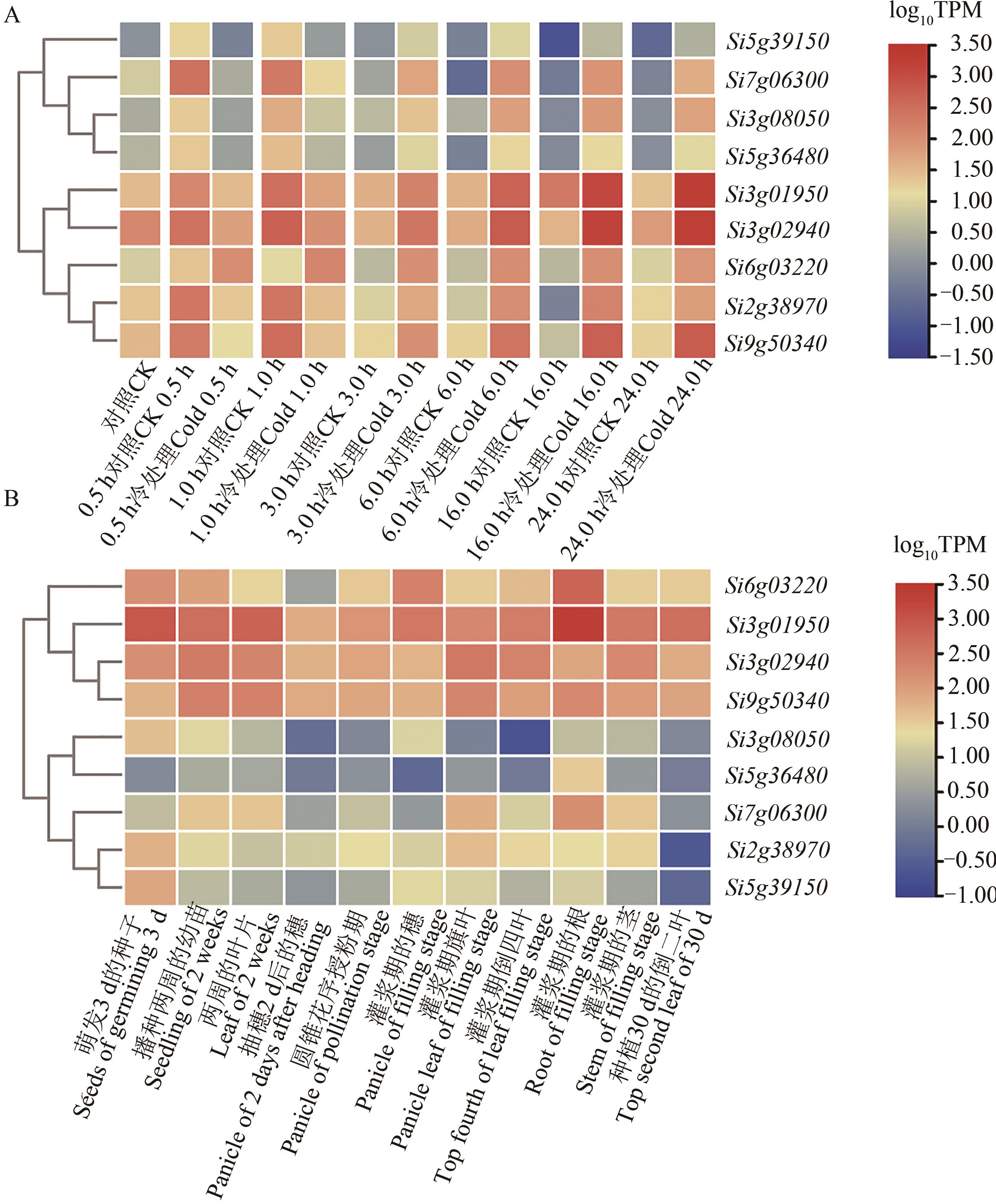

Fig. 3 Expression patterns of differentially expressed genesA: Expression patterns of the 9 differentially expressed genes in ‘Yugu 1’ among 6 cold stress conditions; B: Expression patterns of the 9 differentially expressed genes in mutant xiaomi during 11 developmental stages

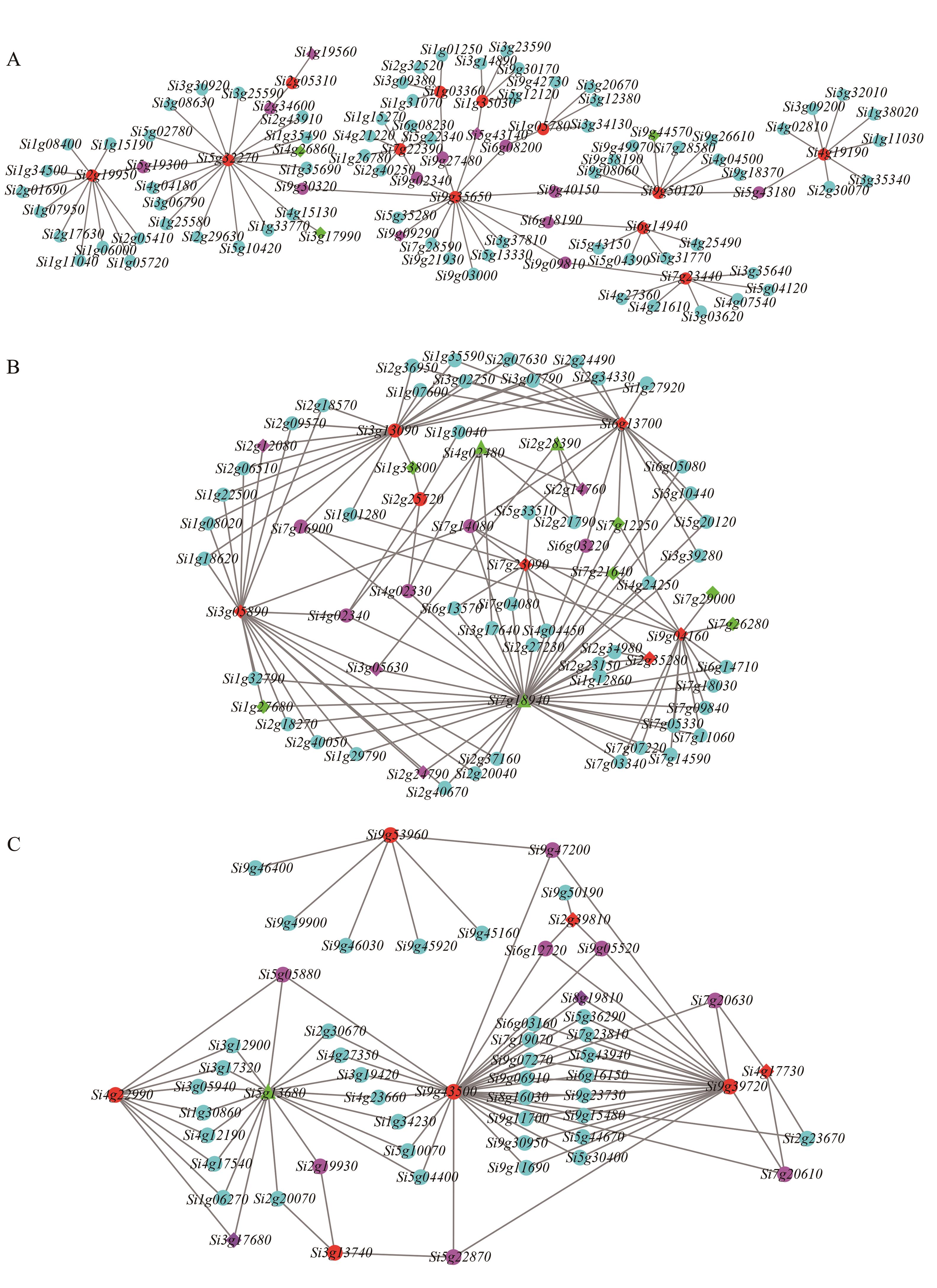

Fig. 5 Co-expression network of genes relative to cold stress in 3 modulesA: Darkturquoise module; B: Turquoise module; C: Blue module. The red diamond indicates the core gene that is both annotated to the transcription factor and belongs to the network and red circle indicates the annotated core genes, the purple circle indicates the annotated candidate genes and the purple diamond represents annotated candidate gene transcription factors, the green circle indicates transcription factors associated with motif analysis, the green diamond represents annotated candidate gene transcription factors and binding motif analysis transcription factors, the green triangle represents both transcription factors that bind to motif analysis and core genes
模块 Module | 基因名称 Gene name | 水稻Rice | 拟南芥Arabidopsis thaliana | |||
---|---|---|---|---|---|---|
同源基因 Homologous gene | 功能注释 Function annotation | 同源基因 Homologous gene | 功能注释 Function annotation | |||
Darkturquoise | Si3g17990 (TCP) | LOC_Os07g05720 | TCP 家族转录因子 TCP family transcription factor | At1g30210 | TCP 家族24 TCP family 24 | |
Si7g22390 | LOC_Os04g49510 | CAMK-CAMK27钙/钙调素依赖性蛋白激酶 CAMK_CAMK_like.27-CAMK includes calcium/calmodulin depedent protein kinases | At2g17290 | 钙依赖性蛋白激酶家族蛋白 Calcium-dependent protein kinase family protein | ||
Si9g50120 | LOC_Os03g08570 | 胺氧化酶,含黄素,含结构域蛋白 Amine oxidase, flavin-containing, domain containing protein | At4g14210 | 八氢番茄红素脱氢酶3 Phytoene desaturase 3 | ||
Si1g03360 | LOC_Os01g10840 | CGMC_GSK.2-CGMC 激酶 CGMC_GSK.2-CGMC includes CDA, MAPK, GSK3, and CLKC kinases | At1g06390 | GSK3/SHAGGY 类蛋白激酶1 GSK3/SHAGGY-like protein kinase 1 | ||
Turquoise | Si4g02480 (ERF) | LOC_Os09g35010 | 脱水反应元件结合蛋白 Dehydration-responsive element-binding protein | At5g51990 | 核碱、核苷、核苷酸和核酸代谢过程 Nucleobase, nucleoside, nucleotide and nucleic acid metabolic process | |
Si2g28390 (ERF) | LOC_Os09g35030 | 脱水反应元件结合蛋白 Dehydration-responsive element-binding protein | — | — | ||
Si7g18940 (ERF) | LOC_Os09g20350 | 乙烯应答转录因子 Ethylene-responsive transcription factor | — | — | ||
Si3g13090 | LOC_Os05g50710 | 晚期胚胎蛋白 Late embryogenesis abundant protein | At2g46140 | 晚期胚胎蛋白 Late embryogenesis abundant protein | ||
Blue | Si4g17730 (bZIP) | LOC_Os06g45140 | 含bZIP转录因子结构域的 蛋白 bZIP transcription factor domain containing protein | — | — | |
Si2g39810 (bHLH) | LOC_Os07g43530 | 螺旋-环-螺旋DNA结合蛋白 Helix-loop-helix DNA-binding domain containing protein | — | — | ||
Si5g13680 (WRKY) | LOC_Os02g08440 | WRKY71转录因子 WRKY71 transcription factor | At1g80840 | 病原体诱导转录因子,体外结合 W-box 序列 Pathogen-induced transcription factor. Binds W-box sequences in vitro | ||
Si9g43500 | LOC_Os03g17690 | 抗坏血酸过氧化物酶1 Ascorbate peroxidase 1 | At1g07890 | 抗坏血酸过氧化物酶1 Ascorbate peroxidase 1 |
Table 3 Functional annotation of hub genes relative to cold stress in 3 modules
模块 Module | 基因名称 Gene name | 水稻Rice | 拟南芥Arabidopsis thaliana | |||
---|---|---|---|---|---|---|
同源基因 Homologous gene | 功能注释 Function annotation | 同源基因 Homologous gene | 功能注释 Function annotation | |||
Darkturquoise | Si3g17990 (TCP) | LOC_Os07g05720 | TCP 家族转录因子 TCP family transcription factor | At1g30210 | TCP 家族24 TCP family 24 | |
Si7g22390 | LOC_Os04g49510 | CAMK-CAMK27钙/钙调素依赖性蛋白激酶 CAMK_CAMK_like.27-CAMK includes calcium/calmodulin depedent protein kinases | At2g17290 | 钙依赖性蛋白激酶家族蛋白 Calcium-dependent protein kinase family protein | ||
Si9g50120 | LOC_Os03g08570 | 胺氧化酶,含黄素,含结构域蛋白 Amine oxidase, flavin-containing, domain containing protein | At4g14210 | 八氢番茄红素脱氢酶3 Phytoene desaturase 3 | ||
Si1g03360 | LOC_Os01g10840 | CGMC_GSK.2-CGMC 激酶 CGMC_GSK.2-CGMC includes CDA, MAPK, GSK3, and CLKC kinases | At1g06390 | GSK3/SHAGGY 类蛋白激酶1 GSK3/SHAGGY-like protein kinase 1 | ||
Turquoise | Si4g02480 (ERF) | LOC_Os09g35010 | 脱水反应元件结合蛋白 Dehydration-responsive element-binding protein | At5g51990 | 核碱、核苷、核苷酸和核酸代谢过程 Nucleobase, nucleoside, nucleotide and nucleic acid metabolic process | |
Si2g28390 (ERF) | LOC_Os09g35030 | 脱水反应元件结合蛋白 Dehydration-responsive element-binding protein | — | — | ||
Si7g18940 (ERF) | LOC_Os09g20350 | 乙烯应答转录因子 Ethylene-responsive transcription factor | — | — | ||
Si3g13090 | LOC_Os05g50710 | 晚期胚胎蛋白 Late embryogenesis abundant protein | At2g46140 | 晚期胚胎蛋白 Late embryogenesis abundant protein | ||
Blue | Si4g17730 (bZIP) | LOC_Os06g45140 | 含bZIP转录因子结构域的 蛋白 bZIP transcription factor domain containing protein | — | — | |
Si2g39810 (bHLH) | LOC_Os07g43530 | 螺旋-环-螺旋DNA结合蛋白 Helix-loop-helix DNA-binding domain containing protein | — | — | ||
Si5g13680 (WRKY) | LOC_Os02g08440 | WRKY71转录因子 WRKY71 transcription factor | At1g80840 | 病原体诱导转录因子,体外结合 W-box 序列 Pathogen-induced transcription factor. Binds W-box sequences in vitro | ||
Si9g43500 | LOC_Os03g17690 | 抗坏血酸过氧化物酶1 Ascorbate peroxidase 1 | At1g07890 | 抗坏血酸过氧化物酶1 Ascorbate peroxidase 1 |
1 | WANG C F, CHEN J F, ZHI H, et al.. Population genetics of foxtail millet and its wild ancestor [J/OL]. BMC Genetics, 2010, 11:90 [2023-01-10]. . |
2 | BENNETZEN J L, SCHMUTZ J, WANG H, et al.. Reference genome sequence of the model plant Setaria [J]. Nat. Biotechnol., 2012, 30(6):555-561. |
3 | ZHANG G Y, LIU X, QUAN Z W, et al.. Genome sequence of foxtail millet (Setaria italica) provides insights into grass evolution and biofuel potential [J]. Nat. Biotechnol., 2012, 30(6):549-554. |
4 | YANG Z R, ZHANG H S, LI X K, et al.. A mini foxtail millet with an Arabidopsis-like life cycle as a C4 model system [J]. Nat. Plants, 2020, 6(9):1167-1178. |
5 | DIAO X M, SCHNABLE J, BENNETZEN J L, et al.. Initiation of Setaria as a model plant [J]. Front. Agric. Sci. Eng., 2014, 1(1):16-20. |
6 | 曹爽.玉米抗冷基因ZmGDH2的功能分析及遗传转化的研究[D].长春:吉林大学,2017. |
CAO S. Cloning, characterization, and transformation of cold resistant gene ZmGDH 2 in maize (Zea mays L.) [D]. Changchun: Jilin University, 2017. | |
7 | 秦东玲,李钊,尉菊萍,等.作物抗冷性及其化学控制机理研究进展[J].作物杂志,2016,32(4):26-35. |
QIN D L, LI Z, YU J P, et al.. Progress on cold resistance and chemical control mechanism of crops [J]. Crops, 2016, 32(4):26-35. | |
8 | LI J L, ZENG Y W, PAN Y H, et al.. Stepwise selection of natural variations at CTB2 and CTB4a improves cold adaptation during domestication of japonica rice [J]. New phytol., 2021, 231(3):1056-1072. |
9 | MA Y, DAI X Y, XU Y Y, et al.. COLD1 confers chilling tolerance in rice [J]. Cell, 2015, 160(6):1209-1221. |
10 | LUO W, HUAN Q, XU Y Y, et al.. Integrated global analysis reveals a vitamin E-vitamin K1 sub-network, downstream of COLD 1, underlying rice chilling tolerance divergence [J/OL]. Cell Rep., 2021, 36(3):109397 [2023-01-10]. . |
11 | WANG J C, REN Y L, LIU X, et al.. Transcriptional activation and phosphorylation of OsCNGC9 confer enhanced chilling tolerance in rice [J]. Mol. Plant., 2021, 14(2):315-329. |
12 | LIU J, SHI Y, YANG S H. Insights into the regulation of C-repeat binding factors in plant cold signaling [J]. J. Integr. Plant. Biol., 2018, 60(9):780-795. |
13 | LI J H, ZHANG Z Y, CHONG K, et al.. Chilling tolerance in rice: past and present [J/OL]. J. Plant. Physiol., 2022, 268(8):153576 [2023-01-10]. . |
14 | 郑加兴,覃嘉明,王兵伟,等.玉米芽期耐冷性QTL鉴定与分子定位[J/OL].分子植物育种,2022:1-12.. |
ZHENG J X, QIN J M, WANG B W, et al.. Identification and mapping of quantitative trait loci for cold tolerance at the budding stage in maize [J/OL]. Mol. Plant Breeding, 2022: 1-12 [2023-01-]. . | |
15 | ZHANG B, HORVATH S. A general framework for weighted gene co-expression network analysis [J/OL]. Stat. Appl. Genet. Mol. Biol., 2005, 4(1):17 [2023-01-10]. . |
16 | MENG X X, LIANG Z K, DAI X R, et al.. Predicting transcriptional responses to cold stress across plant species [J/OL]. Proc. Natl. Acad. Sci. USA, 2021, 118(10):e2026330118 [2023-01-10]. . |
17 | GOLDBERG D H, VICTOR J D, GARDNER E P, et al.. Spike train analysis toolkit: enabling wider application of information-theoretic techniques to neurophysiology [J]. Neuroinformatics, 2009, 7(3):165-178. |
18 | KROLL K W, MOKARAM N E, PELLETIER A R, et al.. Quality control for RNA-Seq (QuaCRS): an integrated quality control pipeline [J]. Cancer Inform., 2014, 13(S3):7-14. |
19 | BOLGER A M, LOHSE M, USADEL B. Trimmomatic: a flexible trimmer for illumina sequence data [J]. Bioinformatics, 2014, 30(15):2114-2120. |
20 | KIM D, LANGMEAD B, SALZBERG S L. HISAT: a fast spliced aligner with low memory requirements [J]. Nat. Methods, 2015, 12(4):357-360. |
21 | LIAO Y, SMYTH G K, SHI W. featureCounts: an efficient general purpose program for assigning sequence reads to genomic features [J]. Bioinformatics, 2014, 30(7):923-930. |
22 | 李旭凯,李任建,张宝俊.利用WGCNA鉴定非生物胁迫相关基因共表达网络[J].作物学报,2019,45(9):1349-1364. |
LI X K, LI R J, ZHANG B J. Identification of rice stress-related gene co-expression modules by WGCNA [J]. Acta Agron. Sin., 2019, 45(9):1349-1364. | |
23 | LANGFELSER P, HORVATH S. WGCNA: an R package for weighted correlation network analysis [J/OL]. BMC Bioinform., 2008, 9:559 [2023-01-10]. . |
24 | ALTSCHUL S F, MADDEN T L, SCHAFFER A A, et al.. Gapped BLAST and PSI-BLAST: a new generation of protein database search programs [J]. Nucl. Acids Res., 1997, 25(17):3389-3402. |
25 | BARDOU P, MARIETTR J, ESCUDIE F, et al.. jvenn: an interactive venn diagram viewer [J/OL]. BMC Bioinform., 2014, 15(1):293 [2023-01-10]. . |
26 | CHEN C J, XIA R, CHEN H, et al.. TBtools, a Toolkit for biologists integrating various HTS-data handling tools with a user-friendly interface [J/OL]. BioRxiv, 2018, 14:48 [2023-01-10]. . |
27 | SU G, MORRIS J H, DEMCHAK B, et al.. Biological network exploration with cytoscape 3 [J/OL]. Curr. Prot. Bioinform., 2014, 47(1):47 [2023-01-10]. . |
28 | THOMAS D S, KENNETH J L. Analyzing real-time PCR data by the comparative CT method [J]. Nat. Protoc., 2008, 3:1101-1108. |
29 | MOZOI J, SHINOZAKI K, YAMAGUCHI K. AP2/ERF family transcription factors in plant abiotic stress responses [J]. Biochim. Biophys. Acta, 2012, 1819(2):86-96. |
30 | GONG Z Z, XIONG L M, SHI H Z, et al.. Plant abiotic stress response and nutrient use efficiency [J]. Sci China Life Sci., 2020, 63(5):635-674. |
31 | ZHANG T T, XU Y, DING Y D, et al.. Identification and expression analysis of WRKY gene family in response to abiotic stress in Dendrobium catenatum [J/OL]. Front. Genet., 2022, 13:800019 [2023-01-10]. . |
32 | 洪林,杨蕾,杨海健,等.AP2/ERF转录因子调控植物非生物胁迫响应研究进展[J].植物学报,2020,55(4):481-496. |
HONG L, YANG L, YANG H J, et al.. Research advances in AP2/ERF transcription factors in regulating plant responses to abiotic stress [J]. Bull Bot., 2020, 55(4):481-496. | |
33 | 宫照龙,卓勤,吴景欢,等.大豆脱水应答元件结合蛋白(GmDREB1)的非融合原核表达及纯化[J].卫生研究,2013,42(3):392-398. |
GONG Z L, ZHUO Q, WU J H, et al.. Study on no-fusion expression and purification of glycine max dehydration-responsive element-binding protein (GmDREB1) expressed in E. coli [J]. J. Hygiene Res., 2013, 42(3):392-398. | |
34 | 张计育,王庆菊,郭忠.植物AP2/ERF类转录因子研究进展[J].遗传,2012,34(7):835-847. |
ZHANG J Y, WANG Q J, GUO Z. Progresses on plant AP2/ERF transcription factors [J]. Hereditas, 2012, 34(7):835-847. | |
35 | ZHANG H, NI L, LIU Y P, et al.. The C2H2-type zinc finger protein ZFP182 is involved in abscisic acid-induced antioxidant defense in rice [J]. J. Integr. Plant. Biol., 2012, 54(7):500-510. |
36 | 刘文文,李文学.植物bHLH转录因子研究进展[J].生物技术进展,2013,3(1):7-11. |
LIU W W, LI W X. Progress of plant bHLH transcription factor [J]. Curr. Biotechnol., 2013, 3(1):7-11. | |
37 | 应炎标,朱友银,郭卫东,等.樱桃bHLH转录因子家族基因鉴定及表达分析[J].分子植物育种,2018,16(14):4559-4568. |
YING Y B, ZHU Y Y, GUO W D, et al.. Identification and expression analysis of bHLH transcription factor gene family in Prunus pseudocerasus Lindl [J]. Mol. Plant Breeding, 2018, 16(14):4559-4568. | |
38 | BAI B, WU J, SHENG W T, et al.. Comparative analysis of anther transcriptome profiles of two different rice male sterile lines genotypes under cold stress [J/OL]. Int. J. Mol. Sci., 2015, 16(5):11398 [2023-01-10]. . |
39 | 王凤珠,陈琴芳.过表达水稻MYB转录因子OsARM1对转基因拟南芥冷冻耐受性的提高[J].中国科技论文,2017,12(18):2103-2108. |
WANG F Z, CHEN Q F. Overexpression of rice MYB transcription factor OsARM1 enhances freezing tolerance in Arabidopsis [J]. China. Sci. Paper, 2017, 12(18):2103-2108. | |
40 | 崔荣秀,张议文,陈晓倩,等.植物bZIP参与胁迫应答调控的最新研究进展[J].生物技术通报,2019,35(2):143-155. |
CUI R X, ZHANG Y W, CHEN X Q, et al.. The latest research progress on the stress responses of bZIP involved in plants [J]. Biotechnol. Bull., 2019, 35(2):143-155. | |
41 | TRIPATHI P, RABARA R C, RUSHTON P J. A systems biology perspective on the role of WRKY transcription factors in drought responses in plants [J]. Planta, 2014, 239(2):255-266. |
42 | LIANG X, ABEL S, KELLER J A, et al.. The 1-aminocyclopropane-1-carboxylate synthase gene family of Arabidopsis thaliana [J]. Proc. Natl. Acad. Sci. USA, 1992, 89(22):11046-11050. |
43 | ARTECA J M, ARTECA R N. A multi-responsive gene encoding 1-aminocyclopropane-1-carboxylate synthase (ACS6) in mature Arabidopsis leaves [J]. Plant. Mol. Biol., 1999, 39(2):209-219. |
44 | SHI Y T, TIAN S W, HOU L Y, et al.. Ethylene signaling negatively regulates freezing tolerance by repressing expression of CBF and type-A ARR genes in Arabidopsis [J]. Plant Cell, 2012, 24(6):2578-2595. |
