黄淮海平原农田土壤温室气体排放对长期施加生物炭的响应

doi:10.13304/j.nykjdb.2021.1081

中国农业科技导报 ›› 2023, Vol. 25 ›› Issue (7): 178-186.DOI: 10.13304/j.nykjdb.2021.1081

• 生物制造资源生态 • 上一篇

黄淮海平原农田土壤温室气体排放对长期施加生物炭的响应

刘宏元¹(), 周志花²(), 赵光昕³, 沈钦瑞⁴

^1.山东省农业科学院湿地农业与生态研究所, 济南 250100
^2.内蒙古自治区气象台, 呼和浩特 010051
^3.北京科技大学天津学院, 天津 301830
^4.山东省菏泽市曹县植物检疫站, 山东菏泽 274400

收稿日期:2021-12-21 接受日期:2022-04-12 出版日期:2023-07-15 发布日期:2023-08-25
通讯作者: 刘宏元
作者简介:刘宏元 E-mail：saasliuhongyuan@163.com
周志花 E-mail：545331430@qq.com第一联系人：刘宏元和周志花为共同第一作者。
基金资助:
山东省重点研发计划项目(2020CXGC010804);山东省农业科学院农业科技创新工程项目(CXGC2023B01)

Effects of Long-term Biochar Application on Greenhouse Gas Emission and Its Temporal Effect in Huang-Huai-Hai Plain

Hongyuan LIU¹(), Zhihua ZHOU²(), Guangxin ZHAO³, Qinrui SHEN⁴

^1.Institute of Wetland Agriculture and Ecology，Shandong Academy of Agricultural Sciences，Jinan 250100，China
^2.Inner Mongolia Meteorological Observatory，Hohhot 010051，China
^3.Tianjin College，University of Science and Technology Beijing，Tianjin 301830，China
^4.Cao County Plant Quarantine Station of Heze City Shandong Province，Shandong Heze 274400，China

Received:2021-12-21 Accepted:2022-04-12 Online:2023-07-15 Published:2023-08-25
Contact: Hongyuan LIU

摘要/Abstract

摘要：

为研究生物炭对温室气体排放影响的时间效应，以黄淮海平原土壤为研究对象，设置每年分别施用0.00（CK）、2.25（C1）、4.50（C2）、9.00（C3）、13.50 t·hm^-2（C4）生物炭和仅一次性施用13.50 t·hm^-2生物炭处理（CS），研究3年后黄淮海平原小麦-玉米轮作农田生态系统土壤温室气体排放及土壤理化性质的差异。结果表明，CS处理可以显著抑制土壤CO₂排放量，在小麦季和玉米季分别较CK显著降低38.5%和25.75%；C2、C3和C4生物炭处理仅在玉米季显著抑制土壤CO₂排放，较CK降低17.7%~24.6%。生物炭对土壤CH₄排放无显著性影响。生物炭处理均可以显著抑制土壤N₂O排放，在小麦季和玉米季分别较CK显著降低37.5%~60.1%和24.9%~39.3%。CS处理显著降低了综合增温潜势，较CK降低30.4%，表明一次性施用大量生物炭对温室气体排放的抑制效果更佳。相关分析表明，土壤CO₂排放通量与土壤温度、湿度、NH $4 +$ -N和NO $3 -$ -N呈极显著的正相关关系；土壤CH₄排放通量与土壤温度、NH $4 +$ -N、NO $3 -$ -N呈极显著的负相关关系，与土壤湿度呈显著的负相关关系；土壤N₂O排放通量与土壤温度、湿度、NH $4 +$ -N和NO $3 -$ -N呈极显著的正相关关系。综上所述，生物炭对土壤温室气体排放具有抑制作用，在本试验条件下，一次性施用13.5 t·hm^-2生物炭可达到环境效益最大化。

关键词: 土壤理化性质, 综合增温潜势, 生物炭, 时间限制效应

Abstract:

To study the temporal effect of biochar on greenhouse gas emissions， the soil of the Huang-Huai-Hai plain was as the research object. The amount of biochar was added with 0.00 （CK）， 2.25 （C1），4.50 （C2），9.00 （C3），13.50 t·hm^-2 （C4） per year and 13.50 t·hm^-2 （CS） at one time for 3 years. The differences in soil greenhouse gases and soil physicochemical properties of the wheat-maize rotation farmland ecosystem in the Huang-Huai-Hai plain were studied. The results showed that CS treatment could significantly suppress CO₂ emission of soil， with the decrease of 38.5% and 25.75% in wheat and corn seasons， respectively. The C2， C3 and C4 treatments significantly suppressed CO₂ emission of soil by 17.7%~24.6% in the maize season. Biochar had no significant effect on CH₄ emission of soil. The application of biochar could significantly inhibit N₂O emission of soil， reaching 37.5%~60.1% and 24.9%~39.3% in wheat and maize seasons， respectively. Only CS treatment significantly reduced the comprehensive warming potential by 30.4%， which indicated that the one-time application of a large amount of biochar had a better inhibitory effect on greenhouse gases. Correlation analysis showed that soil CO₂ emission flux was significantly positively correlated with soil temperature， moisture， NH $4 +$ -N and NO $3 -$ -N. Soil CH₄ emission flux was negatively correlated with soil temperature， moisture， NH $4 +$ -N and NO $3 -$ -N. Soil N₂O emission flux was positively correlated with soil temperature， moisture， NH $4 +$ -N and NO $3 -$ -N. In summary， biochar could inhibit soil greenhouse gas emissions. Under the conditions of this experiment， a one-time application of 13.5 t·hm^-2 of biochar could maximize environmental benefits.

Key words: physical and chemical properties of soil, global warming potential, biochar, time-dependent

中图分类号:

S156

刘宏元, 周志花, 赵光昕, 沈钦瑞. 黄淮海平原农田土壤温室气体排放对长期施加生物炭的响应[J]. 中国农业科技导报, 2023, 25(7): 178-186.

Hongyuan LIU, Zhihua ZHOU, Guangxin ZHAO, Qinrui SHEN. Effects of Long-term Biochar Application on Greenhouse Gas Emission and Its Temporal Effect in Huang-Huai-Hai Plain[J]. Journal of Agricultural Science and Technology, 2023, 25(7): 178-186.

图/表 6

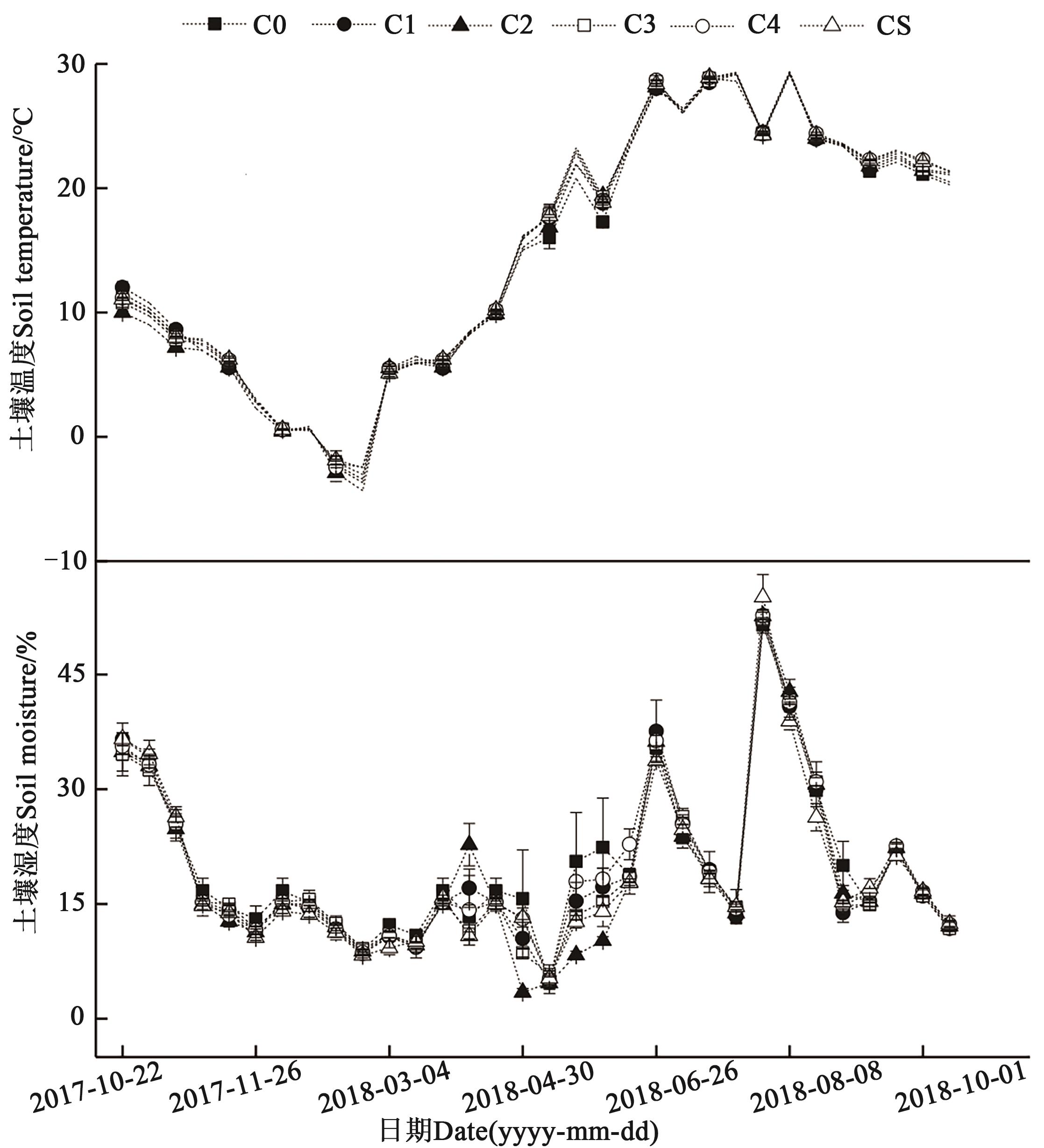

图1 不同处理下的土壤温度和土壤湿度

Fig. 1 Temperature and moisture of soil under different treatments

图2 各处理土壤NH4+-N和NO3--N含量

Fig. 2 Contents of NH4+-N and soil NO3--N in soil under different treatments

表1 各处理土壤NH4+-N、NO3--N、温度、湿度的季节平均值

Table 1 Seasonal mean values of soil NH4+-N， NO3--N， temperature and moisture of each treatment

种植季 Planting season	处理 Treatment	土壤温度 Soil temperature/℃	土壤湿度Soil moisture/%	NH $4 +$ -N/（mg·kg^-1）	NO $3 -$ -N/（mg·kg^-1）
小麦季 Wheat season	CK	7.7±0.3 ab	17.1±1.8 a	44.8±2.6 a	16.6±1.6 b
	C1	8.1±0.3 a	15.9±1.1 ab	47.6±5.6 a	19.1±1.4 ab
	C2	7.6±0.2 b	14.9±0.8 b	48.0±5.3 a	19.1±0.9 ab
	C3	8.0±0.4 ab	15.4±0.8 ab	44.0±3.5 a	20.4±1.7 a
	C4	8.1±0.3 a	16.0±1.2 ab	43.5±5.0 a	21.2±1.8 a
	CS	8.1±0.1 ab	15.3±0.9 ab	42.5±3.7 a	20.8±1.2 a
玉米季 Maize season	CK	24.7±0.1 d	24.6±0.7 a	24.1±5.4 ab	24.6±2.1 b
	C1	24.8±0.1 cd	24.3±1.0 a	22.1±2.8 ab	27.9±1.9 ab
	C2	24.9±0.1 bc	24.5±1.1 a	19.4±2.6 b	25.9±2.2 ab
	C3	25.0±0.1 ab	24.5±0.9 a	26.9±2.3 a	30.1±4.3 a
	C4	25.2±0.1 a	25.1±0.9 a	23.6±3.3 ab	29.9±3.3 a
	CS	25.1±0.1 a	24.0±1.3 a	24.7±1.6 ab	28.3±2.7 ab

表1 各处理土壤NH4+-N、NO3--N、温度、湿度的季节平均值

Table 1 Seasonal mean values of soil NH4+-N， NO3--N， temperature and moisture of each treatment

种植季 Planting season	处理 Treatment	土壤温度 Soil temperature/℃	土壤湿度Soil moisture/%	NH $4 +$ -N/（mg·kg^-1）	NO $3 -$ -N/（mg·kg^-1）
小麦季 Wheat season	CK	7.7±0.3 ab	17.1±1.8 a	44.8±2.6 a	16.6±1.6 b
	C1	8.1±0.3 a	15.9±1.1 ab	47.6±5.6 a	19.1±1.4 ab
	C2	7.6±0.2 b	14.9±0.8 b	48.0±5.3 a	19.1±0.9 ab
	C3	8.0±0.4 ab	15.4±0.8 ab	44.0±3.5 a	20.4±1.7 a
	C4	8.1±0.3 a	16.0±1.2 ab	43.5±5.0 a	21.2±1.8 a
	CS	8.1±0.1 ab	15.3±0.9 ab	42.5±3.7 a	20.8±1.2 a
玉米季 Maize season	CK	24.7±0.1 d	24.6±0.7 a	24.1±5.4 ab	24.6±2.1 b
	C1	24.8±0.1 cd	24.3±1.0 a	22.1±2.8 ab	27.9±1.9 ab
	C2	24.9±0.1 bc	24.5±1.1 a	19.4±2.6 b	25.9±2.2 ab
	C3	25.0±0.1 ab	24.5±0.9 a	26.9±2.3 a	30.1±4.3 a
	C4	25.2±0.1 a	25.1±0.9 a	23.6±3.3 ab	29.9±3.3 a
	CS	25.1±0.1 a	24.0±1.3 a	24.7±1.6 ab	28.3±2.7 ab

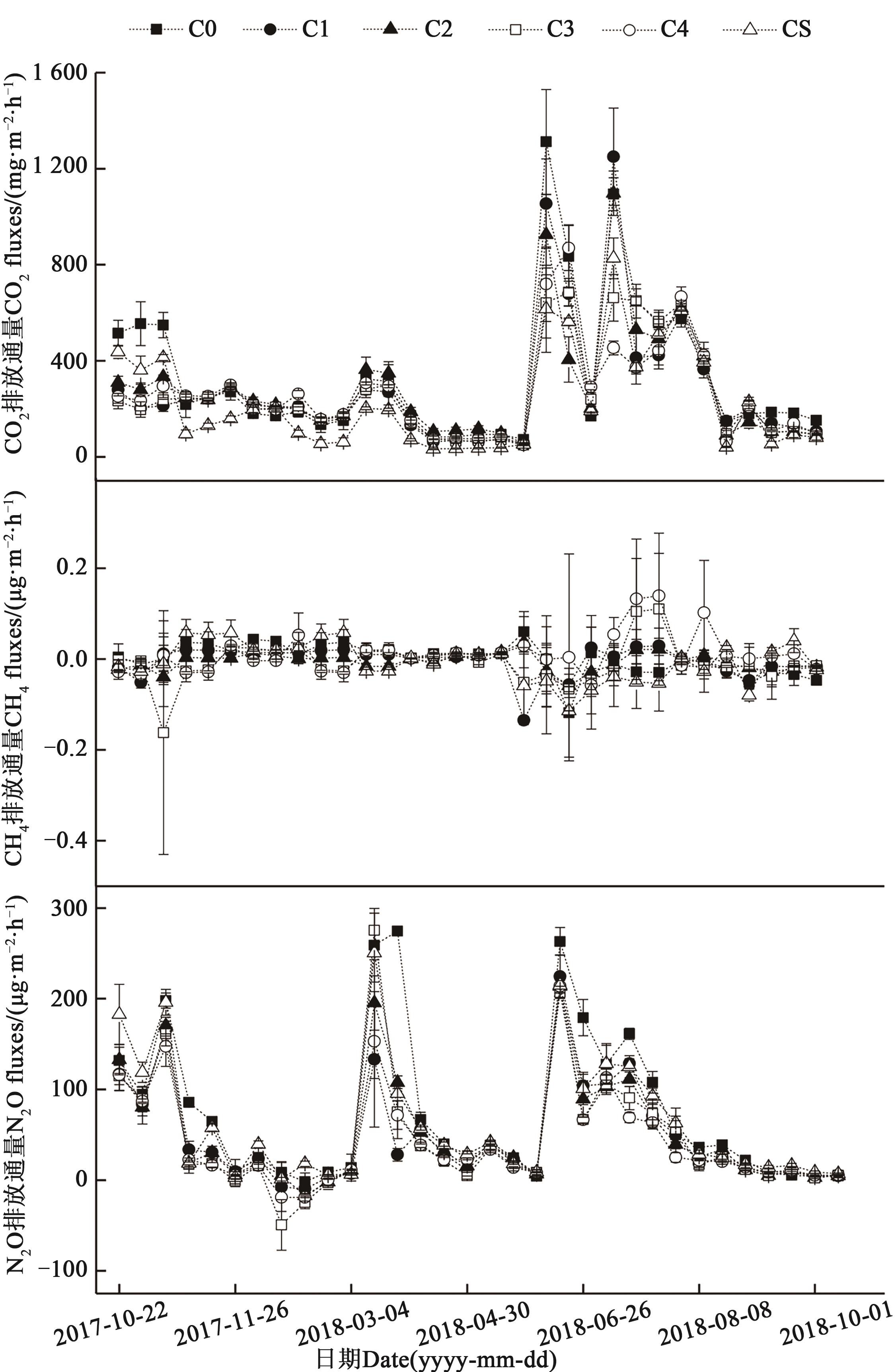

图3 不同处理下土壤CO2、CH4和N2O的排放通量

Fig. 3 Emission fluxes of CO2， CH4 and N2O in soil under different treatments

表2 各处理土壤累积CO2、CH4、N2O排放量和综合增温潜势

Table 2 Cumulative emissions of CO2， CH4， N2O and GWP under different treatments

处理 Treatment	累积排放量Cumulative emissions						综合增温潜势GWP/ （CO₂-eq kg·hm^-2）
	CO₂/（kg·hm^-2）		CH₄/（g·hm^-2）		N₂O/（g·hm^-2）
	小麦季 Wheat season	玉米季 Maize season	小麦季 Wheat season	玉米季 Maize season	小麦季 Wheat season	玉米季 Maize season
CK	9 452±919 a	11 970±1 024 a	1.3±0.7 a	-0.6±0.8 a	2 162±387 a	1 624±168 a	22 551±2 108 a
C1	9 016±542 a	10 438±1 356 ab	0.4±0.2 a	-0.2±0.5 a	1 211±382 c	1 220±163 bc	20 179±2 060 a
C2	10 221±866 a	9 857±1 325 b	0.2±0.3 a	-0.3±0.6 a	1 351±321 bc	1 155±119 bc	20 825±2 323 a
C3	9 143±841 a	9 815±700 b	-0.0±1.2 a	-0.1±1.2 a	863±409 c	1 081±169 c	19 538±1 714 a
C4	9 822±751 a	9 027±756 b	0.3±0.5 a	0.9±1.5 a	940±367 c	985±99 c	19 423±1 645 a
CS	5 813±573 b	8 888±673 b	1.1±0.8 a	-0.7±0.7 a	1 932±194 ab	1 403±199 ab	15 694±1 363 b

表3 土壤CO2、CH4、N2O排放通量与土壤NH4+-N、NO3--N、温度和湿度的相关性

Table 3 Correlation between the CO2， CH4 and N2O fluxes with soil NH4+-N， NO3--N， temperature and moisture

因子Factor

4 +

-N

3 -

-N

土壤温度

Soil temperature

土壤湿度

Soil moisture

CO₂

CH₄

N₂O

表3 土壤CO2、CH4、N2O排放通量与土壤NH4+-N、NO3--N、温度和湿度的相关性

Table 3 Correlation between the CO2， CH4 and N2O fluxes with soil NH4+-N， NO3--N， temperature and moisture

因子Factor

4 +

-N

3 -

-N

土壤温度

Soil temperature

土壤湿度

Soil moisture

CO₂

0.329^**

0.292^**

0.365^**

0.399^**

CH₄

-0.166^**

-0.151^**

-0.147^**

-0.092^*

N₂O

0.650^**

-0.391^**

0.130^**

0.212^**

参考文献 31

1	KANTER D R, OGLE S M, WINIWARTER W. Building on Paris: integrating nitrous oxide mitigation into future climate policy [J]. Curr. Opin. Environ. Sustain., 2020, 47:7-12.
2	TARIN M W K, KHALIQ M A, FAN L, et al.. Divergent consequences of different biochar amendments on carbon dioxide (CO₂) and nitrous oxide (N₂O) emissions from the red soil [J/OL]. Sci. Total Environ., 2020, 754:141935 [2021-11-02]. .
3	DICKE C, ANDERT J, AMMON C, et al.. Effects of different biochars and digestate on N₂O fluxes under field conditions [J]. Sci. Total Environ., 2015, 524:310-318.
4	ZHANG Q Z, WANG Y D, WU Y F, et al.. Effects of biochar amendment on soil thermal conductivity, reflectance, and temperature [J]. Soil Sci. Soc. Am. J., 2013, 77:1478-1487.
5	刘杏认,张星,张晴雯,等.施用生物炭和秸秆还田对华北农田CO₂、N₂O排放的影响[J].生态学报, 2017,37(20):6700-6711.
	LIU X R, ZHANG X, ZHANG Q W, et al.. Effects of biochar and straw return on CO₂ and N₂O emissions from farmland in the North China plain [J]. Acta Ecol. Sin., 2017, 37(20):6700-6711.
6	GU L, DONG G, YU H, et al.. Preparation of porous biochar by urine assisted pyrolysis of sewage sludge and their application for eriochrome black T adsorption [J/OL]. J. Anal. Appl. Pyrolysis, 2021, 153:104975 [2021-11-02]. .
7	QUILLIAM R S, MARSDEN K A, GERTLER C, et al.. Nutrient dynamics, microbial growth and weed emergence in biochar amended soil are influenced by time since application and reapplication rate [J]. Agric. Ecosyst. Environ., 2012, 158(1):192-199.
8	MUHAMMAD N, DAI Z, XIAO K, et al.. Changes in microbial community structure due to biochars generated from different feedstocks and their relationships with soil chemical properties [J]. Geoderma, 2014, 226-227, 270-278.
9	WANG J Y, XIONG Z Q, KUZYAKOV Y. Biochar stability in soil: meta-analysis of decomposition and priming effects [J]. Glob. Change Biol. Bioenergy, 2016, 8(3):512-523.
10	NIU Y H, CHEN Z M, MÜLLER C, et al.. Yield-scaled N₂O emissions were effectively reduced by biochar amendment of sandy loam soil under maize-wheat rotation in the north china plain [J]. Atmos. Environ., 2017, 170(12):58-70.
11	CHENG G, CHEN J, LIU J J, et al.. Comparative analysis on effect of wheat straw and its biochar amendment on net global warming potential under wheat-maize rotation ecosystem in the Guanzhong plain [J]. Environ. Sci., 2017, 38(2):792-801.
12	王洪媛,盖霞普,翟丽梅,等.生物炭对土壤氮循环的影响研究进展[J].生态学报, 2016, 36(19):5998-6011.
	WANG H Y, GAI X P, ZHAI L M, et al.. Effect of biochar on soil nitrogen cycling: a review [J]. Acta Ecol. Sin., 2016, 36(19):5998-6011.
13	SCHILS R, OLESEN J E, KERSEBAUM K C, et al.. Cereal yield gaps across Europe [J]. Eur. J. Agron., 2018, 101(11):109-120.
14	刘宏元,张爱平,王永生,等.施用棉花秸秆生物质炭对华北平原农田温室气体排放的影响[J].中国农业科技导报,2019,21(11):121-129.
	LIU H Y, ZHANG A P, WANG Y S, et al.. Effects of cotton stalk biochar application on greenhouse gas emissions in the farmlands of North China plain [J]. J. Agric. Sci. Technol., 2019, 21(11):121-129.
15	WANG Y S, LIU Y S, LIU R L, et al.. Biochar amendment reduces paddy soil nitrogen leaching but increases net global warming potential in Ningxia irrigation, China [J/OL]. Sci. Rep., 2017, 7:1592 [2021-11-02]. .
16	HAIDER G, STEFFENS D, MOSER G, et al.. Biochar reduced nitrate leaching and improved soil moisture content without yield improvements in a four-year field study [J]. Agric. Ecosyst. Environ., 2017, 237(1):80-94.
17	JIANG Y B, KANG Y, HAN C, et al.. Biochar amendment in reductive soil disinfestation process improved remediation effect and reduced N₂O emission in a nitrate-riched degraded soil [J]. Arch. Agron. Soil Sci., 2020, 66(1/7):983-991.
18	张星,刘杏认,张晴雯,等.生物炭和秸秆还田对华北农田玉米生育期土壤微生物量的影响[J].农业环境科学学报, 2015, 34(10):1943-1950.
	ZHANG X, LIU X R, ZHANG Q W, et al.. Effects of biochar and straw direct return on soil microbial biomass during maize growth season in north China plain [J]. J. Agro-Environ. Sci., 2015, 34(10):1943-1950.
19	CROSS A, SOHI S P. The priming potential of biochar products in relation to labile carbon contents and soil organic matter status [J]. Soil Biol. Biochem., 2011, 43:2127-2134.
20	章明奎, WALELIGN D B, 唐红娟.生物质炭对土壤有机质活性的影响[J].水土保持学报,2012,26(2):127-131, 137.
	ZHANG M K, WALELIGN D B, TANG H J. Effects of biochar’s application on active organic carbon fractions in soil [J]. J. Soil Water Conserv., 2012, 26(2):127-131, 137.
21	SMITH J L, COLLINS H P, BAILEY V L. The effect of young biochar on soil respiration [J]. Soil Biol. Biochem., 2010, 42(12):2345-2347.
22	CASE S, MCNAMARA N P, REAY D S, et al.. The effect of biochar addition on N₂O and CO₂ emissions from a sandy loam soil-the role of soil aeration [J]. Soil Biol. Biochem., 2012, 51:125-134.
23	FENG Y, XU Y, YU Y, et al.. Mechanisms of biochar decreasing methane emission from Chinese paddy soils [J]. Soil Biol. Biochem., 2012, 46(2):80-88.
24	RUTIGLIANO F A, ROMANO M, MARZAIOLIA R, et al.. Effect of biochar addition on soil microbial community in a wheat crop [J]. Eur. J. Soil Biol., 2014, 60(1-2):9-15.
25	SPOKAS K A, KOSKINEN W C, BAKER J M, et al.. Impacts of woodchip biochar additions on greenhouse gas production and sorption/degradation of two herbicides in a Minnesota soil [J]. Chemosphere, 2009, 77(4):574-581.
26	NAEEM M A, KHALID M, AON M, et al.. Combined application of biochar with compost and fertilizer improves soil properties and grain yield of maize [J]. J. Plant Nutr., 2017, 41(1/4):112-122.
27	BAGGS E M. Soil microbial sources of nitrous oxide: recent advances in knowledge, emerging challenges and future direction [J]. Curr. Opin. Environ. Sustain., 2011, 3(5):321-327.
28	HARTER J, EL-HADIDI M, HUSON D H, et al.. Soil biochar amendment affects the diversity of nosz transcripts: implications for N₂O formation [J/OL]. Sci. Rep., 2017, 7:3338 [2021-11-02]. .
29	MIN H, LONG F, CHEN J N, et al.. Continuous applications of biochar to rice: effects on nitrogen uptake and utilization [J/OL]. Sci. Rep., 2018, 8:11461 [2021-11-02]. .
30	DUAN W Y, OLESZCZUK P, PAN B, et al.. Environmental behavior of engineered biochars and their aging processes in soil [J]. Biochar, 2021, 1(4):339-351.
31	刘燕,娄运生,杨蕙琳,等.施硅对增温稻田CH₄和N₂O排放的影响[J].生态学报,2020, 40(18):6621-6631.
	LIU Y, LOU Y S, YANG H L, et al.. Effects of silicate supply on the emissions of methane and nitrous oxide in paddy field under nighttime warming [J]. Acta Ecol. Sin., 2020, 40(18):6621-6631.
