Cloning and Expression Analysis of Wheat TaCOBL-5 Genes

doi:10.13304/j.nykjdb.2024.0172

Abstract

Abstract:

Wheat yield directly impacts food security in China， but various abiotic stresses such as drought， low temperature， salt and high temperature severely constrain wheat production. In previous analysis， transcriptomic data revealed differential expression of wheat TaCOBL-5D under multiple abiotic stresses. TaCOBL-5D and its homologous genes TaCOBL-5A and TaCOBL-5B were cloned and obtained， and the comprehensive bioinformatics and expression pattern were analyzed. The results showed that TaCOBL-5 genes exhibited significant conservation in gene structure， protein tertiary structure， conserved domains， and promoter regulatory elements with COBL genes from other species. TaCOBL-5 genes exhibited the highest expression level in roots and responded differently to various abiotic stresses， especially significantly down-regulated under drought stress， indicating its importance under drought stress； it also showed different responses to low temperature， high temperature， and salt stress. In addition， the expression level of the TaCOBL-5D gene varied significantly among different drought-resistant and high-temperature-resistant materials， further suggesting its important role in stress resistance. These findings laid the foundation for further understanding of the function of COBL genes in wheat and provided scientific support for wheat breeding efforts aimed at enhancing stress tolerance.

Key words: wheat, COBL genes, bioinformatics analysis, abiotic stress, expression pattern

摘要：

小麦产量关系我国粮食安全，干旱、低温、盐害和高温等非生物胁迫严重制约小麦产量增长。前期转录组分析发现小麦TaCOBL-5D在多种非生物胁迫下差异表达。克隆并获取TaCOBL-5D及其同源基因TaCOBL-5A、TaCOBL-5B，并对其生物信息学特性及表达模式进行了分析。结果显示，TaCOBL-5与其他物种的COBL基因在基因结构、蛋白三级结构、保守结构域以及启动子调控元件方面表现出明显的保守性。TaCOBL-5在根部表达量最高，并对各种非生物胁迫响应不同，尤其是在干旱胁迫下调控显著，表明其在干旱胁迫中的重要性，同时对低温、高温和盐胁迫也有不同响应。此外，TaCOBL-5D基因在不同干旱抗性及高温抗性材料中表达量差异显著，进一步暗示其在逆境胁迫中具有重要作用。这些研究结果有助于理解COBL基因在小麦中的功能，同时为小麦抗逆育种提供科学支持。

关键词: 小麦, COBL基因, 生物信息学分析, 非生物胁迫, 表达模式

CLC Number:

S512

Xinyue BAO, Hongmin CHEN, Weiwei WANG, Yimiao TANG, Zhaofeng FANG, Jinxiu MA, Dezhou WANG, Jinghong ZUO, Zhanjun YAO. Cloning and Expression Analysis of Wheat TaCOBL-5 Genes[J]. Journal of Agricultural Science and Technology, 2024, 26(6): 11-21.

鲍新跃, 陈红敏, 王伟伟, 唐益苗, 房兆峰, 马锦绣, 汪德州, 左静红, 姚占军. 小麦TaCOBL-5基因克隆及表达分析[J]. 中国农业科技导报, 2024, 26(6): 11-21.

Figures/Tables 10

Table 1 Primers used in this study for gene cloning and qPCR

引物名称 Primer name	正向引物序列 Forward primer sequence （3’-5’）	反向引物序列 Reverse primer sequence （3’-5’）
TaCOBL-5A	GCGGCACCCGTGTCTTCTAT	CGTCTCGTCTCGTCGCAGTA
TaCOBL-5B	GCGGCACCCATGTCTTCTAT	CGTCTCGTCTCGTCGCAGTA
TaCOBL-5D	ACGGCACCCGCGTCTTCTAT	TCTCGTCGCTGTAAAAACTG
qTaCOBL-5A	CGTTGGATCTCTCTTGCAGC	TGGGATGGTCATGGGCAAAG
qTaCOBL-5B	GATTACGTGCAGGTTACATTCC	TCTCAAGGCTCCAGGTCAGG
qTaCOBL-5D	CAGCGAATCATAAGCCTCTG	GAGTAGCGGGGCAGGAAATG
TaActin	GGAATCCATGAGACCACCTAC	GACCCAGACAACTCGCAAC

Table. 2 TaCOBL-5 gene information and physicochemical properties analysis

基因

Gene

基因号

Gene ID number

物理位置

Physical position/bp

分子量

Molecular weight/Da

等电点

蛋白长度

Protein length/aa

预测定位

Predicted location

TaCOBL-5A

TraesCS5A02G392000

588 375 577~588 379 139

574 675 118~574 678 654

467 600 940~467 604 428

Fig. 1 Analysis of gene structure， conserved motif and cis-acting regulatory elements of TaCOBL-5A： Gene structure； B： Conserved motif； C： Cis-acting regulatory elements

Fig. 2 Phylogenetic analysis of TaCOBL-5 proteins

Fig. 3 Analysis of conserved COBRA domain and the tertiary structure of COBL proteinsA： COBRA domain； B： Tertiary structure of COBL protein

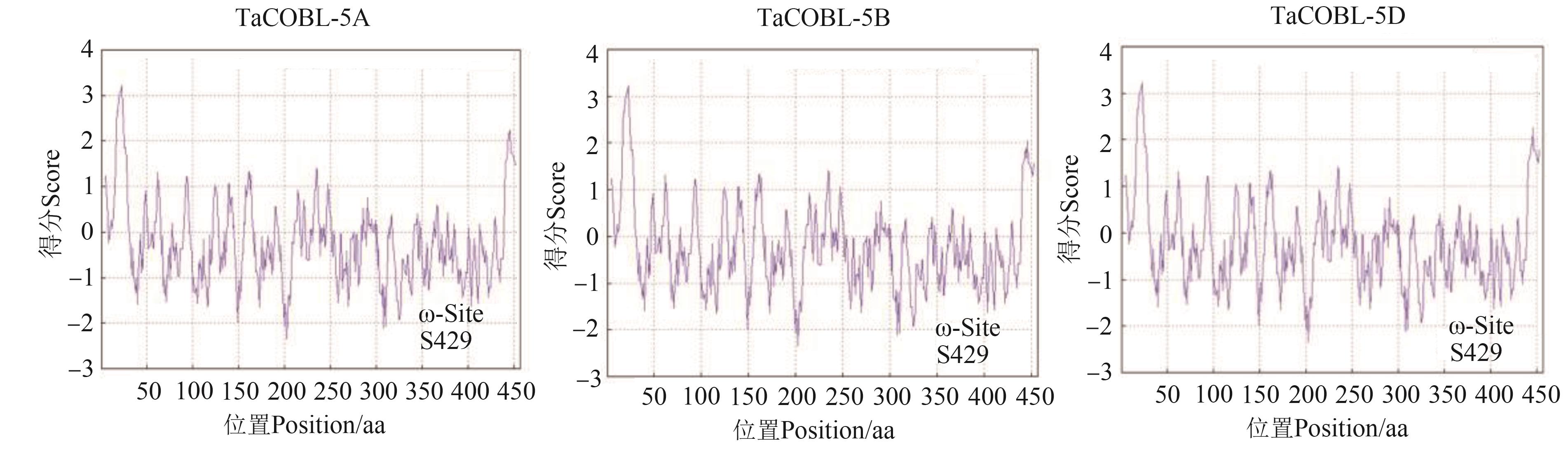

Fig. 4 Prediction of hydropath and GPI modification sites of TaCOBL-5 proteins

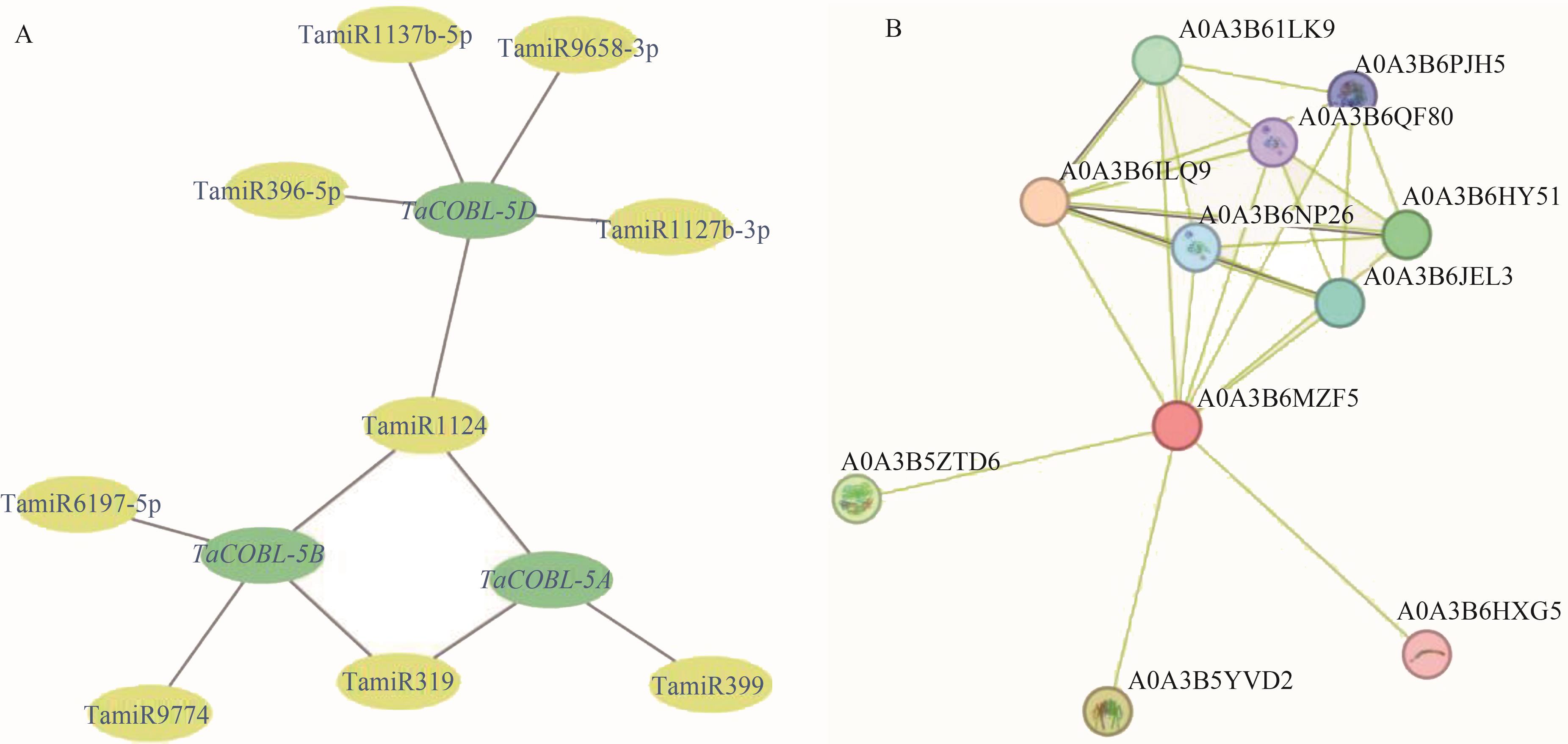

Fig. 5 Prediction putative networks of wheat miRNAs and the interacting proteinsA： Putative network of wheat miRNAs； B： Network of interacting proteins

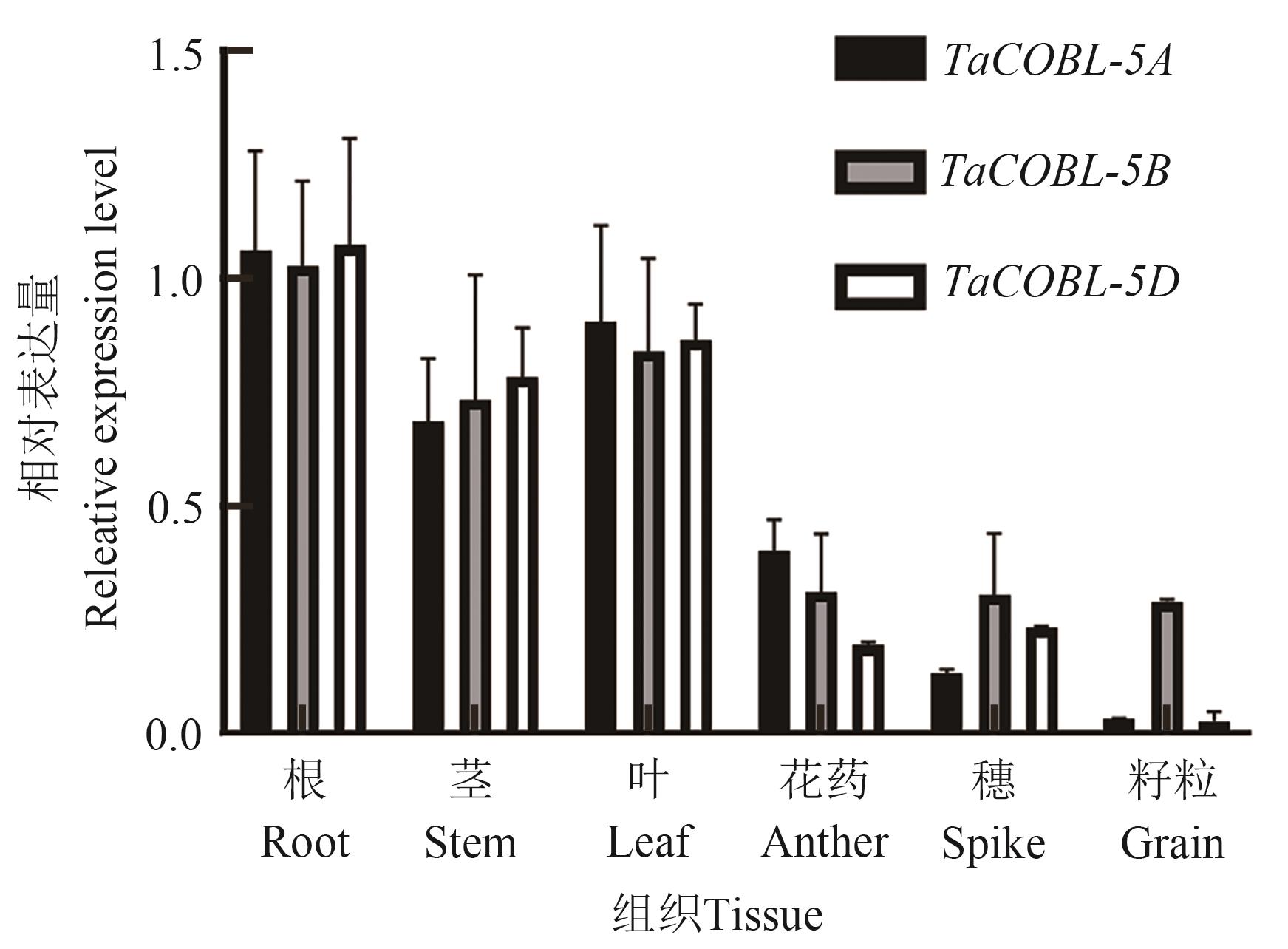

Fig. 6 Analysis of tissue expression patterns of TaCOBL-5 genes

Fig. 7 Expression profiles of TaCOBL-5 genes under cold， drought， heat and salt stress

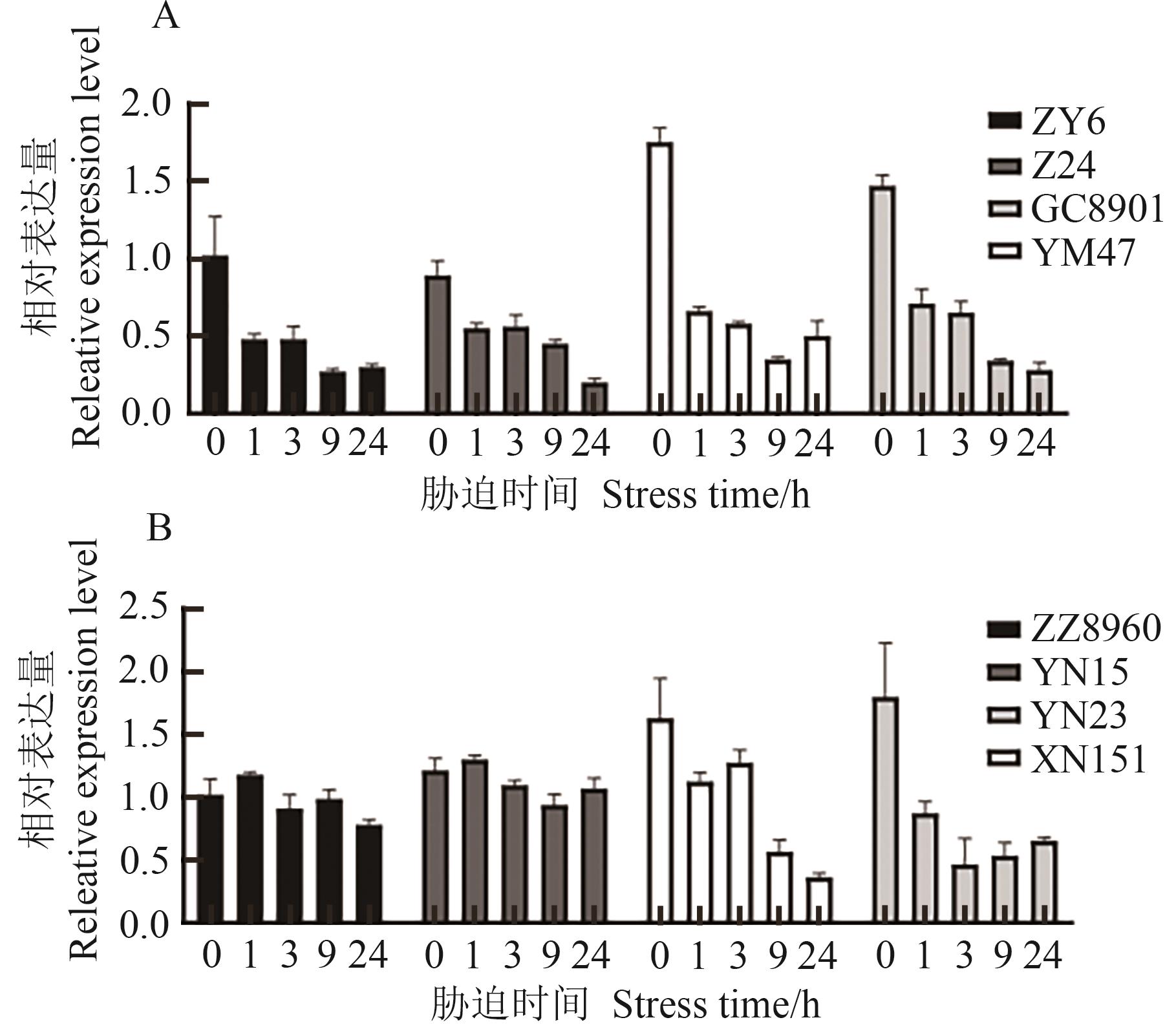

Fig. 8 Expression profiles of TaCOBL-5D among different resistant materials under drought and heat stressesA： Drought stress； B： Heat stress

References 30

1	ZHU J K. Salt and drought stress signal transduction in plants [J]. Annu. Rev. Plant Biol., 2002, 53(1):247-273.
2	陈翔,胡雨喆,陈甜甜,等.小麦抗低温逆境化控技术研究进展[J].植物营养与肥料学报, 2023, 29(8):1543-1555.
	CHEN X, HU Y Z, CHEN T T, et al.. Progress of chemical regulation on wheat resistance to low temperature stress [J]. J. Plant Nutr. Fert., 2023, 29(8):1543-1555.
3	WINFIELD M O, LU C G, WILSON I D, et al.. Plant responses to cold: transcriptome analysis of wheat [J]. Plant Biotechnol. J., 2010, 8(7):749-771.
4	MAO H D, JIAN C, CHENG X X, et al.. The wheat ABA receptor gene TaPYL1-1B contributes to drought tolerance and grain yield by increasing water-use efficiency [J]. Plant Biotechnol. J., 2022, 20(5):846-861.
5	温辉芹,程天灵,裴自友,等.山西中部区试小麦品种抗旱节水指标分析[J].山西农业科学,2020,48(10):1572-1575.
	WEN H Q, CHENG T L, PEI Z Y, et al.. Analysis on drought resistance and water saving indexes of wheat varieties of regional trial in central Shanxi [J]. J. Shanxi Agric. Sci., 2020, 48(10):1572-1575.
6	健康,倪建平.植物非生物胁迫信号转导及应答[J].中国稻米, 2016, 22(6):52-60.
	ZHU J K, NI J P. Abiotic stress signaling and responses in plants [J]. China Rice, 2016, 22(6):52-60.
7	盛松柏,田菊,庞晓明.冬枣COBRA基因家族全基因组鉴定及表达分析[J].分子植物育种, 2018, 16(1):61-68.
	SHENG S B, TIAN J, PANG X M. Genome-wide identification and expression analysis of COBRA gene family in Ziziphus jujuba [J]. Mol. Plant Breeding, 2018, 16(1):61-68.
8	SUN X M, XIONG H Y, JIANG C H, et al.. Natural variation of DROT1 confers drought adaptation in upland rice [J/OL]. Nat. Commun., 2022, 13(1):4265 [2024-04-03]..
9	LI Y H, QIAN O, ZHOU Y H, et al.. BRITTLE CULM1, which encodes a COBRA-like protein, affects the mechanical properties of rice plants [J]. Plant Cell, 2003, 15(9):2020-2031.
10	BRADY S M, SONG S, DHUGGA K S, et al.. Combining expression and comparative evolutionary analysis. The COBRA gene family [J]. Plant Physiol., 2007, 143(1):172-187.
11	JULIUS B T, MCCUBBIN T J, MERTZ R A, et al.. Maize Brittle Stalk2-Like3, encoding a COBRA protein, functions in cell wall formation and carbohydrate partitioning [J]. Plant Cell, 2021, 33(10):3348-3366.
12	AHMED M Z, ALQAHTANI A S, NASR F A, et al.. Comprehensive analysis of the COBRA-like (COBL) gene family through whole-genome analysis of land plants [J]. Genet. Resour. Crop Evol., 2024, 71(1):863-872.
13	QIU C, CHEN J H, WU W H, et al.. Genome-wide analysis and abiotic stress-responsive patterns of COBRA-like gene family in Liriodendron chinense [J/OL]. Plants-Basel, 2023, 12(8):1616 [2024-04-03]. .
14	BEN-TOV D, ABRAHAM Y, STAV S, et al.. COBRA-LIKE2, a member of the glycosylphosphatidylinositol-anchored COBRA-LIKE family, plays a role in cellulose deposition in Arabidopsis seed coat mucilage secretory cells [J]. Plant Physiol., 2015, 167(3):711-724.
15	LIU F F, WAN Y X, CAO W X, et al.. Novel function of a putative TaCOBL ortholog associated with cold response [J]. Mol. Biol. Rep., 2023, 50(5):4375-4384.
16	LIU L F, SHANG-GUAN K K, ZHANG B C, et al.. Brittle Culm1, a COBRA-Like protein, functions in cellulose assembly through binding cellulose microfibrils [J/OL]. PLoS Genet., 2013, 9(8):e1003704 [2024-04-03]. .
17	YE X, KANG B G, OSBURN D L, et al.. The COBRA gene family in Populus and gene expression in vegetative organs and in response to hormones and environmental stresses [J]. Plant Growth Regul., 2009, 58(2):211-223.
18	ZHANG D Q, YANG X H, ZHANG Z Y, et al.. Expression and nucleotide diversity of the poplar COBL gene [J]. Tree Genet. Genomes, 2010, 6(2):331-344.
19	YILAN E, XIN G, JING X, et al.. Genome-wide identification of the COBRA-like gene family in Pinus tabuliformis and the role of PtCOBL12 in the regulation of cellulose biosynthesis [J]. Ind. Crop Prod., 2023, 203.
20	YANG Q, WANG S, CHEN H, et al.. Genome-wide identification and expression profiling of the COBRA-like genes reveal likely roles in stem strength in rapeseed (Brassica napus L.) [J/OL]. PLoS One, 2021,16(11):e0260268 [2024-04-03]. .
21	NIU E L, SHANG X G, CHENG C Z, et al.. Comprehensive analysis of the COBRA-Like (COBL) gene family in Gossypium identifies two COBLs potentially associated with fiber quality [J/OL]. PLoS One, 2015, 10(12):e014572 [2024-04-03]. .
22	SANGI S, ARAÚJO PAULA M, COELHO F S, et al.. Genome-wide analysis of the COBRA-Like gene family supports gene expansion through whole-genome duplication in soybean (Glycine max) [J]. Plants, 2021, 10 (1):167-167.
23	XU L, WANG D Z, LIU S, et al.. Comprehensive atlas of wheat (Triticum aestivum L.) AUXIN RESPONSE FACTOR expression during male reproductive development and abiotic stress [J/OL]. Front. Plant Sci., 2020, 11:586144 [2024-04-03]. .
24	吴凯铭.337份小麦品种(系)萌发期抗旱性鉴定及生理响应[D].杨凌:西北农林科技大学,2022.
	WU K M. Identification of drought resistance and physiological response during germination in 337 wheat varieties (lines) [D]. Yangling: Northwest A&F University, 2022.
25	史冰新.黄淮和长江中下游冬麦区小麦耐热种质资源筛选[D].杨凌:西北农林科技大学,2023.
	SHI B X. Screened for heat tolerance of wheat germplasm resources in the Yellow and Huai River valley winter wheat zone and the middle and lower Yangtze valley winter wheat zone [D]. Yangling: Northwest A&F University, 2023.
26	KESAWAT M S, KHERAWAT B S, SINGH A, et al.. Genome-wide identification and characterization of the Brassinazole-resistant (BZR) gene family and its expression in the various developmental stage and stress conditions in wheat (Triticum aestivum L.) [J]. Int. J. Mol. Sci., 2021, 22(16):8743-8743.
27	FANG Y J, ZHENG Y Q, LU W, et al.. Roles of miR319-regulated TCPs in plant development and response to abiotic stress [J]. Crop J., 2021, 9(1):17-28.
28	JIAN C, HAO P A, HAO C Y, et al.. The miR319/TaGAMYB3 module regulates plant architecture and improves grain yield in common wheat (Triticum aestivum) [J]. New Phytol., 2022, 235(4):1515-1530.
29	梁婷,左静红,陆青,等.小麦IQM基因家族鉴定及非生物胁迫下表达分析[J].中国农业科技导报, 2023, 25(2):27-37.
	LIANG T, LU Q, ZUO J Het al.. Identification and expression analysis under abiotic stress of IQM gene family in wheat (Triticum aestivum L.) [J]. J. Agric. Sci. Technol., 2023, 25(2):27-37.
30	陆青,梁婷,汪德州,等.小麦热激蛋白基因TaHSP90-1的克隆与表达分析[J].中国农业科技导报, 2022, 24(8):44-54.
	LU Q, LIANG T, WANG D Zet al.. Cloning and expression analysis of wheat heat shock protein gene TaHSP90-1 [J]. J. Agric. Sci. Technol., 2022, 24(8):44-54.
