Effects of Combined Application of Biochar and Organic Fertilizer on Soil Physicochemical Properties and Microbial Community Characteristics in Apple Recropping Field

doi:10.13304/j.nykjdb.2024.0009

Abstract

Abstract:

In order to investigate the effect of biomass charcoal and organic fertilizer on the improvement of continuous apple nursery land， the effects of different ratios of biomass charcoal and organic fertilizer on the physicochemical properties and microbial community structure of apple inter-root soils were investigated using high-throughput sequencing technology combined with soil physicochemical property analysis， using apple nursery land with 5 years of continuous cultivation. The results showed that the nutrient content of the soil increased significantly， and the pH and conductivity of soil increased significantly after the application of biomass charcoal and organic fertilizer. The quick-acting nutrient content of soil with 600 kg·hm^-2 of biomass charcoal increased significantly， and the contents of soil total nitrogen， alkaline nitrogen， available phosphorus， available potassium and organic carbon increased by 15.06%， 27.03%， 61.32%， 51.55% and 20.18%， respectively. In addition， biomass charcoal and organic fertilizer treatments increased the diversity and abundance of bacterial communities in soil and decreased the diversity and abundance of fungal communities， and the abundance of beneficial bacterial genera in soil were all significantly increased. The correlation analysis results showed that the soil organic carbon， available potassium and alkaline nitrogen had significant effects on bacterial community characteristics in soil， while fungal community characteristics were mainly affected by the soil total nitrogen， organic carbon and available potassium. In conclusion， the combination of biomass charcoal and organic fertilizer had a certain mitigating effect on the continuous crop barrier in apple nursery land， which improved the microenvironment of the soil and enhanced the soil quality.

Key words: apple, continuous cropping obstacle, biochar, soil physical and chemical properties, characteristics of microbial community

摘要：

为研究生物质炭和有机肥配施对连作苹果育苗地的改良效果，以连作5年的苹果育苗地为研究对象，采用高通量测序技术结合土壤理化性质分析，探究不同配比生物质炭和有机肥配施对苹果根际土壤理化性质和微生物群落结构的影响。结果表明，生物质炭和有机肥配施处理后土壤中养分含量显著增加，土壤pH和电导率显著上升。其中以600 kg·hm^-2生物质炭配施有机肥处理土壤的速效养分含量显著增加，其土壤全氮、碱解氮、速效磷、速效钾和有机碳含量分别显著增加15.06%、27.03%、61.32%、51.55%和20.18%。此外，生物质炭和有机肥处理提高了土壤中细菌群落的多样性和丰度，降低了真菌群落的多样性和丰度，使土壤中有益菌属的丰度显著增加。相关性分析表明，土壤有机碳、速效钾和碱解氮含量对土壤中细菌群落特征影响显著；而真菌群落特征主要受土壤全氮、有机碳和速效钾含量的影响。综上，生物质炭和有机肥配施对苹果育苗地连作障碍具有一定的缓解作用，可改善土壤的微环境，提高土壤质量。

关键词: 苹果, 连作障碍, 生物质炭, 土壤理化性质, 微生物群落特征

CLC Number:

S156

Jidong ZHANG, Yaxiong ZHANG, Wei CHENG, Li PU, Luhang LIU, Yaming WANG. Effects of Combined Application of Biochar and Organic Fertilizer on Soil Physicochemical Properties and Microbial Community Characteristics in Apple Recropping Field[J]. Journal of Agricultural Science and Technology, 2024, 26(8): 213-222.

张继东, 张亚雄, 程伟, 蒲莉, 柳路行, 王亚明. 生物质炭和有机肥配施对苹果重茬育苗地土壤理化性质和微生物群落特征的影响[J]. 中国农业科技导报, 2024, 26(8): 213-222.

Figures/Tables 6

Table 1 Physicochemical properties of apple rhizosphere soil under different treatments

处理 Treatment	pH	电导率EC/（mS·cm^-1）	全氮 TN/（g·kg^-1）	全磷 TP/（g·kg^-1）	全钾 TK/（g·kg^-1）	碱解氮AN/（mg·kg^-1）	速效磷AP/（mg·kg^-1）	速效钾AK/（mg·kg^-1）	有机碳SOC/（g·kg^-1）
CK	8.13±0.02 e	0.27±0.02 e	1.66±0.03 e	1.02±0.05 d	16.81±0.02 d	192.08±0.03 d	30.32±0.03 e	172.00±1.00 e	7.88±0.01 e
T1	8.17±0.03 d	0.31±0.02 d	1.87±0.02 c	1.13±0.02 c	18.00±0.04 c	214.00±0.02 c	33.82±0.02 d	232.33±1.53 d	8.59±0.02 d
T2	8.29±0.01 c	0.35±0.02 c	1.91±0.04 a	1.43±0.02 b	18.35±0.03 b	244.00±0.03 a	48.82±0.03 a	260.67±1.15 a	8.87±0.03 a
T3	8.46±0.02 b	0.45±0.01 b	1.89±0.02 b	1.42±0.01 b	18.40±0.03 b	232.23±0.03 b	43.78±0.03 c	255.00±1.00 c	8.83±0.02 b
T4	8.51±0.01 a	0.47±0.01 a	1.83±0.02 d	1.46±0.02 a	18.91±0.02 a	234.11±0.03 b	45.44±0.03 b	258.00±1.73 b	8.81±0.01 c

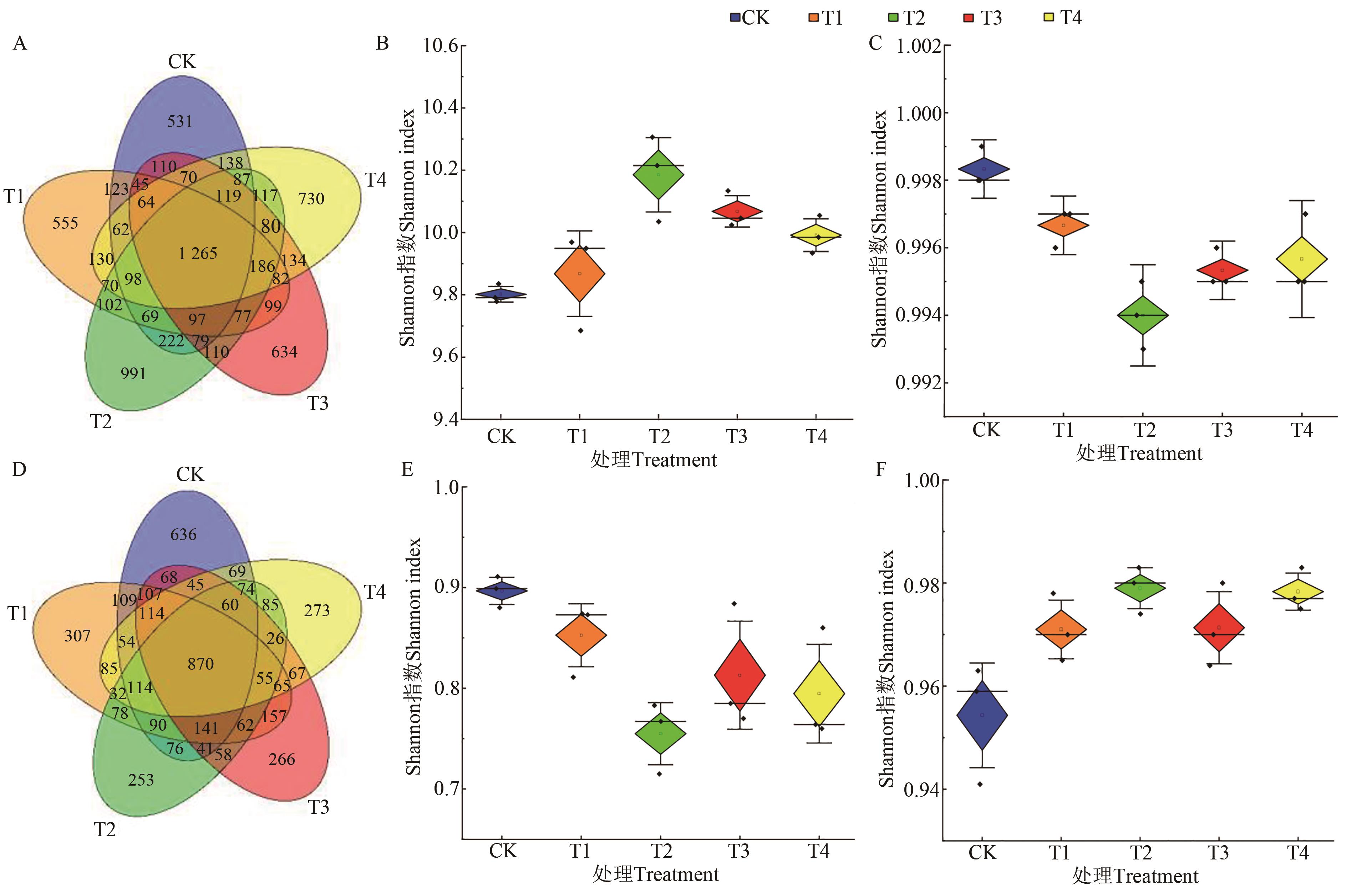

Fig. 1 α diversity of microbial community in rhizosphere soil of apple under different treatmentsA： OTU Venn diagram of bacteria； B： Shannon index of bacteria； C： Simpson index of bacteria； D： OTU Venn diagram of fungi； E： Shannon index of fungi； F：Simpson index of fungi

Fig. 2 Relative abundances of microbial communities in rhizosphere soil of apples under different treatmentsA： Phylum level of bacteria； B： Genus level of bacteria C： Phylum level of fungi； D： Genus level of fungi

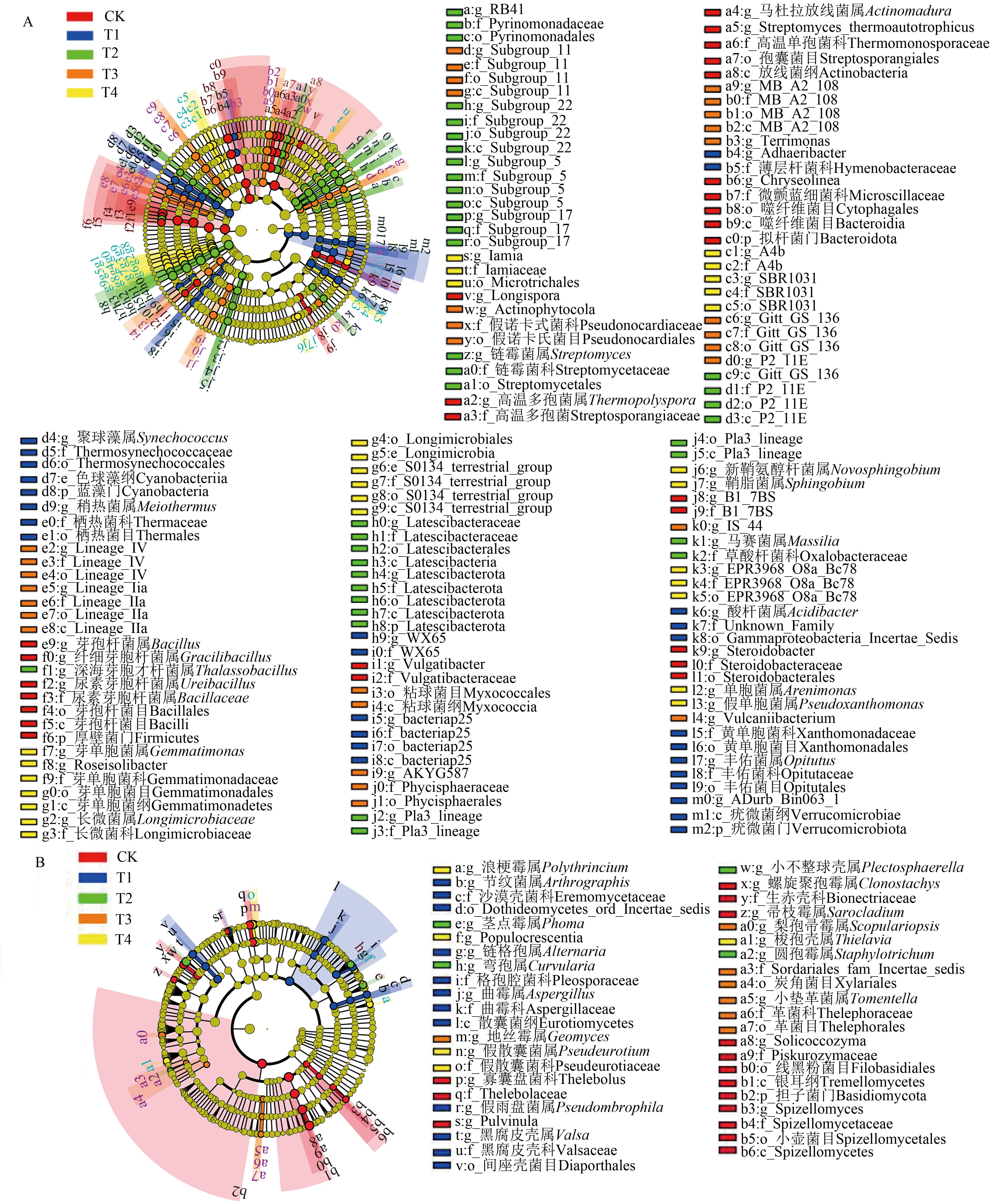

Fig. 3 LEfSe analysis of microbial communities in rhizosphere soil of apple under different treatmentsA： Bacteria； B： Fungi

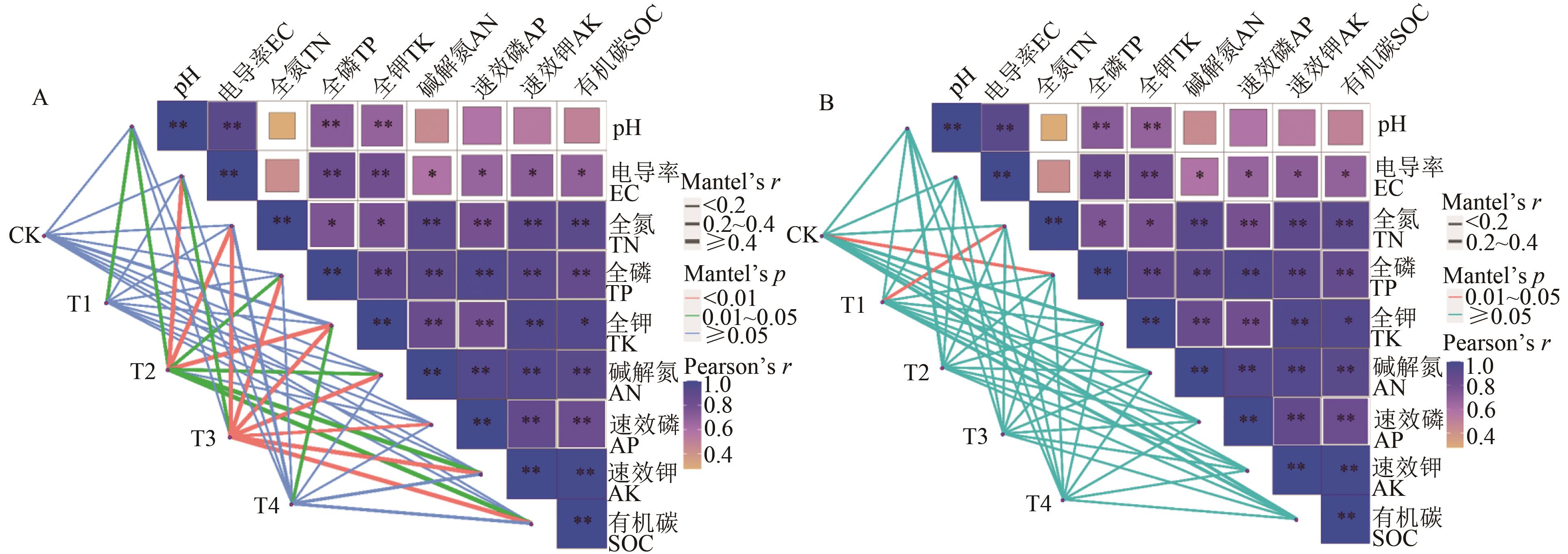

Fig. 4 Mental analysis between rhizosphere soil microbial communities and soil physicochemical properties under different treatmentsA： Bacteria； B： Fungi. * and ** indicate significant at P<0.05 and P<0.01 levels， respectively.

Fig. 5 RDA analysis of microbial and environmental factors in apple rhizosphere soil under different treatmentsA： Bacteria； B： Fungi. EC—Electric conductivity； TN—Total nitrogen； TP—Total phosphorus； TK—Total potassium； AN—Alkali-hydrolyzale nitrogen； AP—Available phosphorus； AK—Available potassium； SOC—Soil organic carbon； Acidobac—Acidobacteriota； Proteobc—Proteobacteria； Gemmatim—Gemmatimonadota； Actinobac—Actinobacteriota； Firmicut—Firmicutes； Planctom—Planctomycetota； Chlorofl—Chloroflexi； Bacteroi—Bacteroidota； Myxococc—Myxococcota； Methylom—Methylomirabilota； Crenarch—Crenarchaeota； Verrucom—Verrucomicrobiota； NB1-j—NB1-j； Latescib—Latescibacterota. Fungi—Basidiom—Basidiomycota； Mortierl—Mortierellomycota； Ascomyct—Ascomycota； Aphelidi—Aphelidiomycota； Chytridi—Chytridiomycota； Glomerom—Glomeromycota； Mucoromc—Mucoromycota； Olpidiom—Olpidiomycota； Rozellom—Rozellomycota； Blastocl—Blastocladiomycota； Zoopagom—Zoopagomycota； Kickxell—Kickxellomycota； Monoblep—Monoblepharomycota； Entomoph—Entomophthoromycota

References 33

1	刘园,刘布春,程存刚,等.基于全球文献计量对苹果响应气候变化研究的热点分析[J].果树学报,2021,38(10):1748-1759.
	LIU Y, LIU B C, CHENG C G, et al.. Hotspot analysis of apple’s response to climate change based on global bibliometrics [J]. J. Fruit Sci., 2021, 38(10):1748-1759.
2	孙文泰,马明.黄土高原长期覆膜苹果园土壤物理退化与细根生长响应[J].植物生态学报,2021,45(9):972-986.
	SUN W T, MA M. Response of soil physical degradation and fine root growth in long-term mulching apple orchards on the Loess Plateau [J]. Chin. J. Plant Ecol., 2021, 45(9):972-986.
3	倪蔚茹,王安然,贺锡燕,等.重茬土对相同砧木不同苹果品种生理指标及叶片抗氧化酶活性的影响[J].中国农业科学,2016,49(18):3597-3607.
	NI W R, WANG A R, HE X Y, et al.. Effects of after-reap soil on physiological indexes and leaf antioxidant activity of the different apple cultivars with the same rootstock [J]. Sci. Agric. Sin., 2016, 49(18):3597-3607.
4	王晓芳,夏群,栾日昇,等.万寿菊秸秆粉末处理对镰孢菌的抑制及苹果连作土壤施用效果[J].园艺学报, 2023,50(7):1518-1534.
	WANG X F, XIA Q, LUAN R S, et al.. Inhibition of Tagetes erecta straw powder on the main pathogens of apple continuous cropping obstacle and its field application effect [J]. Acta Hortic. Sin., 2023, 50(7):1518-1534.
5	PERVAIZ Z H, IQBAL J, ZHANG Q, et al.. Continuous cropping alters multiple biotic and abiotic indicators of soil health [J/OL]. Soil Syst., 2020, 4(4):59 [2023-12-20]. .
6	LIU H, PAN F Y, HAN X, et al.. Response of soil fungal community structure to long-term continuous soybean cropping [J/OL]. Front. Microbiol., 2019, 9:3316 [2023-12-20]. .
7	LIU Z X, LIU J J, YU Z H, et al.. Long-term continuous cropping of soybean is comparable to crop rotation in mediating microbial abundance, diversity and community composition [J/OL]. Soil Till. Res., 2020, 197:104503 [2023-12-20]. .
8	GAO Z Y, HAN M K, HU Y Y, et al.. Effects of continuous cropping of sweet potato on the fungal community structure in rhizospheric soil [J/OL]. Front. Microbiol., 2019, 10:2269 [2023-12-20]. .
9	LIU H, PAN F J, HAN X Z, et al.. A comprehensive analysis of the response of the fungal community structure to long-term continuous cropping in three typical upland crops [J]. J. Integr. Agric., 2020, 19(3):866-880.
10	TAN G, LIU Y J, PENG S G, et al.. Soil potentials to resist continuous cropping obstacle: three field cases [J/OL]. Environ. Res., 2021, 200:111319 [2023-12-20]. .
11	ZHANG Z Y, DONG X X, WANG S M, et al.. Benefits of organic manure combined with biochar amendments to cotton root growth and yield under continuous cropping systems in Xinjiang, China [J/OL]. Sci. Rep., 2020, 10(1):4718 [2023-12-20]. .
12	陈心想,耿增超.生物质炭在农业上的应用[J].西北农林科技大学学报(自然科学版),2013,41(2):167-174.
	CHEN X X, GENG Z C. Application of biochar in agriculture [J]. J. Northwest A&F Univ. (Nat. Sci.), 2013, 41(2):167-174.
13	鲍士旦.土壤农化分析[M].第三版北京:中国农业出版社,2000:1-495.
14	WANG H Y, SHENG Y F, JIANG W T, et al.. The effects of crop rotation combinations on the soil quality of old apple orchard [J]. Hortic. Plant J., 2022, 8(1):1-10.
15	TANG L, HAMIND Y, CHEN Z,et al.. A phytoremediation coupled with agro-production mode suppresses Fusarium wilt disease and alleviates cadmium phytotoxicity of cucumber (Cucumis sativus L .) in continuous cropping greenhouse soil [J/OL]. Chemosphere, 2021, 270:128634 [2023-12-20]. .
16	MA Z M, GUAN Z J, LIU Q C, et al.. Obstacles in continuous cropping: mechanisms and control measures [J]. Adv. Agron., 2023, 179:205-256.
17	WANG Y, JIN Y J, HAN P, et al.. Impact of soil disinfestation on fungal and bacterial communities in soil with cucumber cultivation [J/OL]. Fronti. Microbiol., 2021, 12:685111 [2023-12-20]. .
18	LI Q, ZHANG D, ZHANG J, et al.. Crop rotations increased soil ecosystem multifunctionality by improving keystone taxa and soil properties in potatoes [J/OL]. Front. Microbiol., 2023, 14:1034761 [2023-12-20]. .
19	GUIRE N, SONI A, RANGAN L, et al.. Sustainable improvement of soil health utilizing biochar and arbuscular mycorrhizal fungi: a review [J/OL]. Environ. Pollut., 2021, 268:115549 [2023-12-20]. .
20	谢祖彬,刘琦.生物质炭的固碳减排与合理施用[J].农业环境科学学报,2020,39(4):901-907.
	XIE Z B, LIU Q. Rational application of biochar to sequester carbon and mitigate soil GHGs emissions: a review [J]. J. Agro-Environ. Sci., 2020, 39(4):901-907.
21	ZHANG Y J, ZOU J L, MENG D L, et al.. Effect of soil microorganisms and labile C availability on soil respiration in response to litter inputs in forest ecosystems: a meta‐analysis [J]. Ecol. Evol., 2020, 10(24):13602-13612.
22	YUAN M, YU T, SHI Q, et al.. Rhizosphere soil bacterial communities of continuous cropping-tolerant and sensitive soybean genotypes respond differently to long-term continuous cropping in mollisols [J/OL]. Front. Microbiol., 2021, 12:729047 [2023-12-20]. .
23	LI Y, FANG F, WEI J, et al.. Humic acid fertilizer improved soil properties and soil microbial diversity of continuous cropping peanut: a three-year experiment [J/OL]. Sci. Rep., 2019, 9(1):12014 [2023-12-20]. .
24	GOROVTSOV A V, MINKINA T M, MANDZHIEVA S S, et al.. The mechanisms of biochar interactions with microorganisms in soil [J]. Environ. Geochem. Hlth., 2020, 42: 2495-2518.
25	GE X G, CAO Y H, ZHOU B Z, et al.. Biochar addition increases subsurface soil microbial biomass but has limited effects on soil CO₂ emissions in subtropical Moso bamboo plantations [J]. Appl. Soil Ecol., 2019, 142:155-165.
26	SILVA L G, ANDRADE C A, BETTIOL W. Biochar amendment increases soil microbial biomass and plant growth and suppresses Fusarium wilt in tomato [J]. Trop. Plant Pathol., 2020, 45:73-83.
27	杨阳,李海亮,马凯丽,等.连作对党参根际土壤理化性质、微生物活性及群落特征的影响[J].环境科学,2023,44(11):6387-6398.
	YANG Y, LI H L, MA K L, et al.. Effect of continuous cropping on the physicochemical properties, microbial activity, and community characteristics of the rhizosphere soil of Codonopsis pilosula [J]. Chin. J. Environ. Sci., 2023, 44(11):6387-6398.
28	孔晨晨,张世文,王维瑞,等.不同连作年限设施农用地土壤有机碳与细菌群落功能特征[J].农业机械学报,2024,55(2):326-337.
	KONG C C, ZHANG S W, WANG W R, et al.. Characteristics of soil organic carbon and bacterial communities functional in agricultural soils of facilities with different continuous cropping period [J]. Trans. Chin. Soc. Agric. Mach., 2024, 55(2):326-337.
29	LASOTA J, BLONSKA E, BABIAK T, et al.. Effect of charcoal on the properties, enzyme activities and microbial diversity of temperate pine forest soils [J/OL]. Forests, 2021, 12(11):1488 [2023-12-20]. .
30	KERNER P, STRUHS E, MIRKOUEI A, et al.. Microbial responses to biochar soil amendment and influential factors: a three-level meta-analysis [J/OL]. BioRxiv, 2023, 6(2):543269 [2023-12-20]. .
31	ZHOU R R, WANG Y, TIAN M M, et al.. Mixing of biochar, vinegar and mushroom residues regulates soil microbial community and increases cucumber yield under continuous cropping regime [J/OL]. Appl. Soil Ecol., 2021, 161:103883 [2023-12-20]. .
32	王光华,刘俊杰,于镇华,等.土壤酸杆菌门细菌生态学研究进展[J].生物技术通报,2016,32(2):14-20.
	WANG G H, LIU J J, YU Z H, et al.. Research progress of Acidobacteria ecology in soils [J]. Biotechnol. Bull., 2016, 32 (2):14-20.
33	GE Z, LI S Y, BOL R, et al.. Differential long-term fertilization alters residue-derived labile organic carbon fractions and microbial community during straw residue decomposition [J]. Soil Till. Res., 2021, 213:105120 [2023-12-20]. .
