Journal of Agricultural Science and Technology ›› 2023, Vol. 25 ›› Issue (5): 34-45.DOI: 10.13304/j.nykjdb.2022.0761
• BIOTECHNOLOGY & LIFE SCIENCE • Previous Articles Next Articles
Daokuan BAI(), Baojian GUO, Yi HONG, Mengna ZHANG, Juan ZHU, Chao LYU, Feifei WANG, Rugen XU(
)
Received:
2022-09-09
Accepted:
2022-12-15
Online:
2023-05-20
Published:
2023-07-13
Contact:
Rugen XU
白道宽(), 郭宝健, 洪益, 张萌娜, 朱娟, 吕超, 王菲菲, 许如根(
)
通讯作者:
许如根
作者简介:
白道宽 E-mail: b19711208b@163.com;
基金资助:
CLC Number:
Daokuan BAI, Baojian GUO, Yi HONG, Mengna ZHANG, Juan ZHU, Chao LYU, Feifei WANG, Rugen XU. Research on Mutagenic Mechanism and Genetic Mechanism of a Yellowing Mutant in Barley[J]. Journal of Agricultural Science and Technology, 2023, 25(5): 34-45.
白道宽, 郭宝健, 洪益, 张萌娜, 朱娟, 吕超, 王菲菲, 许如根. 一个大麦黄化突变体的突变机理及其遗传机制研究[J]. 中国农业科技导报, 2023, 25(5): 34-45.
基因名称 Gene name | 基因ID Gene ID | 正向引物 Forward primer(5’-3’) | 反向引物 Reverse primer(5’-3’) |
---|---|---|---|
HvCAO | HORVU.MOREX.r3.3HG0324440 | TGGTGCCCATAGATTGTTTC | GCCCTCATTCACTGAACCAAG |
COR | HORVU.MOREX.r3.2HG0191600 | TCTGCCTGCAAACCCCTCCTAG | TGTCCGTGGCATCCTGGACCTT |
PORB | HORVU.MOREX.r3.1HG0047060 | AGGCGTACAAGGACAGCAAGG | GTAGAGCGACGCGAAGGTGA |
PORA | HORVU.MOREX.r3.2HG0209470 | CCGTTCCAGAAGTTCGTCACC | CCTTGTTCCAGCTCCAGTACAC |
YCF3 | HORVU.MOREX.r3.5HG0423760 | GGTCTTTATCCTCGTCGTAT | TGTTCAATTTCTCGTGGAGT |
HvPTOX | HORVU.MOREX.r3.2HG0213170 | CTCTTAATCATGGAAGCGTTGG | TGGCGACAGTGACGAAGTAG |
MSH1 | HORVU.MOREX.r3.2HG0180240 | CCGAAGAAGAGTTCAGCAAT | TTCCATGCGAGGACATCACG |
HvCMF3 | HORVU.MOREX.r3.6HG0559110 | AATGCGAAATGCGAGGAGG | GGTCTTCGGTGCCTTTGTC |
GAPDH | HORVU.MOREX.r3.7HG0703580 | GTGAGGCTGGTGCTGATTACG | TGGTGCAGCTAGCATTTGAGA |
α-tublin | HORVU.MOREX.r3.1HG0082050 | AGTGTCCTGTCCACCCACTC | AGCATGAAGTGGATCCTTGG |
Table 1 Primer of chlorophyll synthesis, photosynthesis related genes used fou quantitative real-time PCR
基因名称 Gene name | 基因ID Gene ID | 正向引物 Forward primer(5’-3’) | 反向引物 Reverse primer(5’-3’) |
---|---|---|---|
HvCAO | HORVU.MOREX.r3.3HG0324440 | TGGTGCCCATAGATTGTTTC | GCCCTCATTCACTGAACCAAG |
COR | HORVU.MOREX.r3.2HG0191600 | TCTGCCTGCAAACCCCTCCTAG | TGTCCGTGGCATCCTGGACCTT |
PORB | HORVU.MOREX.r3.1HG0047060 | AGGCGTACAAGGACAGCAAGG | GTAGAGCGACGCGAAGGTGA |
PORA | HORVU.MOREX.r3.2HG0209470 | CCGTTCCAGAAGTTCGTCACC | CCTTGTTCCAGCTCCAGTACAC |
YCF3 | HORVU.MOREX.r3.5HG0423760 | GGTCTTTATCCTCGTCGTAT | TGTTCAATTTCTCGTGGAGT |
HvPTOX | HORVU.MOREX.r3.2HG0213170 | CTCTTAATCATGGAAGCGTTGG | TGGCGACAGTGACGAAGTAG |
MSH1 | HORVU.MOREX.r3.2HG0180240 | CCGAAGAAGAGTTCAGCAAT | TTCCATGCGAGGACATCACG |
HvCMF3 | HORVU.MOREX.r3.6HG0559110 | AATGCGAAATGCGAGGAGG | GGTCTTCGGTGCCTTTGTC |
GAPDH | HORVU.MOREX.r3.7HG0703580 | GTGAGGCTGGTGCTGATTACG | TGGTGCAGCTAGCATTTGAGA |
α-tublin | HORVU.MOREX.r3.1HG0082050 | AGTGTCCTGTCCACCCACTC | AGCATGAAGTGGATCCTTGG |
Fig. 1 Phenotypes of ‘YNP5’ and G039 under natural conditionA: Plant at seedling period; B: Extracts of photosynthetic pigments in the seedling period; C: Plant at filling period; D: Grain length; E: Grain width

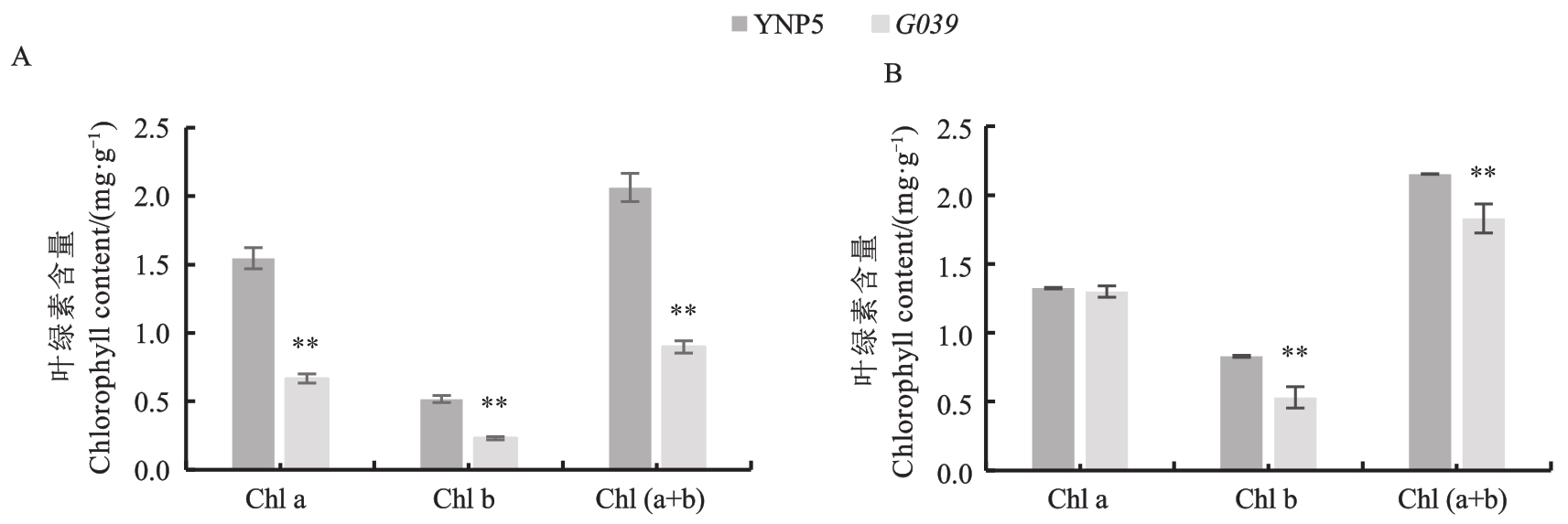

Fig. 2 Contents of chlorophyll pigments in ‘YNP5’ and G039A: Seedling stage; B: Grain filling stage. ** means significantly differences between materials at P<0.01 level
性状 Trait | 扬农啤5号 YNP5 | G039 |
---|---|---|
株高 Plant height/cm | 86.46±5.94 | 72.86±5.42** |
穗下节间长 Internode length below the spike/cm | 30.88±3.36 | 22.38±2.40** |
分蘖数 Number of tillers | 17.82±8.36 | 8.85±3.40** |
穗长 Panicle length/cm | 6.71±0.48 | 5.95±0.66** |
每穗粒数 Grains per panicle | 28.35±2.42 | 25.86±2.23** |
千粒重 1 000-grain weight/g | 41.93±0.34 | 48.04±0.36** |
粒长 Grain length/mm | 6.86±0.03 | 7.62±0.03** |
粒宽 Grain width/mm | 3.05±0.02 | 3.15±0.02** |
Table 2 Agronomic traits of the wild type ‘YNP5’ and mutant G039
性状 Trait | 扬农啤5号 YNP5 | G039 |
---|---|---|
株高 Plant height/cm | 86.46±5.94 | 72.86±5.42** |
穗下节间长 Internode length below the spike/cm | 30.88±3.36 | 22.38±2.40** |
分蘖数 Number of tillers | 17.82±8.36 | 8.85±3.40** |
穗长 Panicle length/cm | 6.71±0.48 | 5.95±0.66** |
每穗粒数 Grains per panicle | 28.35±2.42 | 25.86±2.23** |
千粒重 1 000-grain weight/g | 41.93±0.34 | 48.04±0.36** |
粒长 Grain length/mm | 6.86±0.03 | 7.62±0.03** |
粒宽 Grain width/mm | 3.05±0.02 | 3.15±0.02** |

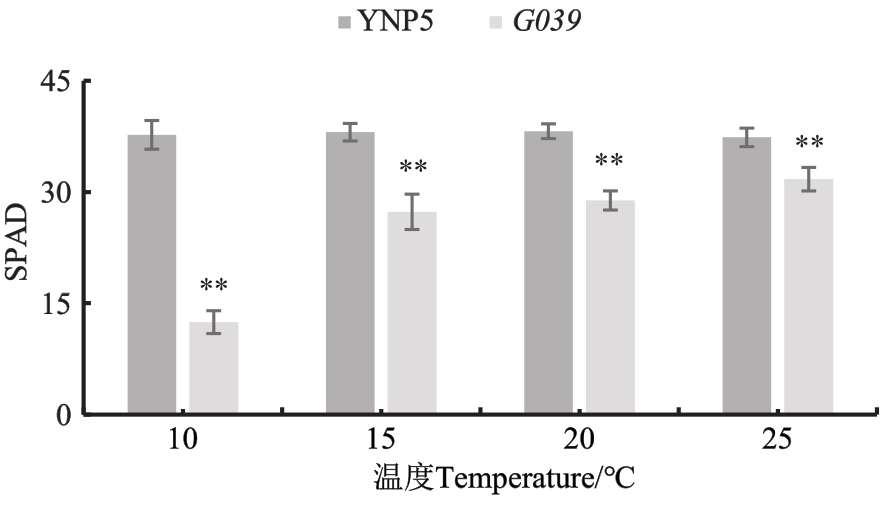

Fig. 3 SPAD values of the ‘YNP5’ and G039 under different temperature conditionsNote:** means significantly difference between materials at P<0.01 level.

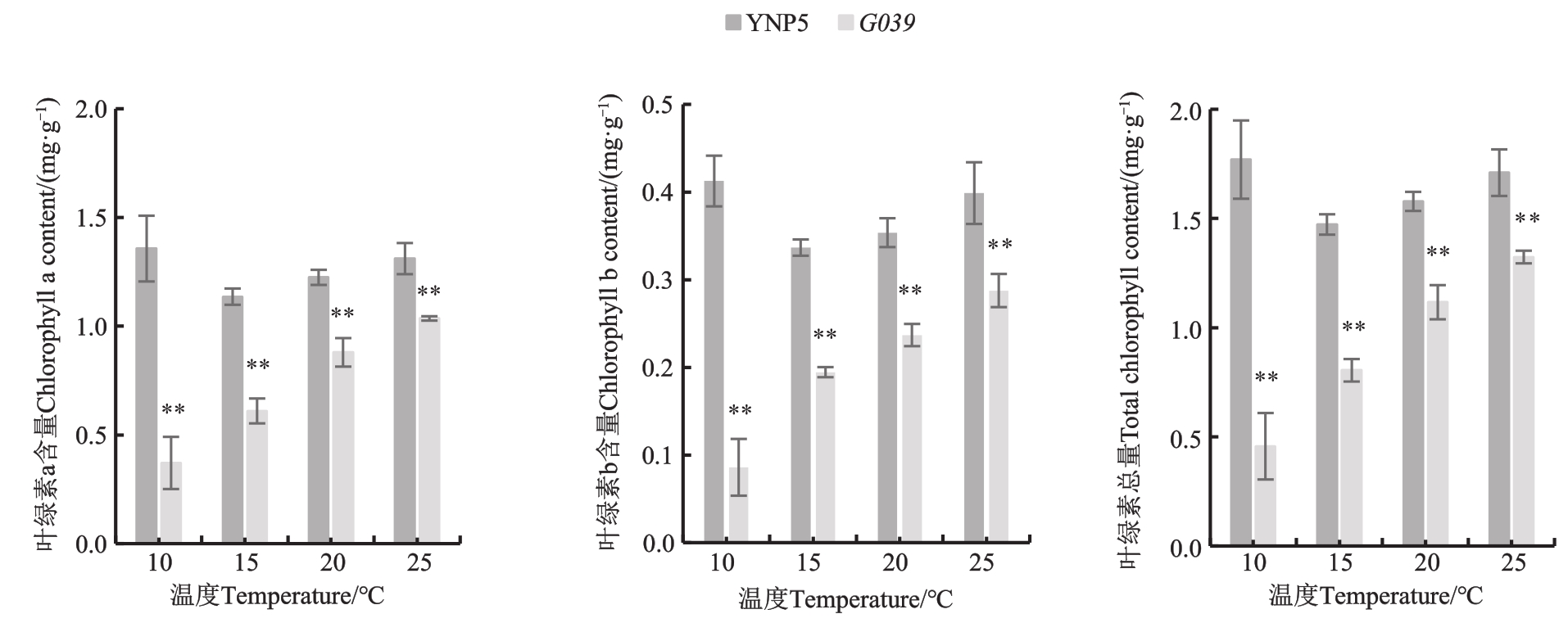

Fig. 5 Chlorophyll content of the ‘YNP5’ and G039 under different temperature conditionsNote: ** means significantly difference between materials at P<0.01 level
Fig. 6 Photosynthetic indices of ‘YNP 5’ and G039 under different temperature conditionsA~E: Net photosynthetic rate, transpiration rate, stomatal conductance, water use efficiency and intercellular CO2 concentration are sequentially shown. * and ** mean significantly differences between materials at P<0.05 and P<0.01 levels,respectively
杂交组合 Cross combination | 植株数量 Number of plants | χ2 | P值(0.05) P value(0.05) | ||
---|---|---|---|---|---|
F2群体 F2 population | 野生表型 Wild type phenotype | 突变表型 Mutant phenotype | |||
G039/扬农啤5号 | 388 | 297 | 91 | 0.49 | 3.84 |
G039/扬农啤7号 | 332 | 252 | 80 | 0.14 | 3.84 |
Table 3 Genetic analysis of the mutant trait
杂交组合 Cross combination | 植株数量 Number of plants | χ2 | P值(0.05) P value(0.05) | ||
---|---|---|---|---|---|
F2群体 F2 population | 野生表型 Wild type phenotype | 突变表型 Mutant phenotype | |||
G039/扬农啤5号 | 388 | 297 | 91 | 0.49 | 3.84 |
G039/扬农啤7号 | 332 | 252 | 80 | 0.14 | 3.84 |
Fig. 8 Expression levels in genes involved in chlorophyll synthesis of YNP 5 and G039 under different temperature conditionsNote: ** means significant at P<0.01 level.
1 | 李强强,赵玥,李璠,等.作物源库关系及其生理调控途径的研究进展[J].江苏农业科学,2020,48(9):50-56. |
LI Q Q, ZHAO Y, LI F, et al.. Research progress of source-sink relationship and its underlying regulation mechanisms [J]. Jiangsu Agric. Sci., 2020, 48(9): 50-56. | |
2 | GAO F, ZHANG H J, ZHANG W J, et al.. Engineering of the cytosolic form of phosphoglucose isomerase into chloroplasts improves plant photosynthesis and biomass [J]. New Phytol., 2021, 231(1) : 315-325. |
3 | 李佳佳,于旭东,蔡泽坪,等.高等植物叶绿素生物合成研究进展[J].分子植物育种,2019,17(18):6013-6019. |
LI J J, YU X D, CAI Z P, et al.. An overview of chlorophyll biosynthesis in higher plants [J]. Mol. Plant Breed., 2019, 17(18): 6013-6019. | |
4 | 李素贞,杨文竹,陈茹梅.水稻黄绿叶突变体研究进展[J].生物技术通报,2018,34(11):15-21. |
LI S Z, YANG W Z, CHEN R M. An overview on yellow green leaf mutants in rice [J]. Biotechnol. Bull., 2018, 34(11): 15-21. | |
5 | 李军,朱梦珂,田激旋,等.水稻高温白化复绿突变体tcd52的遗传分析和分子定位[J].上海师范大学学报(自然科学版),2022,51(2):243-250. |
LI J, ZHU M K, TIAN J X, et al.. Genetic analysis and molecular mapping of high-temperature albino regreen mutant tcd52 in rice [J]. J. Shanghai Normal Univ. (Nat. Sci.), 2022, 51(2): 243-250. | |
6 | 莫祎,孙志忠,丁佳,等.水稻白条纹叶突变体wsl1的遗传分析及基因精细定位[J].作物学报,2019,45(7):1050-1058. |
MO Y, SUN Z Z, DING J, et al.. Genetic analysis and fine mapping of white stripe leaf mutant wsl1 in rice [J]. Acta Agron. Sin., 2019, 45(7): 1050-1058. | |
7 | 鄢小青,陈能刚,李欢,等.水稻白条纹转绿突变体wsl887的鉴定和基因定位[J].核农学报, 2021, 35(11) : 2451-2462. |
YAN X Q, CHEN N G, LI H, et al.. Phenotypic identification and gene mapping of green revertible white-stripes mutant wsl887 in rice (Oryza sativa L.) [J]. J. Nucl. Agric. Sci., 2021, 35(11): 2451-2462. | |
8 | 郭均瑶,刘斌美,杨惠杰,等.水稻叶脉黄化突变体yml的遗传分析及基因定位[J].作物学报, 2022, 48(12): 3120-3129. |
GUO J Y, LIU B M, YANG H J, et al.. Genetic analysis and gene mapping of the yellow midrib leaf mutant (yml) in rice(Oryza sativa L.) [J]. Acta Agron. Sin., 2022, 48(12): 3120-3129. | |
9 | 李秦,杜何为.玉米叶色突变体研究进展[J].南方农业,2019,13(28):14-21, 7. |
LI Q, DU H W. Advances in research on maize leaf color mutants [J]. South Chin. Agric., 2019, 13(28): 14-21, 7. | |
10 | REINBOTHE S, REINBOTHE C, HOLTORF H, et al.. Two NADPH: protochlorophyllide oxidoreductases in barley: evidence for the selective disappearance of PORA during the light-induced greening of etiolated seedlings [J]. Plant Cell, 1995,7(11):1933-1940. |
11 | BUHR F, LAHROUSSI A, SPRINGER A, et al.. NADPH: protochlorophyllide oxidoreductase B (PORB) action in Arabidopsis thaliana revisited through transgenic expression of engineered barley PORB mutant proteins [J]. Plant Mol. Biol., 2017, 94(1-2):45-59. |
12 | XU D D, SUN D, DIAO Y L, et al.. Fast mapping of a chlorophyll b synthesis-deficiency gene in barley (Hordeum vulgare L.) via bulked-segregant analysis with reduced-representation sequencing [J]. Crop J., 2019, 7(1): 58-64. |
13 | MAHDI R, STUART D, HANSSON M, et al.. Heterologous expression of the barley (Hordeum vulgare L.) Xantha-f, -g and -h genes that encode magnesium chelatase subunits [J]. Protein J., 2020, 39(5):554-562. |
14 | LI M J, HENSEL G, MASCHER M, et al.. Leaf variegation and impaired chloroplast development caused by a truncated CCT domain gene in albostrians barley [J]. Plant Cell, 2019, 31(7) : 1430-1445. |
15 | LI M J, HENSEL G, MELZER M, et al.. Mutation of the ALBOSTRIANS ohnologous gene HvCMF3 impairs chloroplast development and thylakoid architecture in barley [J]. Front. Plant Sci., 2021, 12: 732608-732630. |
16 | LI M J, GUO G G, PIDON H, et al.. ATP-dependent Clp protease subunit C1, HvClpC1, is a strong candidate gene for barley variegation mutant luteostrians as revealed by genetic mapping and genomic re-sequencing [J/OL]. Front. Plant Sci., 2021,12:664085 [2022-11-16]. . |
17 | LANDAU A M, LOKSTEIN H, SCHELLER H V, et al.. A cytoplasmically inherited barley mutant is defective in photosystem Ⅰ assembly due to a temperature-sensitive defect in ycf3 splicing [J]. Plant Physiol., 2009, 151(4): 1802-1811. |
18 | LENCINA F, LANDAU A, PRINA A R. The barley chloroplast mutator (cpm) mutant: all roads lead to the Msh1 gene [J]. Int. J. Mol. Sci., 2022, 23(3):1814-1828. |
19 | BOSCO C D, BUSCONI M, GOVONI C, et al.. cor gene expression in barley mutants affected in chloroplast development and photosynthetic electron transport [J]. Plant Physiol., 2003,131(2):793-802. |
20 | QIN D D, DONG J, XU F C, et al.. Characterization and fine mapping of a novel barley stage green-revertible albino gene (HvSGRA) by bulked segregant analysis based on SSR assay and specific length amplified fragment sequencing [J]. BMC Genomics, 2015, 16: 838-851. |
21 | ROTASPERTI L, SANSONI F, MIZZOTTI C, et al.. Barley’s second spring as a model organism for chloroplast research [J]. Plants (Basel), 2020, 9(7): 803-826. |
22 | WANG R, YANG F, ZHANG X Q, et al.. Characterization of a thermo-inducible chlorophyll-deficient mutant in barley [J]. Front. Plant Sci., 2017, 8: 1936-1944. |
23 | 闫伟平,赵洪祥,张丽华,等.半干旱区温度变化对不同密度玉米植株光合作用的影响[J].吉林农业科学,2015,40(5):14-20. |
YAN W P, ZHAO H X, ZHANG L H, et al.. Effect of temperature changes rates of maize under different density in semiarid area [J]. Jilin Agric. Sci., 2015, 40(5): 14-20. | |
24 | 江华,师生波,许大全.冬季小麦叶片光合作用对温度响应方式的变化[J].植物生理学报,2000,26(1):70-75. |
JIANG H, SHI S B, XU D Q. Change in the pattern of photosynthetic response to temperature in wheat leaves in winter [J]. Plant Physiol. J., 2000, 26(1): 70-75. | |
25 | 杨淑巧,许琦,刘跃鹏,等.冬小麦光合作用和叶绿素荧光特性的研究[J].农学学报,2015,5(3):5-10. |
YANG S Q, XU Q, LIU Y P, et al.. Research on the photosynthesis and chlorophyll fluorspar characteristic of winter wheat [J]. J. Agric., 2015, 5(3): 5-10. | |
26 | 闫蓉,李凤霞,赵维忠,等.气象条件对水稻蒸腾速率的影响[J].宁夏农林科技,2005(2):7-8, 10. |
YAN R, LI F X, ZHAO W Z, et al.. Effect of meteorological conditions on transpiration rate of rice (Oryza sativa L.) [J]. Ningxia J. Agric. For., 2005 (2): 7-8, 10. | |
27 | 董树亭,胡昌浩,周关印.玉米叶片气孔导度、蒸腾和光合特性研究[J].玉米科学,1993,1(2):41-44. |
DONG S T, HU C H, ZHOU G Y. Stomatal conductance, transpiration and photosynthetic characteristics of maize leaves [J]. J. Maize Sci., 1993, 1(2): 41-44. | |
28 | 刘亮,郝立华,李菲,等. CO2浓度和温度对玉米光合性能及水分利用效率的影响[J].农业工程学报,2020,36(5):122-129. |
LIU L, HAO L H, LI F, et al.. Effects of CO2 concentration and temperature on leaf photosynthesis and water use efficiency in maize [J]. Trans. Chin. Soc. Agric. Eng., 2020, 36(5): 122-129. | |
29 | KUSUMI K, HIROTSUKA S, SHIMADA H, et al.. Contribution of chloroplast biogenesis to carbon-nitrogen balance during early leaf development in rice [J]. Plant Res., 2010, 123 (4): 617-622. |
30 | SUGIMOTO H, KUSUMI K, NOGUCHI K, et al.. The rice nuclear gene, VIRESCENT 2, is essential for chloroplast development and encodes a novel type of guanylate kinase targeted to plastids and mitochondria [J]. Plant J., 2007, 52 (3): 512-527. |
31 | HUANG W F, ZHANG Y, SHEN L Q, et al.. Accumulation of the RNA polymerase subunit RpoB depends on RNA editing by OsPPR16 and affects chloroplast development during early leaf development in rice [J]. New Phytol., 2020, 228(4): 1401-1416. |
32 | HEIN P, STÖCKEL J, BENNEWITZ S, et al.. A protein related to prokaryotic UMP kinases is involved in psaA/B transcript accumulation in Arabidopsis [J]. Plant Mol. Biol., 2009, 69 (5) : 517-528. |
33 | YANG S M, OVERLANDER M, FIEDLER J. Genetic analysis of the barley variegation mutant, grandpa1.a [J]. BMC Plant Biol., 2021, 21(1) : 134-144. |
